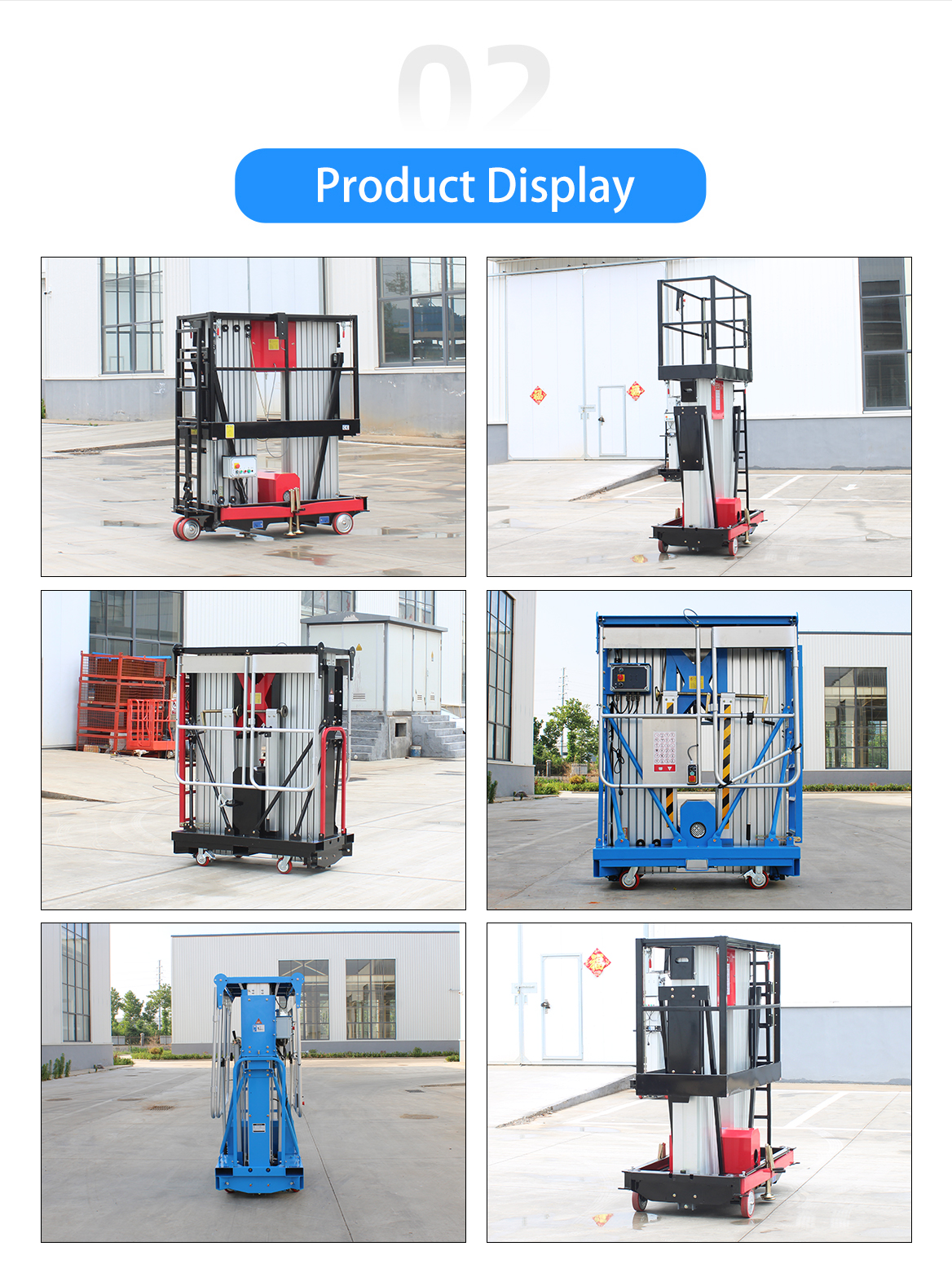

GTWY2 push around vertical lifts-one man lifts
GTWY2 push around vertical lifts-one man lifts 1
GTWY2 push around vertical lifts-one man lifts 2
GTWY2 push around vertical lifts-one man lifts 3
GTWY2 push around vertical lifts-one man lifts 4

GTWY2 push around vertical lifts-one man lifts

GTWY2 Push Type Vertical Lift - Single Person Lift is designed for single person aerial work, easy to operate and suitable for small spaces. It is widely used in construction, maintenance and cleaning and other fields, and can safely and efficiently lift operators, improve work efficiency and safety.

Overall Width:0.81m Overall Length:1.48m AC Motor:1.5KW DC motor:1.6KW Charger:12V/15A
  • Selling point
  • Configuration
  • Video Introduction
  • Relevant
  • Online message
We Accept:
GTWY2 push around vertical lifts-one man lifts

GTWY2 Push Type Vertical Lift - Single Person Lift is designed for single person aerial work, easy to operate and suitable for small spaces. It is widely used in construction, maintenance and cleaning and other fields, and can safely and efficiently lift operators, improve work efficiency and safety.

Overall Width:0.81m Overall Length:1.48m AC Motor:1.5KW DC motor:1.6KW Charger:12V/15A
  • GTWY2 PUSH AROUND VERTICAL LIFTS-ONE MAN LIFTS

     GTWY1 PUSH AROUND VERTICAL LIFTS-ONE MAN LIFTS

     GTWY1 PUSH AROUND VERTICAL LIFTS-ONE MAN LIFTS

     GTWY1 PUSH AROUND VERTICAL LIFTS-ONE MAN LIFTS

     GTWY1 PUSH AROUND VERTICAL LIFTS-ONE MAN LIFTS

  • ModelGTWY2-6GTWY2-8GTWY2-10GTWY2-12GTWY1-14GTWY2-16
    Platform





    Max. Working Height8m10m12m14m16m18m
    Max. Platform Height6m8m10m12m14m16m
    Loading Capacity250kg250kg250kg200kg200kg150kg
    Occupants222221
    Platform Dimension1.45m x 0.7m1.45m x 0.7m1.45m x 0.7m1.45m x 0.7m1.8m x 0.7m1.8m x 0.7m
    Overall Dimension





    Overall Height1.99m1.99m1.99m1.99m2.68m2.68m
    Overall Width0.81m0.81m0.81m0.81m0.81m0.81m
    Overall Length1.48m1.48m1.48m1.48m1.88m1.88m
    Outrigger coverage2.1m x 1.7m2.1m x 1.7m2.3m x 2.2m2.5m x 2.4m2.9m x2.4m2.9m x2.4m
    Weight





    AC610kg645kg715kg750kg892kg996kg
    DC660kg695kg765kg800kg942kg1046kg
    Power





    AC380V/220V/110V380V/220V/110V380V/220V/110V380V/220V/110V380V/220V/110V380V/220V/110V
    AC Motor1.5KW1.5KW1.5KW1.5KW1.5KW1.5KW
    DC2x12V2x12V2x12V2x12V2x12V2x12V
    DC motor1.6KW1.6KW1.6KW1.6KW1.6KW1.6KW
    Charger12V/15A12V/15A12V/15A12V/15A12V/15A12V/15A
