GTWY1 push around vertical lifts-one man lifts
GTWY1 push around vertical lifts-one man lifts 1
GTWY1 push around vertical lifts-one man lifts 2
GTWY1 push around vertical lifts-one man lifts 3
GTWY1 push around vertical lifts-one man lifts 4

GTWY1 push around vertical lifts-one man lifts

GTWY1 Push Type Vertical Lift - Single Person Lift is designed for single person aerial work, easy to operate and suitable for small spaces. It is widely used in construction, maintenance and cleaning and other fields, and can safely and efficiently lift operators, improve work efficiency and safety.

Platform Dimension:0.67m x 0.66m Overall Height:1.99m AC:380V/220V/110V AC Motor:0.75KW DC motor:1.3KW
  • Selling point
  • Configuration
  • Video Introduction
  • Relevant
  • Online message
We Accept:
GTWY1 push around vertical lifts-one man lifts

GTWY1 Push Type Vertical Lift - Single Person Lift is designed for single person aerial work, easy to operate and suitable for small spaces. It is widely used in construction, maintenance and cleaning and other fields, and can safely and efficiently lift operators, improve work efficiency and safety.

Platform Dimension:0.67m x 0.66m Overall Height:1.99m AC:380V/220V/110V AC Motor:0.75KW DC motor:1.3KW
  • GTWY1 PUSH AROUND VERTICAL LIFTS-ONE MAN LIFTS

     GTWY1 PUSH AROUND VERTICAL LIFTS-ONE MAN LIFTS

     GTWY1 PUSH AROUND VERTICAL LIFTS-ONE MAN LIFTS

     GTWY1 PUSH AROUND VERTICAL LIFTS-ONE MAN LIFTS

     GTWY1 PUSH AROUND VERTICAL LIFTS-ONE MAN LIFTS

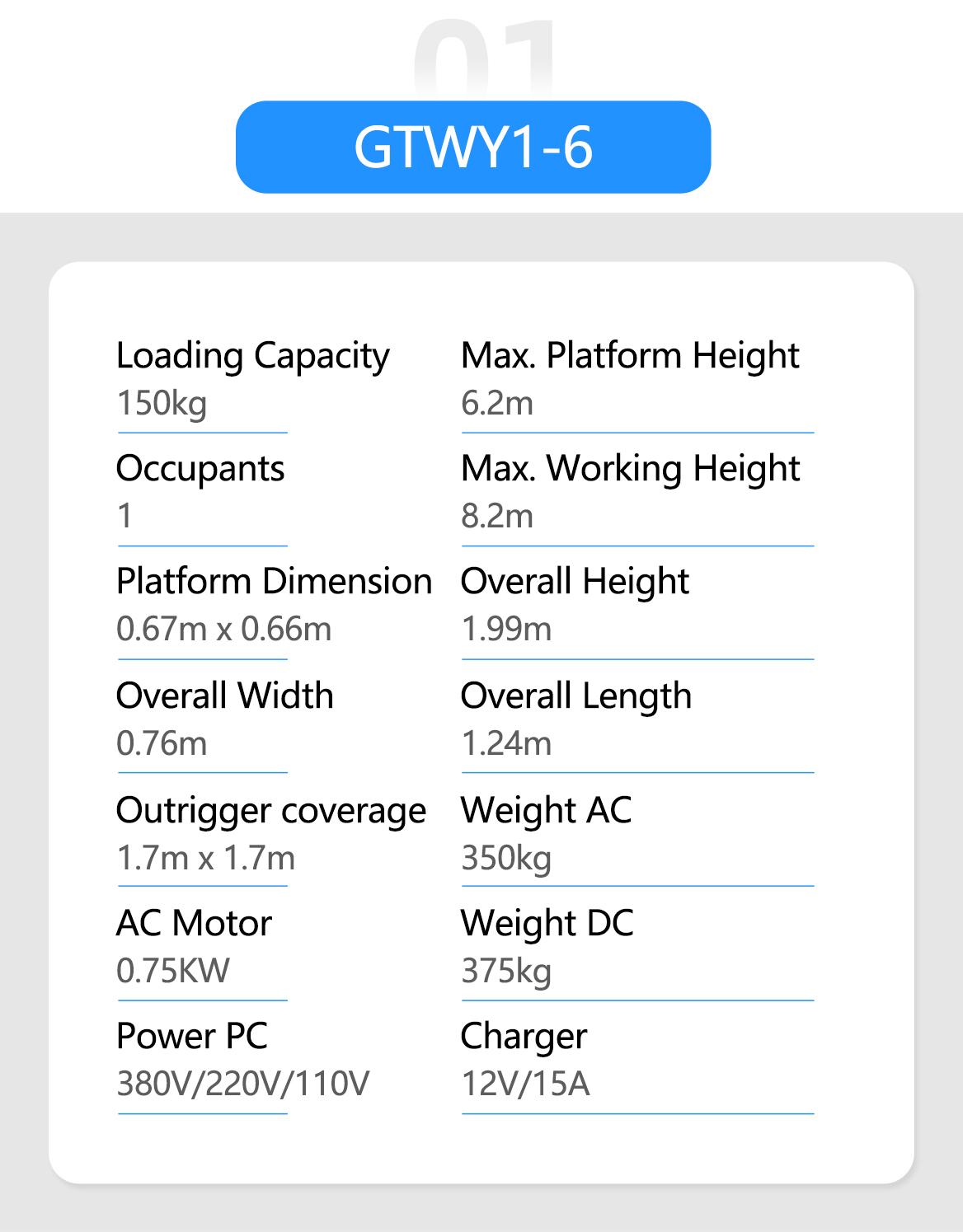

  • ModelGTWY1-6GTWY1-8GTWY1-9GTWY1-10GTWY1-12
    Platform




    Max. Working Height8.2m9.8m11.2m12.4m14m
    Max. Platform Height6.2m7.8m9.2m10.4m12m
    Loading Capacity150kg150kg150kg136kg120kg
    Occupants11111
    Platform Dimension0.67m x 0.66m0.67m x 0.66m0.67m x 0.66m0.67m x 0.66m0.67m x 0.66m
    Overall Dimension




    Overall Height1.99m1.99m1.99m1.99m2.68m
    Overall Width0.76m0.76m1.99m0.76m0.81m
    Overall Length1.24m1.24m1.4m1.42m1.46m
    Outrigger coverage1.7m x 1.7m1.7m x 1.7m1.8m x 1.8m1.9m x1.8m2m*1.9m
    Weight




    AC350kg350kg390kg420kg490kg
    DC375kg375kg415kg445kg515kg
    Power




    AC380V/220V/110V380V/220V/110V380V/220V/110V380V/220V/110V380V/220V/110V
    AC Motor0.75KW0.75KW0.75KW0.75KW0.75KW
    DC12V12V12V12V12V
    DC motor1.3KW1.3KW1.3KW1.3KW1.3KW
    Charger12V/15A12V/15A12V/15A12V/15A12V/15A
