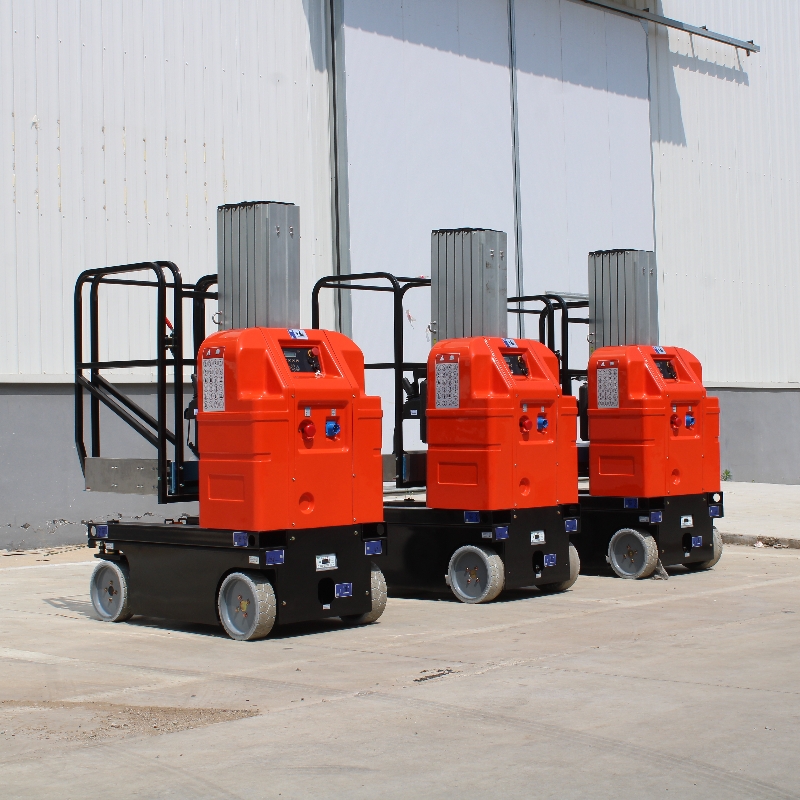

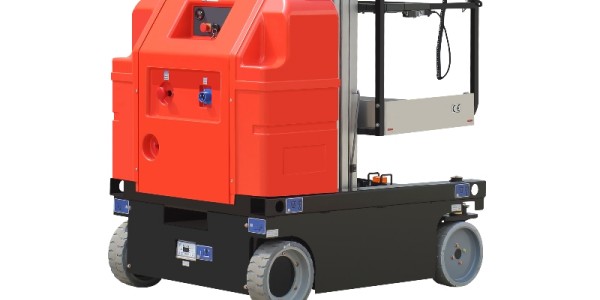

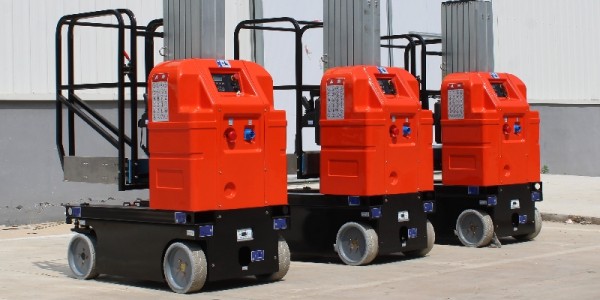

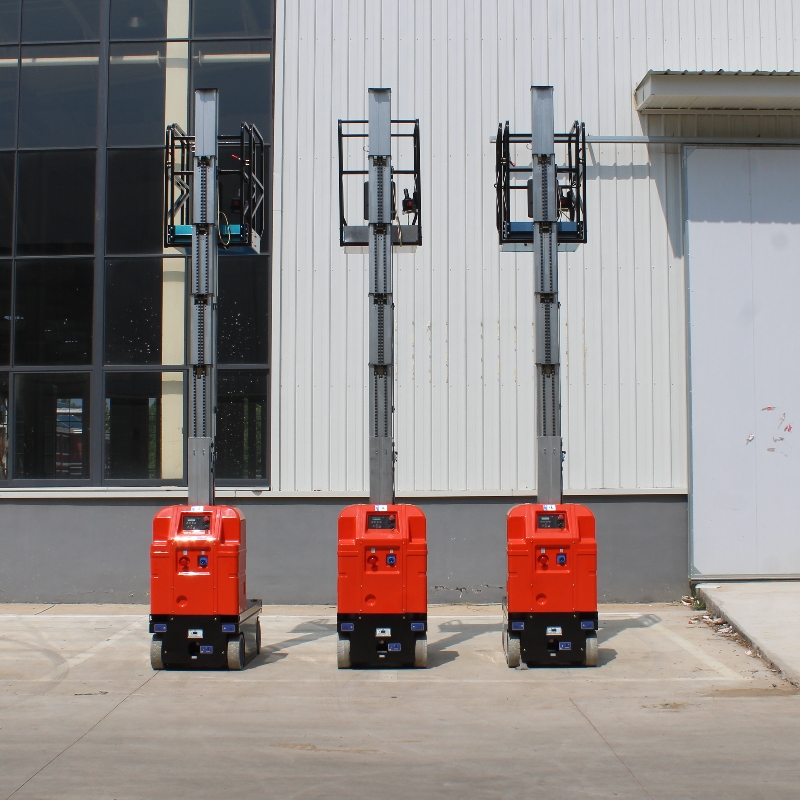

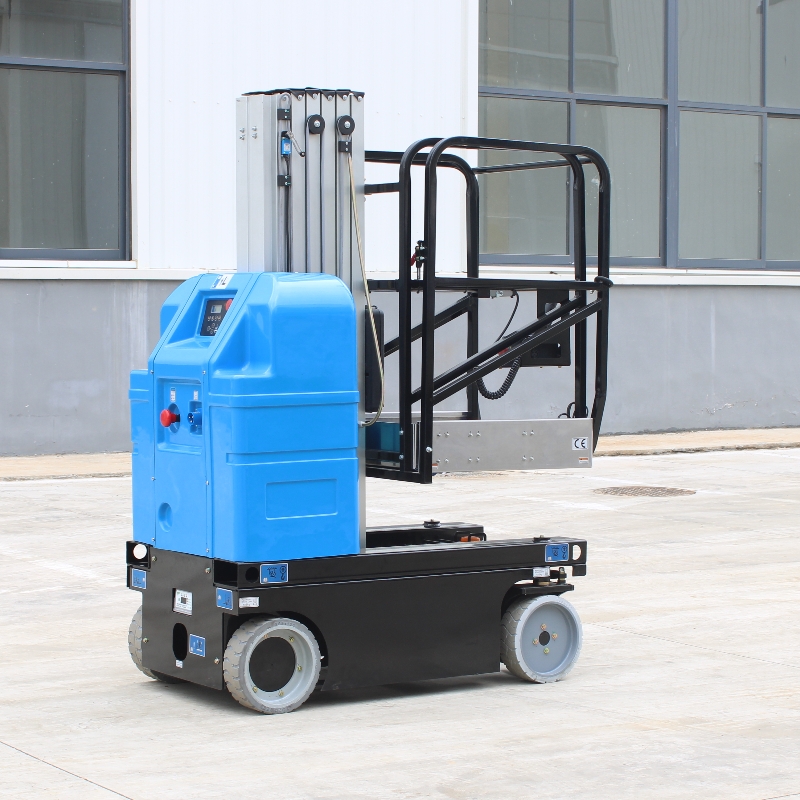

AMWP-1100 Self-propelled single mast verticallift
AMWP-1100 Self-propelled single mast verticallift1
AMWP-1100 Self-propelled single mast verticallift2
AMWP-1100 Self-propelled single mast verticallift3
AMWP-1100 Self-propelled single mast verticallift4

AMWP-1100 Self-propelled single mast verticallift

The AMWP-1100 self-propelled single-mast vertical lift is used for aerial work such as building maintenance, cleaning, and equipment installation. Its flexibility and mobility make it suitable for small spaces, capable of safely and efficiently lifting workers and tools, and is widely used in industry and construction.

Max. Working Height:8-9.5m Loading Capacity:125-150kg Overall Length:1.40m Overall Width:0.76m Overall Height:1.99m
  • Selling point
  • Configuration
  • Video Introduction

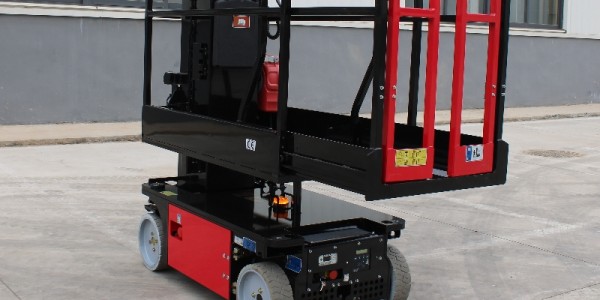

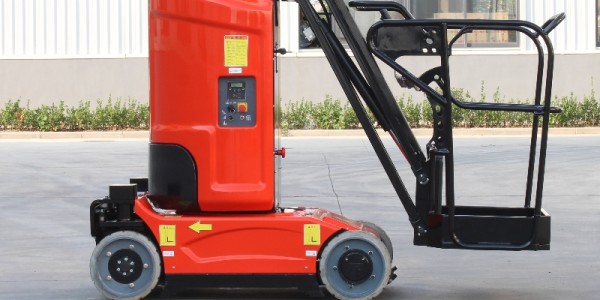

  • Relevant
  • Online message
We Accept:
AMWP-1100 Self-propelled single mast verticallift

The AMWP-1100 self-propelled single-mast vertical lift is used for aerial work such as building maintenance, cleaning, and equipment installation. Its flexibility and mobility make it suitable for small spaces, capable of safely and efficiently lifting workers and tools, and is widely used in industry and construction.

Max. Working Height:8-9.5m Loading Capacity:125-150kg Overall Length:1.40m Overall Width:0.76m Overall Height:1.99m
  • AMWP-1100 Self-propelled single mast verticallift

    AMWP-1100 Self-propelled single mast verticallift

    AMWP-1100 Self-propelled single mast verticallift

    AMWP-1100 Self-propelled single mast verticallift

    AMWP-1100 Self-propelled single mast verticallift

  • ModelAMWP6-1100AMWP7.5-1100
    Max. Working Height8.00m9.50m
    Max. Platform Height6.00m4.46m
    Loading Capacity150kg125kg
    Occupants11
    Overall Length1.40m1.40m
    Overall Width0.76m0.76m
    Overall Height1.99m1.99m
    Platform Dimension0.66m×0.67m 0.66m×0.67m
    Wheel Base1.14m1.14m
    Turning Radius00
    Travel Speed(Stowed)3.5km/h4km/h
    Travel Speed(Raised)0.8km/h1.1km/h
    Up/Down Speed48/40sec53/45sec
    Gradeability0.250.25
    Drive TyresΦ305×100mmΦ305×100mm
    Drive Motors 2×24VDC/0.5kW2×24VDC/0.5kW
    Lifting Motor24VDC/1.3kW24VDC/1.3kW
    Battery2×12V/100Ah 2×12V/100Ah
    Charger24V/15A24V/15A
    Weight 1120kg1190kg
