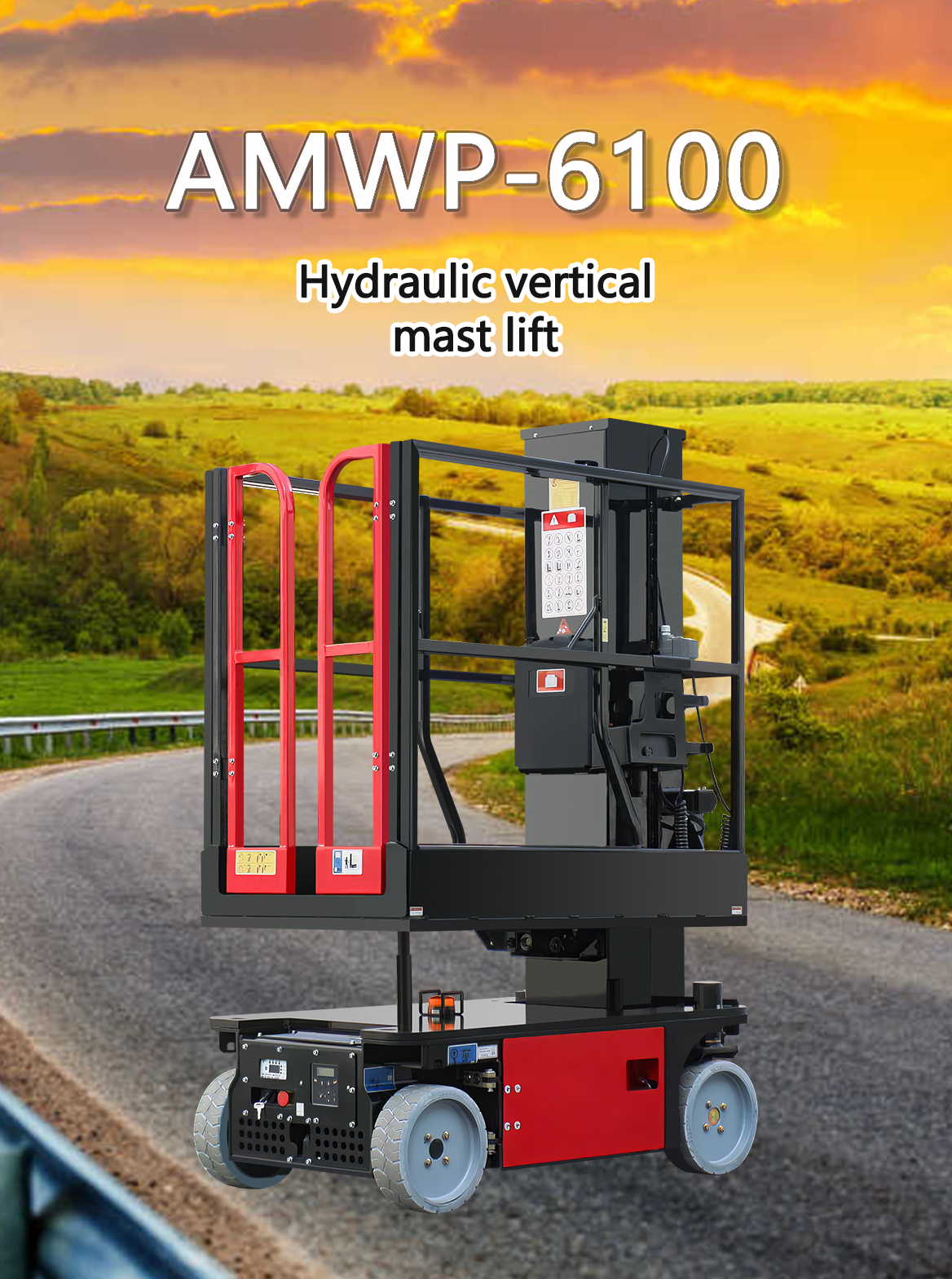

AMWP-6100 Hydraulic vertical mast lift

AMWP-6100 hydraulic vertical mast lift is mainly used for aerial work, using hydraulic system to achieve smooth lifting. It is widely used in construction, maintenance and warehousing, etc., and can safely and efficiently lift people and heavy objects, improving work efficiency and safety.

Overall Length：1.36m Platform Dimension： 1.28m×0.70m Ext. Platform Length：0.51m Wheel Base：1.04m Outer Turning ：1.4m

AMWP-6100 hydraulic vertical mast lift is mainly used for aerial work, using hydraulic system to achieve smooth lifting. It is widely used in construction, maintenance and warehousing, etc., and can safely and efficiently lift people and heavy objects, improving work efficiency and safety.

Overall Length：1.36m Platform Dimension： 1.28m×0.70m Ext. Platform Length：0.51m Wheel Base：1.04m Outer Turning ：1.4m

Model	AMWP3.6-6100	AMWP4.8-6100	AMWP6-6100
Max. Working Height	5.6m	6.8m	8m
Max. Platform Height	3.6m	4.8m	6m
Loading Capacity	227kg	227kg	159kg
Ext. Platform Capacity	114kg	114kg	114kg
Overall Length	1.36m	1.36m	1.36m
Overall Width	0.76m	0.76m	0.81m
Overall Height	1.7m	1.98m	1.98m
Platform Dimension	1.28m×0.70m	1.28m×0.70m	1.28m×0.70m
Ext. Platform Length	0.51m	0.51m	0.51m
Wheel Base	1.04m	1.04m	1.04m
Inner Turning Radius	0m	0m	0m
Outer Turning Radius	1.4m	1.4m	1.4m
Travel Speed(Stowed)	4km/h	4km/h	4km/h
Travel Speed(Raised)	1.1km/h	1.1km/h	1.1km/h
Up/Down Speed	31/32sec	41.5/42sec	52/53sec
Gradeability	0.25	25%	25%
Drive Tyres	Φ305×100mm	Φ305×100mm	Φ305×100mm
Drive Motors	2×24VDC/0.5kW	2×24VDC/0.5kW	2×24VDC/0.5kW
Lifting Motor	24VDC/1.2kW	24VDC/1.2kW	24VDC/1.2kW
Battery	2×12V/100Ah	2×12V/100Ah	2×12V/100Ah
Charger	24V/15A	24V/15A	24V/15A
Weight	810kg	980kg	1060kg

Model	AMWP3.6-6100	AMWP4.8-6100	AMWP6-6100
Max. Working Height	5.6m	6.8m	8m
Max. Platform Height	3.6m	4.8m	6m
Loading Capacity	227kg	227kg	159kg
Ext. Platform Capacity	114kg	114kg	114kg
Overall Length	1.36m	1.36m	1.36m
Overall Width	0.76m	0.76m	0.81m
Overall Height	1.7m	1.98m	1.98m
Platform Dimension	1.28m×0.70m	1.28m×0.70m	1.28m×0.70m
Ext. Platform Length	0.51m	0.51m	0.51m
Wheel Base	1.04m	1.04m	1.04m
Inner Turning Radius	0m	0m	0m
Outer Turning Radius	1.4m	1.4m	1.4m
Travel Speed(Stowed)	4km/h	4km/h	4km/h
Travel Speed(Raised)	1.1km/h	1.1km/h	1.1km/h
Up/Down Speed	31/32sec	41.5/42sec	52/53sec
Gradeability	0.25	25%	25%
Drive Tyres	Φ305×100mm	Φ305×100mm	Φ305×100mm
Drive Motors	2×24VDC/0.5kW	2×24VDC/0.5kW	2×24VDC/0.5kW
Lifting Motor	24VDC/1.2kW	24VDC/1.2kW	24VDC/1.2kW
Battery	2×12V/100Ah	2×12V/100Ah	2×12V/100Ah
Charger	24V/15A	24V/15A	24V/15A
Weight	810kg	980kg	1060kg
