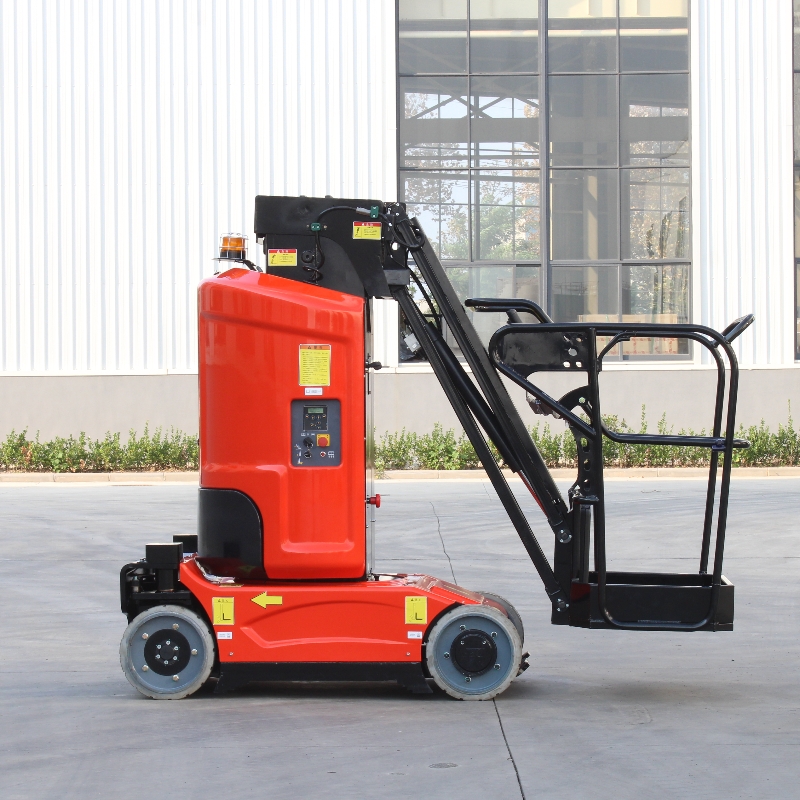

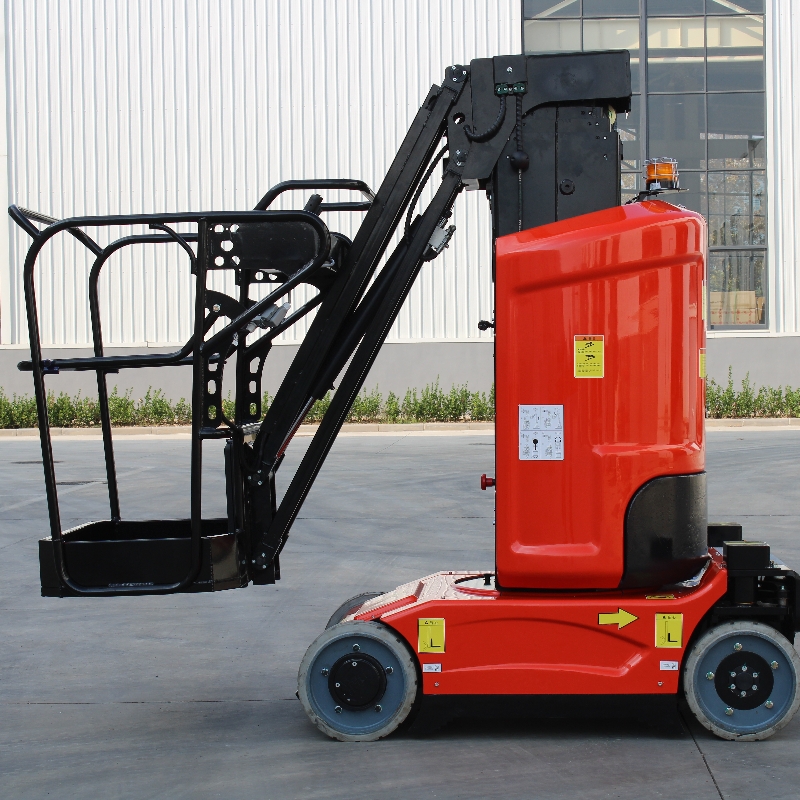

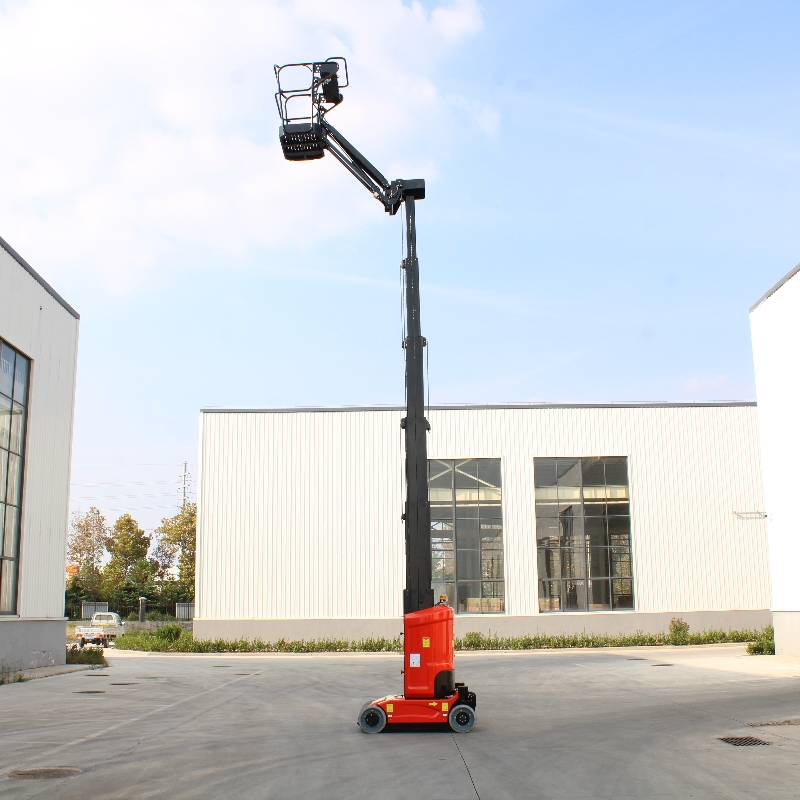

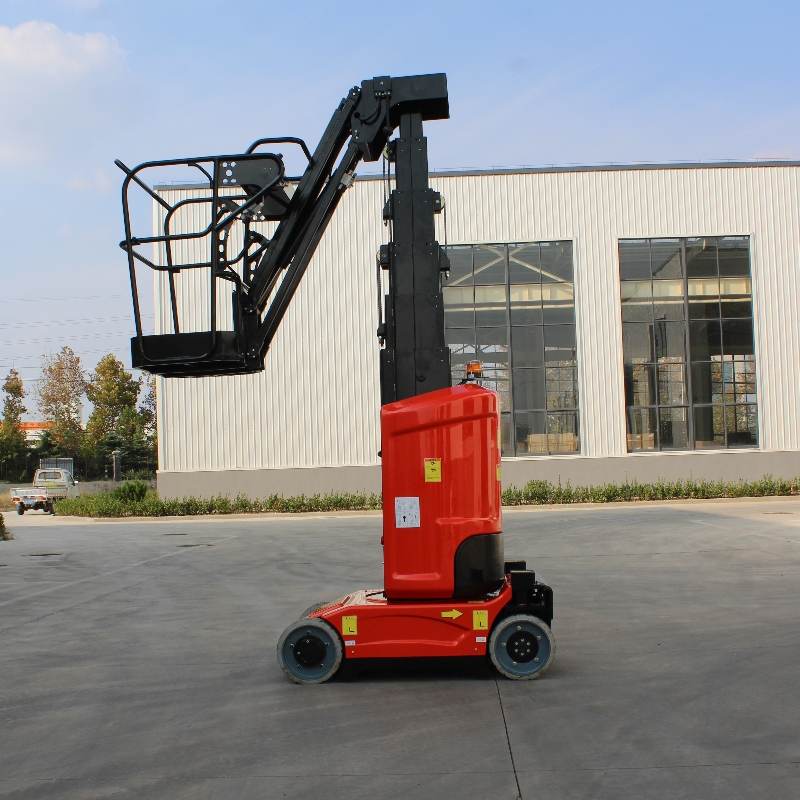

AMWP-8100 Vertical telescopic mast lift with arm

AMWP-8100 vertical telescopic mast lift (with arm) is mainly used for aerial work. It has a telescopic arm function and can flexibly reach different heights and angles. It is widely used in construction, maintenance and installation, etc., improving work efficiency and safety.

Max. Working ：11.2m Max. Platform ：9.2m Max. Horizontal ：3m Up and Over ：7.89m guardrail height：1.1m

AMWP-8100 vertical telescopic mast lift (with arm) is mainly used for aerial work. It has a telescopic arm function and can flexibly reach different heights and angles. It is widely used in construction, maintenance and installation, etc., improving work efficiency and safety.

Max. Working ：11.2m Max. Platform ：9.2m Max. Horizontal ：3m Up and Over ：7.89m guardrail height：1.1m

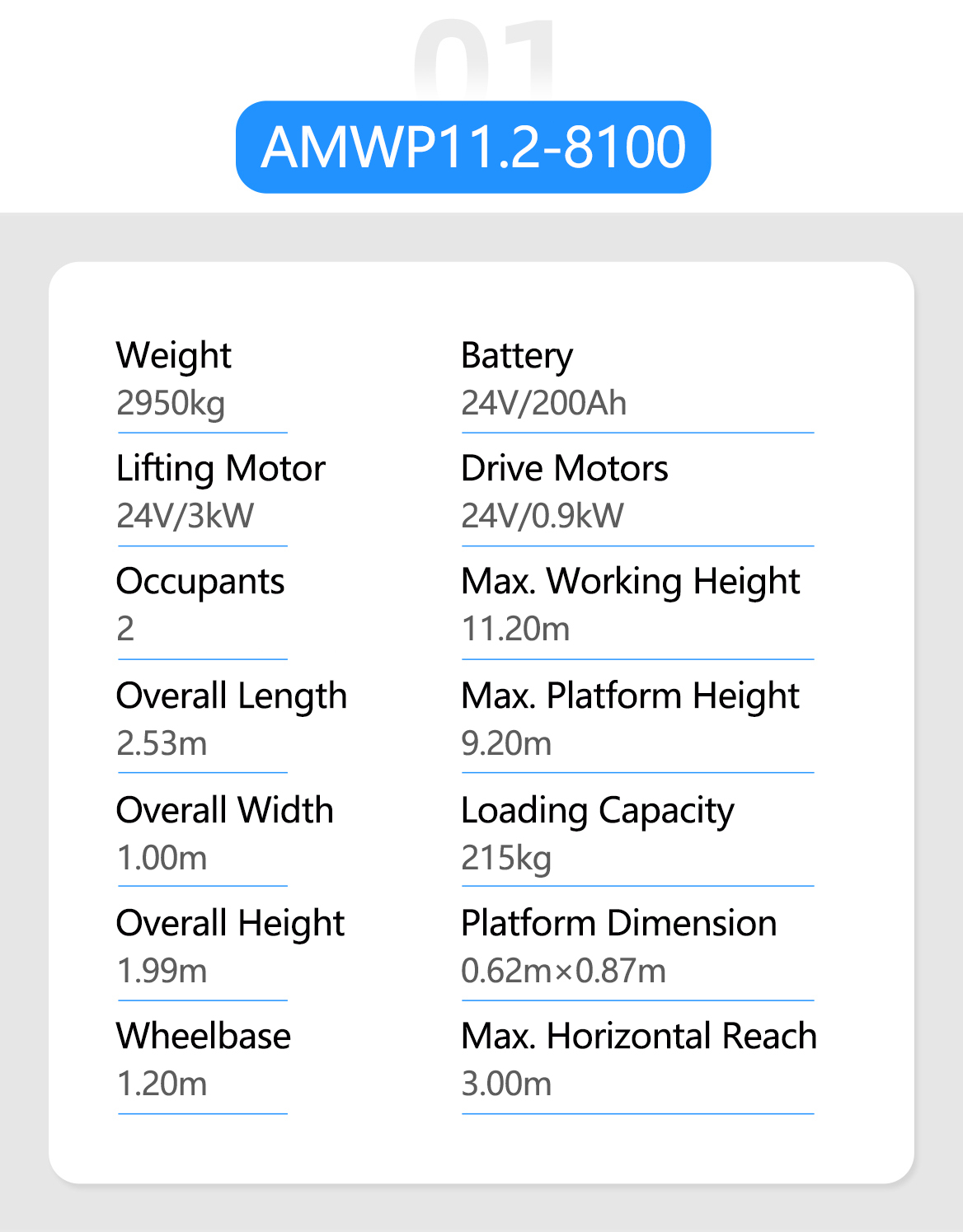

Model	AMWP11.2-8100
Max. Working Height	11.2m
Max. Platform Height	9.2m
Max. Horizontal Reach	3m
Up and Over Height	7.89m
guardrail height	1.1m
Overall Length	2.53m
Overall Width	1.0m
Overall Height（stowed)	1.99m
Platform Dimension	0.62*0.87m
Ground Clearance(Stowed)	70mm
Ground Clearance(Raised)	19mm
Wheelbase	1.22m
Loading capacity	200kg
Occupants	2
Turning Radius(Inside/Outside)	0.23/1.65m
Turret Rotation	345°
Jib Movement	130°
Travel Speed(Stowed)	4.5km/h
Travel Speed(Raised)	0.5km/h
Up/Down Speed	42/38s
Max. Working Slope	X-2.5°，Y-2.5°
Tires	Ф381*127mm
Driving Motor	24V/1.5kW
Lifting Motor	24V/3kW
Battery	24V/240Ah
Charger	24V/30A
Weight	2950kg

Model	AMWP11.2-8100
Max. Working Height	11.2m
Max. Platform Height	9.2m
Max. Horizontal Reach	3m
Up and Over Height	7.89m
guardrail height	1.1m
Overall Length	2.53m
Overall Width	1.0m
Overall Height（stowed)	1.99m
Platform Dimension	0.62*0.87m
Ground Clearance(Stowed)	70mm
Ground Clearance(Raised)	19mm
Wheelbase	1.22m
Loading capacity	200kg
Occupants	2
Turning Radius(Inside/Outside)	0.23/1.65m
Turret Rotation	345°
Jib Movement	130°
Travel Speed(Stowed)	4.5km/h
Travel Speed(Raised)	0.5km/h
Up/Down Speed	42/38s
Max. Working Slope	X-2.5°，Y-2.5°
Tires	Ф381*127mm
Driving Motor	24V/1.5kW
Lifting Motor	24V/3kW
Battery	24V/240Ah
Charger	24V/30A
Weight	2950kg
