Hydraulic Hammer have become an important tool for hydraulic excavators, and some people have installed hydraulic Hammer on backhoe loaders (also known as two-headed) or wheel loaders for crushing operations. Hydraulic Hammer, also known as hydraulic Hammer or hydraulic breaker., which can be widely used in engineering construction, mining, road breaking, etc.

Total Weight:60kg Rate:500-1200bpm Chisel Diameter:35mm Suitable Weight:0.6-1.5T Working Pressure:80-110kg/cm²
  • Selling point
  • Adapted Model
  • Video Introduction
  • Relevant
  • Online message
We Accept:
Hydraulic Hammer

Hydraulic Hammer have become an important tool for hydraulic excavators, and some people have installed hydraulic Hammer on backhoe loaders (also known as two-headed) or wheel loaders for crushing operations. Hydraulic Hammer, also known as hydraulic Hammer or hydraulic breaker., which can be widely used in engineering construction, mining, road breaking, etc.

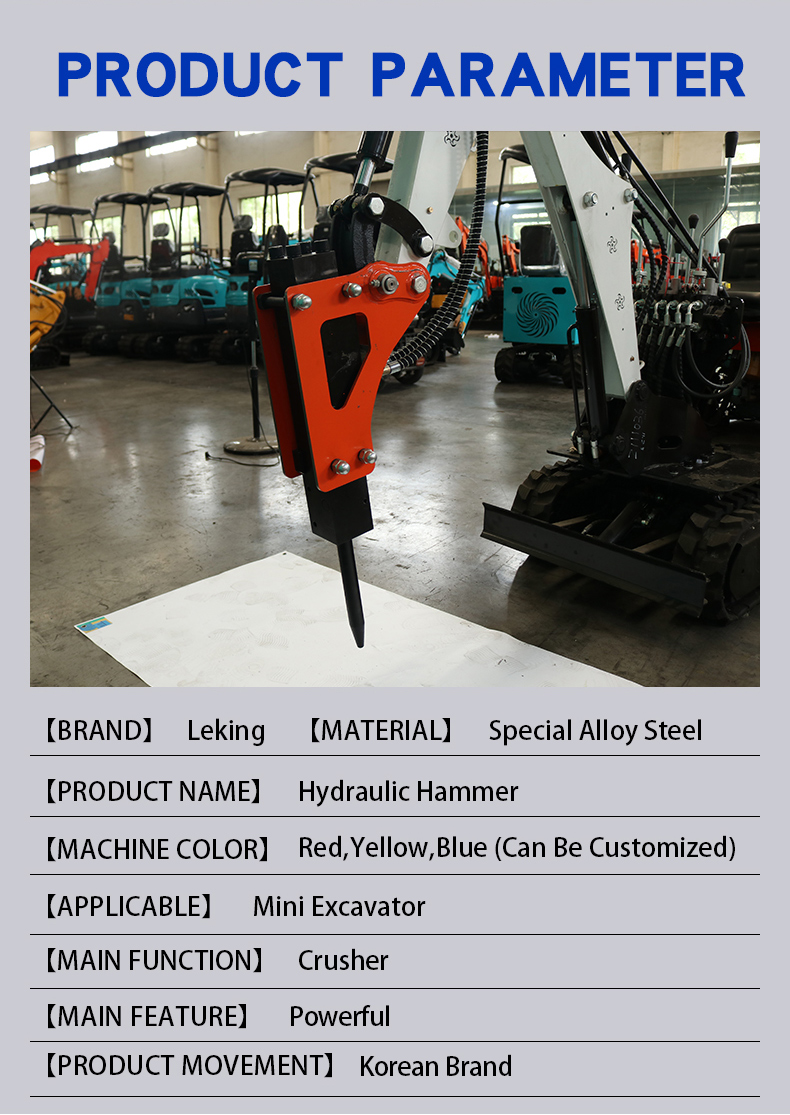

Total Weight:60kg Rate:500-1200bpm Chisel Diameter:35mm Suitable Weight:0.6-1.5T Working Pressure:80-110kg/cm²
  • Hydraulic Hammer Size Details

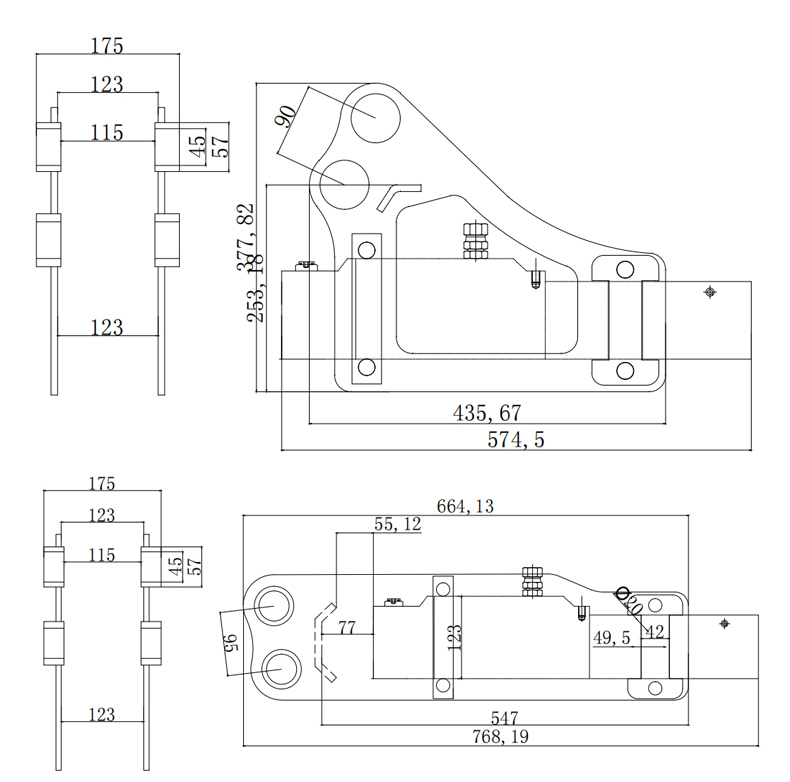

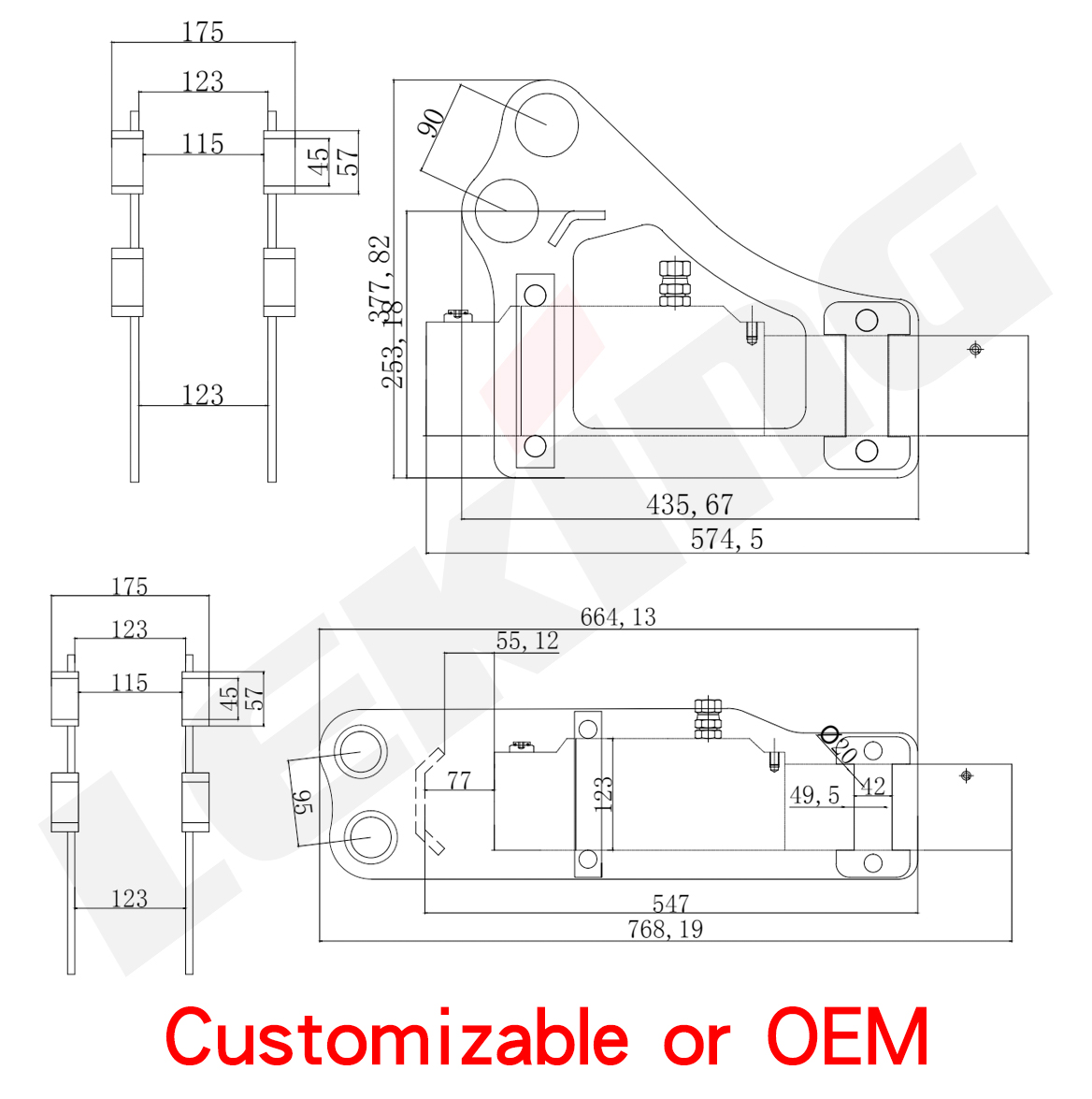

    Hydraulic Hammer Size Details

    Hydraulic Hammer have become an important tool for hydraulic excavators, and some people have installed hydraulic Hammer on backhoe loaders (also known as two-headed) or wheel loaders for crushing operations. Hydraulic Hammer, also known as hydraulic Hammer or hydraulic breaker., which can be widely used in engineering construction, mining, road breaking, etc.

    1.Hydraulic Hammer Classification
    There are many types of hydraulic Hammer, and there are many classification methods.

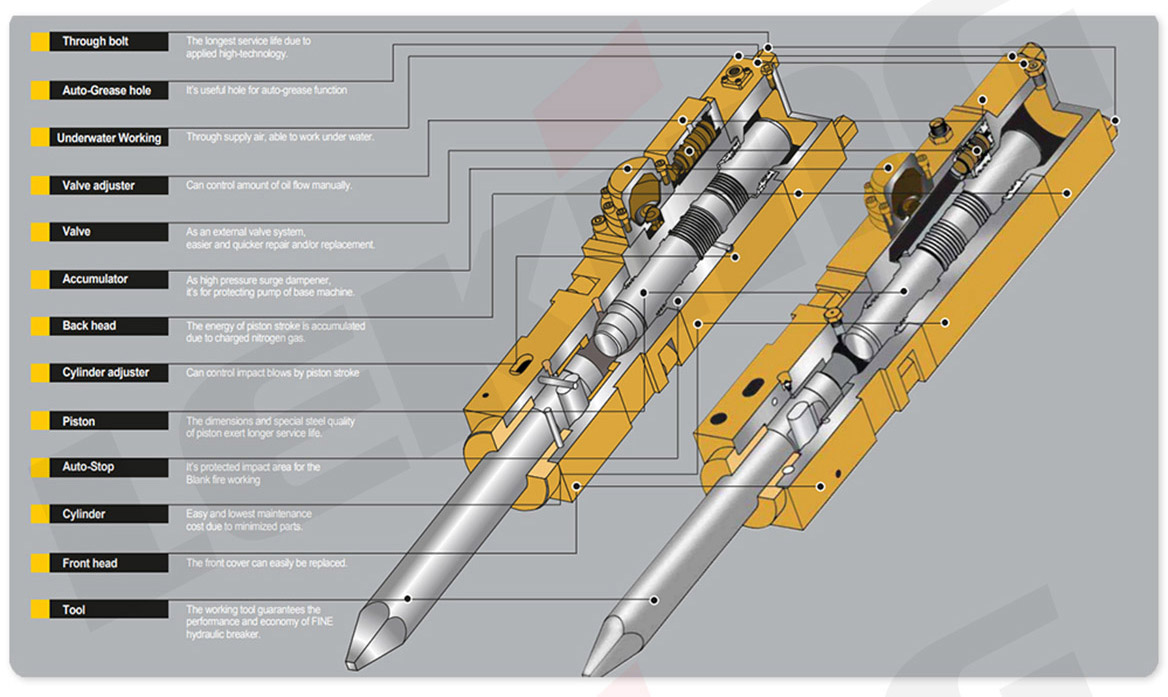

    Classification according to the operation mode: hydraulic Hammer are divided into two categories: hand-held and air-borne. Classification according to the working principle: Hydraulic Hammer are divided into three categories: full hydraulic type, liquid-gas combined type and nitrogen explosion type. The liquid-gas combination type relies on hydraulic oil and compressed nitrogen at the rear to expand and push the piston to work at the same time. Most of the crushers belong to this type of products; according to the structure of the distribution valve: hydraulic crushers are divided into two types: built-in valve type and external valve type .

    In addition, there are various other classification methods, such as stroke feedback type and pressure feedback type Hammer according to the feedback method;

    ·Divided into low-noise type and standard type crushers according to the size of the noise;

    ·According to the shell form, it can be divided into triangular and tower crushers;

    ·According to the shell structure, it can be divided into plywood type and box frame type crusher and so on.

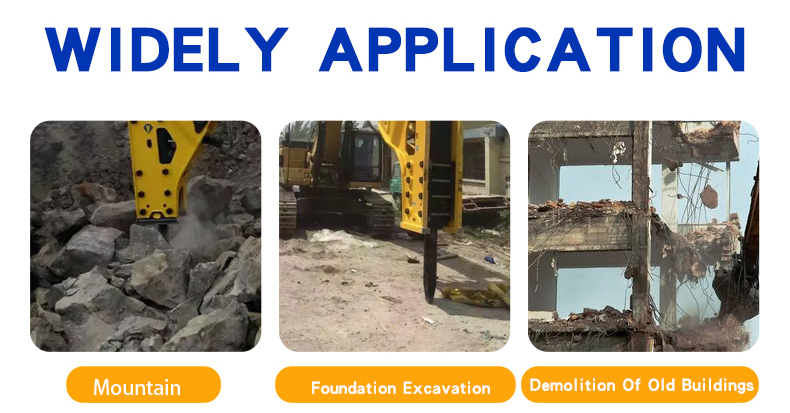

    2.Hydraulic Hammer Application

    Mining

    Mountain opening, mining, grid screen crushing, secondary crushing

    Metallurgy

    Ladle, slag cleaning, furnace dismantling, equipment foundation dismantling

    Railway

    Mountain opening, tunneling, road and bridge demolition, roadbed consolidation

    Highway

    Highway repair, cement pavement crushing, foundation excavation

    Municipal Garden

    Concrete crushing, water, electricity, gas engineering construction, old city renovation

    Architecture

    Demolition of old buildings, broken reinforced concrete

    Ship

    Hull removal of mussels and rust

    Other

    Ice breaking, frozen soil breaking, sand vibrating
