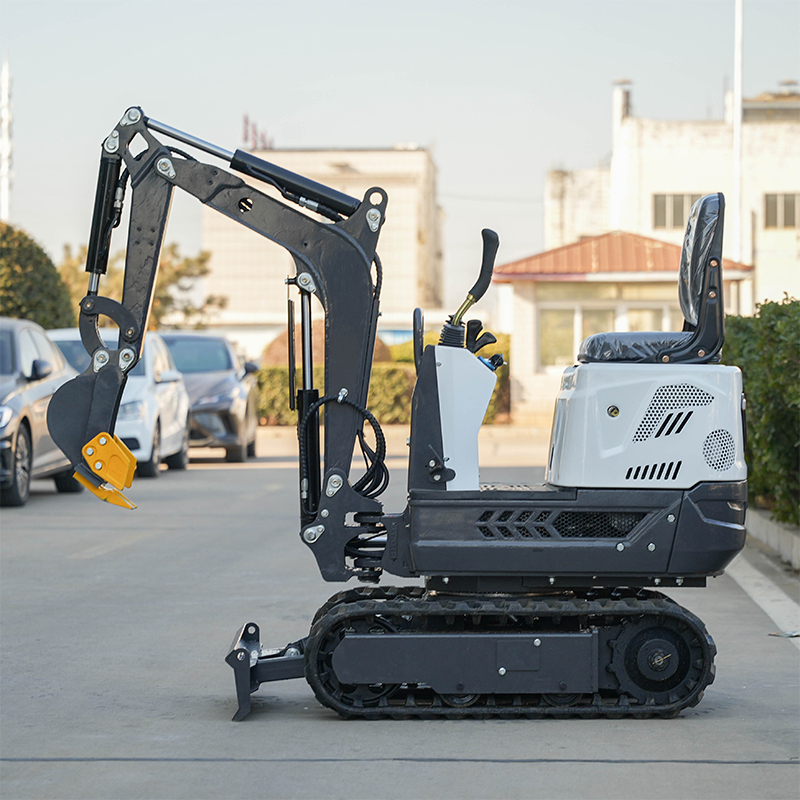

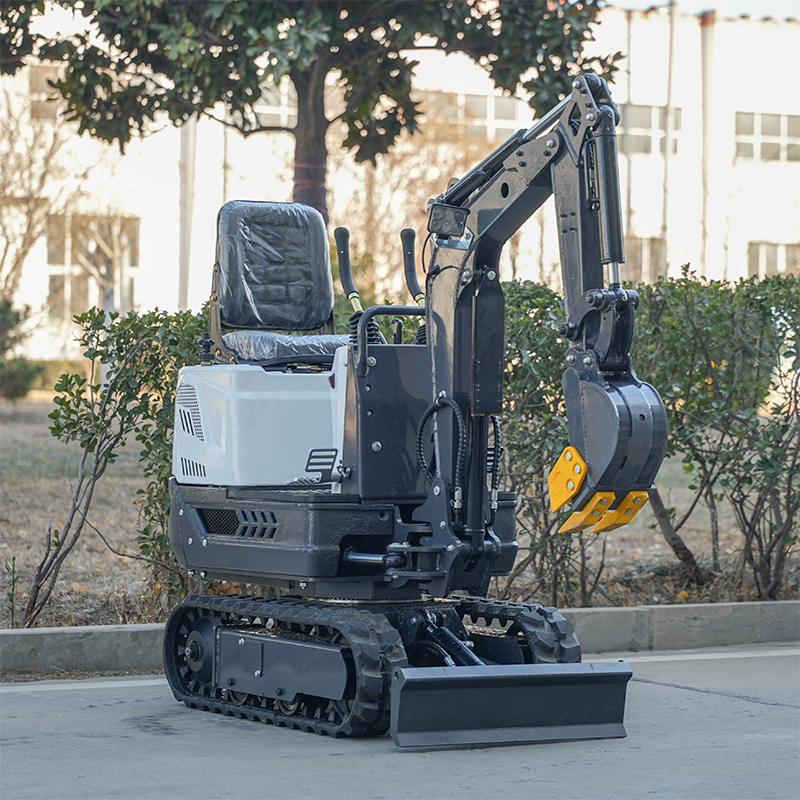

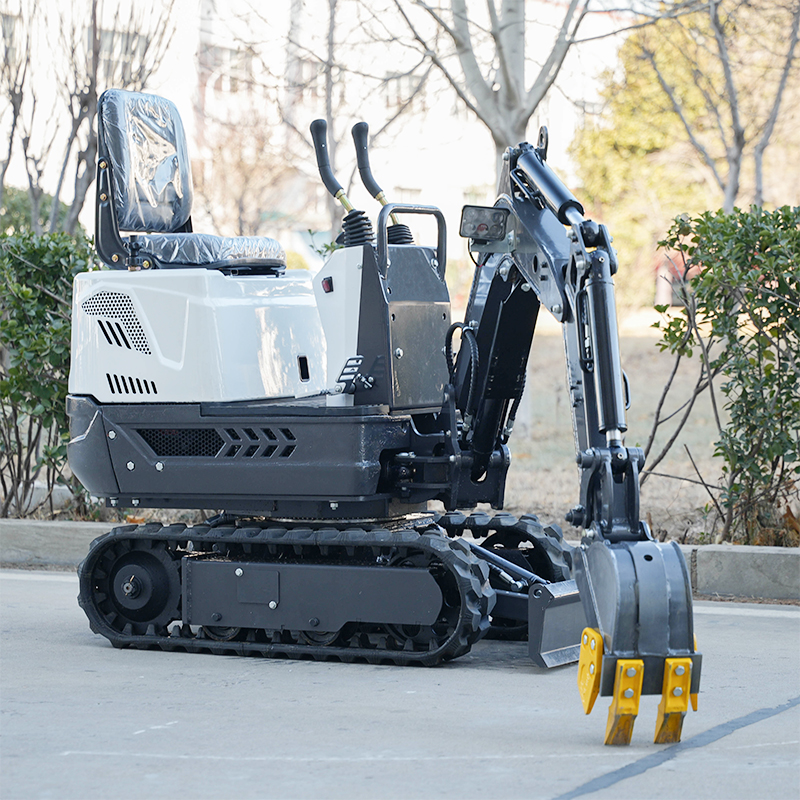

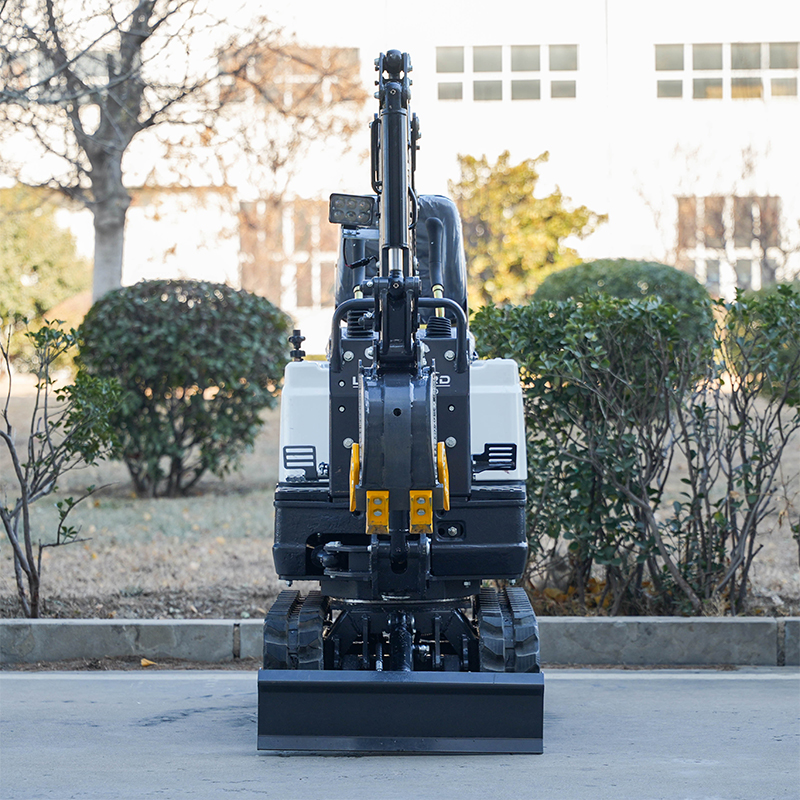

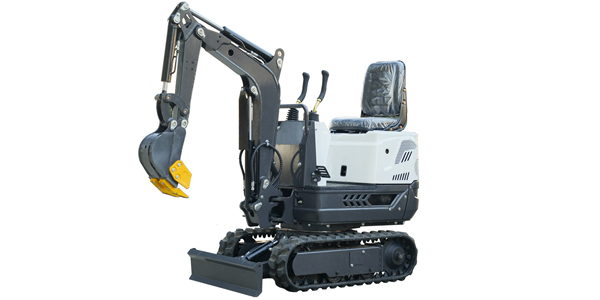

Mini Excavator-KV06

The entire vehicle adopts a molded appearance,which is durable and in line with public aesthetics.It is also convenient for maintenance and repair.The entire vehicle is made of 0355 manganese steel plate,Double gear pump and the action is soft and efficient.

Weight：650Kg Engine：Loncin G300 Pump：Double gear pump Overall length：1866mm Overall width：690mm

Mini Excavator-KV06

The entire vehicle adopts a molded appearance,which is durable and in line with public aesthetics.It is also convenient for maintenance and repair.The entire vehicle is made of 0355 manganese steel plate,Double gear pump and the action is soft and efficient.

Weight：650Kg Engine：Loncin G300 Pump：Double gear pump Overall length：1866mm Overall width：690mm

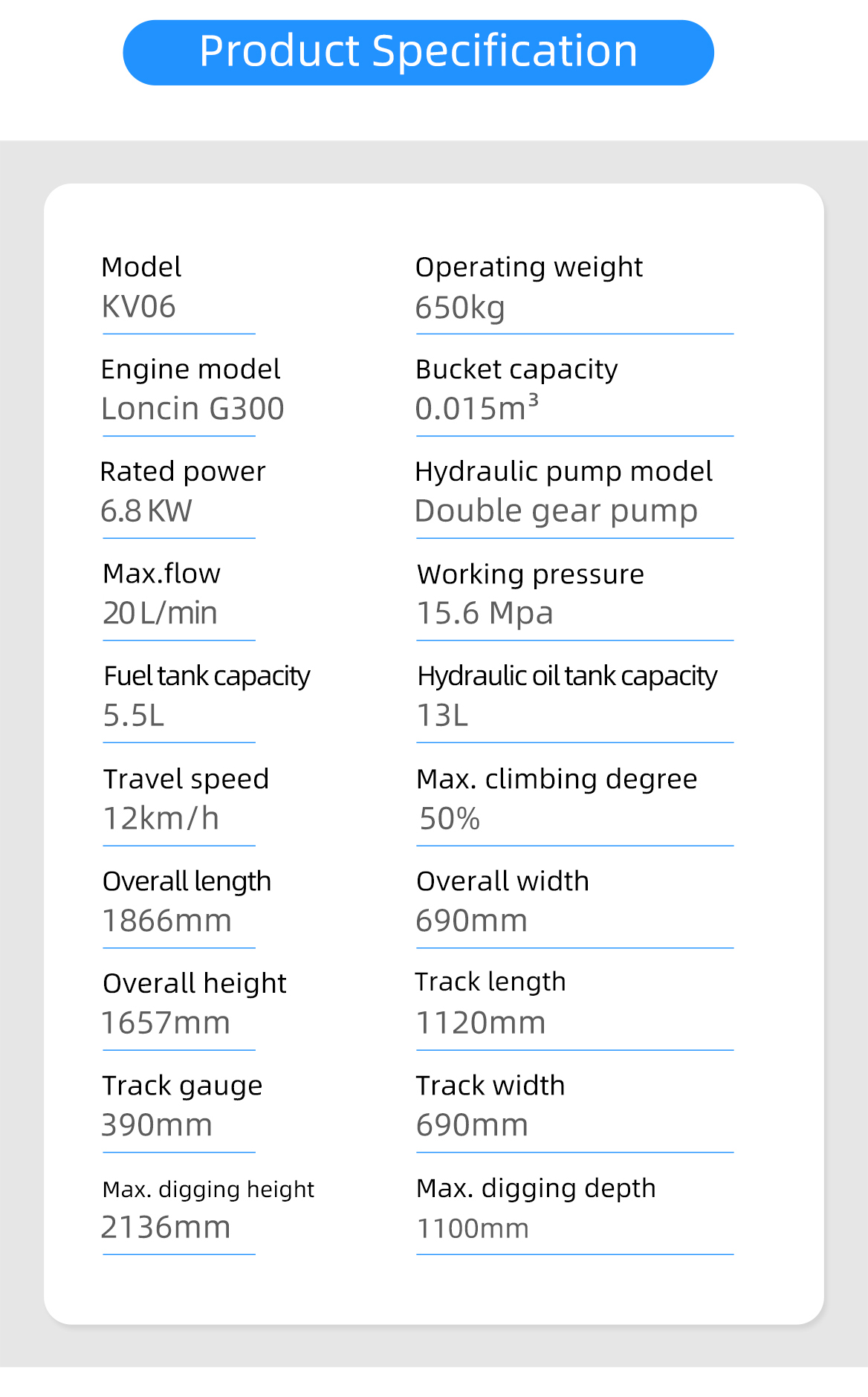

Model	KV06	Operating weight	650KG	Bucket capacity	0.015m³
Engine model	Loncin G300	Rated power	6.8kW/3600rpm	Hydraulic pump model	Double gear pump
Max.flow	20L/min	Working pressure	15.6Mpa	Fuel tank capacity	5.5L
Travel speed	2km/h	Max. climbing degree	50%	Overall length	1866mm
Overall width	690mm	Overall height (to top of boom)	1657mm	Track length	1120mm
Max. digging height	2136mm	Max. dumping height	1408mm	Max. digging depth	1100mm

Model	KV06	Operating weight	650KG	Bucket capacity	0.015m³
Engine model	Loncin G300	Rated power	6.8kW/3600rpm	Hydraulic pump model	Double gear pump
Max.flow	20L/min	Working pressure	15.6Mpa	Fuel tank capacity	5.5L
Travel speed	2km/h	Max. climbing degree	50%	Overall length	1866mm
Overall width	690mm	Overall height (to top of boom)	1657mm	Track length	1120mm
Max. digging height	2136mm	Max. dumping height	1408mm	Max. digging depth	1100mm
