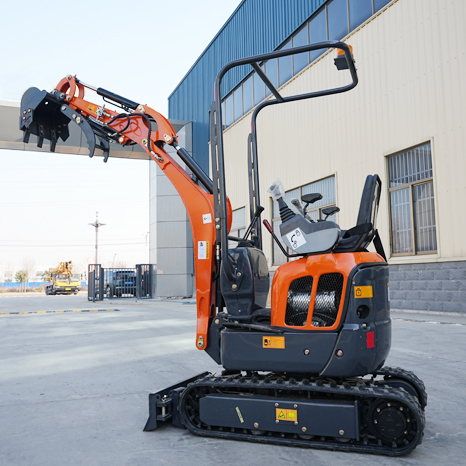

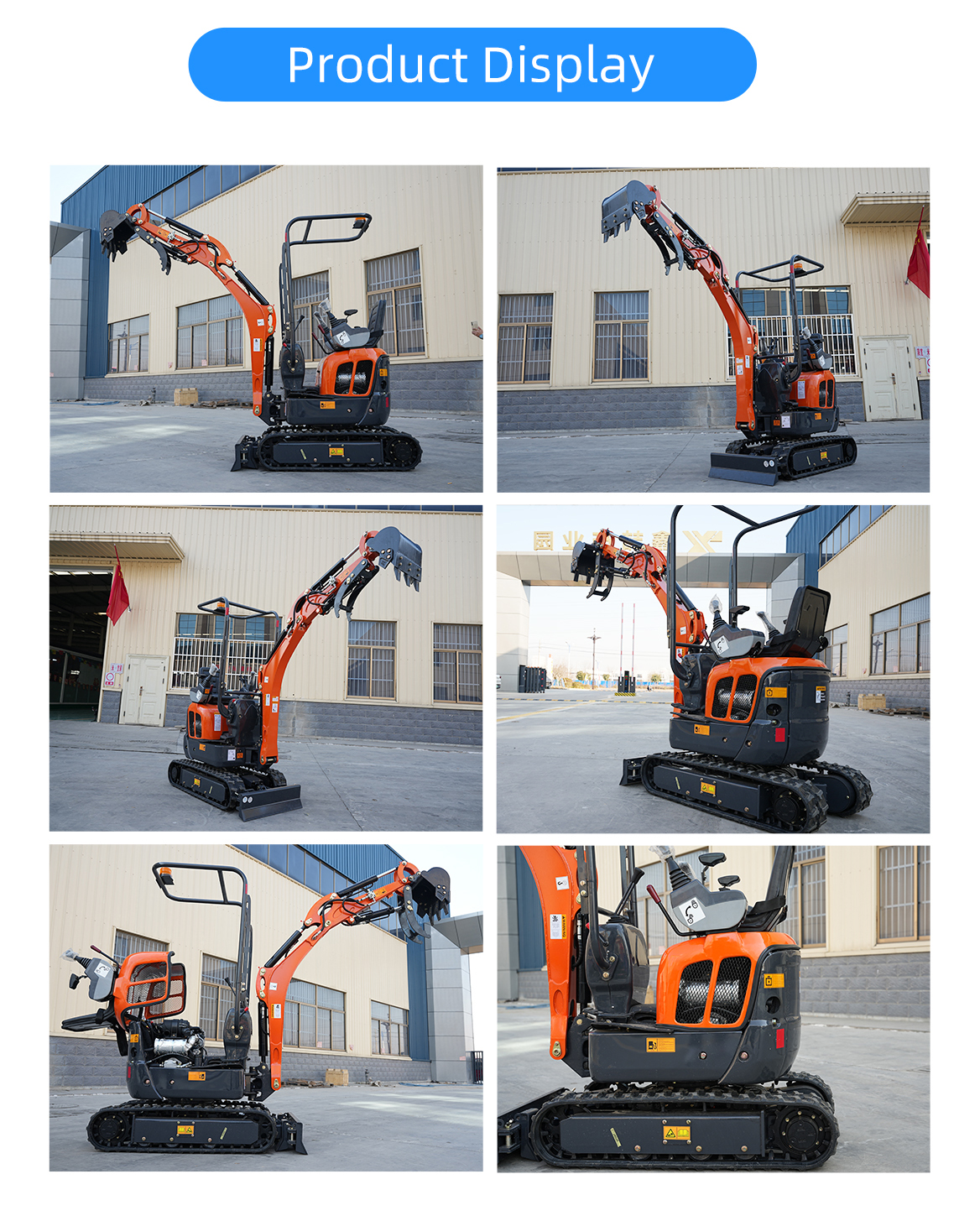

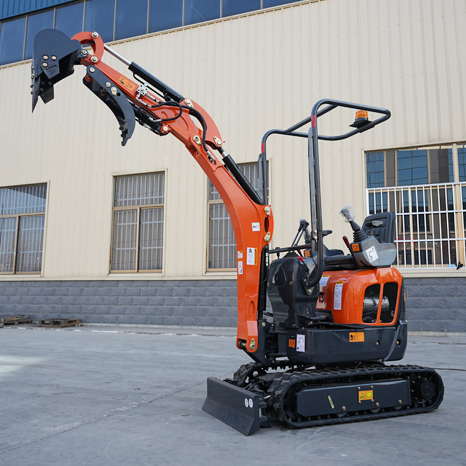

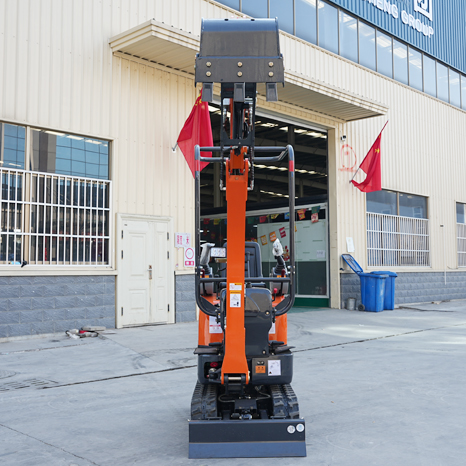

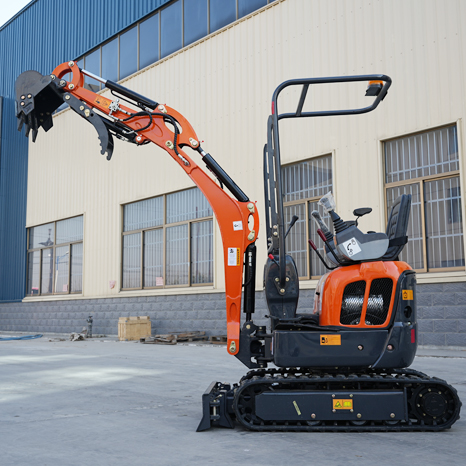

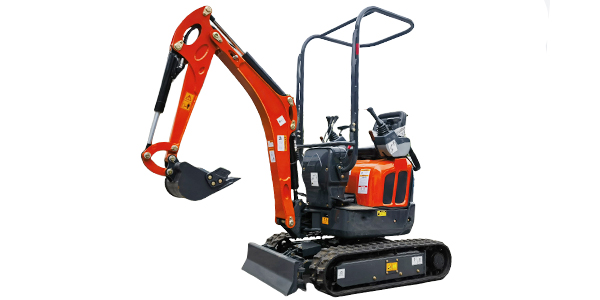

KV12-D

KV12-D

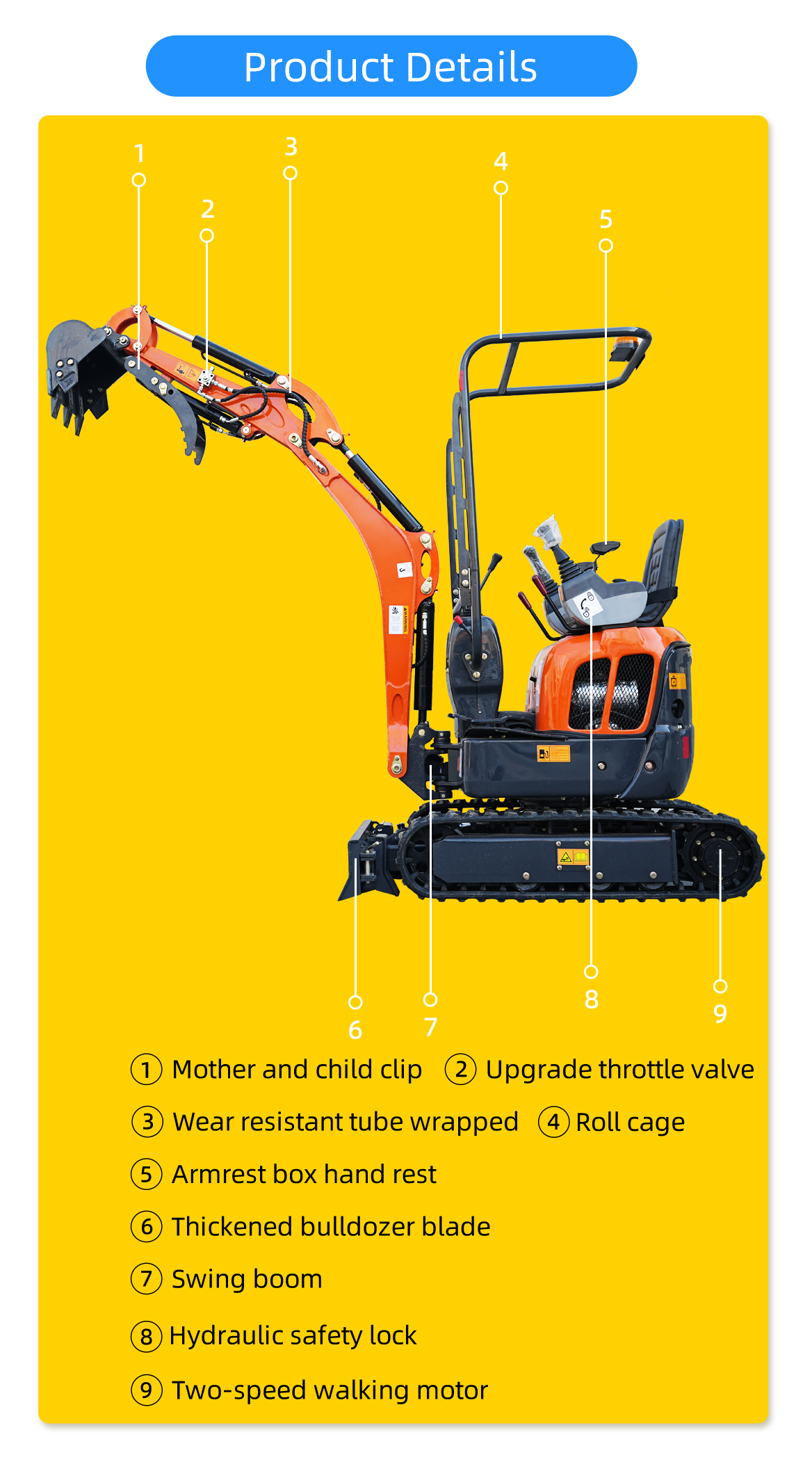

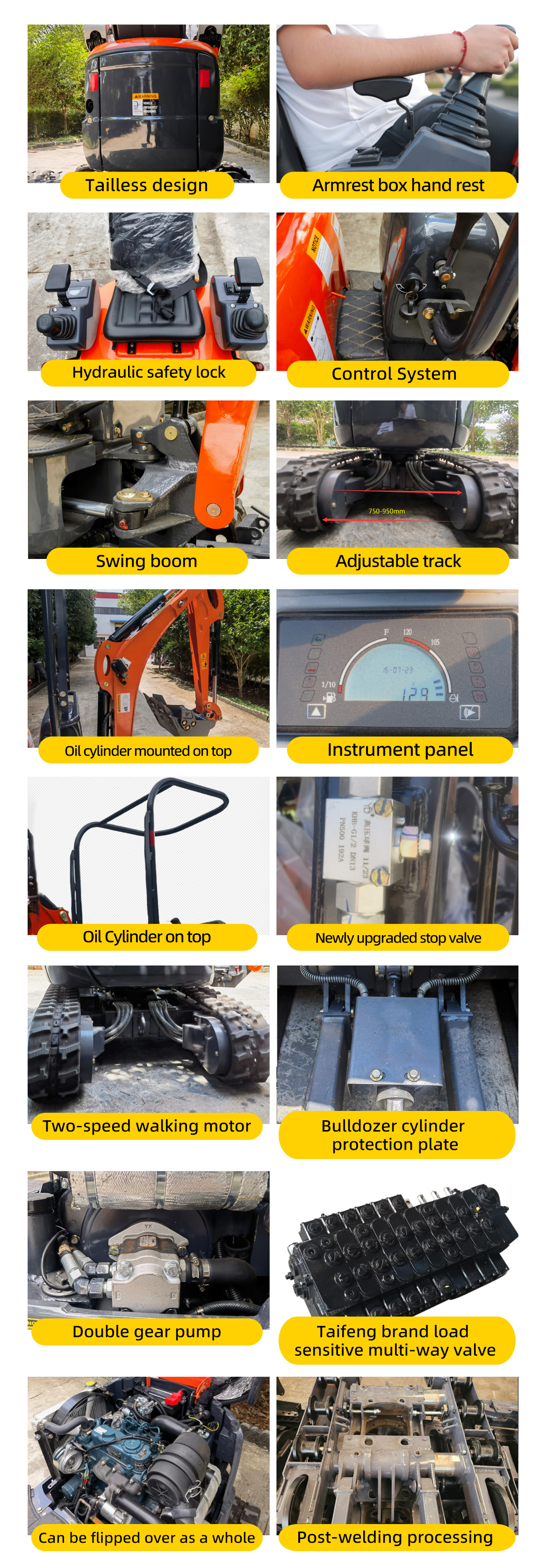

The entire vehicle adopts a molded appearance, which is durable and in line with public aesthetics. It is also convenient for maintenance and repair. It has a 2-leg anti-roll roof. The entire vehicle is made of Q355 manganese steel plate, double gear pump,load-sensitive multi-way valve, and the action is soft and efficient.

Bucket capacity:0.02m³ Rated power:10.2kw/r/min Max.flow:25L/min Travel speed:Travel speedkm/h Swing speed:13r/min
  • Selling point
  • Configuration
  • Video Introduction
  • Relevant
  • Online message
  • Back to previous
We Accept:
KV12-D

The entire vehicle adopts a molded appearance, which is durable and in line with public aesthetics. It is also convenient for maintenance and repair. It has a 2-leg anti-roll roof. The entire vehicle is made of Q355 manganese steel plate, double gear pump,load-sensitive multi-way valve, and the action is soft and efficient.

Bucket capacity:0.02m³ Rated power:10.2kw/r/min Max.flow:25L/min Travel speed:Travel speedkm/h Swing speed:13r/min

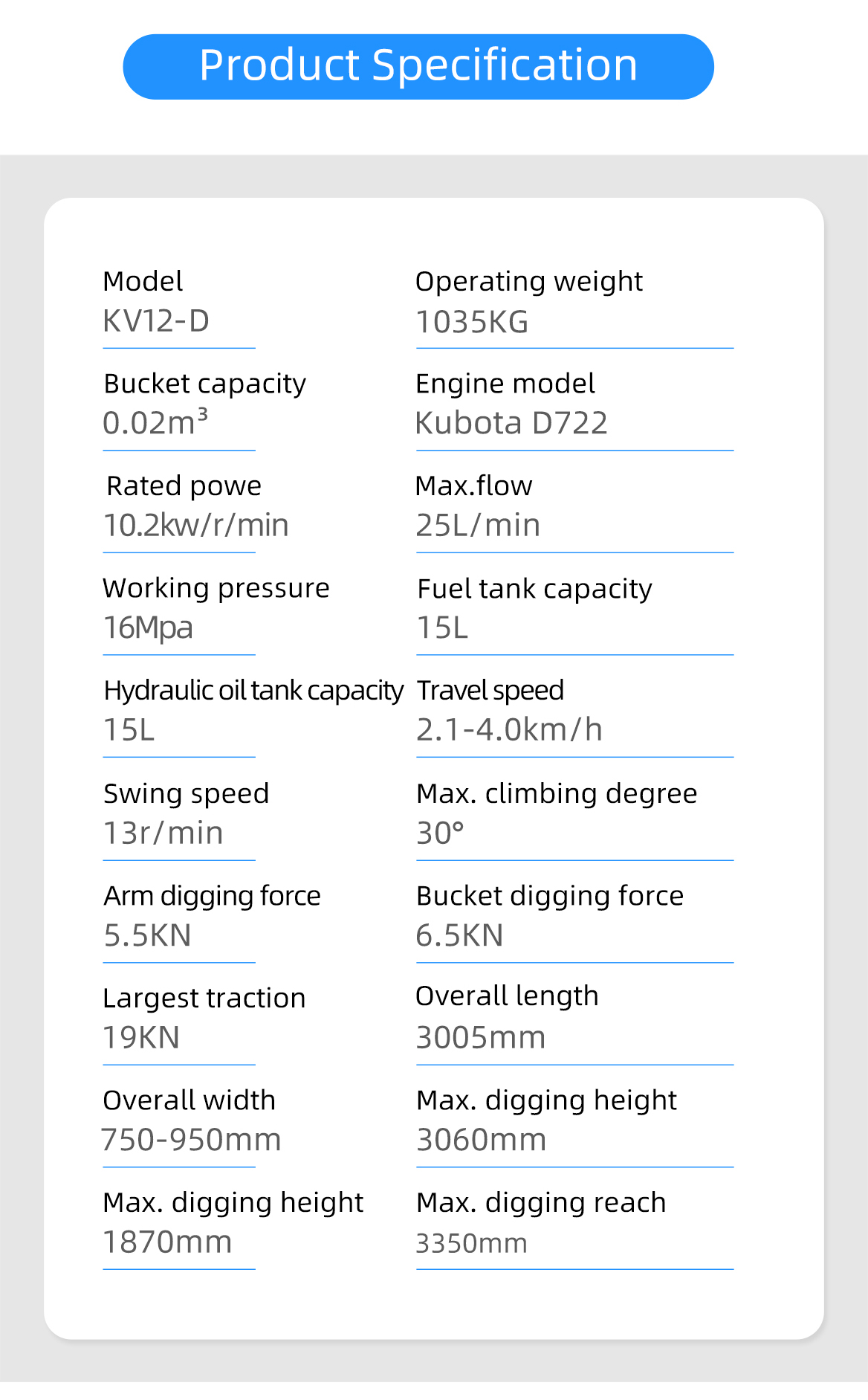

  • Mini Excavator-KV12-D-New



  • Operating weight

    1035kg

    Bucket capacity

    0.02m³

    Engine model

    Kubota D722

    Rated power

    10.2kw/r/min

    Max.flow

    25L/min

    Working pressure

    16Mpa

    Fuel tank capacity

    15L

    Hydraulic oil tank capacity

    15L

    Swing speed

    13r/min

    Max. climbing degree

    30°

    Arm digging force

    5.5KN

    Bucket digging force

    6.5KN

    Overall length

    3005MM

    Overall width

    750-950MM

    Min. ground clearance

    140MM

    Track ground length

    1250MM

    Track length

    1393MM

    Max. digging height

    3060MM
