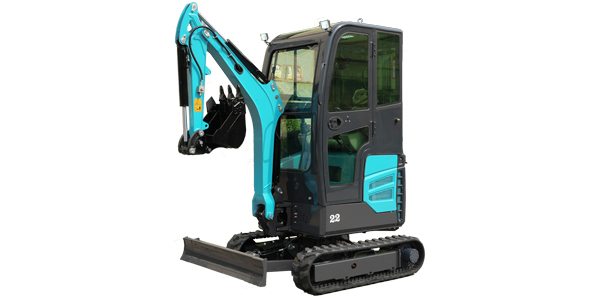

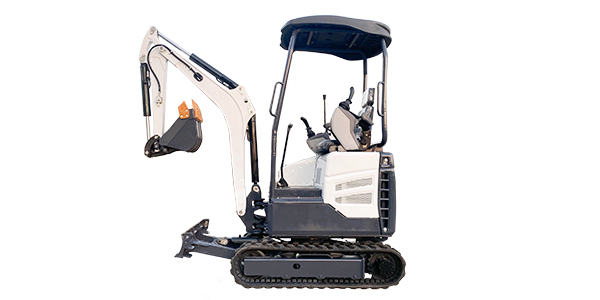

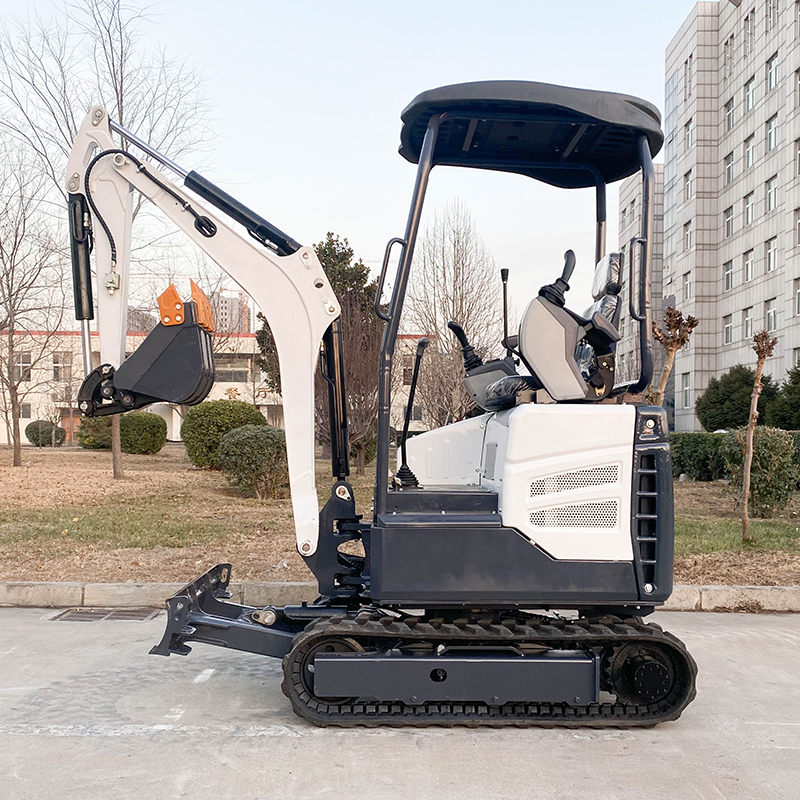

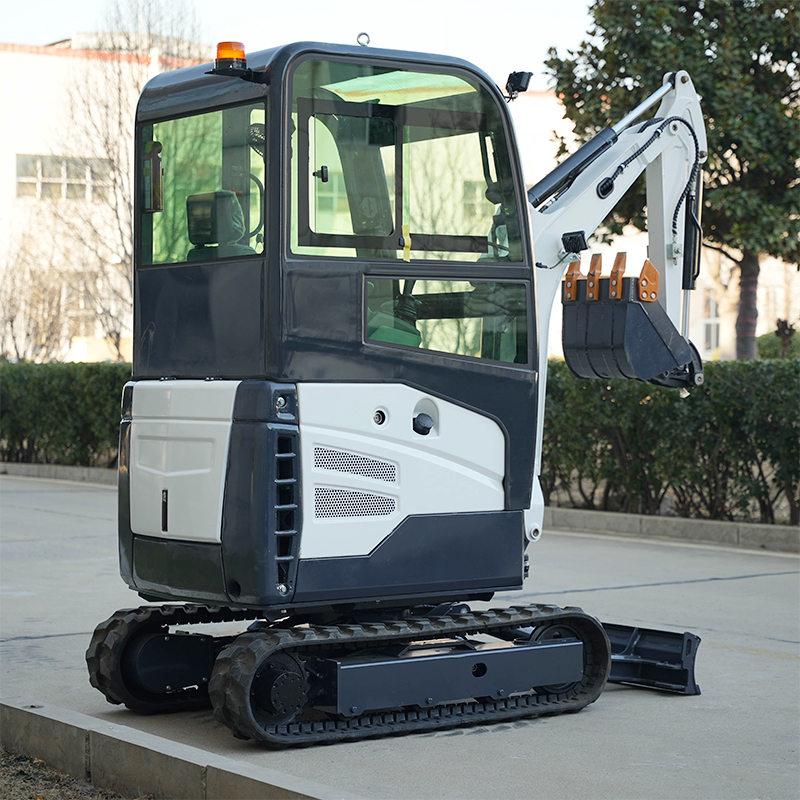

KV22-NEW

KV22-NEW

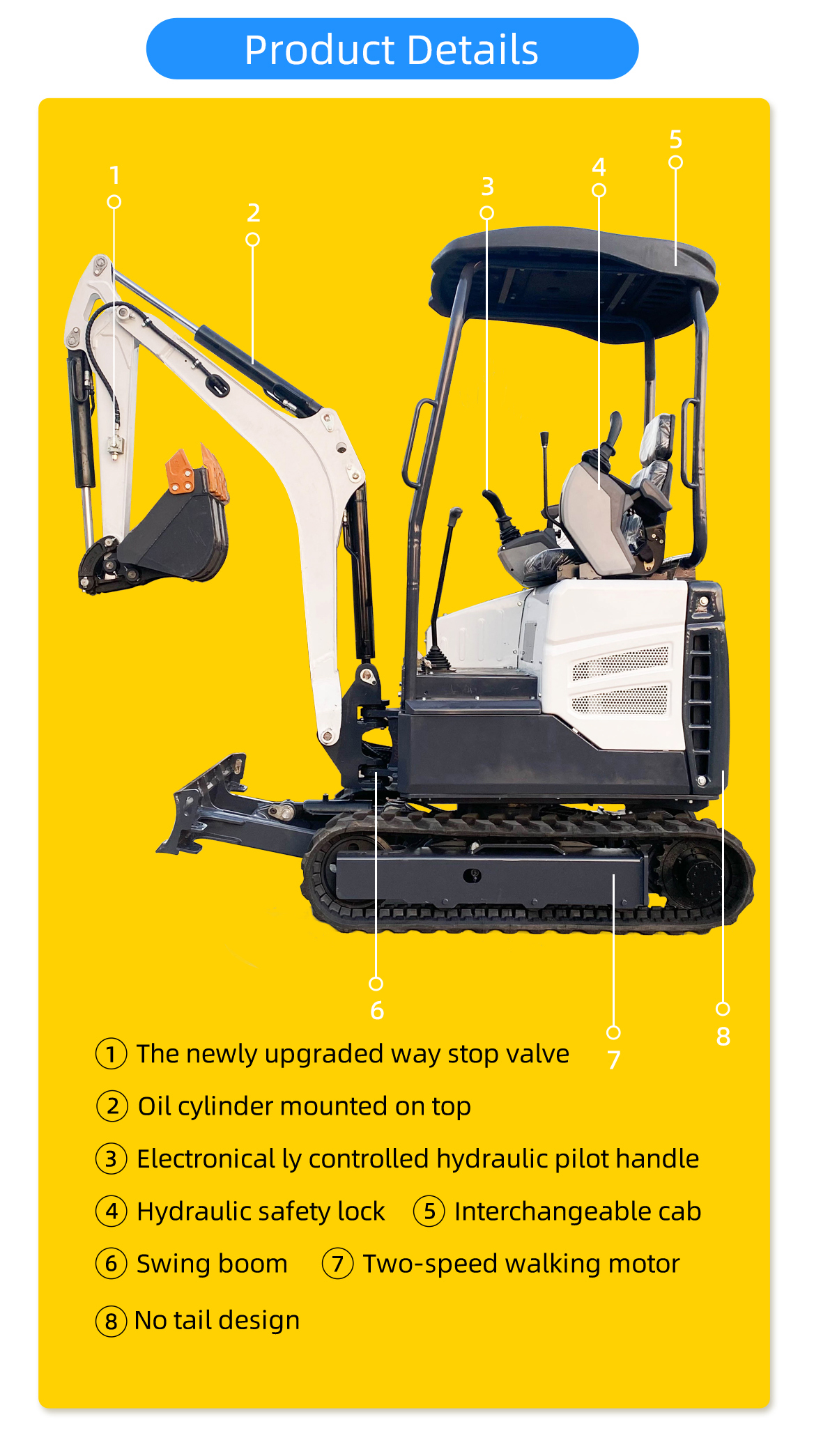

The entire vehicle adopts a molded appearance, which is durable and in line with public aesthetics. It is also convenient for maintenance and repair. It has a four-leg anti-roll roof . The

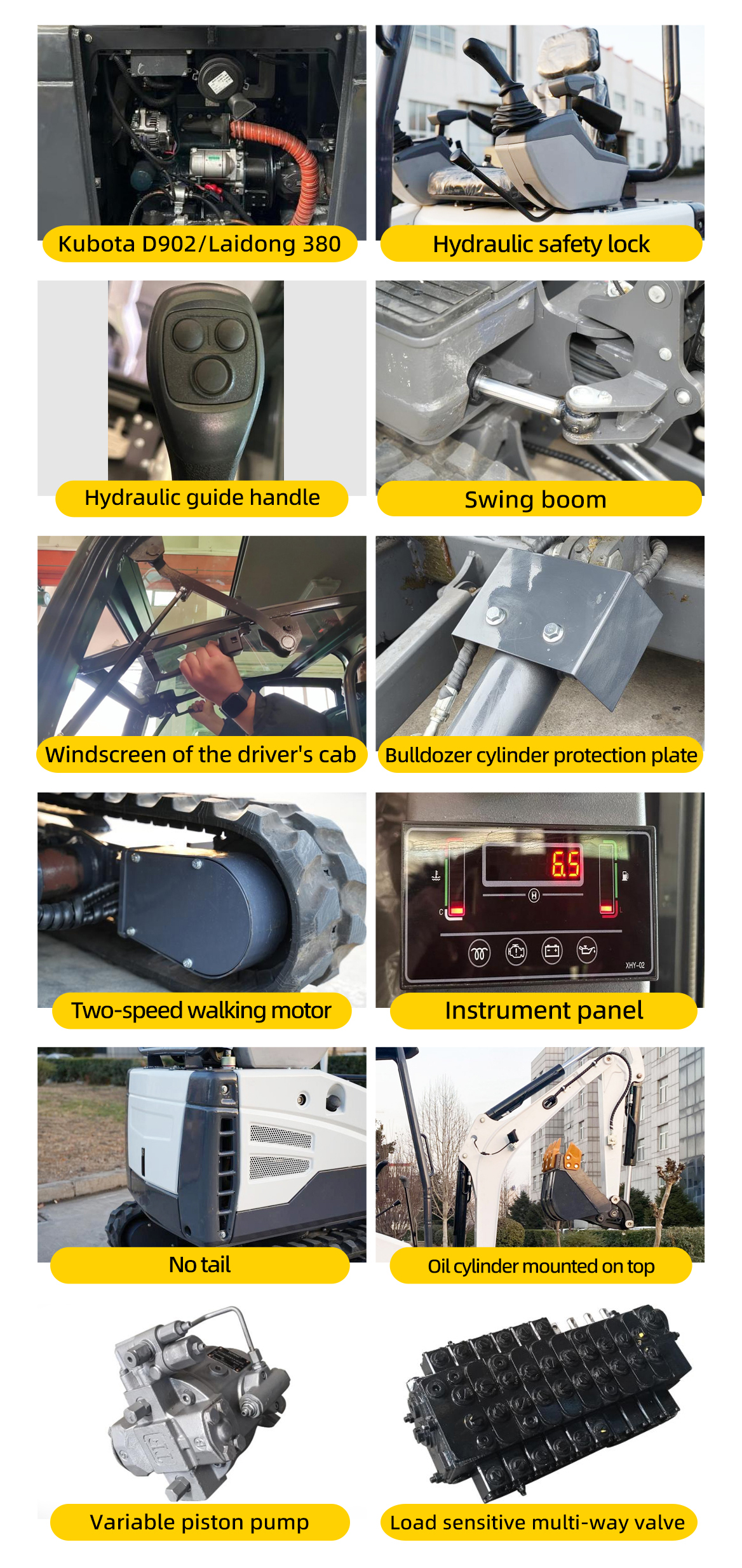

entire vehicle is made of Q355 manganese steel plate,variable plunger pump,load-sensitive multi-way valve,and the action is soft and efficient .

Weight：1850 Kg Engine：Kubota D902/Laidong 380 Pump：Piston pump Maximum digging depth：1665mm Working device form：backhoe
  • Selling point
  • Configuration
  • Video Introduction
  • Relevant
  • Online message
  • Back to previous
We Accept:

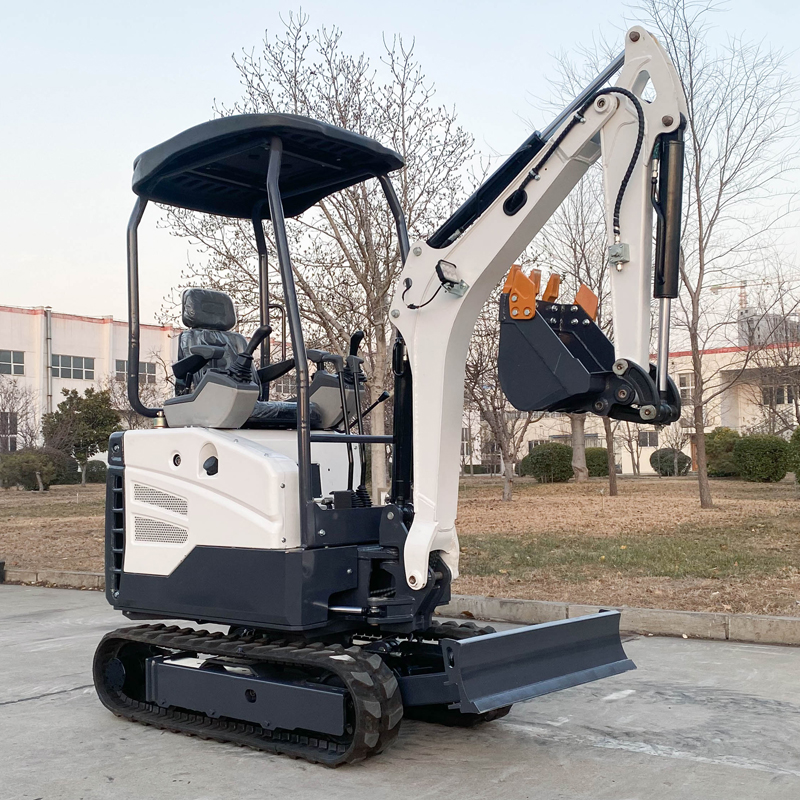

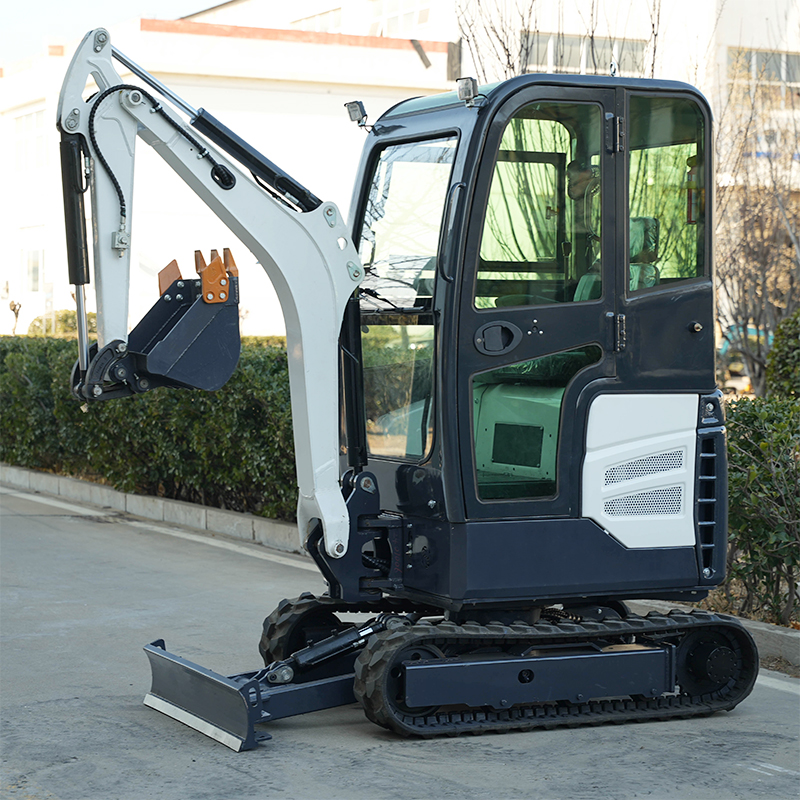

KV22-NEW

The entire vehicle adopts a molded appearance, which is durable and in line with public aesthetics. It is also convenient for maintenance and repair. It has a four-leg anti-roll roof . The
entire vehicle is made of Q355 manganese steel plate,variable plunger pump,load-sensitive multi-way valve,and the action is soft and efficient .

Weight：1850 Kg Engine：Kubota D902/Laidong 380 Pump：Piston pump Maximum digging depth：1665mm Working device form：backhoe

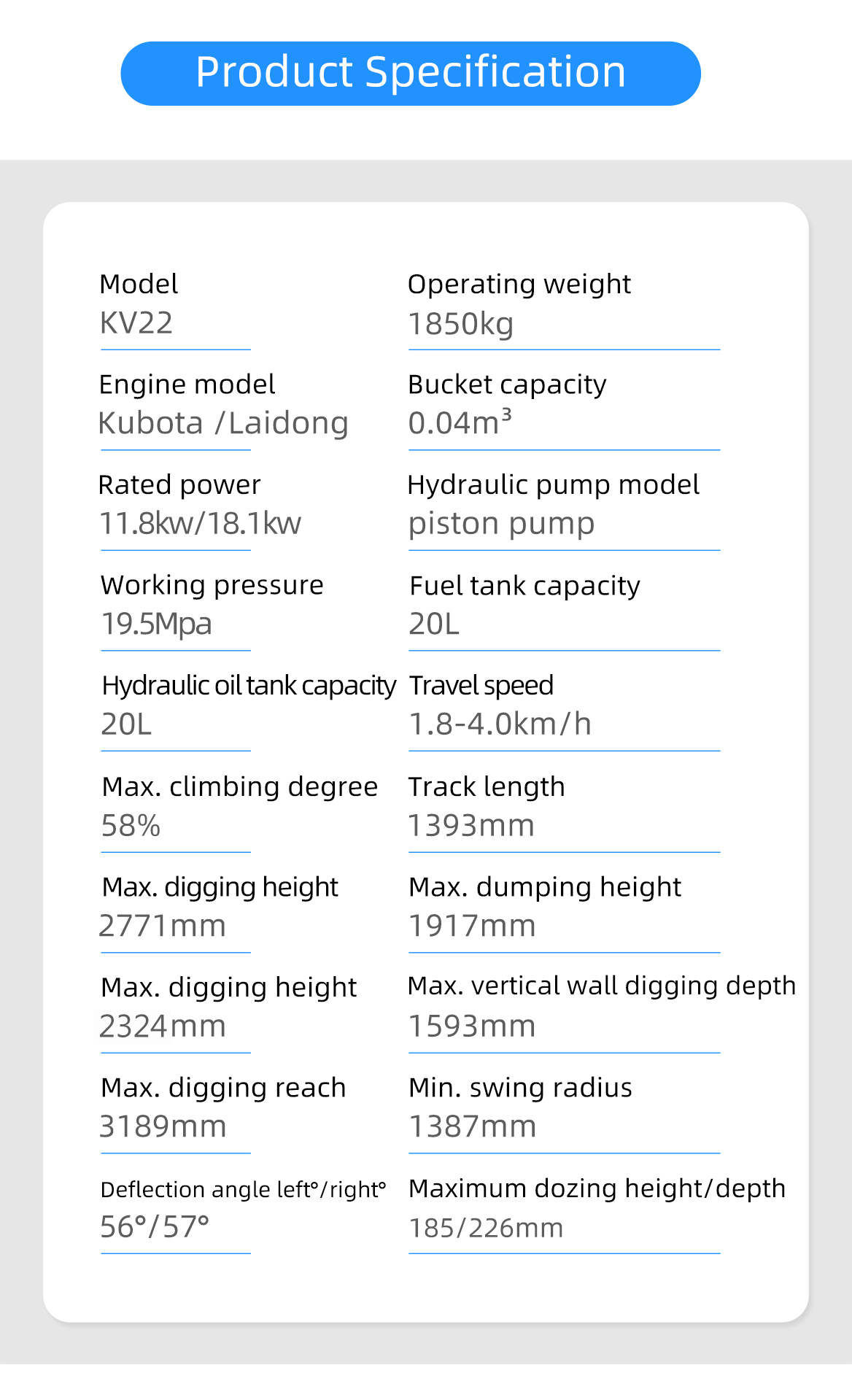

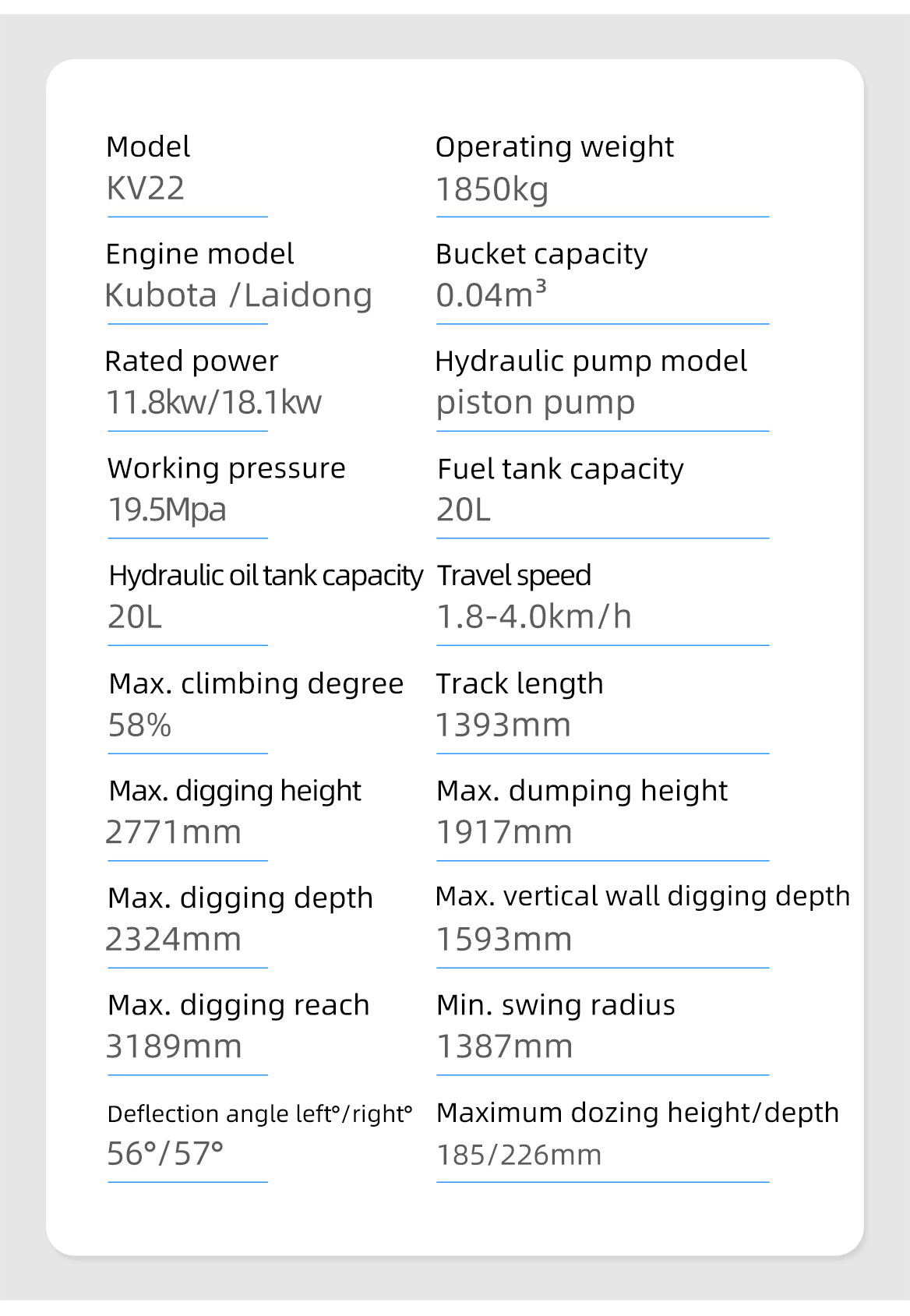

  • Mini Excavator-KV22-New


  • Machine weight

    1850kg

    Bucket capacity

    0.04m³

    Rated power

    11.8kw/18.1kw

    Hydraulic pump model

    piston pump

    Travel speed

    1.8-4.0km/h

    Swing speedt

    12r/min

    Max. digging height

    2771mm

    Max. dumping height

    1917mm

    Max digging depth

    1665mm

    Max. digging reach

    3189mm

    Min. swing radius

    1387mm

    Maximum dozing height/depth

    185/226mm

    Overall length

    2880mm

    Overall width

    980-1280mm

    Counterweight ground clearance

    430mm

    Min. ground clearance

    80mm

    Track length

    1393mm

    Track width

    980-1280
