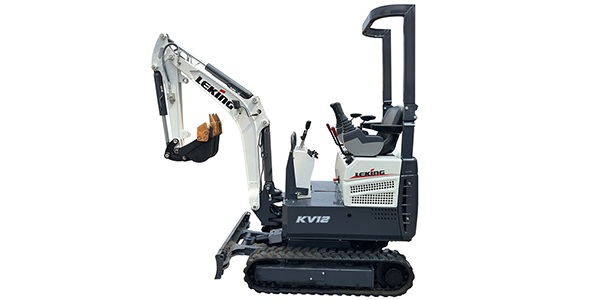

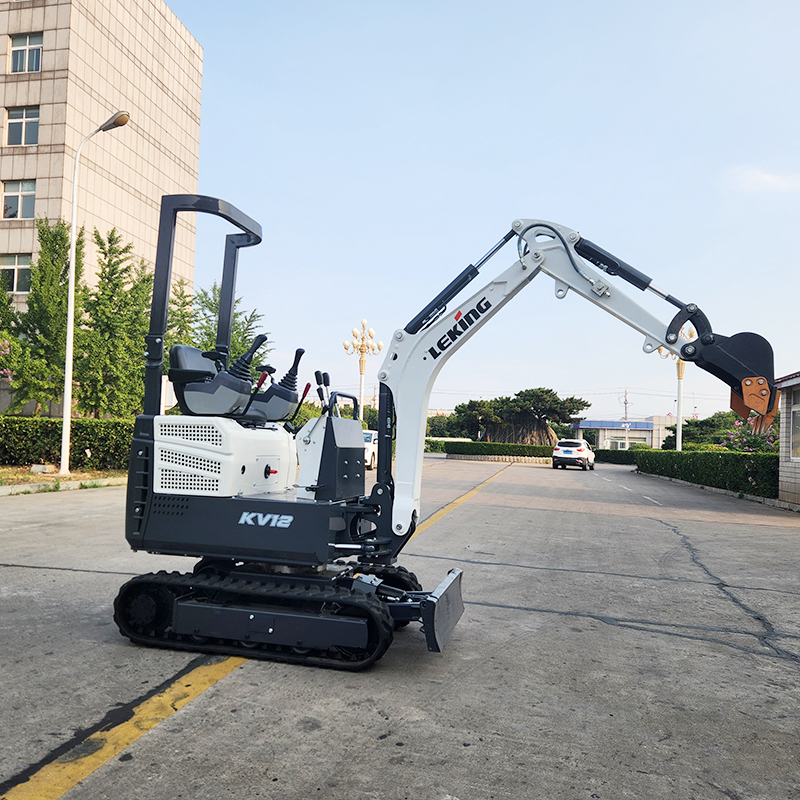

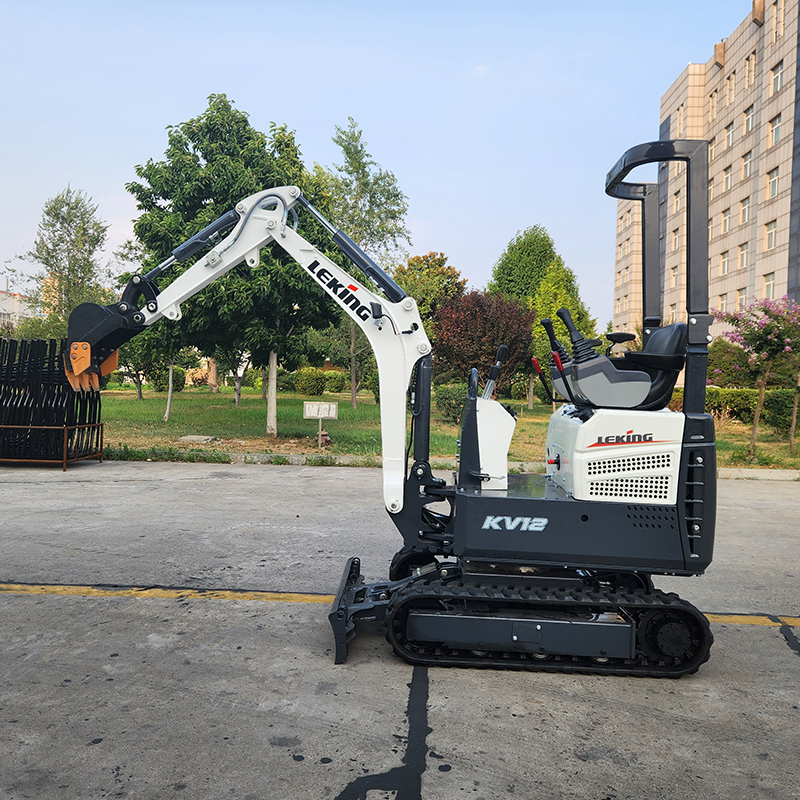

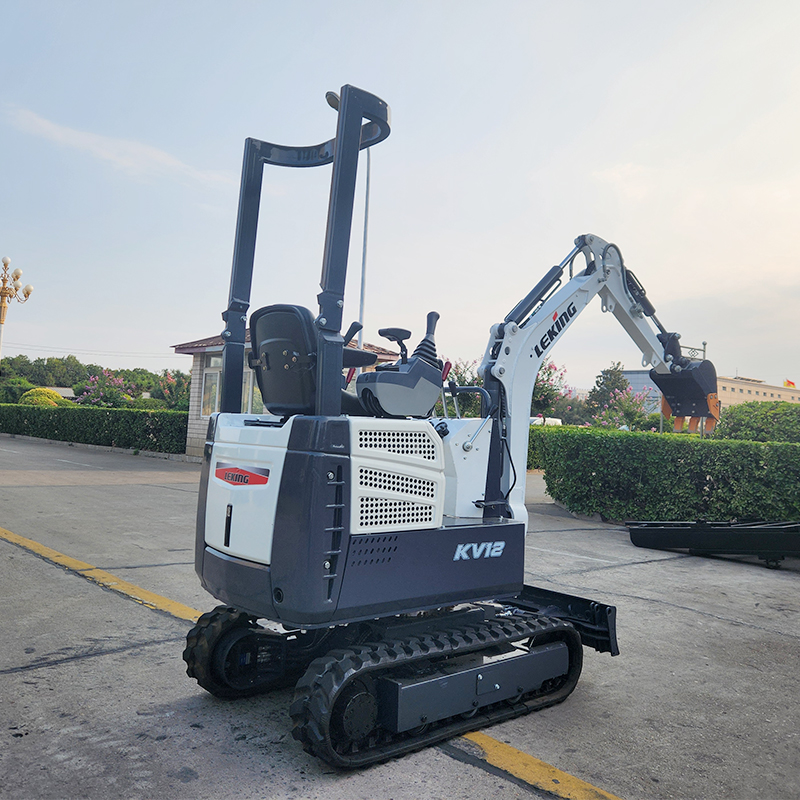

KV12-New

KV12-New

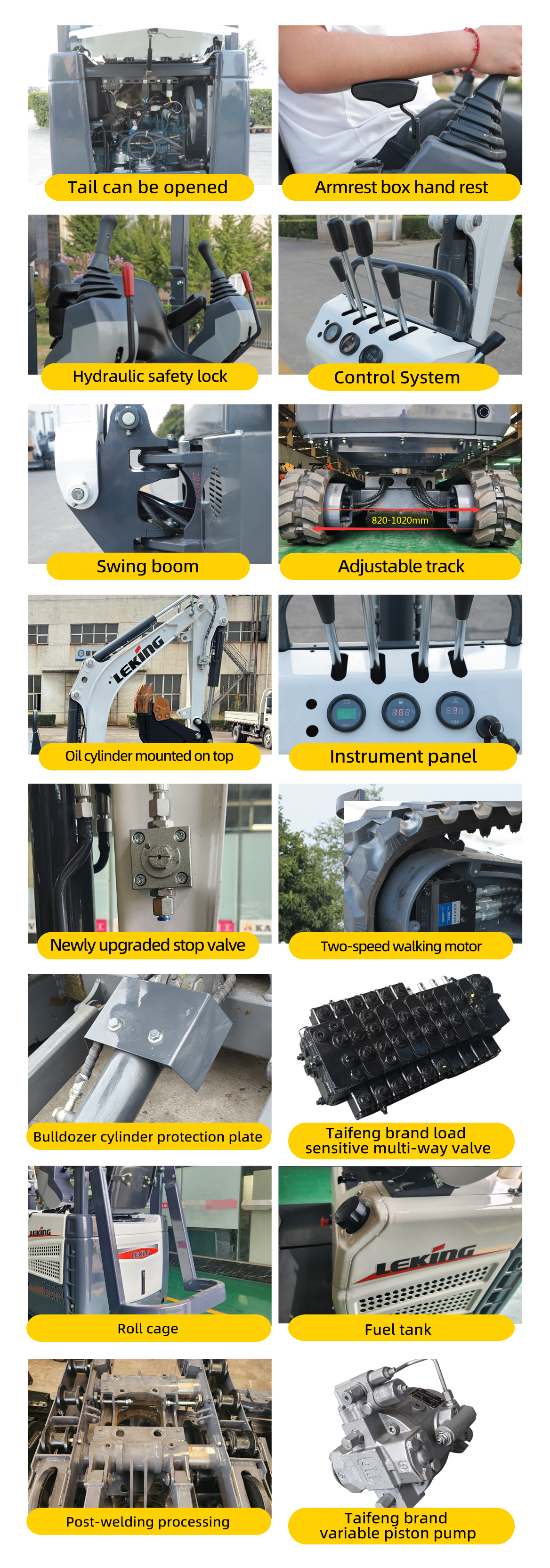

The entire vehicle adopts a molded appearance, which is durable and in line with public aesthetics. It is also convenient for maintenance and repair. It has a four-leg anti-roll roof. The entire vehicle is made of Q355 manganese steel plate, variable plunger pump, load-sensitive multi-way valve, and the action is soft and efficient.

Weight：1250 Kg Pump：Piston pump Engine：Kubota Z482 Maximum digging depth：1800mm Operation：Pilot operation
  • Selling point
  • Configuration
  • Video Introduction
  • Relevant
  • Online message
  • Back to previous
We Accept:

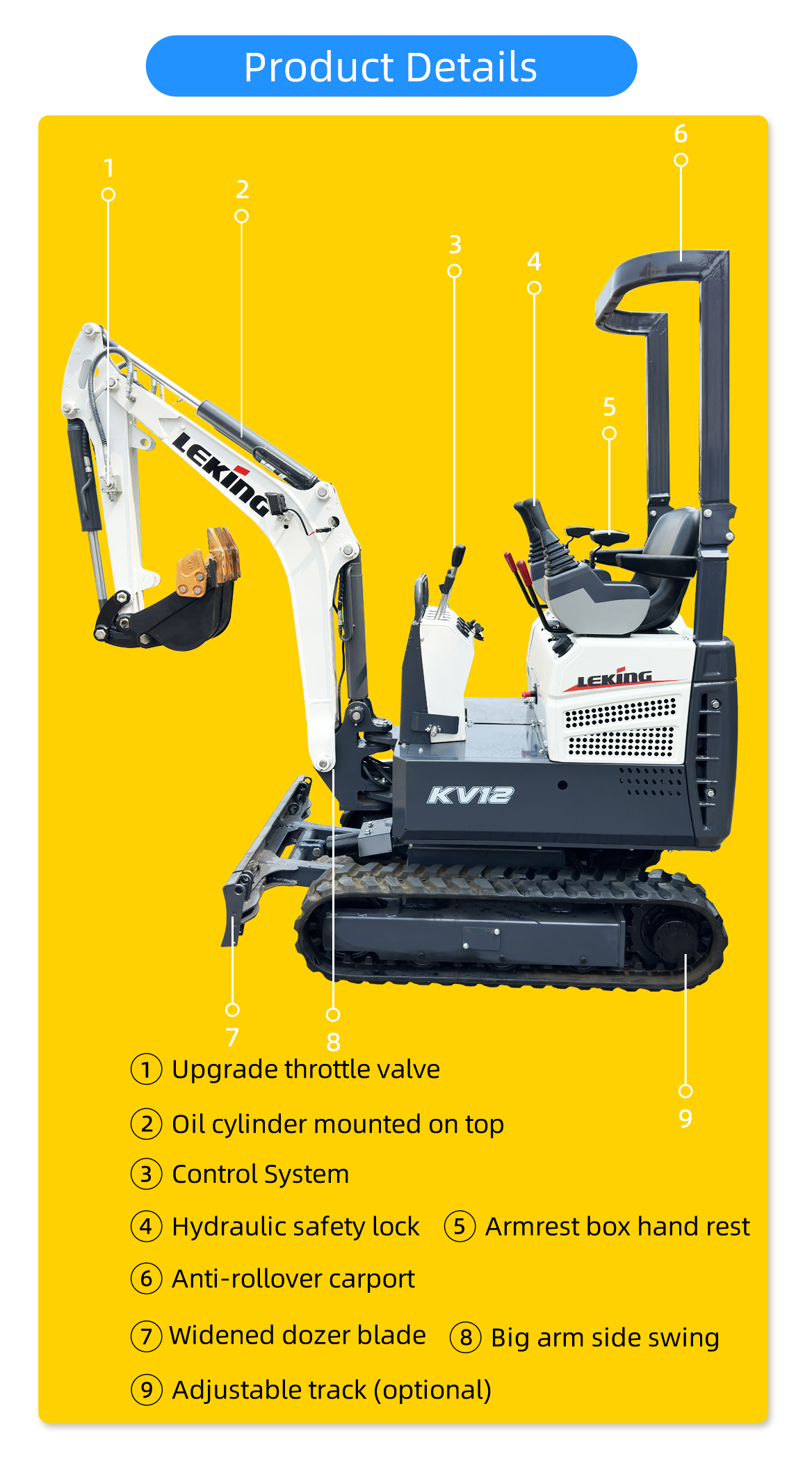

KV12-New

The entire vehicle adopts a molded appearance, which is durable and in line with public aesthetics. It is also convenient for maintenance and repair. It has a four-leg anti-roll roof. The entire vehicle is made of Q355 manganese steel plate, variable plunger pump, load-sensitive multi-way valve, and the action is soft and efficient.

Weight：1250 Kg Pump：Piston pump Engine：Kubota Z482 Maximum digging depth：1800mm Operation：Pilot operation

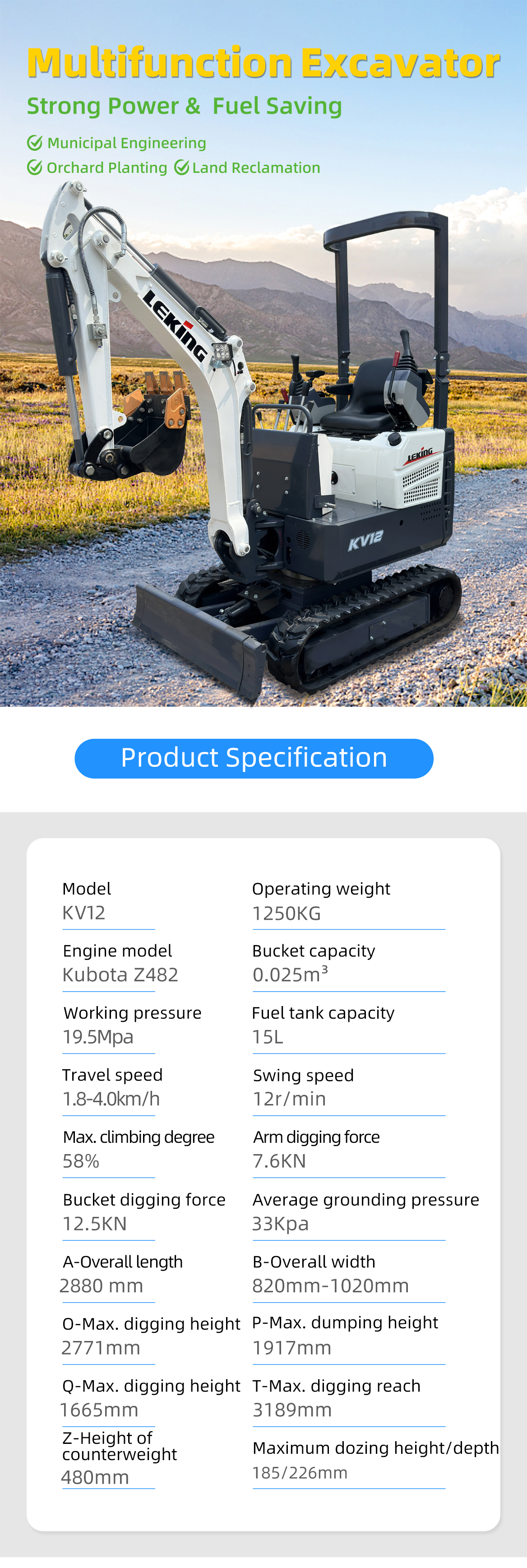

  • Mini Excavator-KV12-New

  • Machine weight

    1250kg

    Track length

    1393mm

    Max. digging height

    2771mm

    Max. digging reach

    3189mm

    Hydraulic pump

    Piston pump

    Max. dumping height

    1917mm

    Power

    8.3kw

    Travel speed

    1.8-4.0km/h

    Max. digging height

    1665mm

    Max.flow

    30L/min

    Swing speed

    12r/min

    Max. vertical wall digging depth

    1593mm

    Bucket capacity

    0.025m³

    Max. climbing degree

    58%

    Arm digging force

    7.6KN

    Track width

    820-1020mm

    Largest traction

    19KN

    Bucket digging force

    12.5KN
