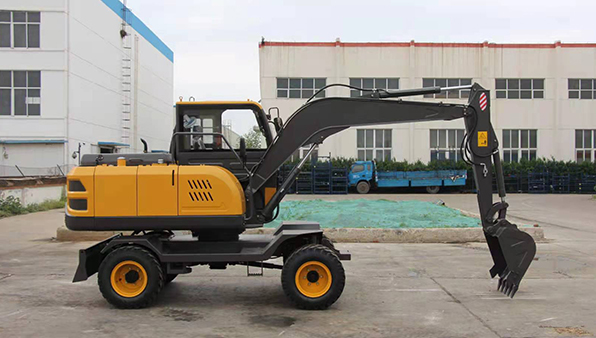

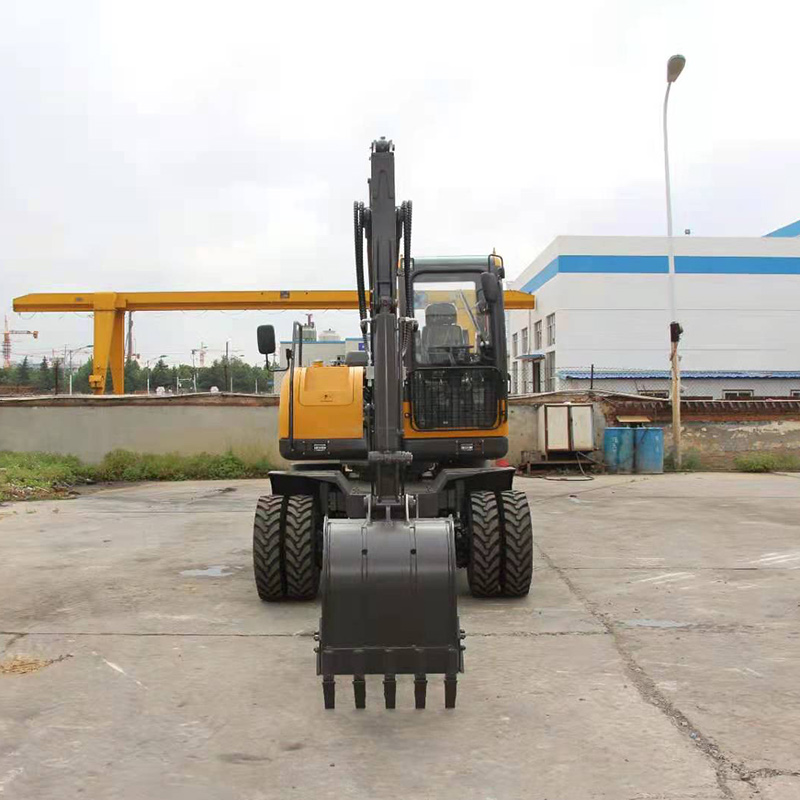

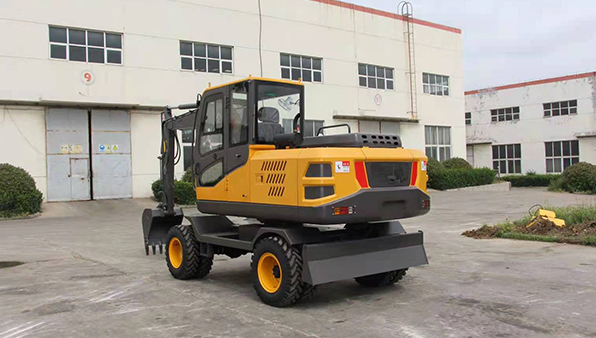

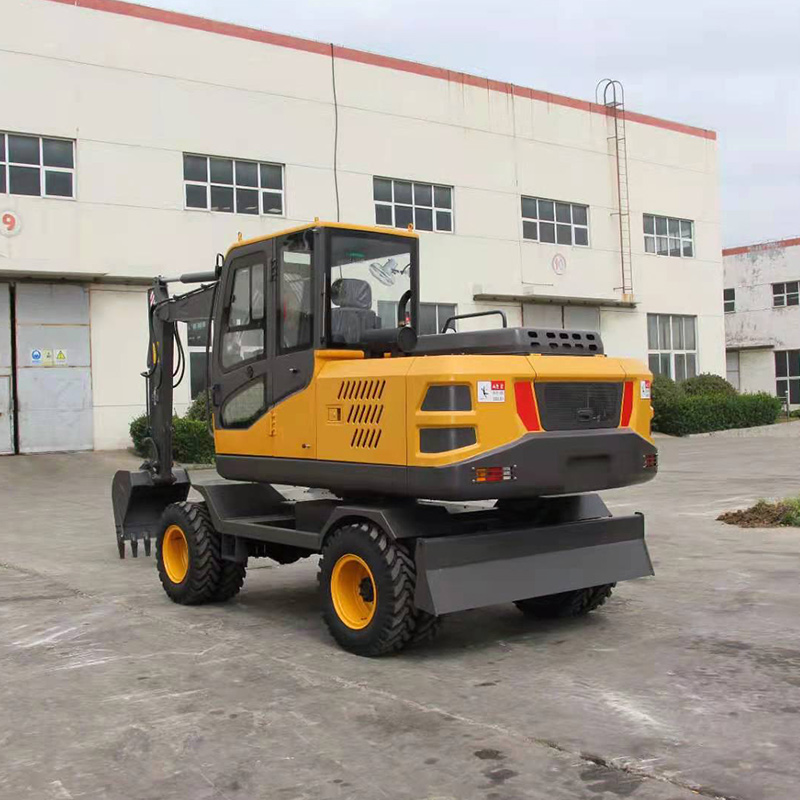

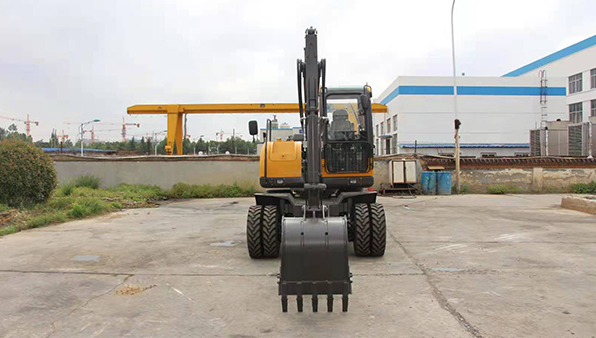

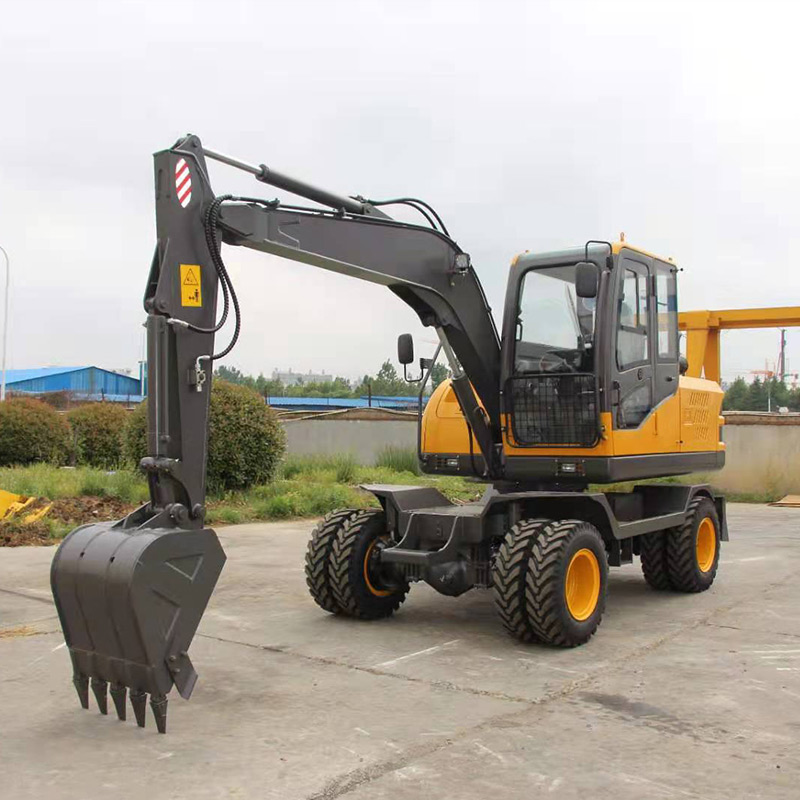

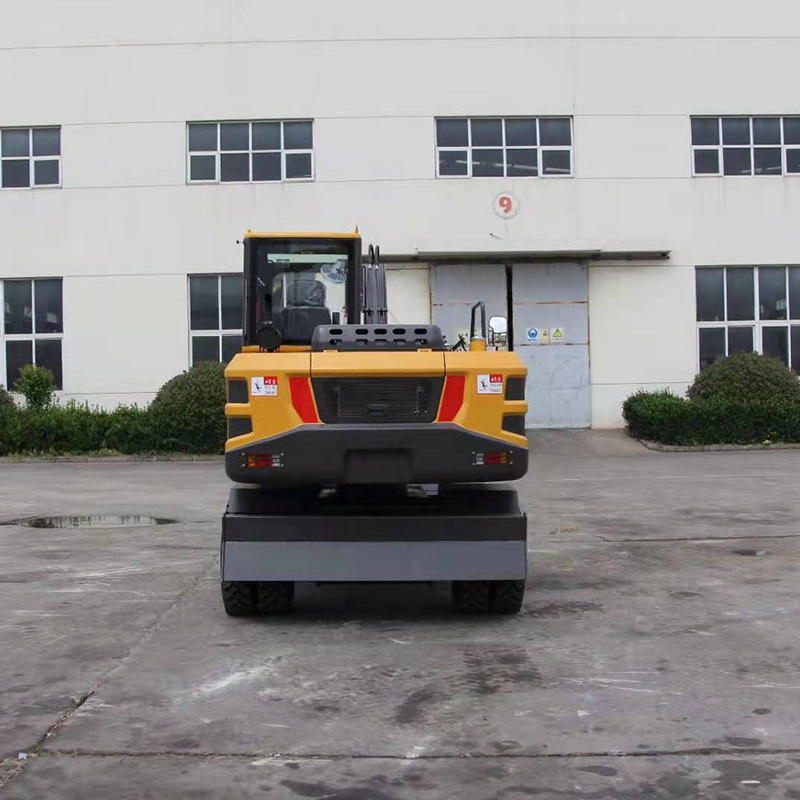

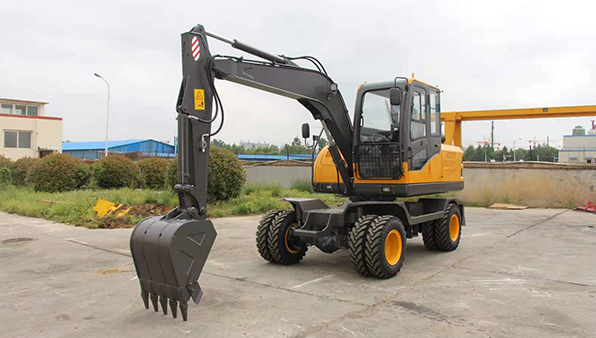

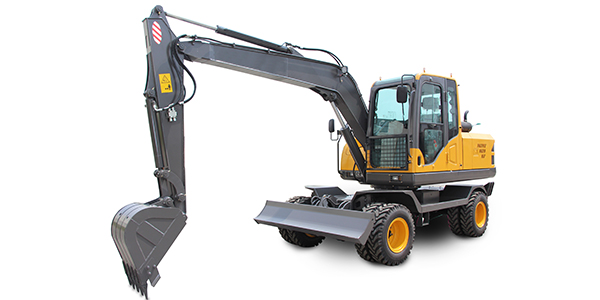

Wheel Excavator - KV80

Wheeled excavators are used in airports, ports, oil fields, mines, urban and rural construction, farmland and water conservancy and other operation occasions with their distinctive characteristics of fast walking speed, flexible and rapid transfer and rapid replacement of a variety of operation devices. They are known as “good helpers” in the construction field.

Length：6380mm Height：2827mm Weight：6600kg Bucket Capacity：0.30m³ Engine rated power：55/2500kw/rpm

Wheeled excavators are used in airports, ports, oil fields, mines, urban and rural construction, farmland and water conservancy and other operation occasions with their distinctive characteristics of fast walking speed, flexible and rapid transfer and rapid replacement of a variety of operation devices. They are known as “good helpers” in the construction field.

Length：6380mm Height：2827mm Weight：6600kg Bucket Capacity：0.30m³ Engine rated power：55/2500kw/rpm

MODEL	KV80
WEIGHT
Total weight	6600kg
SIZE
Bucket capacity	0.30m³
total length	6380mm
total transport height	2827mm
Vehicle width	2150mm
Total Weight	6600kg
Platform turning radius	2084mm
Maximum excavation height	6300mm
Maximum unloading height	4750mm
Max. digging depth	3500mm
Maximum digging radius	6230mm
ground clearance	217mm
Minimum radius of gyration	2084mm
Boom length	3260mm
DRIVE
Engine maximum torque	269/1610N.m/rpm
engine power	55/2500kw/rpm
hydraulic system pressure	20MPa
WALKING CHARACTERISTICS
Working device mode	Back Hole
Walking speed	30km/h

Total length	6380mm	total height	2827mm	Vehicle width	2150mm
Total Weight	6600kg	hydraulic system pressure	20MPa	Maximum excavation height	6300mm
Bucket capacity	0.30m³	Maximum unloading height	4750mm	Engine maximum torque	269/1610N.m/rpm
Maximum excavation depth	3500mm	Engine power	55/2500kw/rpm	Maximum digging radius	6230mm
Wheelbase	2400mm	Boom length	3260mm	Ground clearance	217mm
Minimum radius of gyration	2084mm	Bucket digging force	46kN	Working device mode	Back Hole

Wheel Excavator - KV80

Cab

Off-road tires

Hydraulic System

Cab

Off-road tires

Hydraulic System



Cab Designed according to the principles of engineering, the concept of comfort, wide vision, spacious and bright, user-friendly front gear mechanism, equipped with adjustable suspension seats, silicone oil shock absorption, comfortable driving environment.
	Off-road tires Off-road anti-skid tires, with deeper texture, strong grip, not afraid of terrain.
Hydraulic System Well-known brand multi-way valve and advanced rotary reducer, fast action, sufficient strength, good coordination of compound action, high reliability and long service life.

Wheel Excavator - KV80

Cab

Off-road tires

Hydraulic System

Cab

Off-road tires

Hydraulic System

Wheel Excavator-KV80
