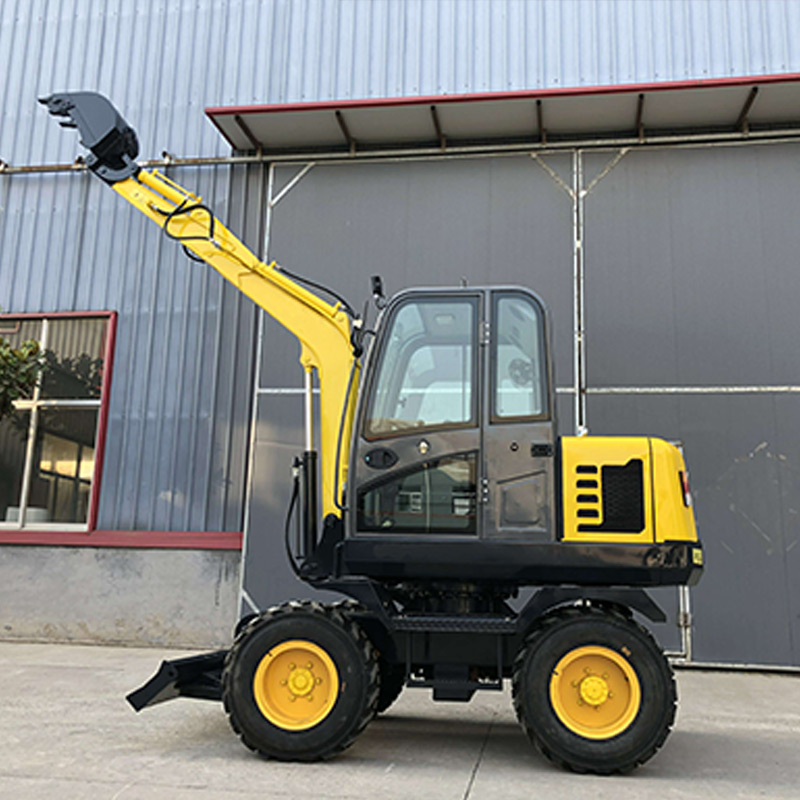

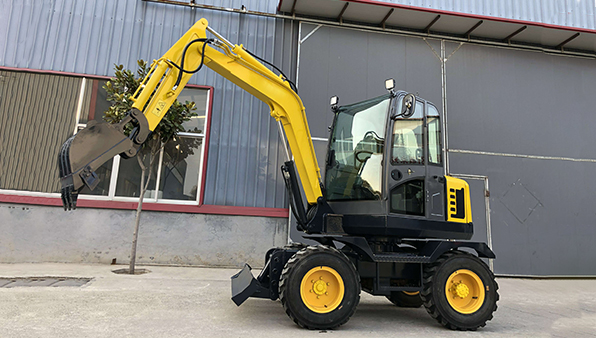

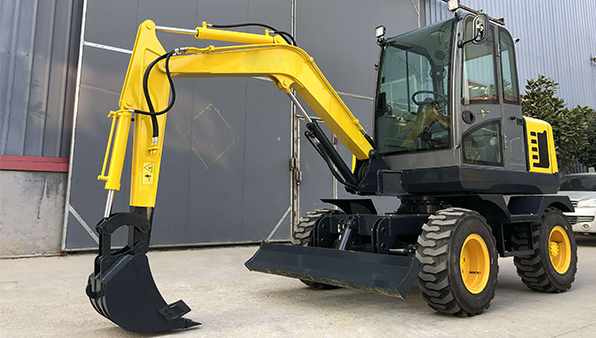

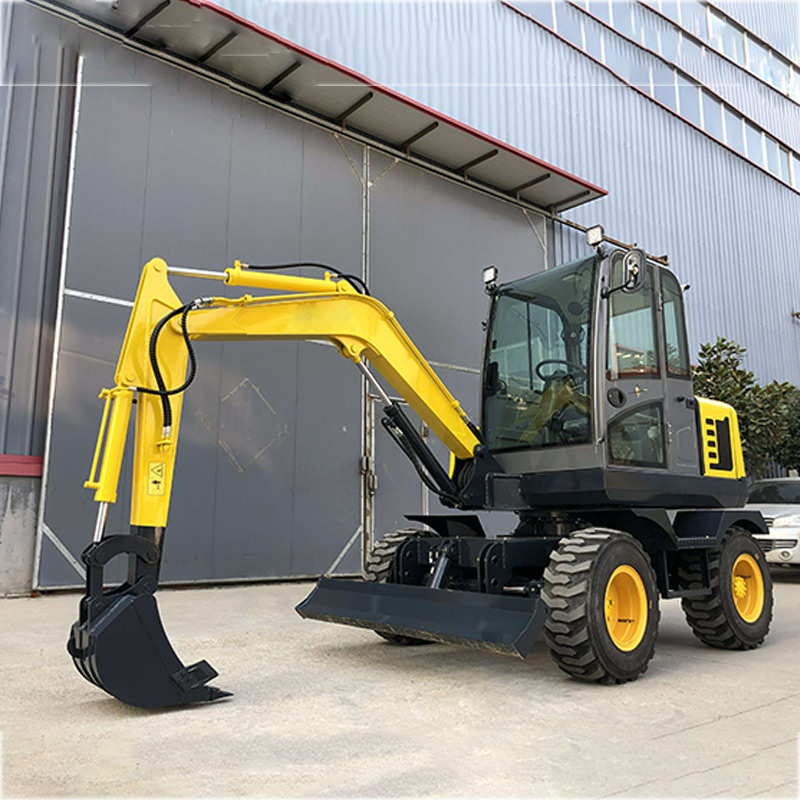

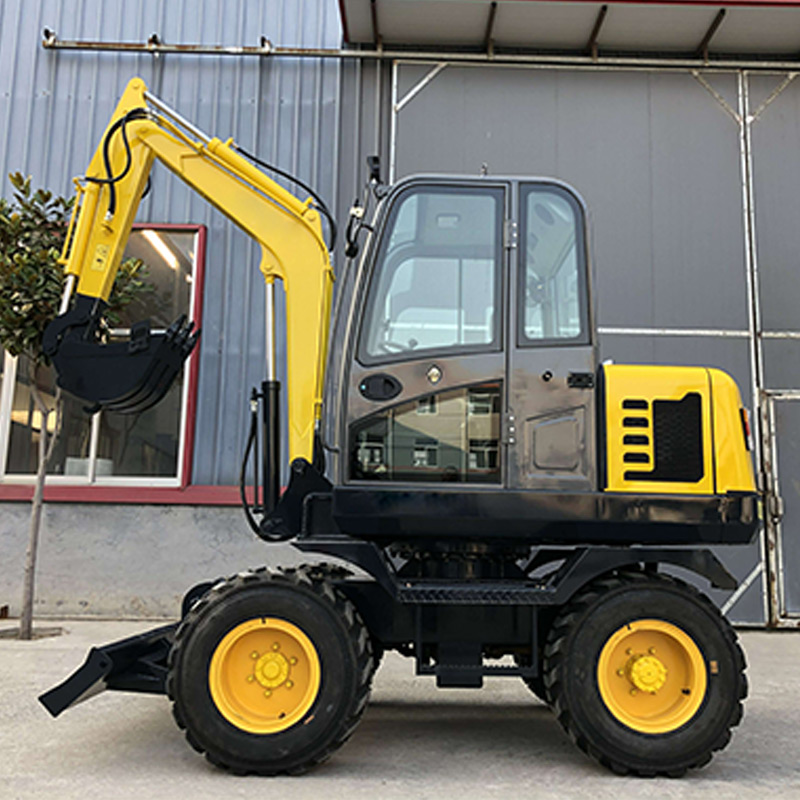

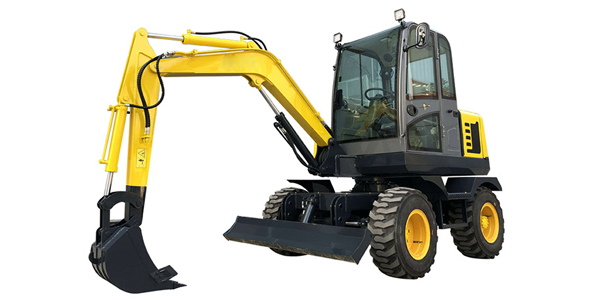

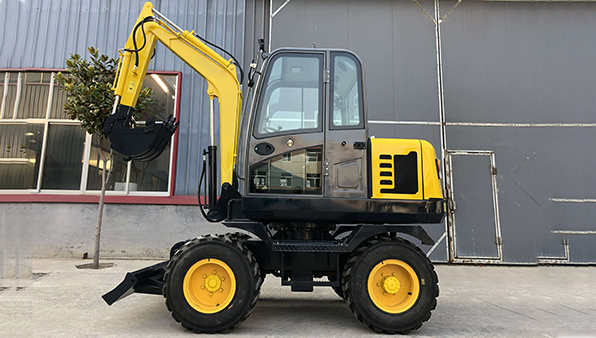

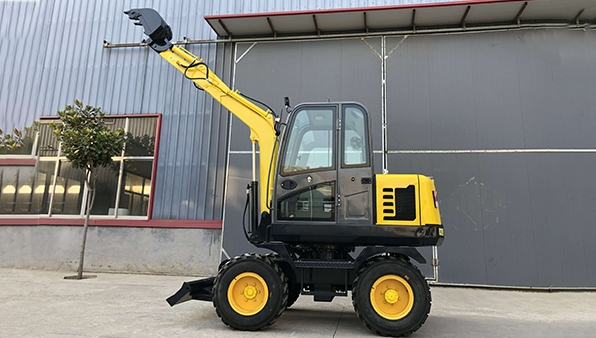

Wheel Excavator - KV40

Wheeled excavators are used in airports, ports, oil fields, mines, urban and rural construction, farmland and water conservancy and other operation occasions with their distinctive characteristics of fast walking speed, flexible and rapid transfer and rapid replacement of a variety of operation devices. They are known as “good helpers” in the construction field.

Length：3600mm Height：2700mm Weight：4000kg Bucket Capacity：0.10m³ Engine Speed：2200r/min

Wheeled excavators are used in airports, ports, oil fields, mines, urban and rural construction, farmland and water conservancy and other operation occasions with their distinctive characteristics of fast walking speed, flexible and rapid transfer and rapid replacement of a variety of operation devices. They are known as “good helpers” in the construction field.

Length：3600mm Height：2700mm Weight：4000kg Bucket Capacity：0.10m³ Engine Speed：2200r/min

MODEL	KV40
WEIGHT
Total weight	4000kg
SIZE
Bucket capacity	0.10m³
total length	3600mm
total transport height	2700mm
Vehicle width	1860mm
Total Weight	4000kg
Platform turning radius	1500mm
Maximum excavation height	4500mm
Maximum unloading height	2800mm
Max. digging depth	2400mm
Maximum digging radius	2200mm
ground clearance	220mm
Minimum radius of gyration	1900mm
Boom end height	1320mm
DRIVE
Engine speed	2200r/min
engine power	36.8kw/50
hydraulic system pressure	19MPa
WALKING CHARACTERISTICS
Working device mode	Back Hole
Walking speed	30km/h

Total length	3600mm	total height	2700mm	Vehicle width	1860mm
Total Weight	4000kg	hydraulic system pressure	19MPa	Maximum excavation height	4500mm
Bucket capacity	0.10m³	Maximum unloading height	2800mm	Engine speed	2200r/min
Maximum excavation depth	2400mm	engine power	36.8kw/50	Maximum digging radius	4400mm
wheelbase	1570mm	Maximum horizontal digging distance	3700mm	Boom end height	1320mm
Minimum radius of gyration	1900mm	ground pressure	23×103N/m³	Maximum digging height radius	2200mm

Wheel Excavator - KV40

Cab

Off-road tires

Hydraulic System

Cab

Off-road tires

Hydraulic System

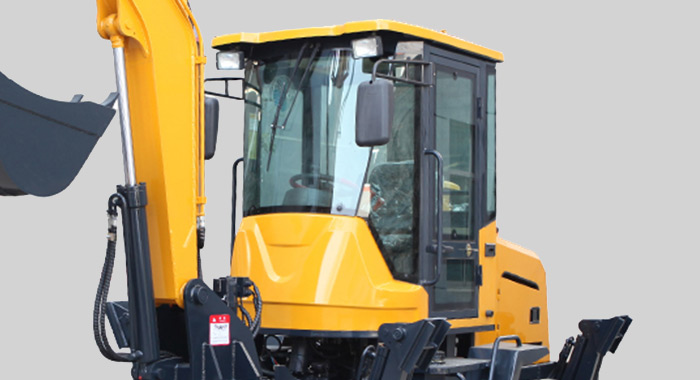

Cab Designed according to the principles of engineering, the concept of comfort, wide vision, spacious and bright, user-friendly front gear mechanism, equipped with adjustable suspension seats, silicone oil shock absorption, comfortable driving environment.

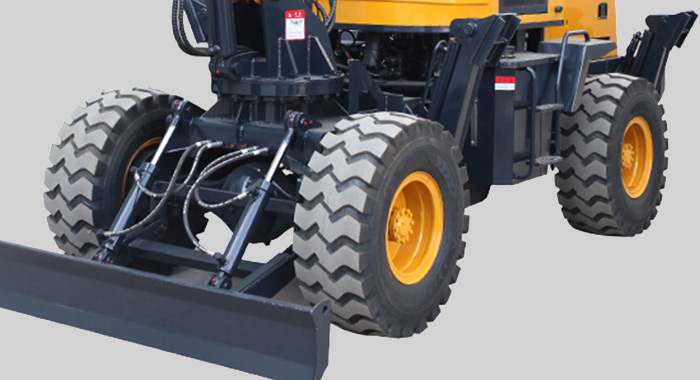

	Off-road tires Off-road anti-skid tires, with deeper texture, strong grip, not afraid of terrain.

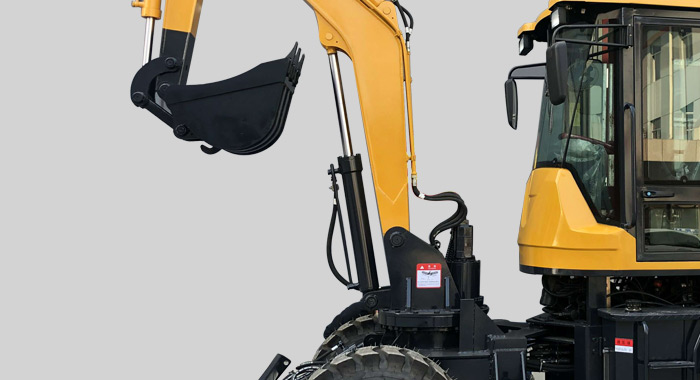

Hydraulic System Well-known brand multi-way valve and advanced rotary reducer, fast action, sufficient strength, good coordination of compound action, high reliability and long service life.

Wheel Excavator - KV40

Cab

Off-road tires

Hydraulic System

Cab

Off-road tires

Hydraulic System

Wheel Excavator-KV40
