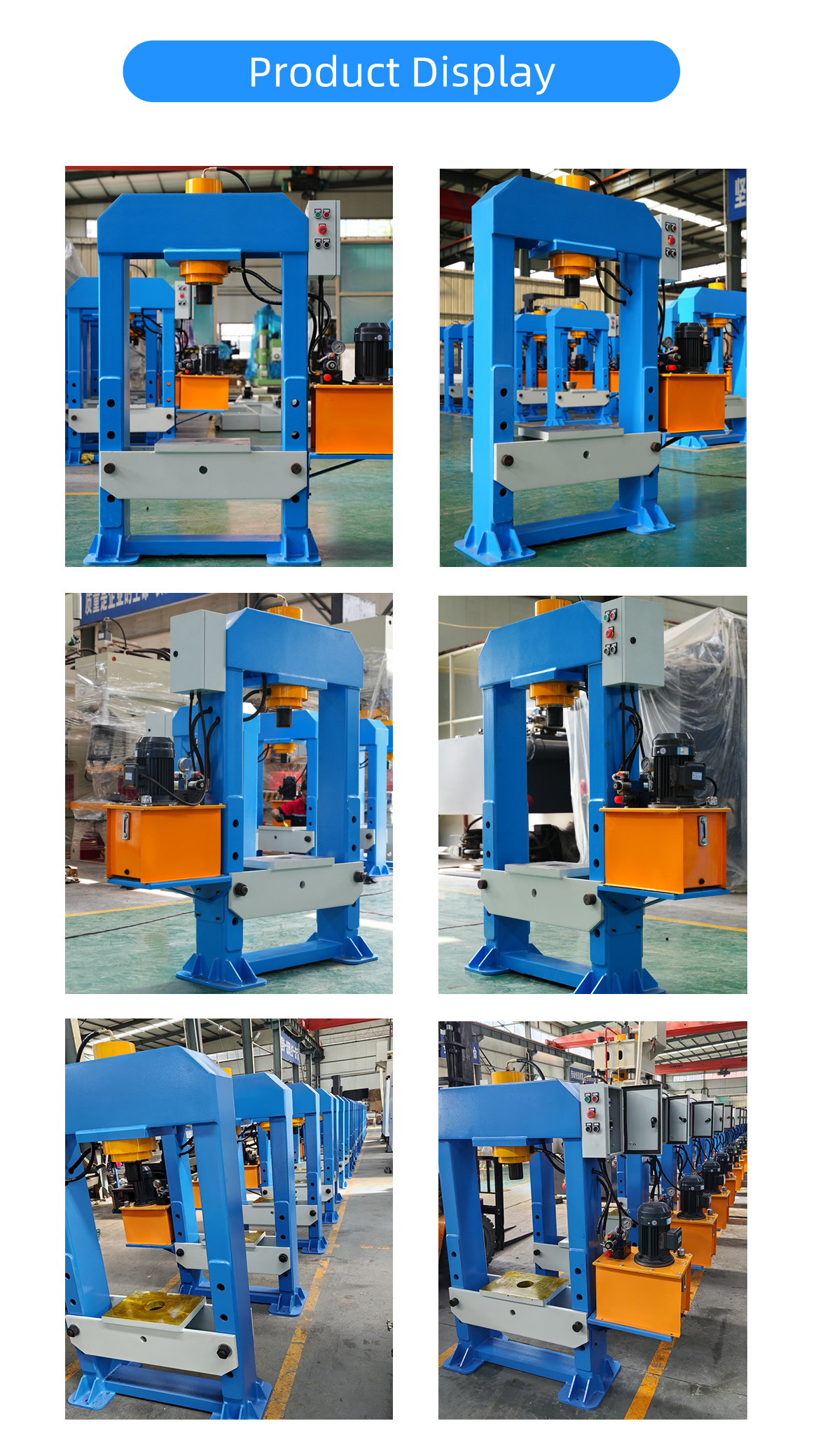

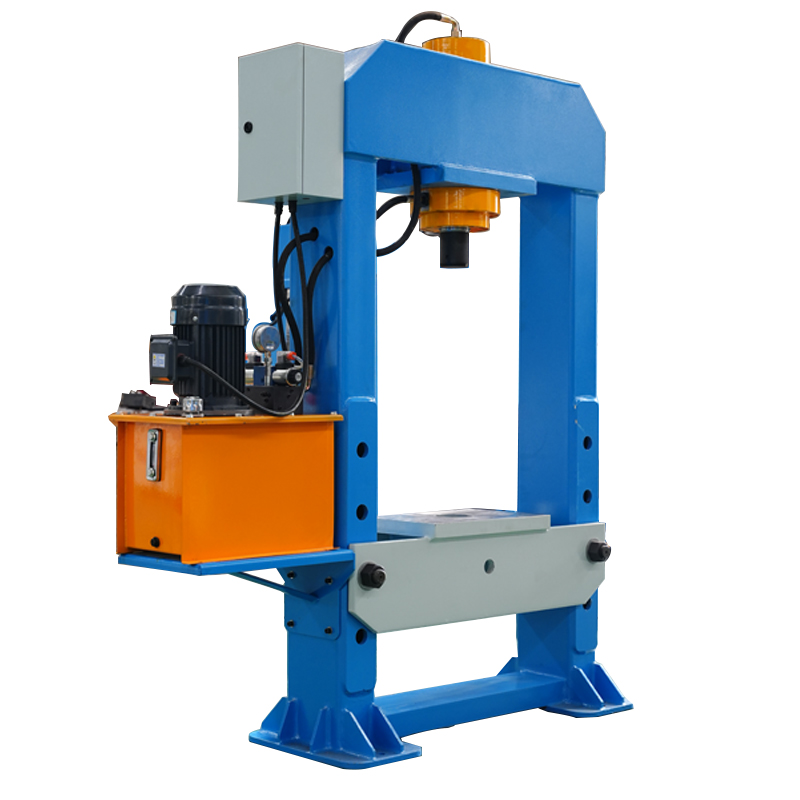

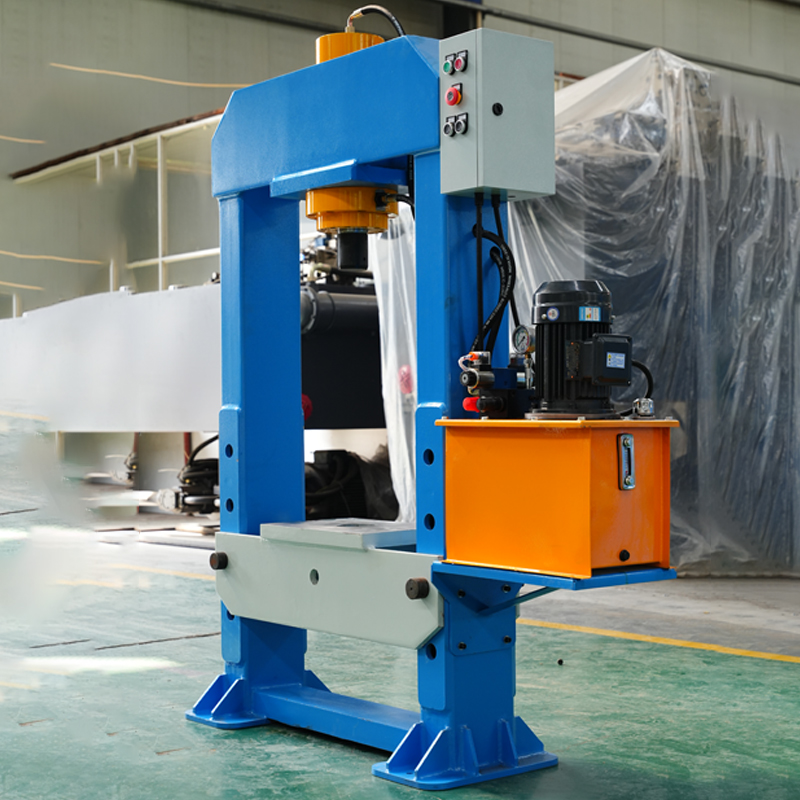

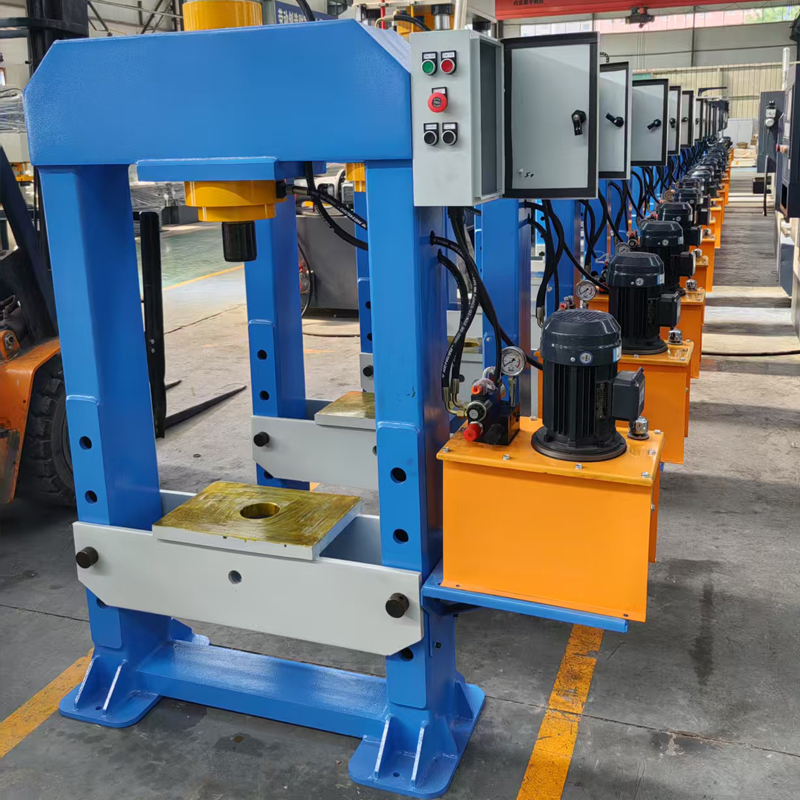

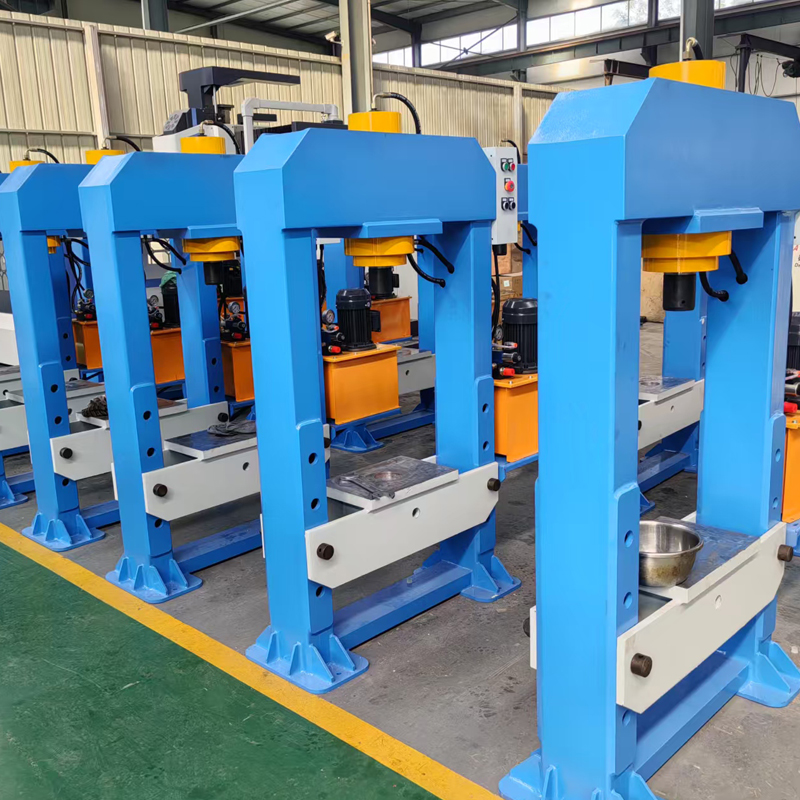

Hydraulic press

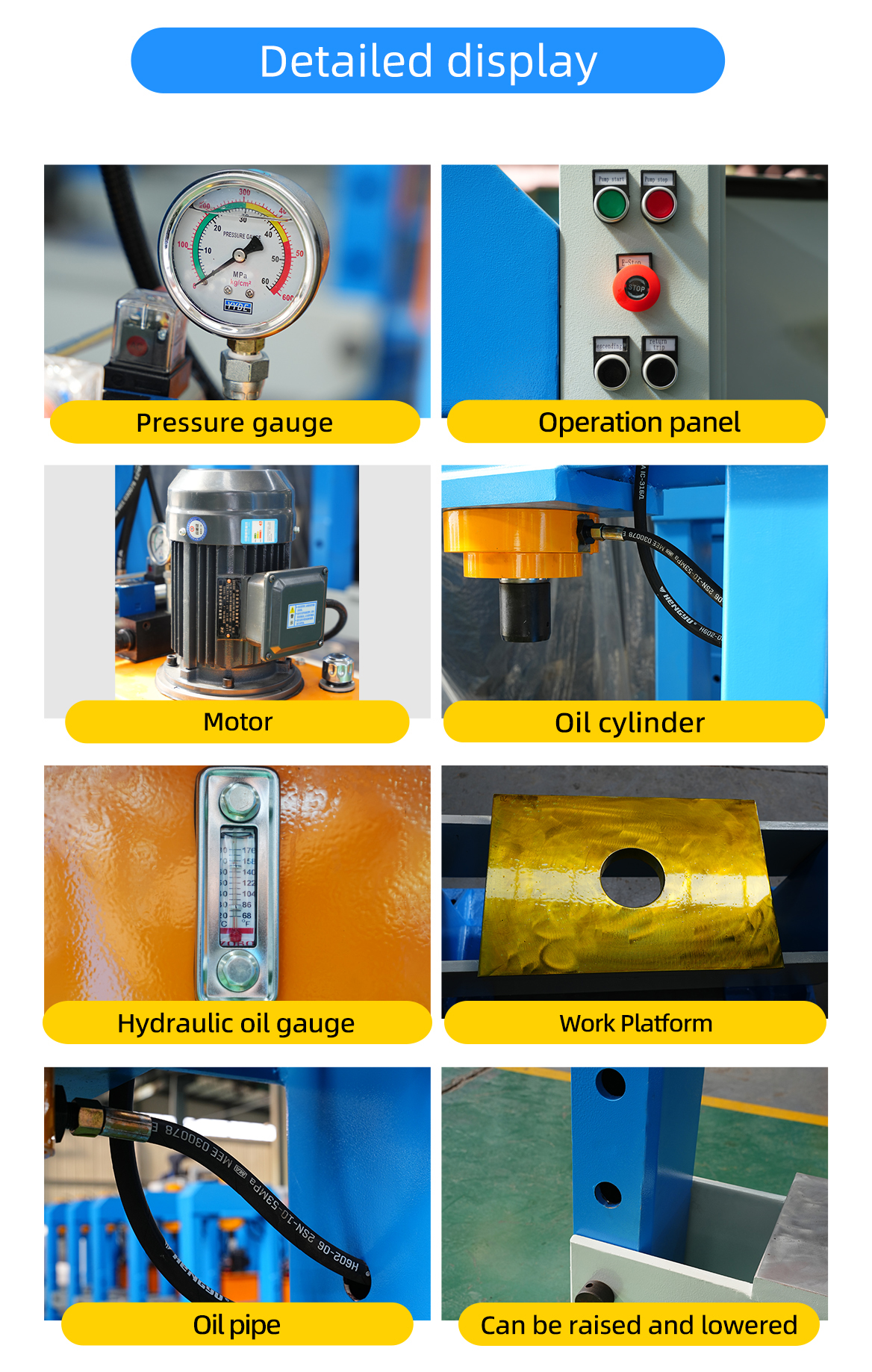

The press control system consists of an oil tank, a motor, a high-pressure oil pump, a relief valve, a three-position four-way solenoid valve, a pressure gauge, an oil cylinder, etc.

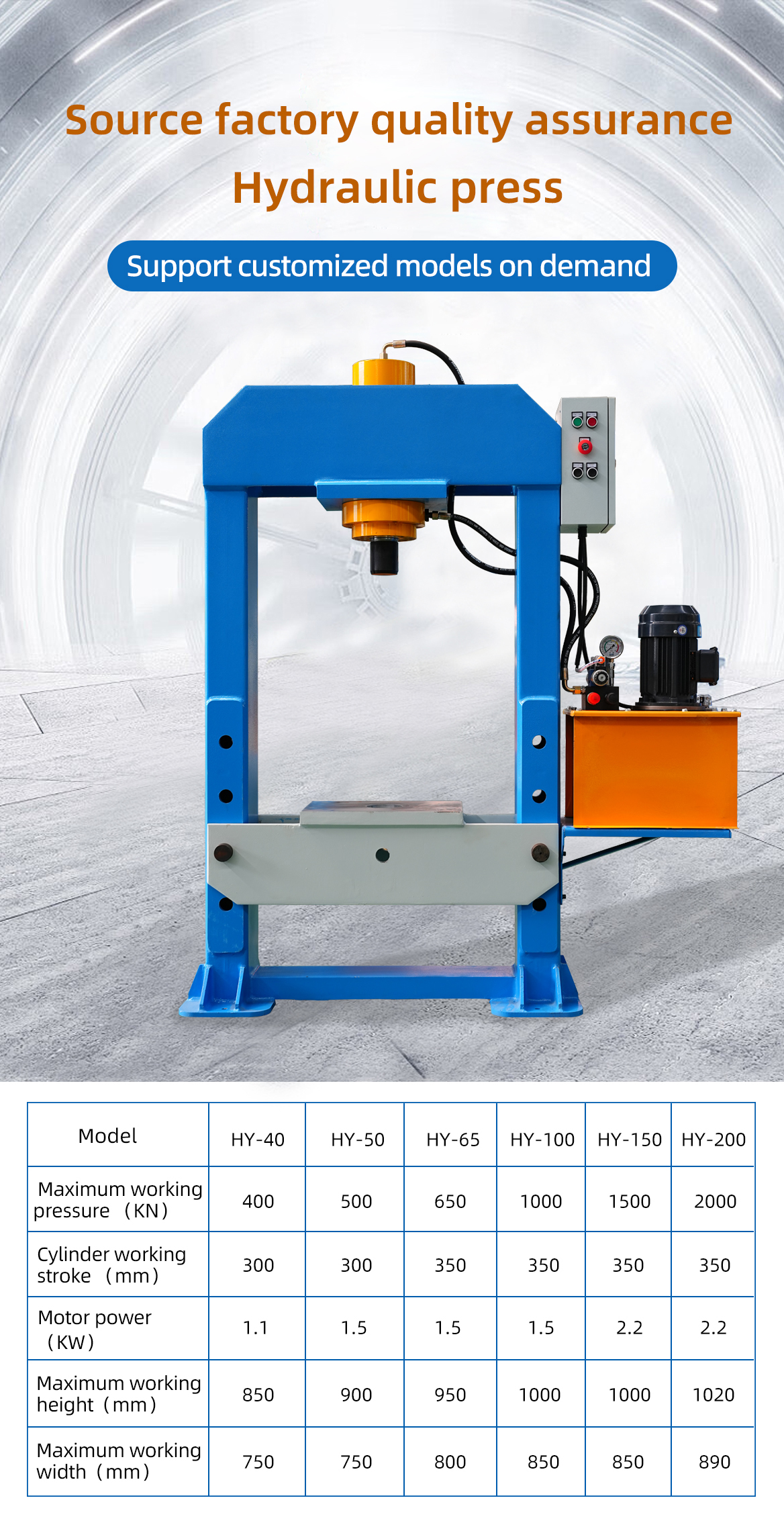

Maximum working pressure (KN)：500 Cylinder working stroke (MM)：300 Motor power (KW)：1.5 Maximum working height (MM)：900 Maximum working width(MM)：750

Hydraulic press

The press control system consists of an oil tank, a motor, a high-pressure oil pump, a relief valve, a three-position four-way solenoid valve, a pressure gauge, an oil cylinder, etc.

Maximum working pressure (KN)：500 Cylinder working stroke (MM)：300 Motor power (KW)：1.5 Maximum working height (MM)：900 Maximum working width(MM)：750

Nominal pressure	500KN	Maximum return force	250KN	Test pressure	≤31.5MPa
Maximum working pressure	≤25MPa	Maximum stroke	300mm	Maximum opening from workbench	800mm
Workbench left and right dimensions	450mm	Workbench front and rear dimensions	300mm	Blanking hole	110mm
Workbench lifting distance	150mm	Downlink speed	15mm/s	Return speed	22mm/s
Total machine power	1.5kw	Overall dimensions	11004201900Mm3	Maximum working height	900mm

Nominal pressure	500KN	Maximum return force	250KN	Test pressure	≤31.5MPa
Maximum working pressure	≤25MPa	Maximum stroke	300mm	Maximum opening from workbench	800mm
Workbench left and right dimensions	450mm	Workbench front and rear dimensions	300mm	Blanking hole	110mm
Workbench lifting distance	150mm	Downlink speed	15mm/s	Return speed	22mm/s
Total machine power	1.5kw	Overall dimensions	11004201900Mm3	Maximum working height	900mm
