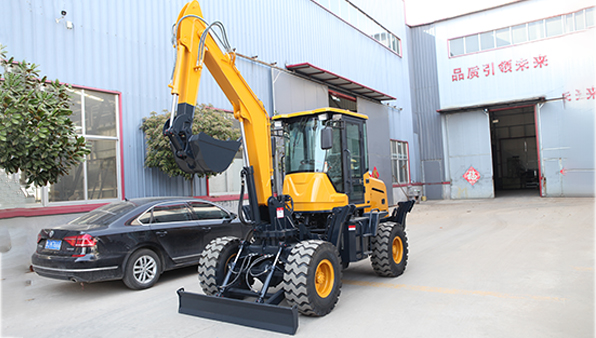

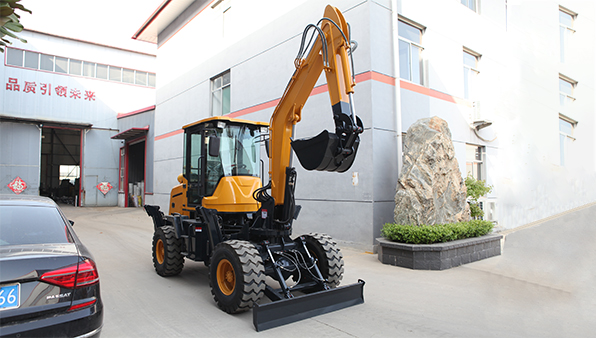

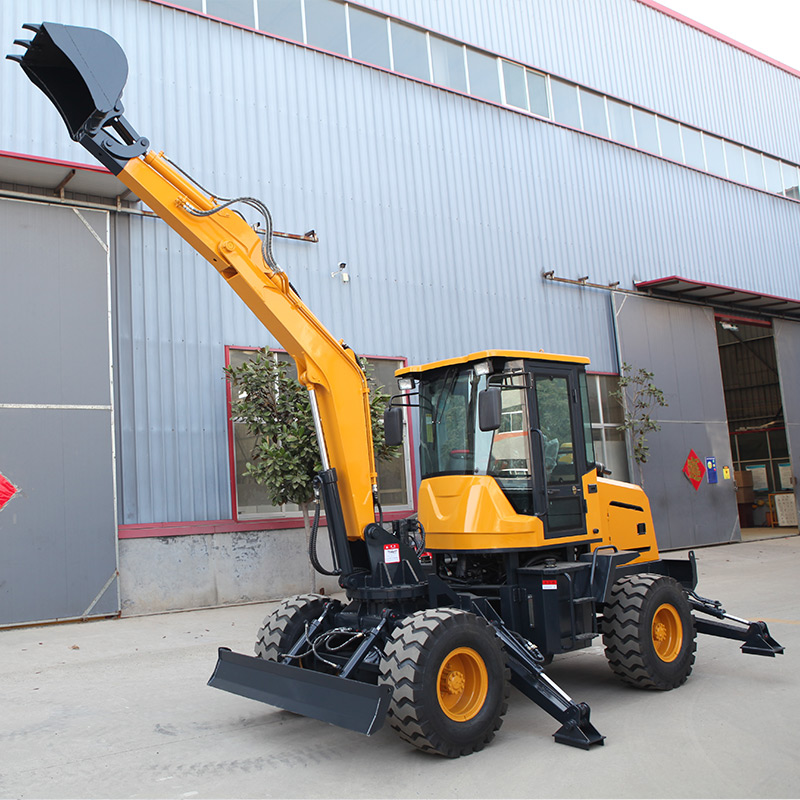

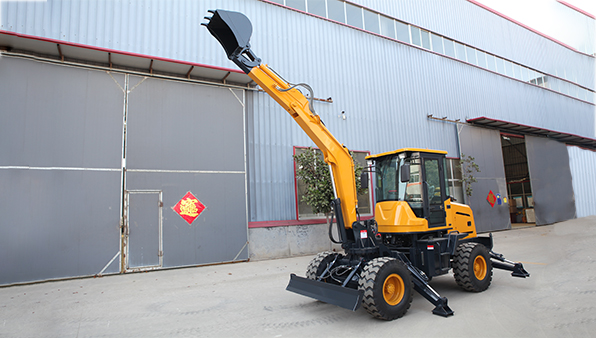

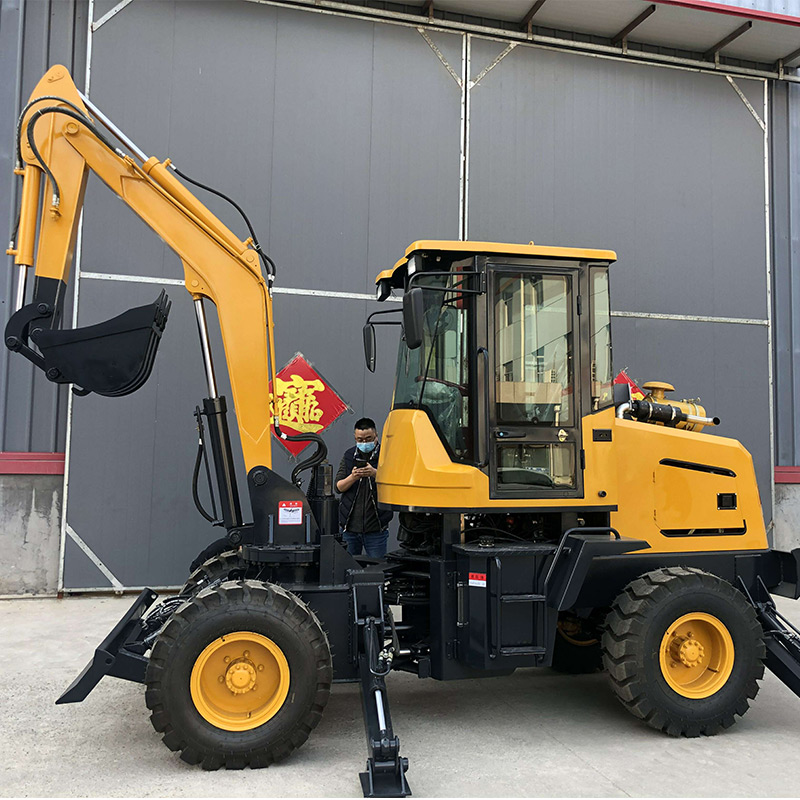

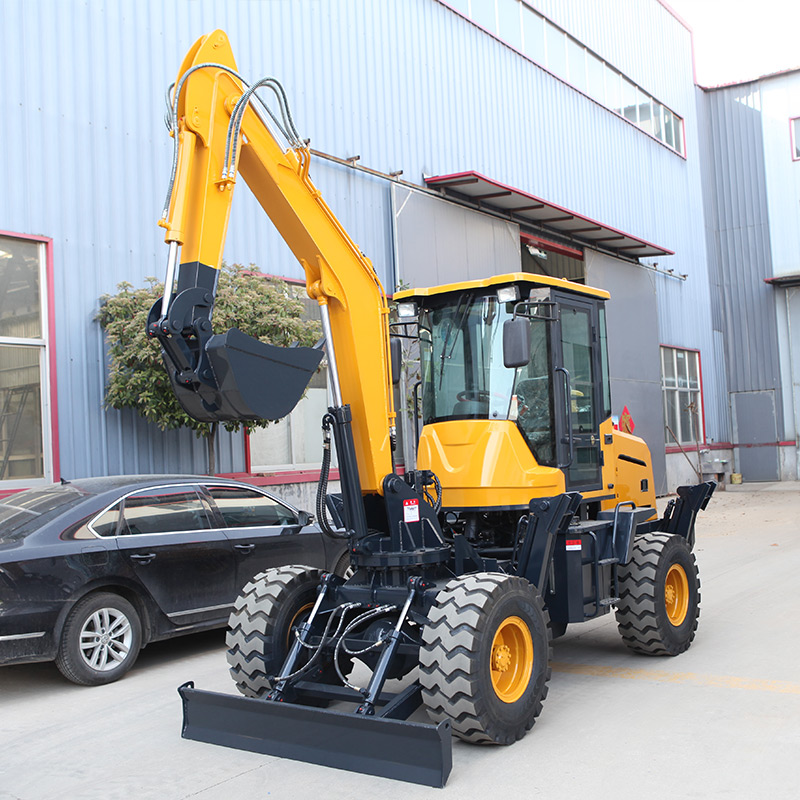

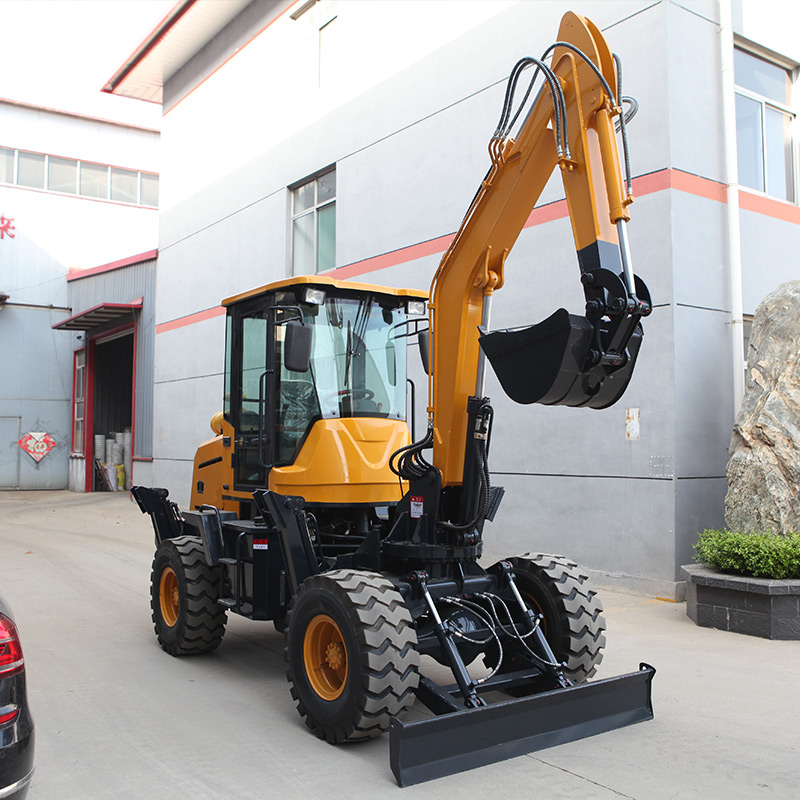

Mini Wheel Excavator - KV30

Wheeled excavators are used in airports, ports, oil fields, mines, urban and rural construction, farmland and water conservancy and other operation occasions with their distinctive characteristics of fast walking speed, flexible and rapid transfer and rapid replacement of a variety of operation devices. They are known as “good helpers” in the construction field.

Length：5600mm Height：2400mm Weight：3000kg Bucket Capacity：0.15m³ Engine Power：37kw/50

Wheeled excavators are used in airports, ports, oil fields, mines, urban and rural construction, farmland and water conservancy and other operation occasions with their distinctive characteristics of fast walking speed, flexible and rapid transfer and rapid replacement of a variety of operation devices. They are known as “good helpers” in the construction field.

Length：5600mm Height：2400mm Weight：3000kg Bucket Capacity：0.15m³ Engine Power：37kw/50

MODEL	KV30
WEIGHT
Total weight	3000kg
SIZE
Bucket capacity	0.15m³
total length	5600mm
total transport height	2400mm
Vehicle width	3000kg
Total Weight	2700mm
ground clearance	260mm
Maximum excavation height	4000mm
Maximum unloading height	2600mm
Max. digging depth	2500mm
Maximum digging radius	3000mm
wheelbase	2150mm
Maximum horizontal digging distance	2900mm
wheel tread	1500mm
DRIVE
engine power	37kw/50
Engine Type	Yunnei 490
hydraulic system pressure	16MPa
WALKING CHARACTERISTICS
Working device mode	Back Hole
Walking speed	30km/h

Total length	5600mm	total height	2400mm	Vehicle width	1750mm
Total Weight	3000kg	hydraulic system pressure	16MPa	Maximum excavation height	4000mm
Bucket capacity	0.15m³	Maximum unloading height	2600mm	engine model	Yunnei 490
Maximum excavation depth	2500mm	engine power	37kw/50	Maximum digging radius	3000mm
wheelbase	2150mm	Maximum horizontal digging distance	2900mm	Maximum side excavation distance	2600mm
Walking speed	30km/h	ground clearance	260mm	wheel tread	1500mm

Mini Wheel Excavator - KV30

Cab

Off-road Tires

Hydraulic System

Cab

Off-road Tires

Hydraulic System



Cab Designed according to the principles of engineering, the concept of comfort, wide vision, spacious and bright, user-friendly front gear mechanism, equipped with adjustable suspension seats, silicone oil shock absorption, comfortable driving environment.
	Off-road Tires Off-road anti-skid tires, with deeper texture, strong grip, not afraid of terrain.
Hydraulic System Well-known brand multi-way valve and advanced rotary reducer, fast action, sufficient strength, good coordination of compound action, high reliability and long service life.

Mini Wheel Excavator - KV30

Cab

Off-road Tires

Hydraulic System

Cab

Off-road Tires

Hydraulic System

KV30 Mini Wheel Excavator
