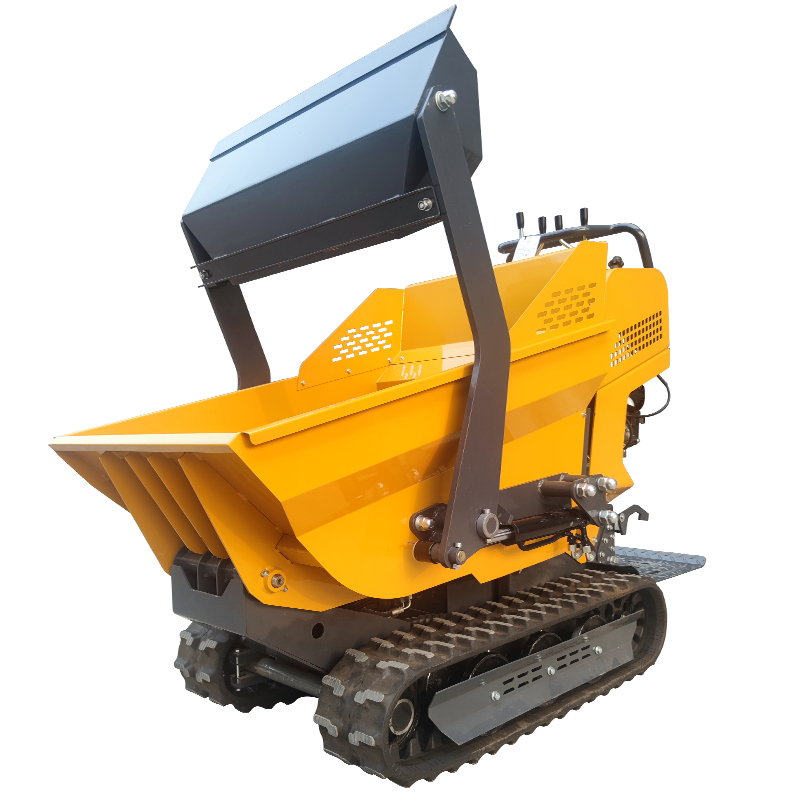

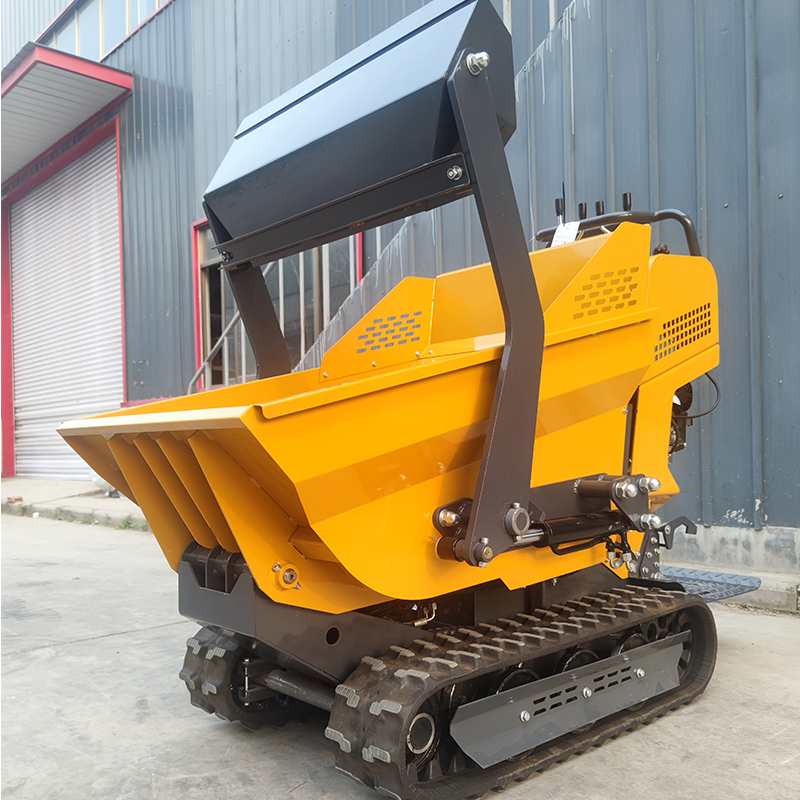

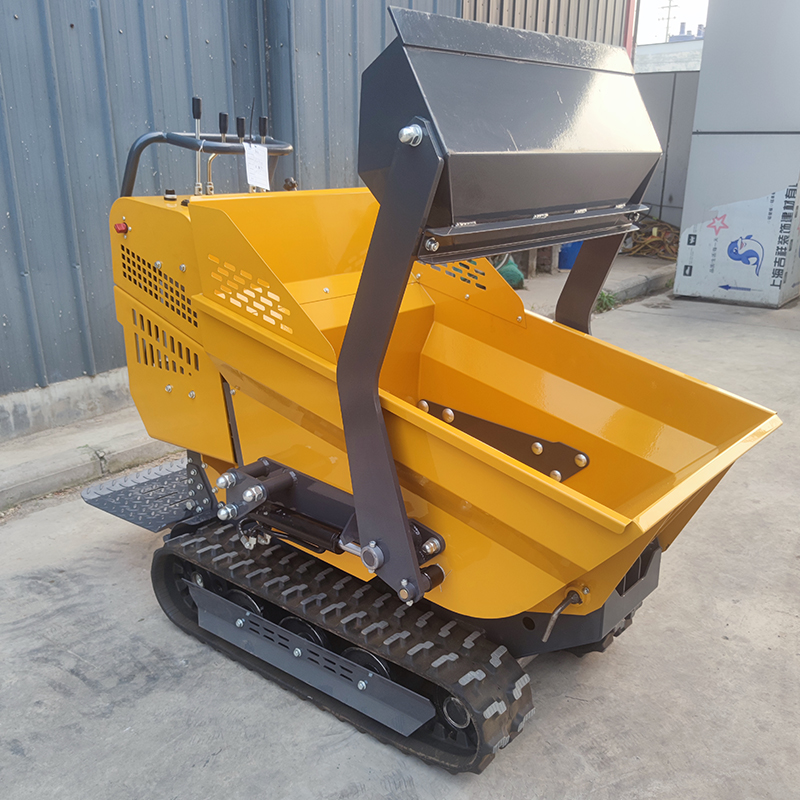

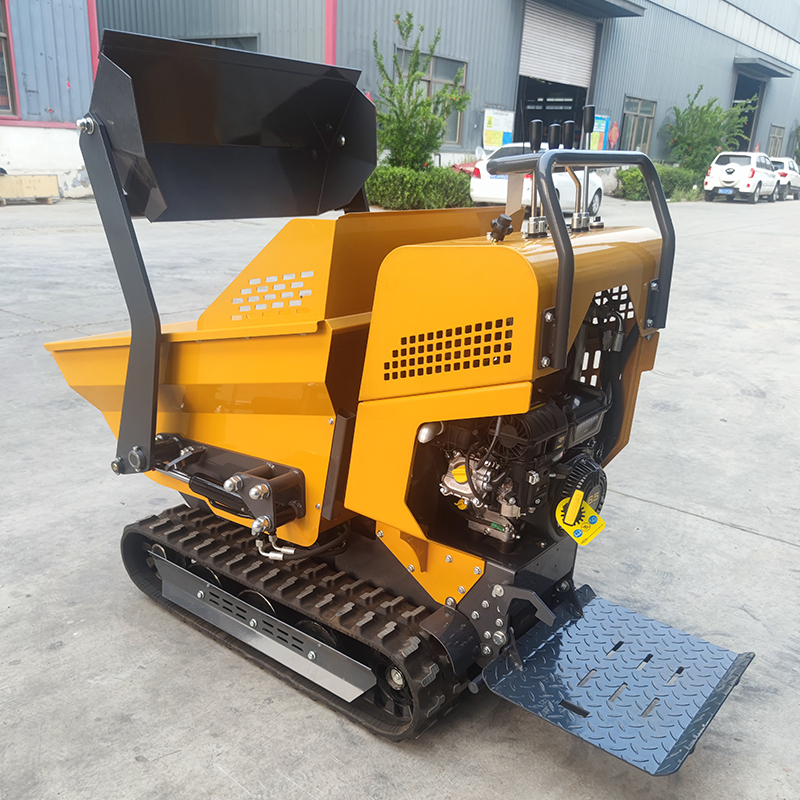

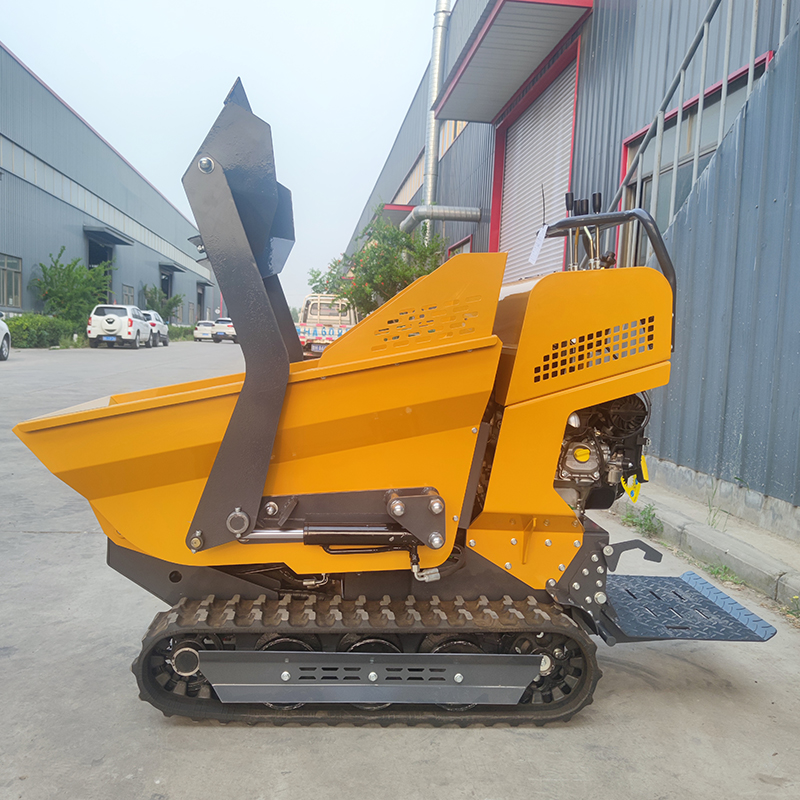

Mini Crawler Dumper

Mini Crawler Dumper

Dump truck is a special vehicle used to transport bulk materials, usually used in construction sites, mines, ports and other places. A cargo box that can be turned up and down is installed at the rear of the body, which can unload materials conveniently. The dump truck has high loading and unloading efficiency and is suitable for the transportation of a large amount of materials.

Power model: BLT New Pioneer 200 Engine type: single cylinder, 4-stroke, air-cooled Total displacement (ML): 203CC Rated power (kw/rpm): 6.5HP/3600rpm Fuel type: 92# gasoline
  • Selling point
  • Configuration
  • Video Introduction
  • Relevant
  • Online message
  • Back to previous
We Accept:
Mini Crawler Dumper

Dump truck is a special vehicle used to transport bulk materials, usually used in construction sites, mines, ports and other places. A cargo box that can be turned up and down is installed at the rear of the body, which can unload materials conveniently. The dump truck has high loading and unloading efficiency and is suitable for the transportation of a large amount of materials.

Power model: BLT New Pioneer 200 Engine type: single cylinder, 4-stroke, air-cooled Total displacement (ML): 203CC Rated power (kw/rpm): 6.5HP/3600rpm Fuel type: 92# gasoline

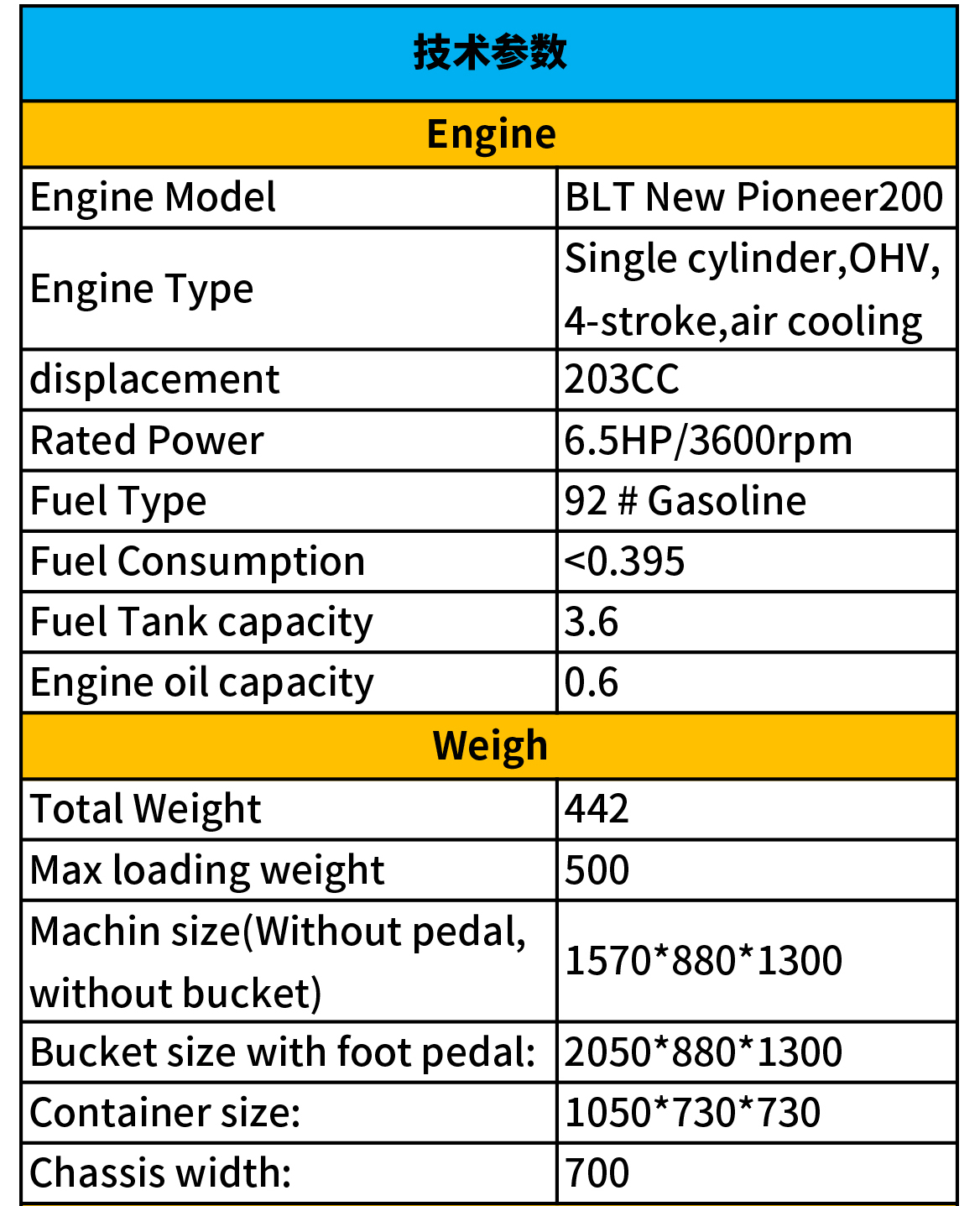

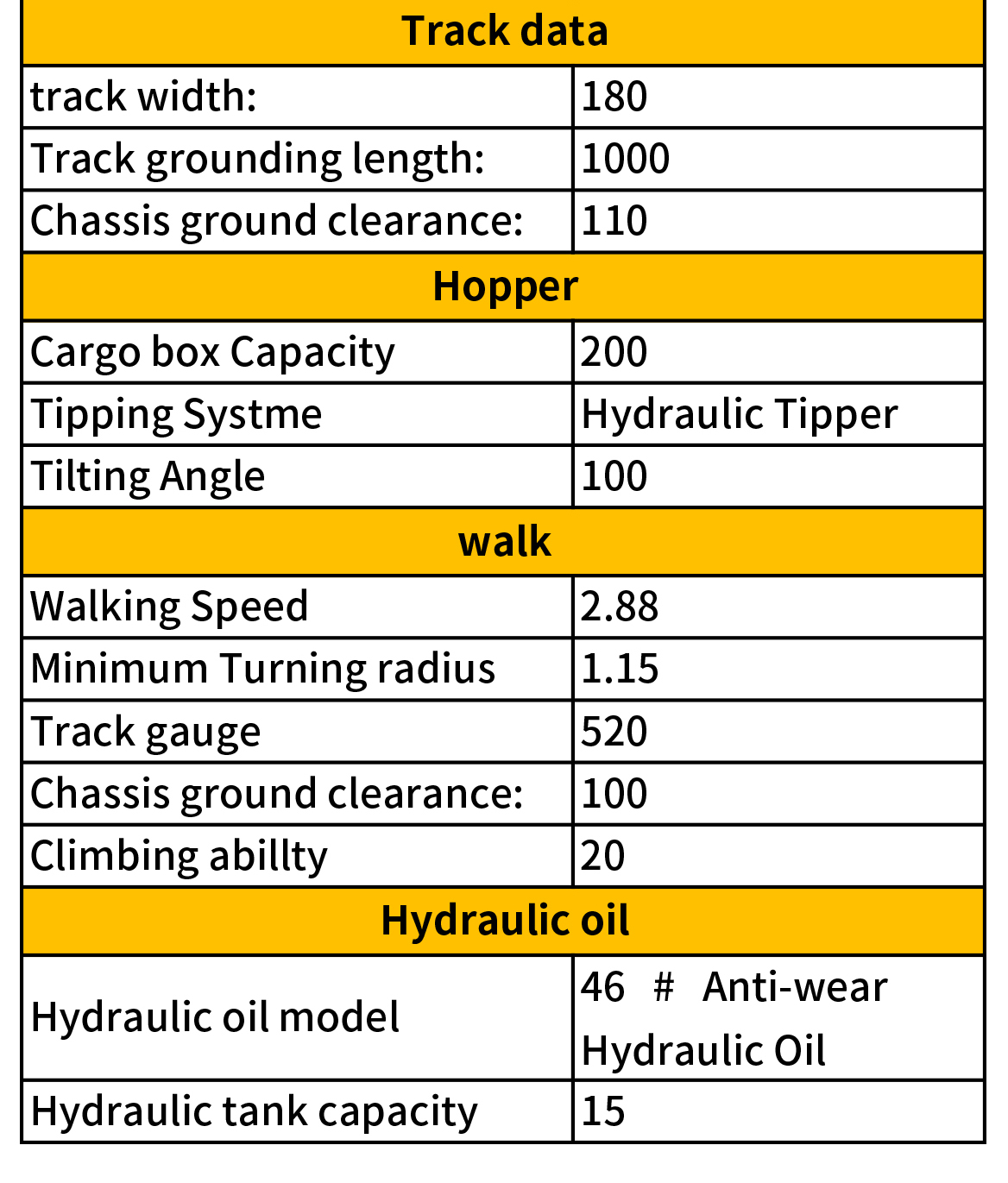

  • performance parameterperformance parameterSize rangeperformance parameter
    vehicle weight442kgMaximum load500kg
    Fuel tank capacity3.6lchassis width700mm
    Tipping modehydraulic dump truckMinimum turning radius1.15m
    Cargo capacity200dm³track width180mm
    Track ground length1000mmchassis ground clearance110mm
    digging depth1850mm
    		oil capacity0.6l
    Tip angle100°Track center distance520mm
    Gradeability20°walking performance speed
    		2.88km/h
    Power modelBLT New Pioneer 200motivation typeSingle cylinder, 4-stroke, air-cooled
    Overall size1050 * 730 * 730mm
