Mini Crawler Dumper-LG500B
LG500B Mini Dumper
LG500B Mini Dumper
LG500B Mini Dumper
LG500B Mini Dumper

Mini Crawler Dumper-LG500B

The Mini Crawler Dumper can adapt to complex and harsh road conditions such as rice fields, swamps, muddy field roads, rugged mountain roads, soft grass and deserts, slippery ice and snow, etc. , Infrastructure engineering, mining sites are widely used.

Total Weight ：320kg Max Loading Weight ：500kg Machine Size(L*W*H)：1730x900x1110mm Rated Power：4.2 kw / 3600 rpm Climbing Ability：20°
  • Selling point
  • Configuration
  • Video Introduction
  • Relevant
  • Online message
  • Back to previous
We Accept:
Mini Crawler Dumper-LG500B

The Mini Crawler Dumper can adapt to complex and harsh road conditions such as rice fields, swamps, muddy field roads, rugged mountain roads, soft grass and deserts, slippery ice and snow, etc. , Infrastructure engineering, mining sites are widely used.

Total Weight ：320kg Max Loading Weight ：500kg Machine Size(L*W*H)：1730x900x1110mm Rated Power：4.2 kw / 3600 rpm Climbing Ability：20°

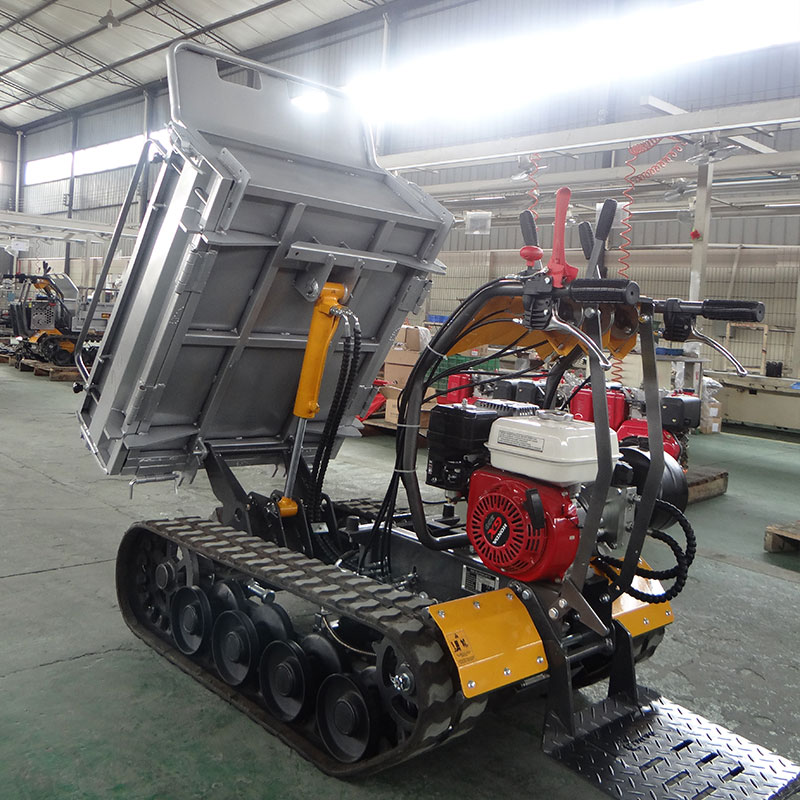

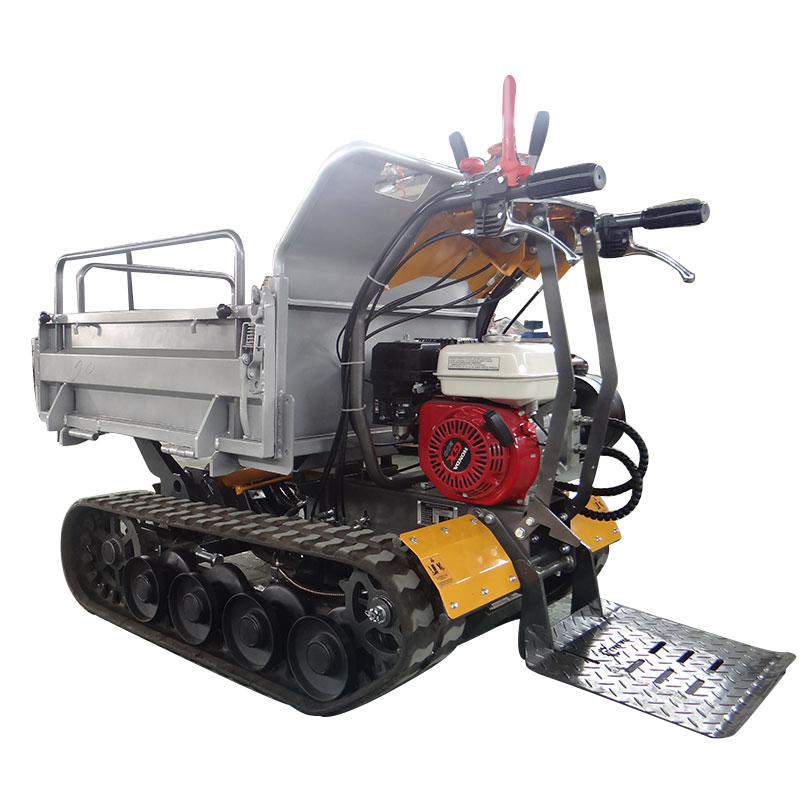

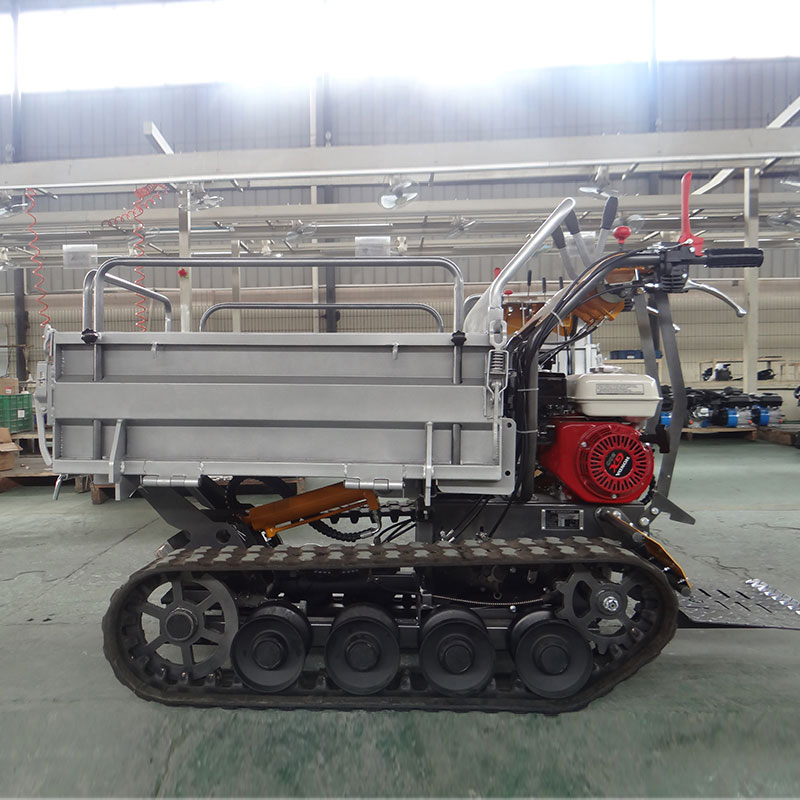

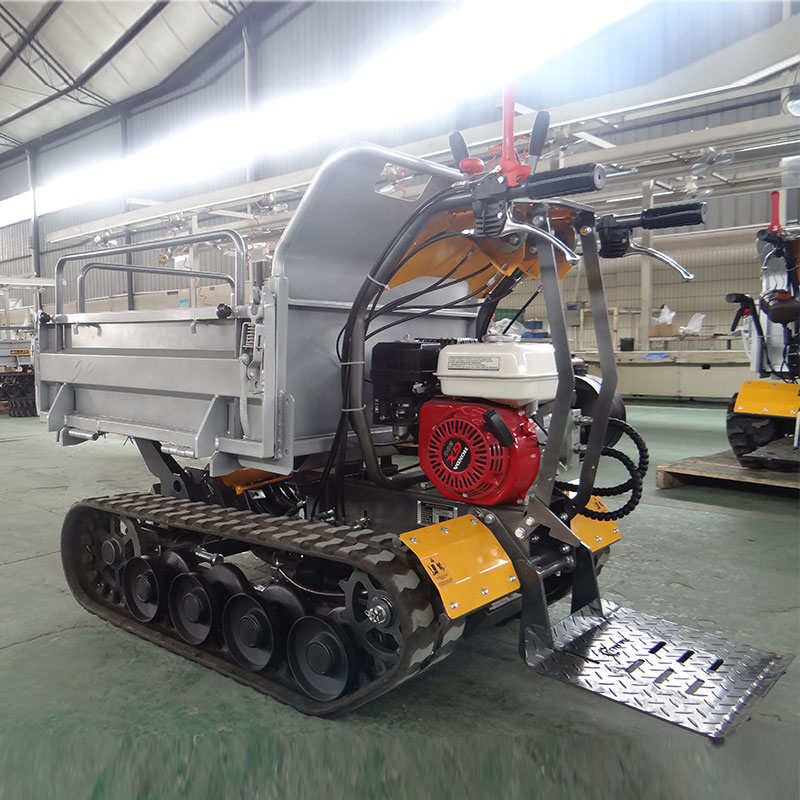

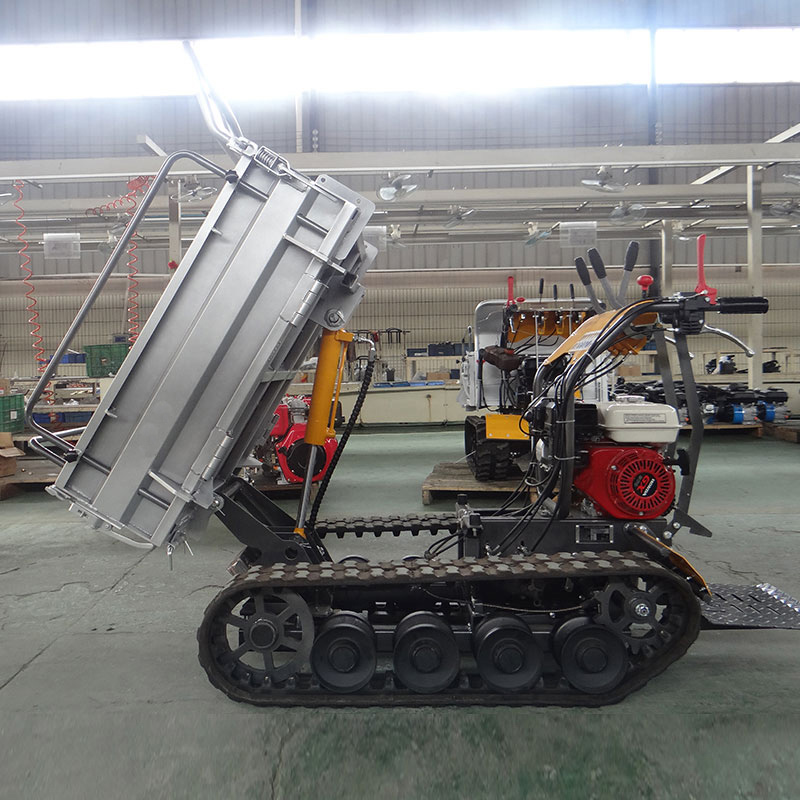

  • LG500B Mini Dumper

    500 (1).jpg500 (2).jpg
    500 (3).jpg500 (4).jpg
    500 (5).jpg500 (6).jpg

    1. Wide range of use, simple structure, smooth transmission, labor-saving operation, and easy to realize automatic control.

    2. It is suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice.

    3. Large traction, good climbing performance and strong transportation capacity.

    4. Small turning radius, flexible and flexible, especially suitable for narrow sites, reducing the cost of road construction.


  • Engine ModelGM170F
    Engine TypeSingle Cylinder, OHV, 4 Strokes, Air Cooling
    Displacement (cc)208cc
    Rated Power4.2 kw / 3600 rpm
    Fuel Type92 # Gasoline
    Fuel Consumption≤0.395
    Fuel Tank Capacity 3.6L
    Engine Oil Capacity 0.6L
    Total Weight 320kg
    Max Loading Weight 500kg
    Machine Size1730x900x1110mm
    Cargo box Capacity380dm³
    Tipping Systme:Hydraulic
    Track Ground Length830mm
    Track grage622mm
    Track Width180mm
    Tipping Angle42°
    Walking Speed0-7.8km/h
    Minimum Turning Radius1.15m
    Minimum Ground Clearance100mm
    Gearbox Oil ModelGL-4
    Gearbox Capacity2.5L
    Hydraulic Oil Model46# Anti-wear Hydraulic Oil
    Hydraulic Oil Tank Capacity 5L
    Climbing Ability20°

  • LG500B Mini Dumper

    500 (1).jpg500 (2).jpg
    500 (3).jpg500 (4).jpg
    500 (5).jpg500 (6).jpg

    1. Wide range of use, simple structure, smooth transmission, labor-saving operation, and easy to realize automatic control.

    2. It is suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice.

    3. Large traction, good climbing performance and strong transportation capacity.

    4. Small turning radius, flexible and flexible, especially suitable for narrow sites, reducing the cost of road construction.


  • Configuration
    Engine ModelGM170
    Engine TypeSingle Cylinder, OHV, 4 Strokes, Air Cooling
    Displacement (cc)208cc
    Rated Power4.2 kw / 3600 rpm
    Fuel Type92 # Gasoline
    Fuel Consumption≤0.395
    Fuel Tank Capacity 3.6L
    Engine Oil Capacity 0.6L
    Total Weight 320kg
    Max Loading Weight 500kg
    Machine Size1730x900x1110mm
    Cargo box Capacity380dm³
    Tipping SystmeHydraulic
    Track Ground Length830mm
    Track grage622mm
    Track Width180mm
    Tipping Angle42°
    Walking Speed0-7.8km/h
    Minimum Turning Radius1.15m
    Minimum Ground Clearance100mm
    Gearbox Oil ModelGL-4
    Gearbox Capacity2.5L
    Hydraulic Oil Model46# Anti-wear Hydraulic Oil
    Hydraulic Oil Tank Capacity 5L
    Climbing Ability20°
