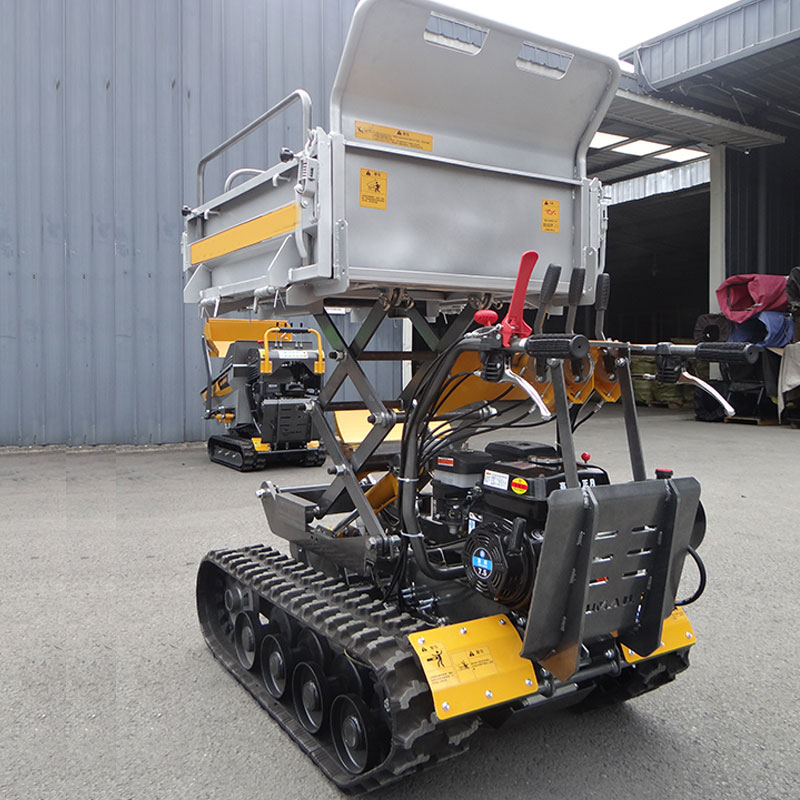

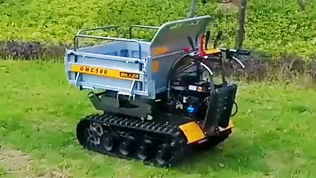

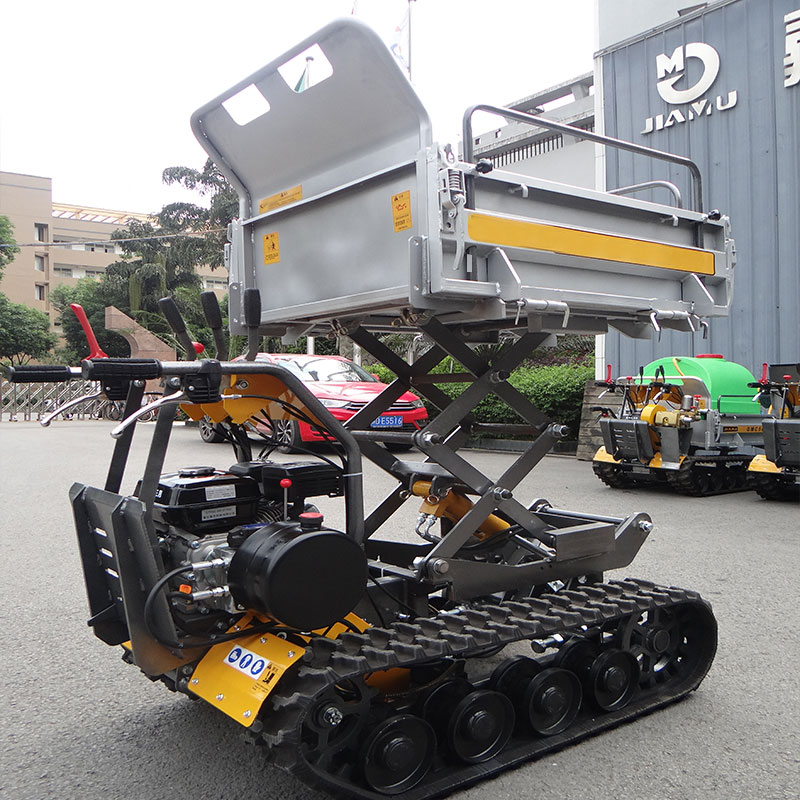

Mini Crawler Dumper-LG500D
LG500D Mini Dumper
LG500D Mini Dumper
LG500D Mini Dumper
LG500D Mini Dumper

Mini Crawler Dumper-LG500D

The Mini Crawler Dumper can adapt to complex and harsh road conditions such as rice fields, swamps, muddy field roads, rugged mountain roads, soft grass and deserts, slippery ice and snow, etc. , Infrastructure engineering, mining sites are widely used.

Total Weight：300kg Max Loading Weight：500kg Machin Size (L*W*H)：1730x900x1110mm Lift Height：1200mm Climbing Ability：20°
  • Selling point
  • Configuration
  • Video Introduction
  • Relevant
  • Online message
  • Back to previous
We Accept:
Mini Crawler Dumper-LG500D

The Mini Crawler Dumper can adapt to complex and harsh road conditions such as rice fields, swamps, muddy field roads, rugged mountain roads, soft grass and deserts, slippery ice and snow, etc. , Infrastructure engineering, mining sites are widely used.

Total Weight：300kg Max Loading Weight：500kg Machin Size (L*W*H)：1730x900x1110mm Lift Height：1200mm Climbing Ability：20°

  • KF500D Mini Dumper

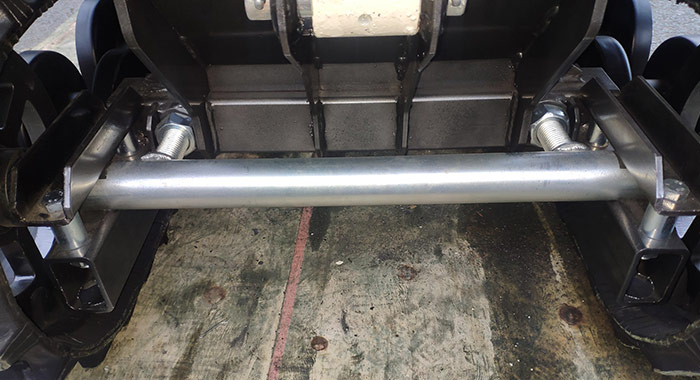

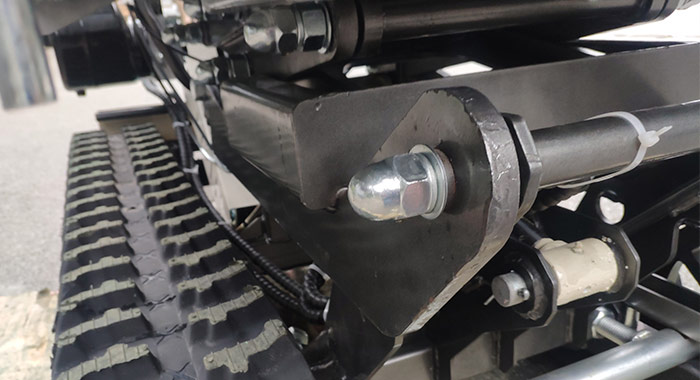

    500D (1).jpg500D (2).jpg

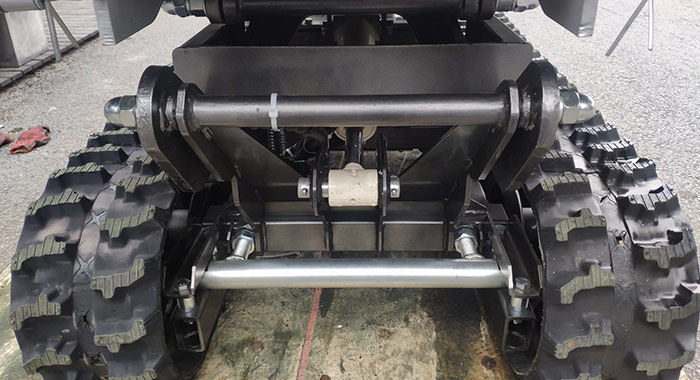

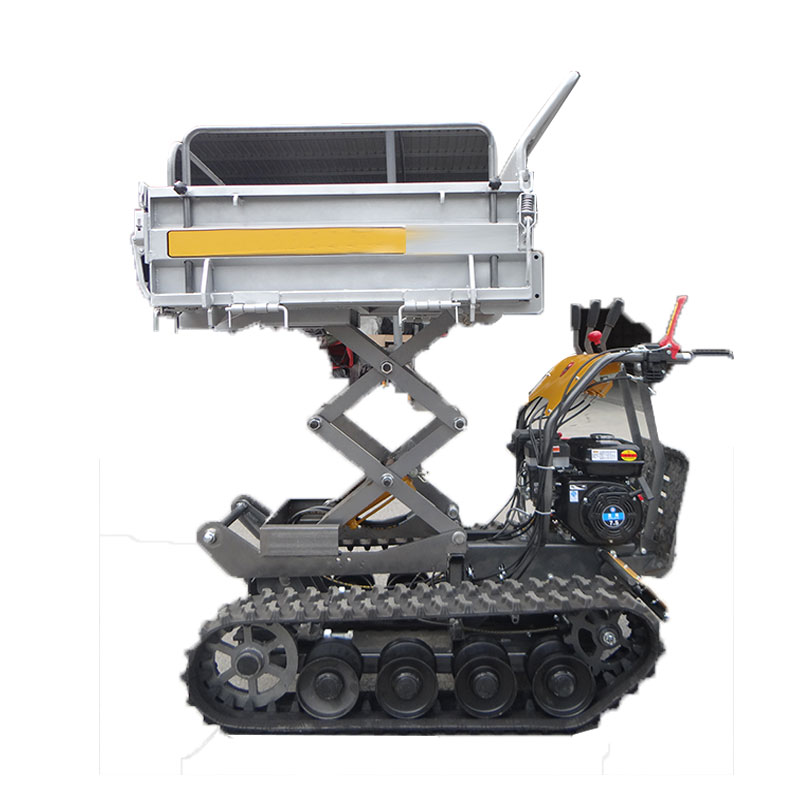

    500D (3).jpg500D (4).jpg

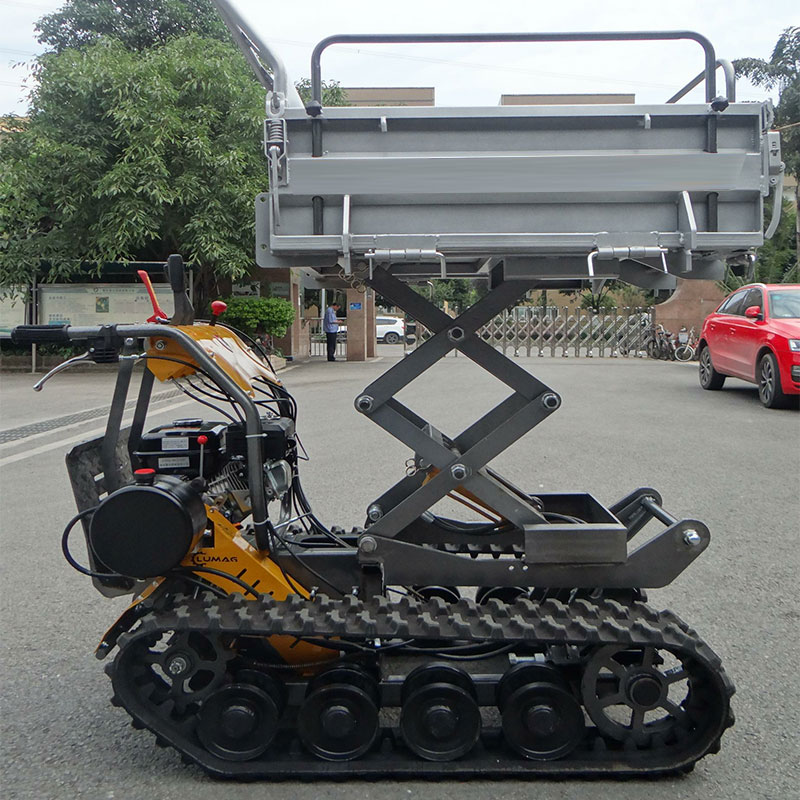

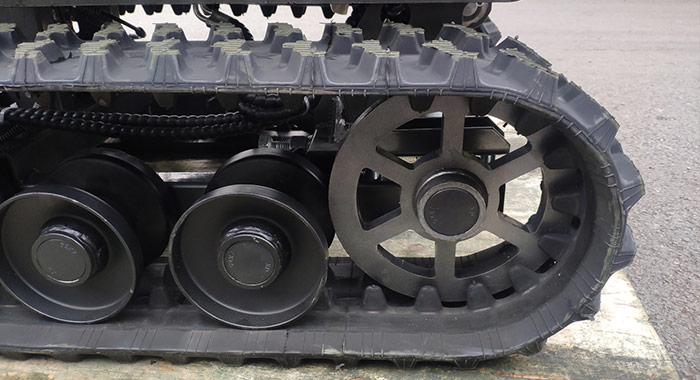

    500D (5).jpg500D (6).jpg

    1. Wide range of use, simple structure, smooth transmission, labor-saving operation, and easy to realize automatic control.

    2. It is suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice.

    3. Large traction, good climbing performance and strong transportation capacity.

    4. Small turning radius, flexible and flexible, especially suitable for narrow sites, reducing the cost of road construction.


  • Engine Model:GM170F
    Engine Type:Single Cylinder, OHV, 4 Strokes, Air Cooling
    Displacement (cc):208cc
    Rated Power:4.2 kw / 3600 rpm
    Fuel Type:92 # Gasoline
    Fuel Consumption≤0.395 g/kw.h
    Fuel Tank Capacity3.6L
    Engine Oil Capacity0.6L
    Total Weight300kg
    Max Loading Weight500kg
    Machin Size (L*W*H)1730x900x1110mm
    Cargo box Capacity167.84dm³
    Lifting ModeHydraulicLift
    Track Ground Length830mm
    Track grage622mm
    Track Width180mm
    Lift Height1200mm
    Walking Speed0-7.8km/h
    Minimum Turning Radius1.15m
    Minimum Ground Clearance100mm
    Gearbox Oil ModelGL-4
    Gearbox Capacity2.5L
    Hydraulic Oil Model46# Anti-wear Hydraulic Oil
    Hydraulic Oil Tank Capacity5L
    Climbing Ability20°

  • KF500D Mini Dumper

    500D (1).jpg500D (2).jpg
    500D (3).jpg500D (4).jpg
    500D (5).jpg500D (6).jpg

    1. Wide range of use, simple structure, smooth transmission, labor-saving operation, and easy to realize automatic control.

    2. It is suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice.

    3. Large traction, good climbing performance and strong transportation capacity.

    4. Small turning radius, flexible and flexible, especially suitable for narrow sites, reducing the cost of road construction.


  • Configuration
    Engine Model:GM170F
    Engine Type:Single Cylinder, OHV, 4 Strokes, Air Cooling
    Displacement (cc):208cc
    Rated Power:4.2 kw / 3600 rpm
    Fuel Type:92 # Gasoline
    Fuel Consumption≤0.395 g/kw.h
    Fuel Tank Capacity3.6L
    Engine Oil Capacity0.6L
    Total Weight300kg
    Max Loading Weight500kg
    Machin Size (L*W*H)1730x900x1110mm
    Cargo box Capacity167.84dm³
    Lifting ModeHydraulicLift
    Track Ground Length830mm
    Track grage622mm
    Track Width180mm
    Lift Height1200mm
    Walking Speed0-7.8km/h
    Minimum Turning Radius1.15m
    Minimum Ground Clearance100mm
    Gearbox Oil ModelGL-4
    Gearbox Capacity2.5L
    Hydraulic Oil Model46# Anti-wear Hydraulic Oil
    Hydraulic Oil Tank Capacity5L
    Climbing Ability20°
