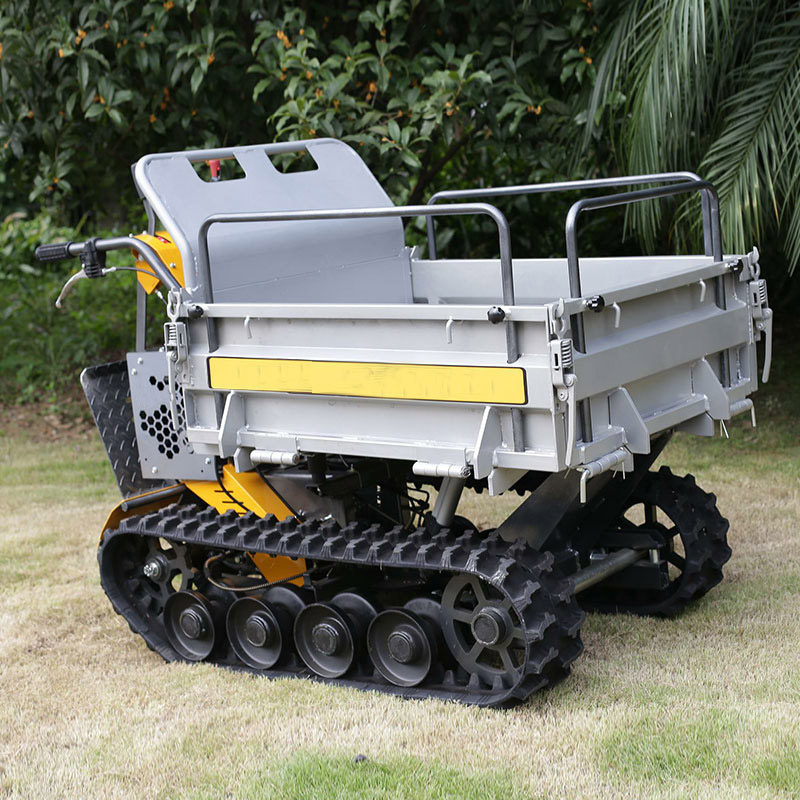

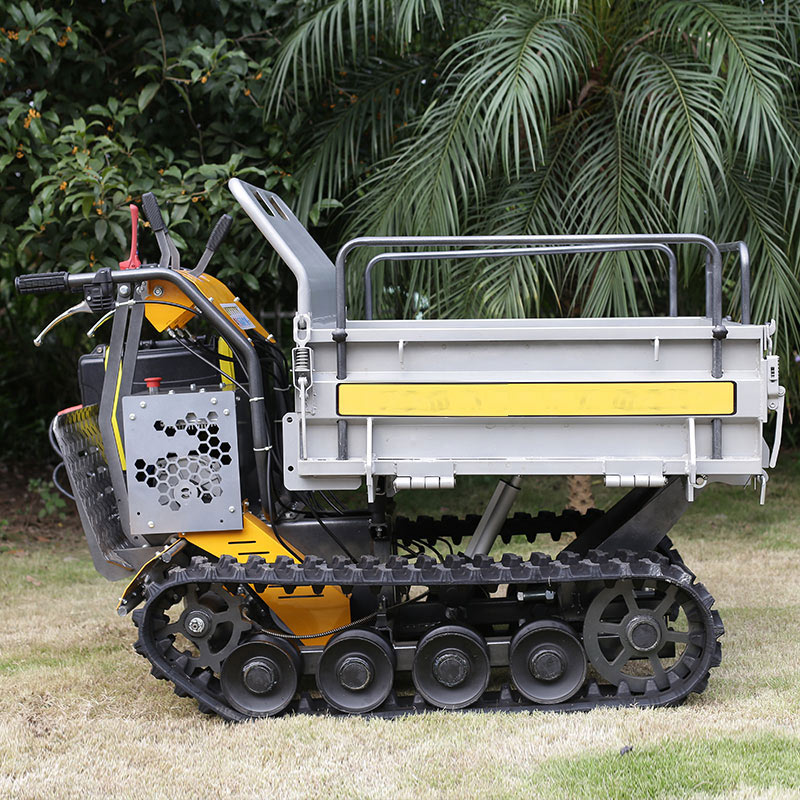

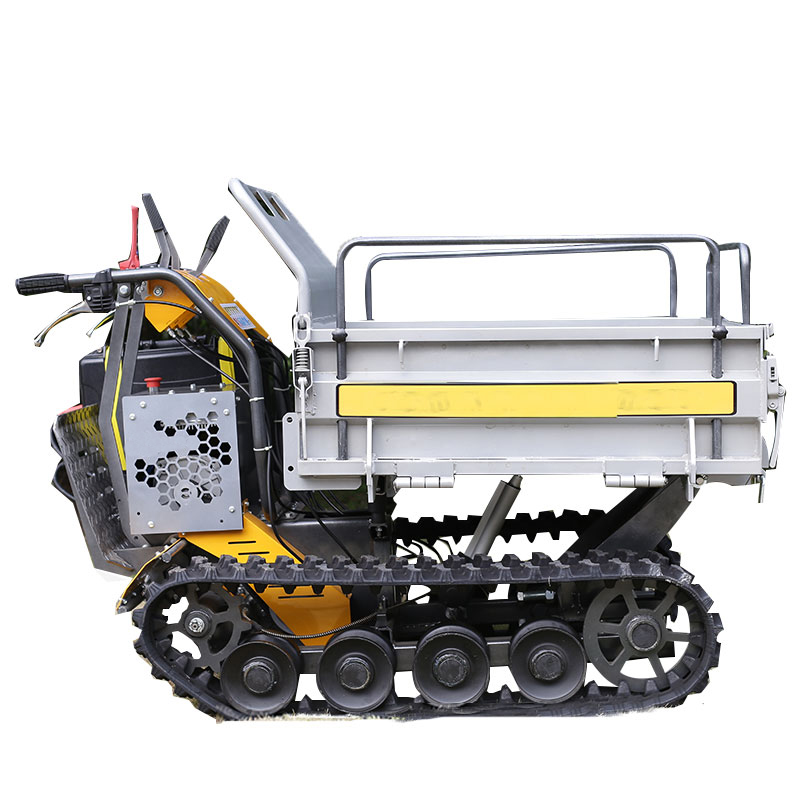

Mini Crawler Dumper-LG500E
LG500E Mini dumper
LG500E Mini dumper
LG500E Mini dumper
LG500E Mini dumper

Mini Crawler Dumper-LG500E

The Mini Crawler Dumper can adapt to complex and harsh road conditions such as rice fields, swamps, muddy field roads, rugged mountain roads, soft grass and deserts, slippery ice and snow, etc. , Infrastructure engineering, mining sites are widely used.

Total Weight ：320kg Max Loading Weight ：500kg Machin Size(L*W*H)：1770x900x1100mm Tipping Systme：by hand Climbing Ability：20°
  • Selling point
  • Configuration
  • Video Introduction
  • Relevant
  • Online message
  • Back to previous
We Accept:
Mini Crawler Dumper-LG500E

The Mini Crawler Dumper can adapt to complex and harsh road conditions such as rice fields, swamps, muddy field roads, rugged mountain roads, soft grass and deserts, slippery ice and snow, etc. , Infrastructure engineering, mining sites are widely used.

Total Weight ：320kg Max Loading Weight ：500kg Machin Size(L*W*H)：1770x900x1100mm Tipping Systme：by hand Climbing Ability：20°

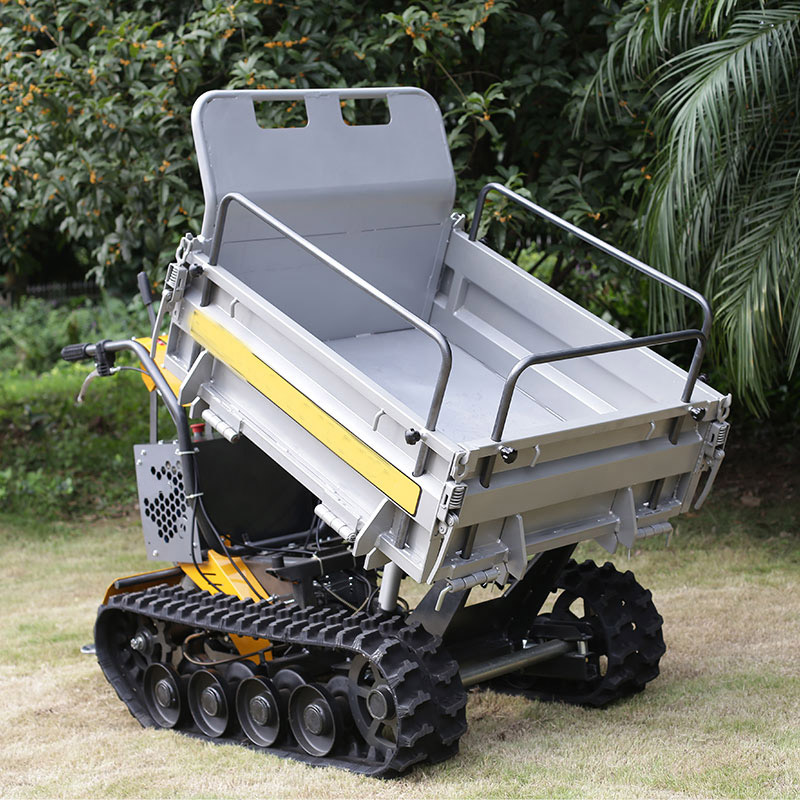

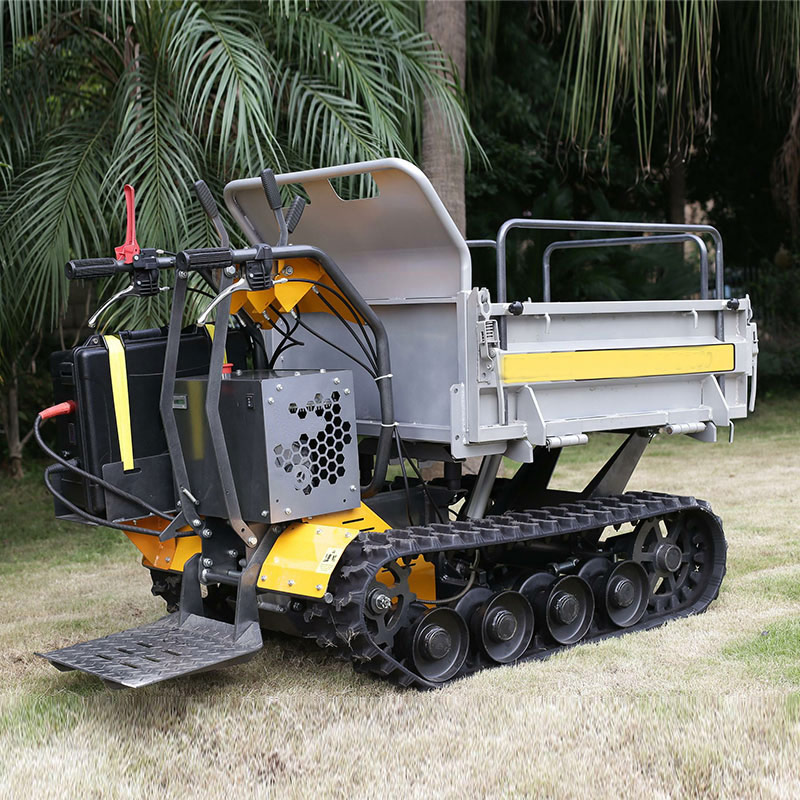

  • LG500E Mini Dumper

    500 (1).jpg500 (2).jpg
    500 (3).jpg500 (4).jpg
    500 (5).jpg500 (6).jpg

    1. Wide range of use, simple structure, smooth transmission, labor-saving operation, and easy to realize automatic control.

    2. It is suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice.

    3. Large traction, good climbing performance and strong transportation capacity.

    4. Small turning radius, flexible and flexible, especially suitable for narrow sites, reducing the cost of road construction.

  • Weght of Motor17kg
    Rated Voltage of Motor48V
    Rated Power2.2/3400kw/rpm
    Total Weight320kg
    Max Loading Weight500kg
    Machin Size1770x900x1100mm
    Cargo box Capacity216.07dm³
    Tipping Systme:By hand
    Track Ground Length830mm
    Track grage622mm
    Track Width180mm
    Tipping Angle38
    Walking Speed 0-7.8km/h
    Minimum Turning Radius 1.15m
    Minimum Ground Clearance 100mm
    Gearbox Oil ModelGL-4
    Gearbox Capacity2.5L
    Climbing Ability 20°

  • LG500E Mini Dumper

    500 (1).jpg500 (2).jpg
    500 (3).jpg500 (4).jpg
    500 (5).jpg500 (6).jpg

    1. Wide range of use, simple structure, smooth transmission, labor-saving operation, and easy to realize automatic control.

    2. It is suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice.

    3. Large traction, good climbing performance and strong transportation capacity.

    4. Small turning radius, flexible and flexible, especially suitable for narrow sites, reducing the cost of road construction.

  • Configuration
    Weght of Motor17kg
    Rated Voltage of Motor48V
    Rated Power2.2/3400kw/rpm
    Total Weight320kg
    Max Loading Weight500kg
    Machin Size1770x900x1100mm
    Cargo box Capacity216.07dm³
    Tipping Systme:By hand
    Track Ground Length830mm
    Track grage622mm
    Track Width180mm
    Tipping Angle38
    Walking Speed 0-7.8km/h
    Minimum Turning Radius 1.15m
    Minimum Ground Clearance 100mm
    Gearbox Oil ModelGL-4
    Gearbox Capacity2.5L
    Climbing Ability 20°

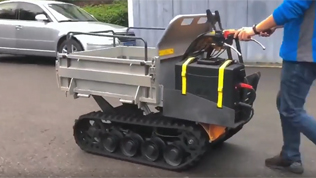

  • Video Introduction
