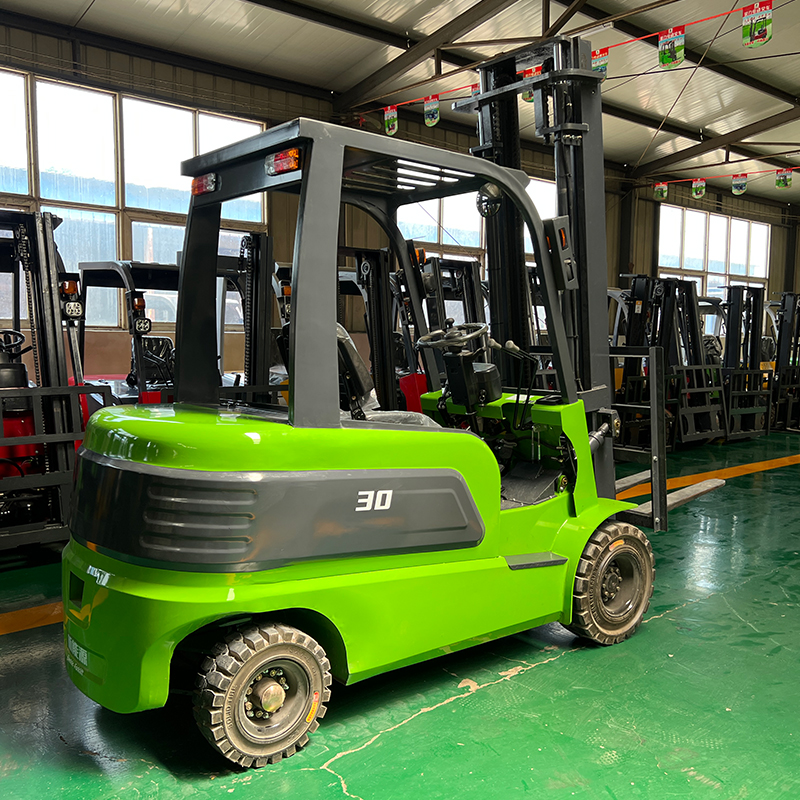

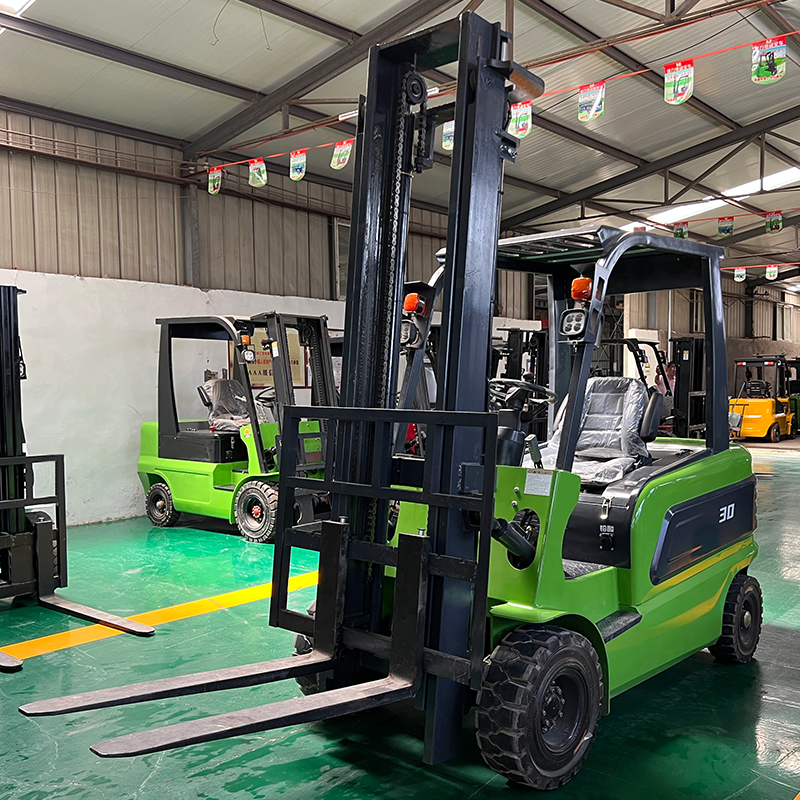

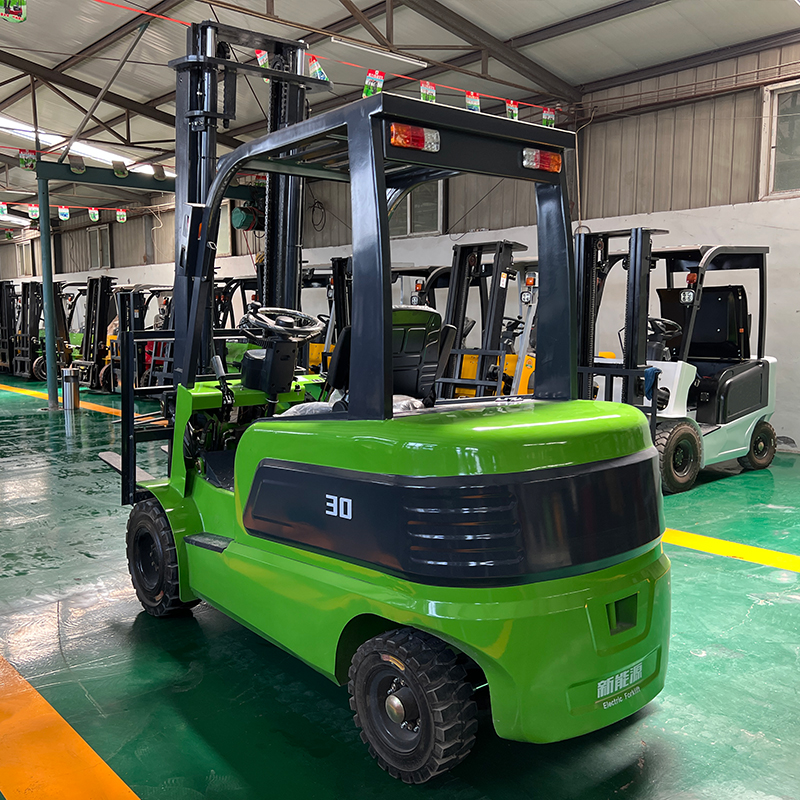

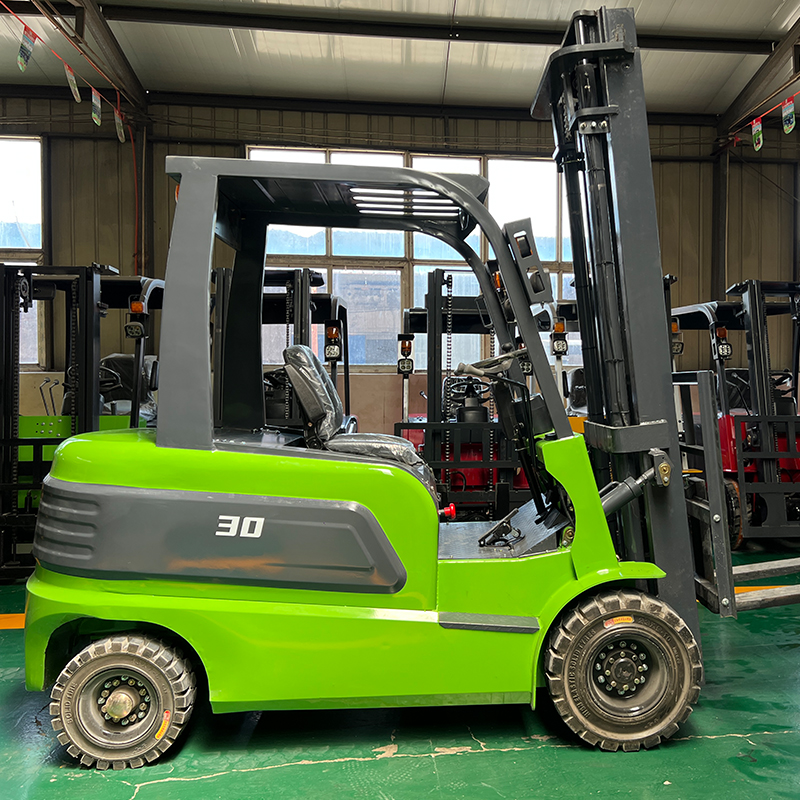

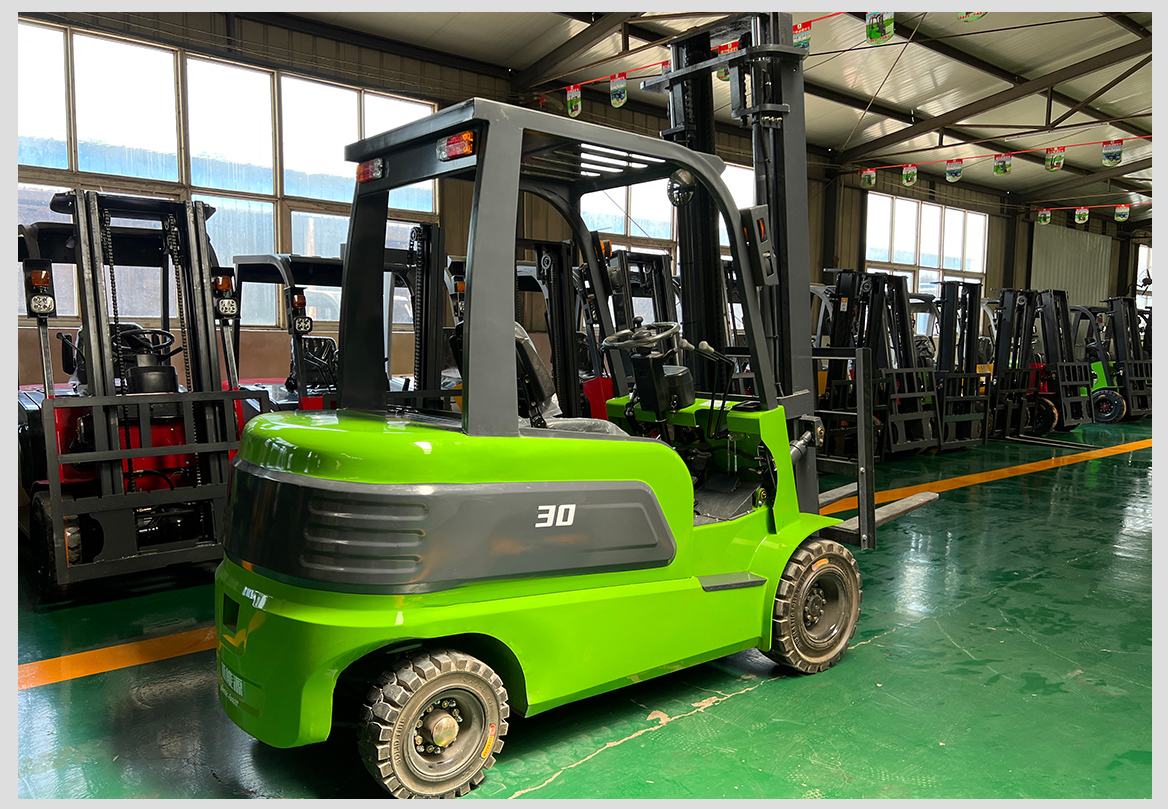

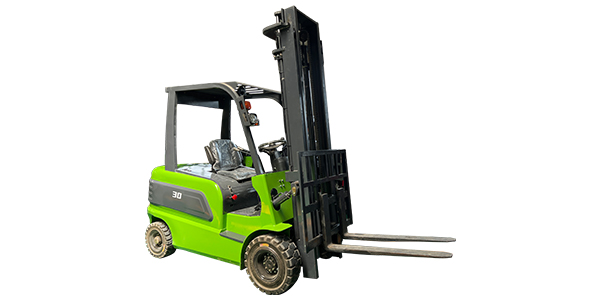

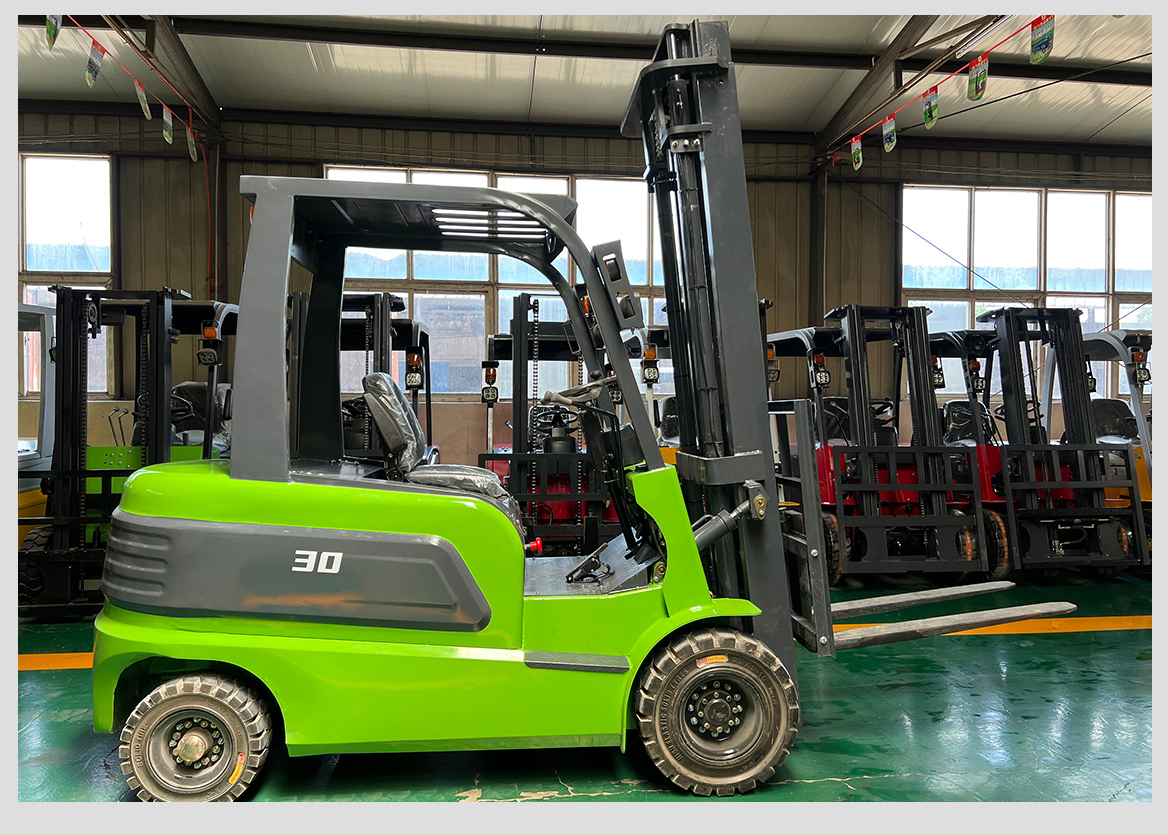

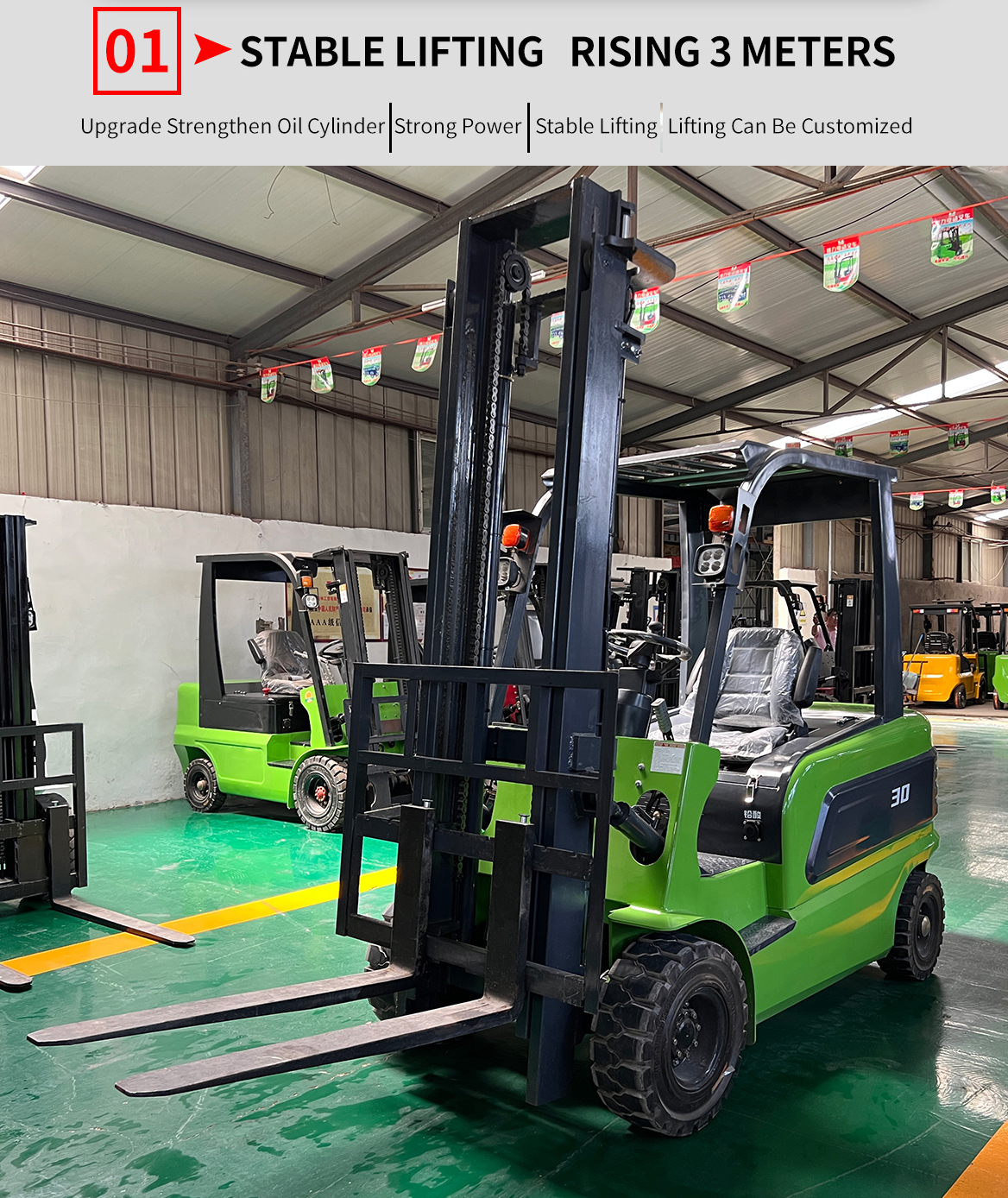

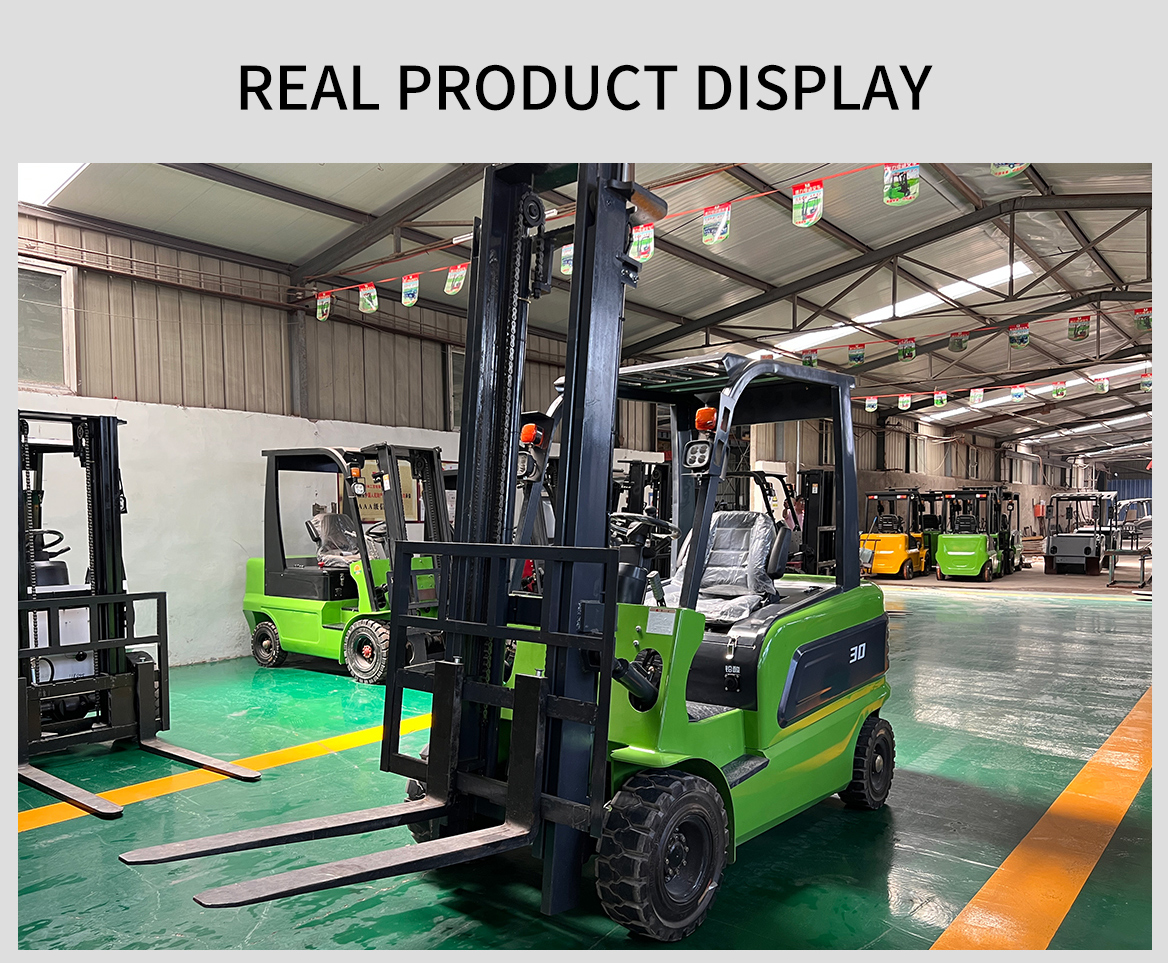

3 Ton New Energy Electric Forklift

The electric forklift is driven by electricity. Compared with the internal combustion forklift, it has the advantages of no pollution, easy operation, energy saving and high efficiency. With the development of economy and the improvement of environmental protection and energy saving requirements, electric forklifts have developed rapidly.

Rated voltage：72V Number of battery：6 piece Charging time：9-11h Four walking tyre：Solid tyre Machine color：Optional

The electric forklift is driven by electricity. Compared with the internal combustion forklift, it has the advantages of no pollution, easy operation, energy saving and high efficiency. With the development of economy and the improvement of environmental protection and energy saving requirements, electric forklifts have developed rapidly.

Rated voltage：72V Number of battery：6 piece Charging time：9-11h Four walking tyre：Solid tyre Machine color：Optional

" "

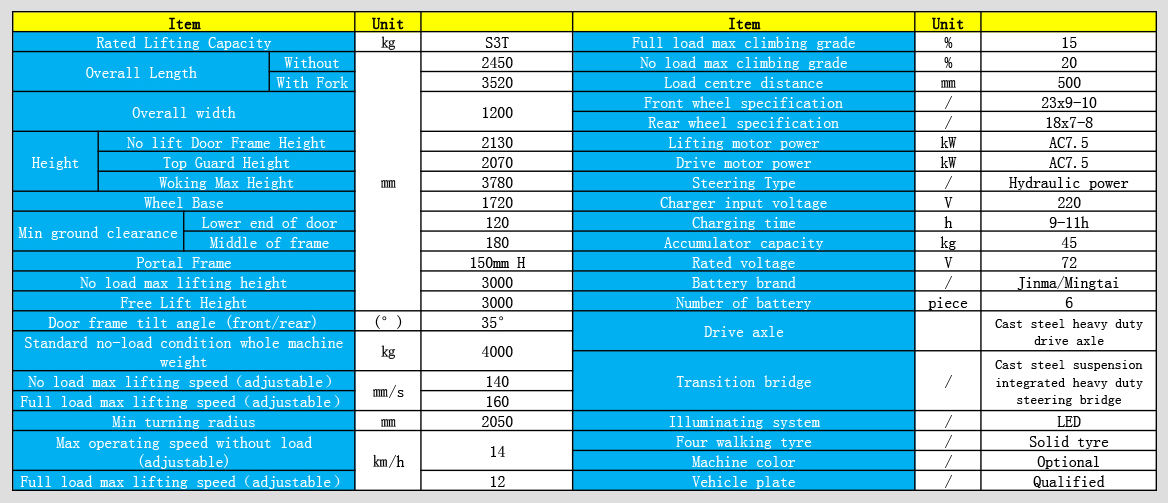

Item				Unit		Item	Unit
Rated Lifting Capacity				kg	S3T	Full load max climbing grade	%	15
Overall Length			Without	m	2450	No load max climbing grade	%	20
			With Fork		3520	Load centre distance	mm	500
Overall width					1200	Front wheel specification	/	23x9-10
Height	No lift DoorFrame Height					Rear wheel specification		18x7-8
	Top Guard Height				2130	Lifting motor_power	kW	AC7.5
	Woking Max Height				2070	Drive motor_power	kW	AC7.5
WheelBase					3780	Steering Type	/	Hydraulic power
Min ground clearance		Lower end of door			1720	Charger_input voltage	/	220
		Middle of frame			120	Charging time	h	9-11h
Portal Frame					180	Accumulator_capacity	kg	45
No load max lifting height					150mmH	Rated voltage	/	72
Free Lift Height					3000	Battery brand	/	Jin ma/Ming tai
					3000	Number of battery	piece	6
Doorframe tilt angle(front/rear)					35°	Drive_axle	/	Cast steel heavyduty drive axle
Standard no-load condition whole machine weight				kg	4000
						Transition bridge	/	Cast steel suspension integrated heavyduty steering bridge
No load max lifting speed(adjustable)				mm/s	140
Full load max lifting speed(adjustable)					160
Min turning radius					2050	Illuminating_system	/	LED
Max operating_speed without load				km/h	14	Four walking tyre	/	Solid tyre
(adjustable)						Machine color	/	Optional
Full load max lifting speed(adjustable)					12	Vehicle plate	/	Qualified

Item				Unit		Item	Unit
Rated Lifting Capacity				kg	S3T	Full load max climbing grade	%	15
Overall Length			Without	m	2450	No load max climbing grade	%	20
			With Fork		3520	Load centre distance	mm	500
Overall width					1200	Front wheel specification	/	23x9-10
Height	No lift DoorFrame Height					Rear wheel specification		18x7-8
	Top Guard Height				2130	Lifting motor_power	kW	AC7.5
	Woking Max Height				2070	Drive motor_power	kW	AC7.5
WheelBase					3780	Steering Type	/	Hydraulic power
Min ground clearance		Lower end of door			1720	Charger_input voltage	/	220
		Middle of frame			120	Charging time	h	9-11h
Portal Frame					180	Accumulator_capacity	kg	45
No load max lifting height					150mmH	Rated voltage	/	72
Free Lift Height					3000	Battery brand	/	Jin ma/Ming tai
					3000	Number of battery	piece	6
Doorframe tilt angle(front/rear)					35°	Drive_axle	/	Cast steel heavyduty drive axle
Standard no-load condition whole machine weight				kg	4000
						Transition bridge	/	Cast steel suspension integrated heavyduty steering bridge
No load max lifting speed(adjustable)				mm/s	140
Full load max lifting speed(adjustable)					160
Min turning radius					2050	Illuminating_system	/	LED
Max operating_speed without load				km/h	14	Four walking tyre	/	Solid tyre
(adjustable)						Machine color	/	Optional
Full load max lifting speed(adjustable)					12	Vehicle plate	/	Qualified
