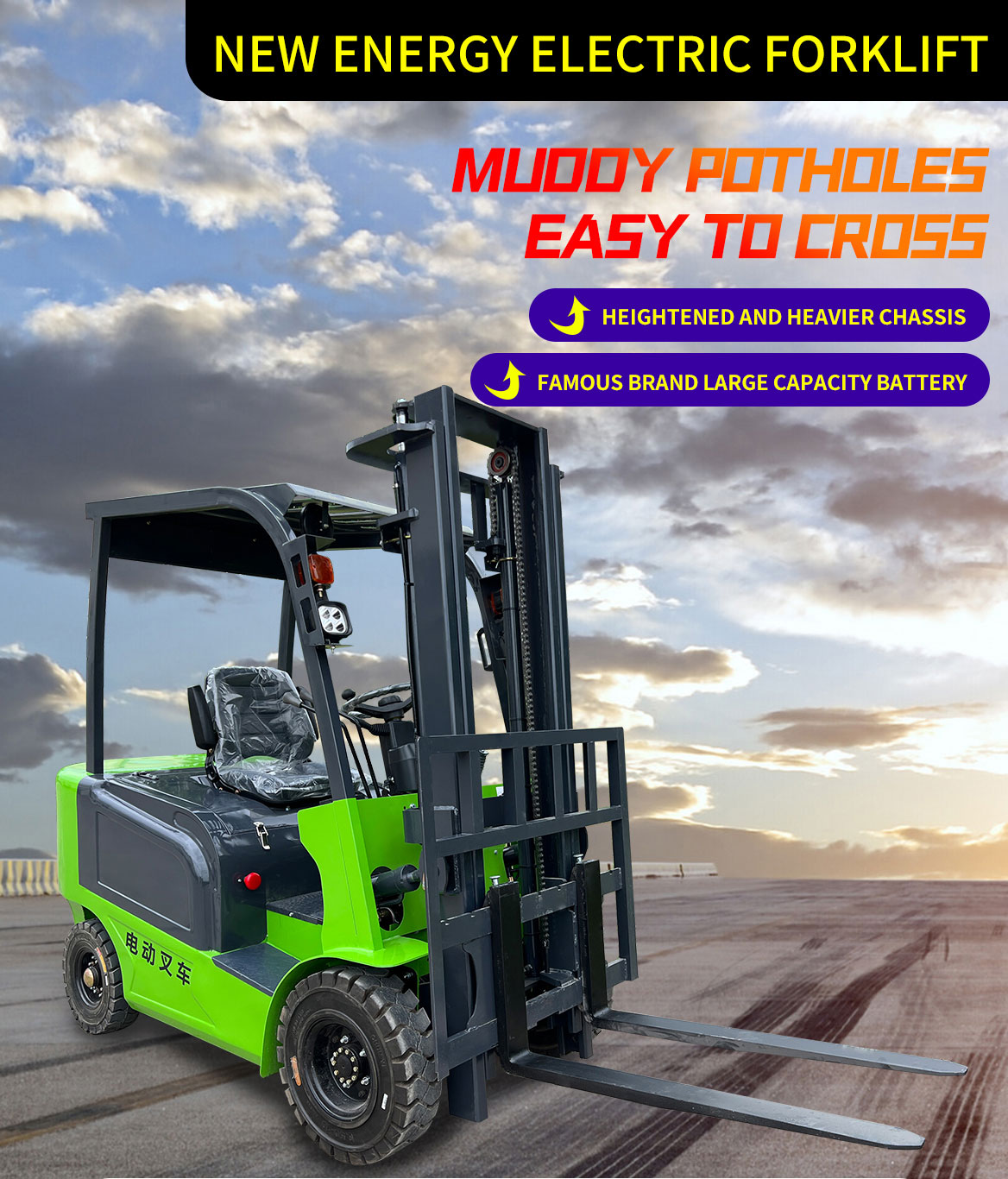

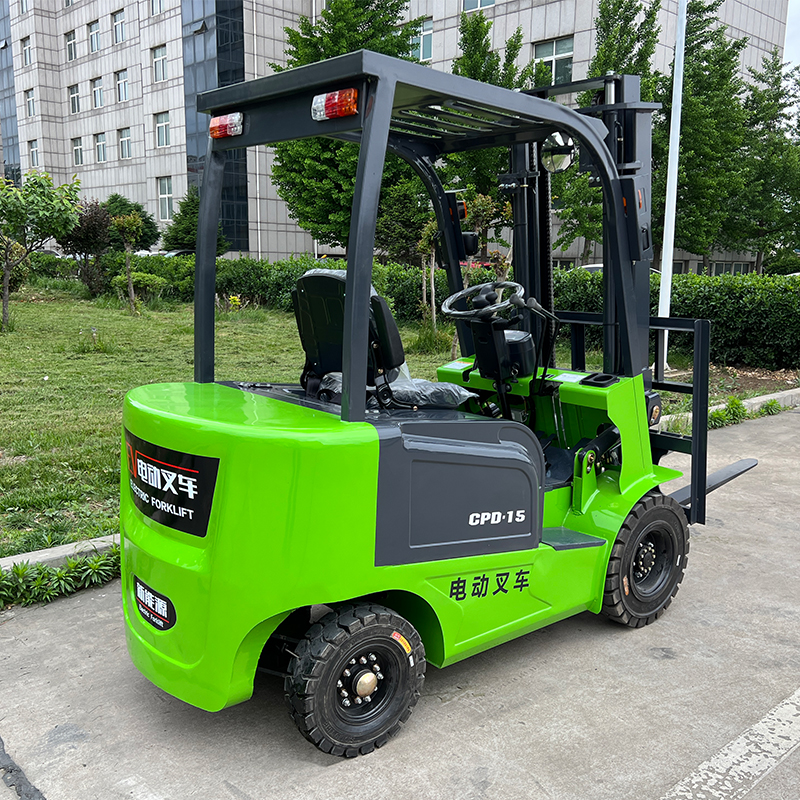

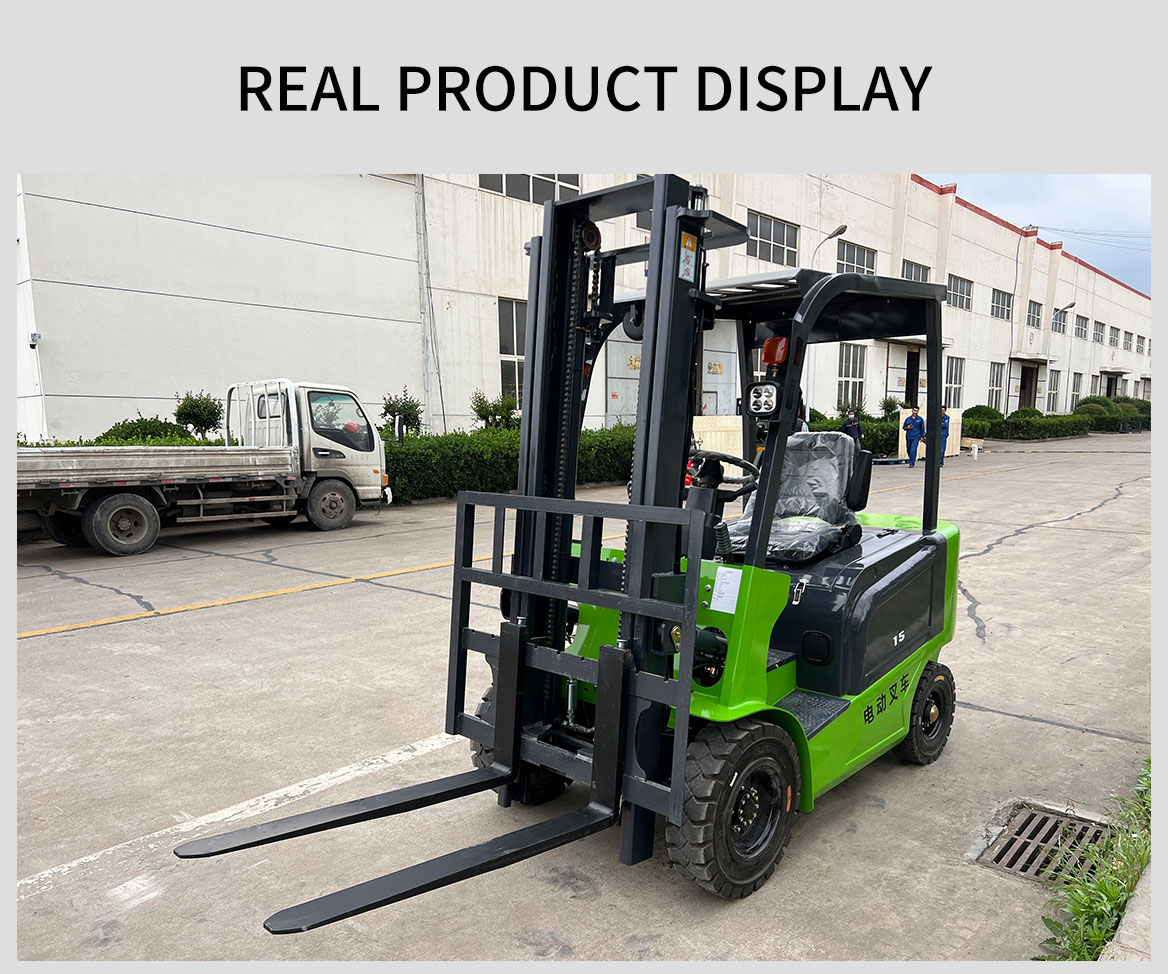

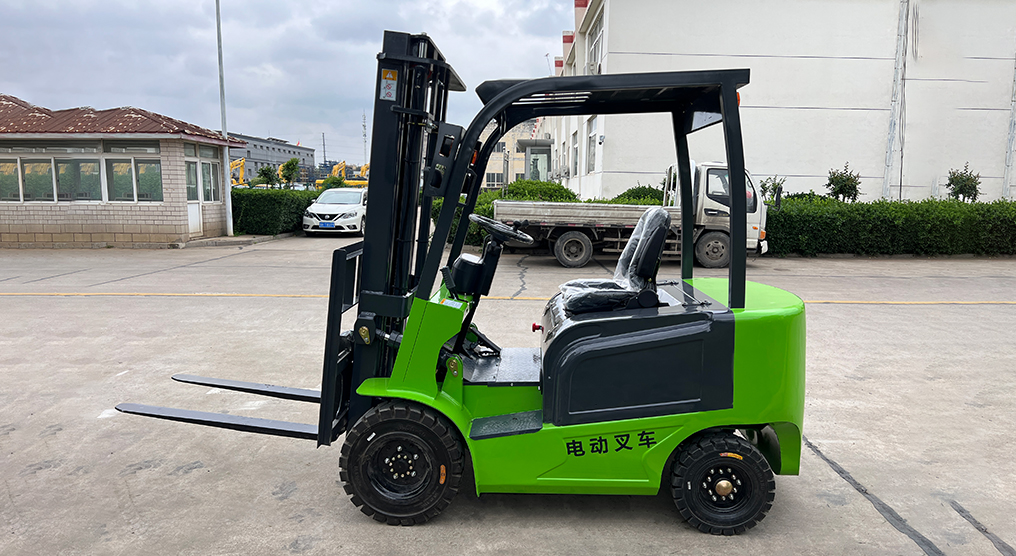

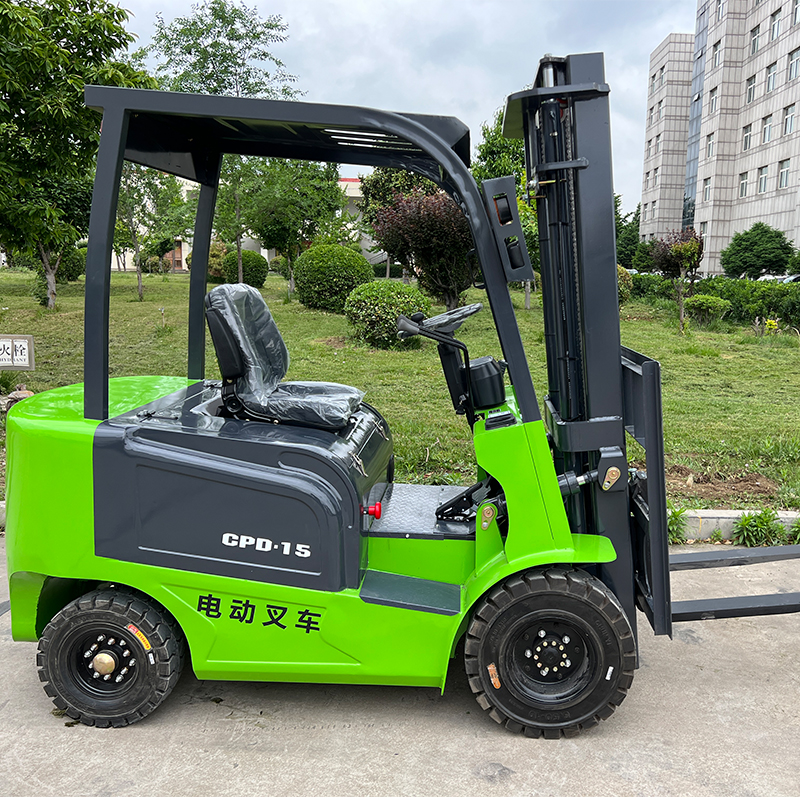

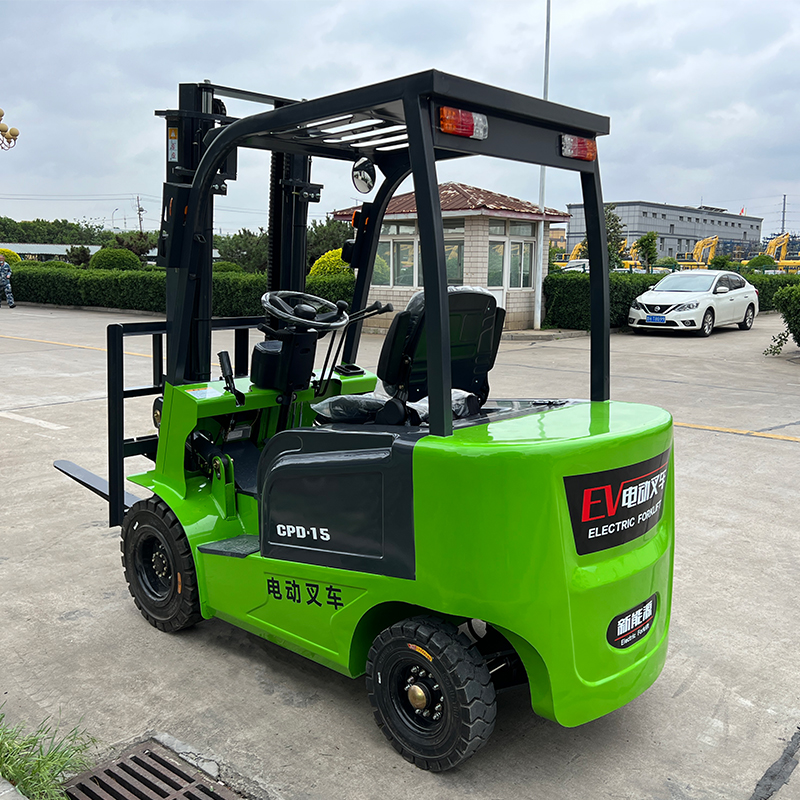

1.5 Ton Electric Forklift

The electric forklift is driven by electricity. Compared with the internal combustion forklift, it has the advantages of no pollution, easy operation, energy saving and high efficiency. With the development of economy and the improvement of environmental protection and energy saving requirements, electric forklifts have developed rapidly.

Rated voltage:72V Number of battery:6 piece Charging time:8-10h Four walking tyre:Solid tyre Machine color:Optional

The electric forklift is driven by electricity. Compared with the internal combustion forklift, it has the advantages of no pollution, easy operation, energy saving and high efficiency. With the development of economy and the improvement of environmental protection and energy saving requirements, electric forklifts have developed rapidly.

Rated voltage:72V Number of battery:6 piece Charging time:8-10h Four walking tyre:Solid tyre Machine color:Optional

" "

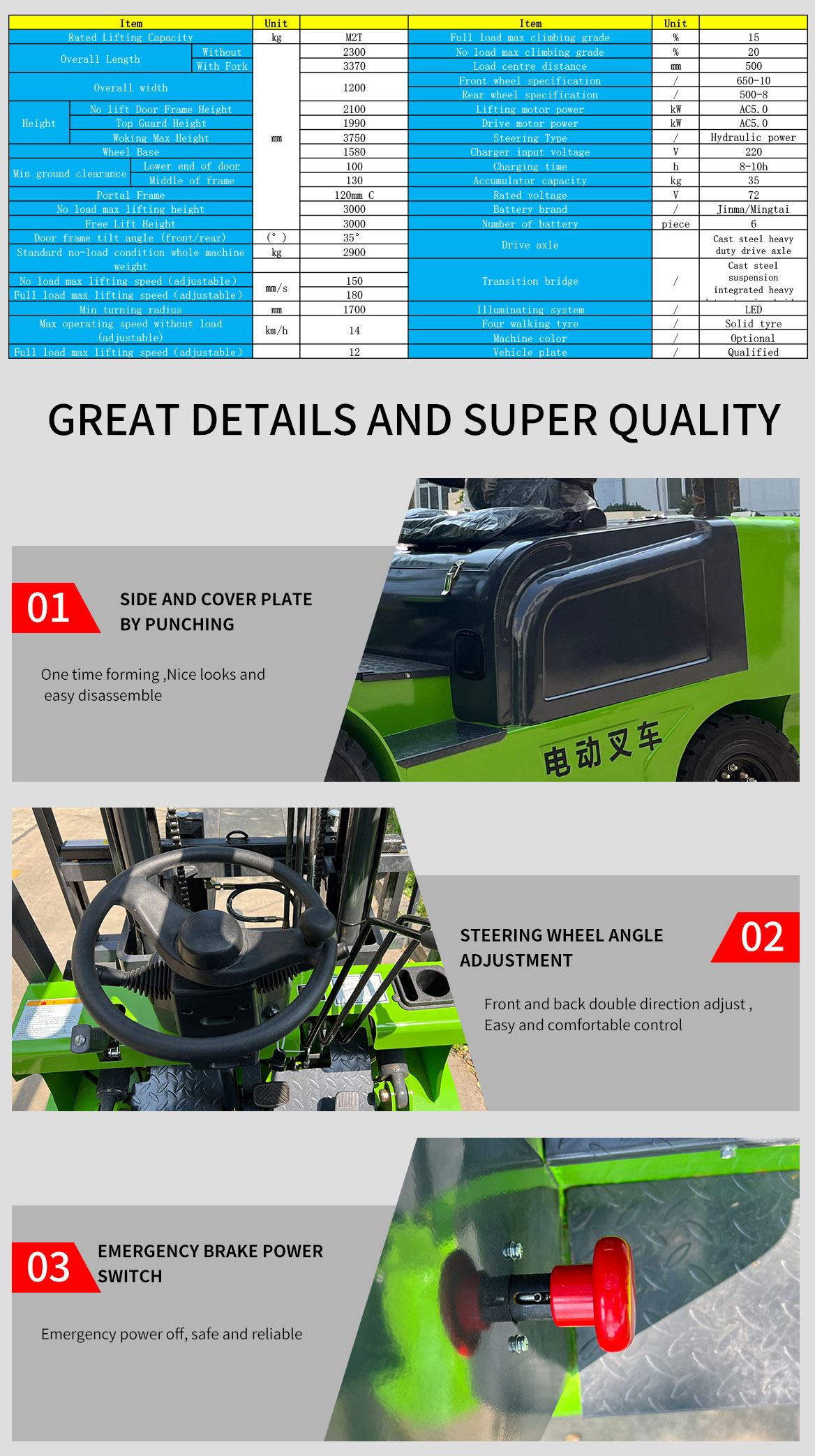

Item				Unit		Item	Unit
Rated Lifting Capacity				kg	M2T	Full load max climbing grade	%	15
Overall Length			Without	mm	2300	No load max climbing grade	%	20
			With Fork		3370	Load centre distance	mm	500
Overall width					1200	Front wheel specification	/	650-10
Height	No lift DoorFrame Height					Rear wheel specification	/	500-8
	Top Guard Height				2100	Lifting motor power	kW	AC5.0
	Woking Max Height				1990	Drive motor power	kW	AC5.0
Wheel Base					3750	Steering Type	/	Hydraulic power
Min ground clearance		Lower end of door			i580	Charger input voltage	v	220
		Middle of frame			100	Charging time	h	8-10h
Portal Frame					130	Accumulator capacity	kg	35
No load max lifting height					120mmC	Rated voltage	V	72
Free Lift Height					3000	Battery brand	/	Jinma/Ming tai
					3000	Number of battery	piece	6
Doorframe tilt angle(front/rear)				(°）	35°	Drive axle		Cast steel heavy
Standard no-load condition whole machine				kg	2900			duty drive axle
weight						Transition bridge	/	Cast steel suspension integrated heavy
No load max lifting_speed(adjustable)				mm/s	150
Full load max lifting_speed(adjustable)					180
Min turning radius				mm	1700	Illuminating system		LED
Max operating speed without load (adjustable)				km/h	14	Four walking tyre	/	Solid tyre
						Machine color	/	Optional
Full load max lifting speed(adjustable)					12	Vehicle plate	/	Qualified

Item				Unit		Item		Unit
Rated Lifting Capacity				kg	M2T	Full load max climbing grade		%	15
Overall Length			Without	mm	2300	No load max climbing grade		%	20
			With Fork		3370	Load centre distance		mm	500
Overall width					1200	Front wheel specification			650-10
Height	No lift DoorFrame Height						Rear wheel specification		500-8
	Top Guard Height				2100	Lifting motor power		kW	AC5.0
	Woking Max Height				1990	Drive motor power		kW	AC5.0
Wheel Base					3750	Steering Type			Hydraulic power
Min ground clearance		Lower end of door			i580	Charger input voltage		v	220
		Middle of frame			100	Charging time		h	8-10h
Portal Frame					130	Accumulator capacity		kg	35
No load max lifting height					120mmC	Rated voltage		V	72
Free Lift Height					3000	Battery brand			Jin ma/Ming tai
					3000	Number of battery		piece	6
Doorframe tilt angle(front/rear)				(°	35°	Drive axle			Cast steel heavy
Standard no-load condition whole machine				kg	2900				duty drive axle
weight						Transition bridge			Cast steel suspension integrated heavy
No load max lifting_speed(adjustable)				mm/s	150
Full load max lifting_speed(adjustable)					180
Min turning radius				mm	1700	Illuminating system			LED
Max operating speed without load (adjustable)				km/h	14	Four walking tyre			Solid tyre
						Machine color			Optional
Full load max lifting speed(adjustable)					12	Vehicle plate			Qualified

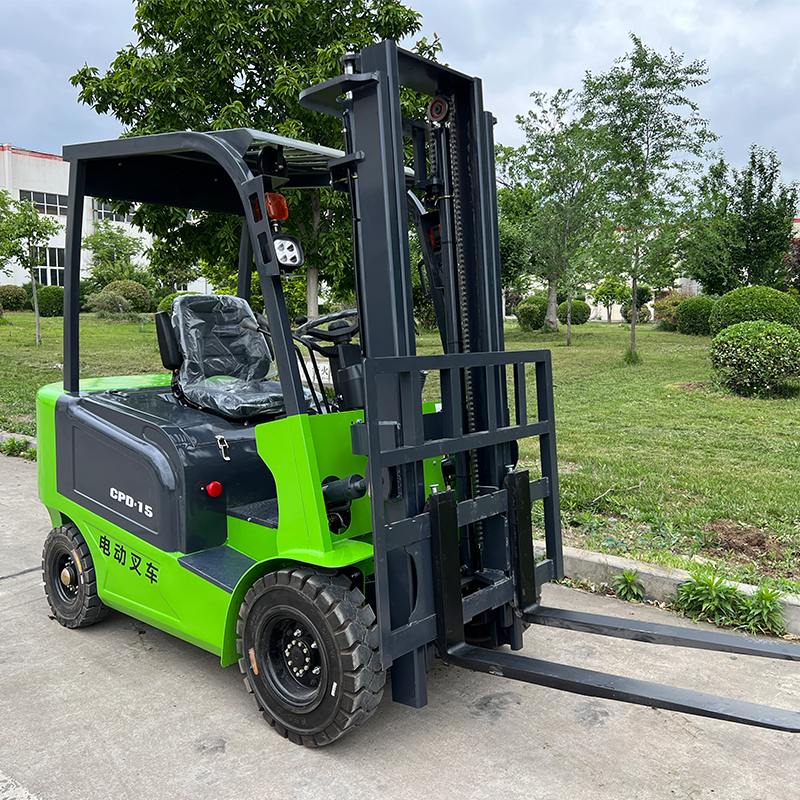

1.5 Ton Electric Forklift

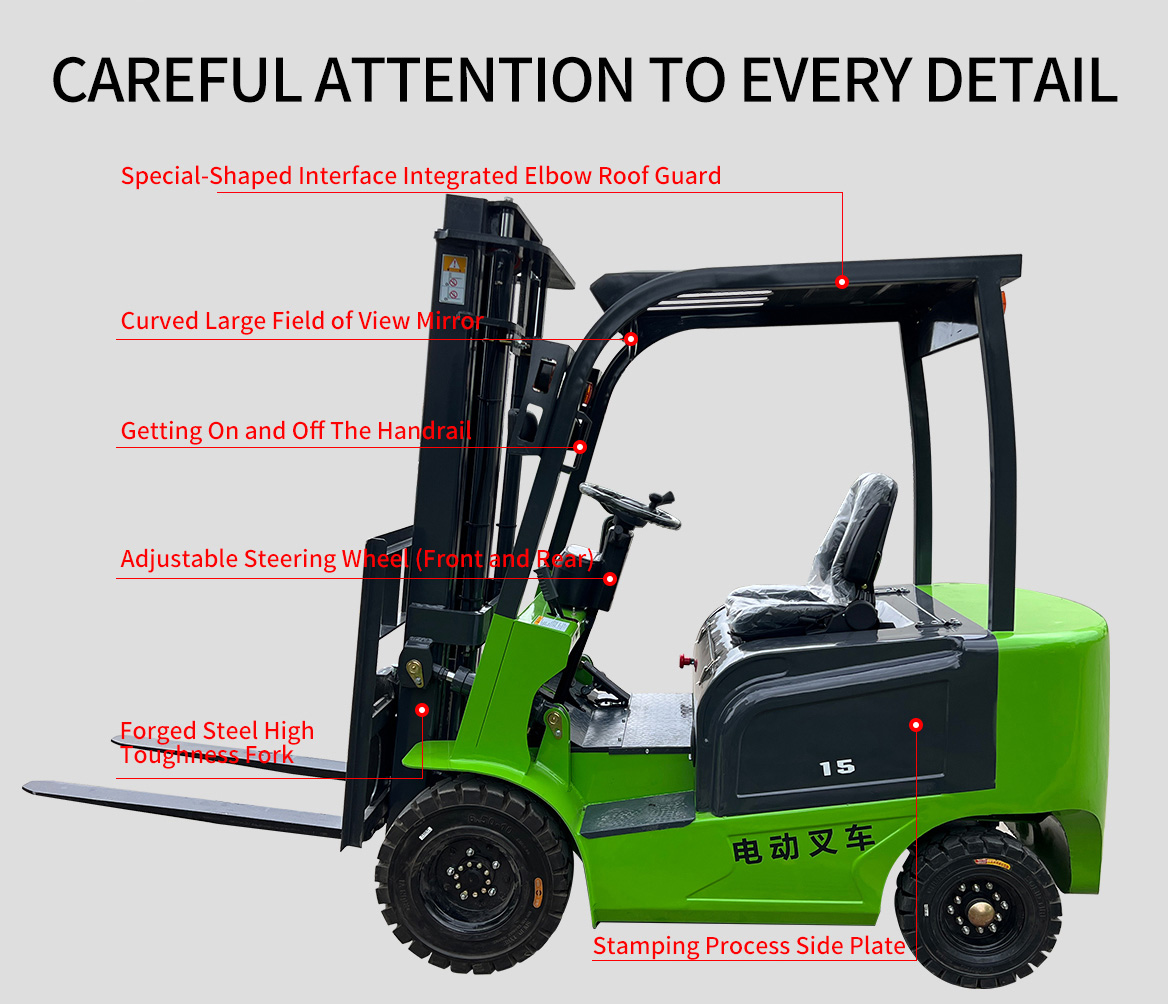

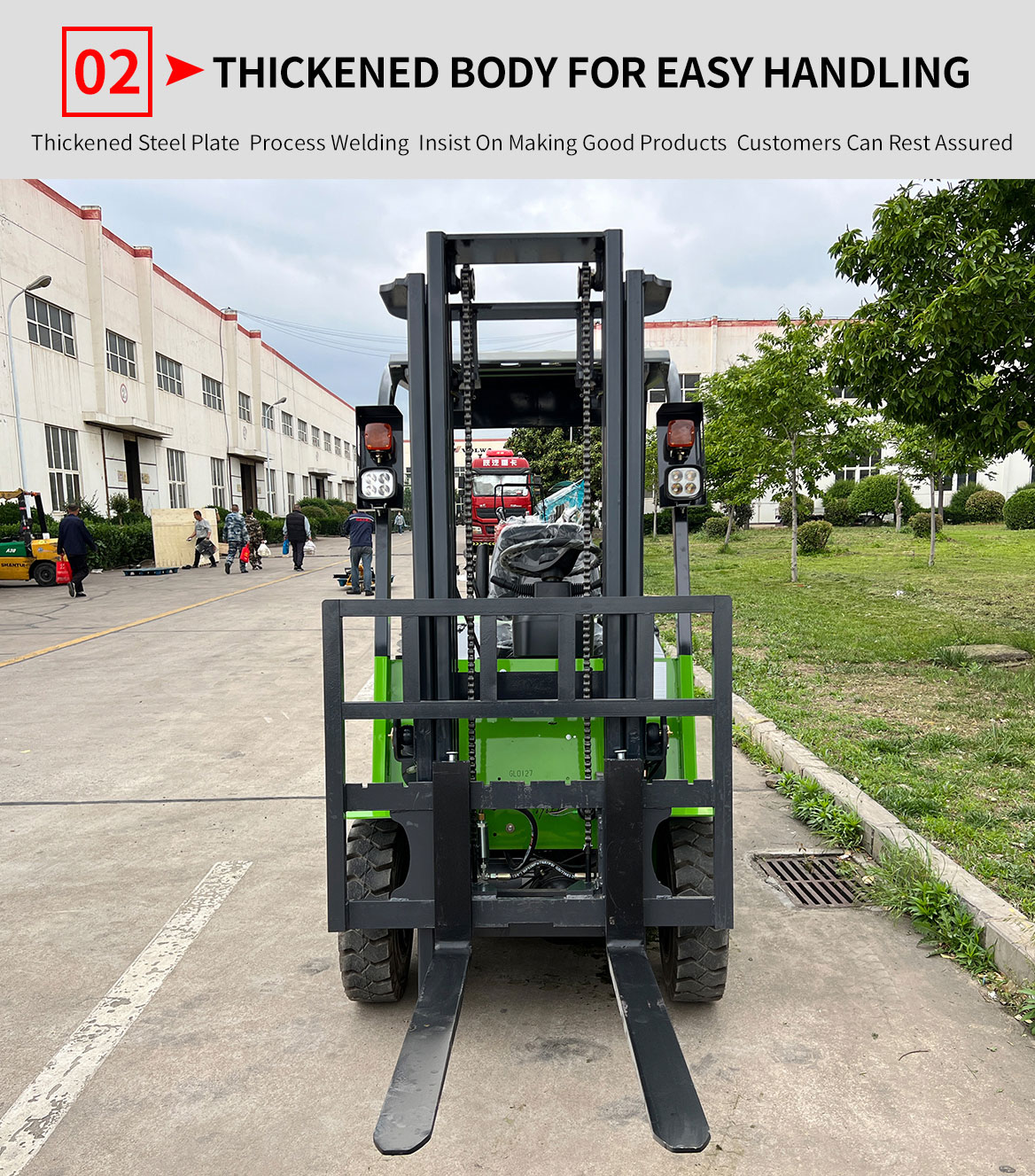

1.5 Ton New Energy Electric Forklift Detail

1.5 Ton New Energy Electric Forklift Detail

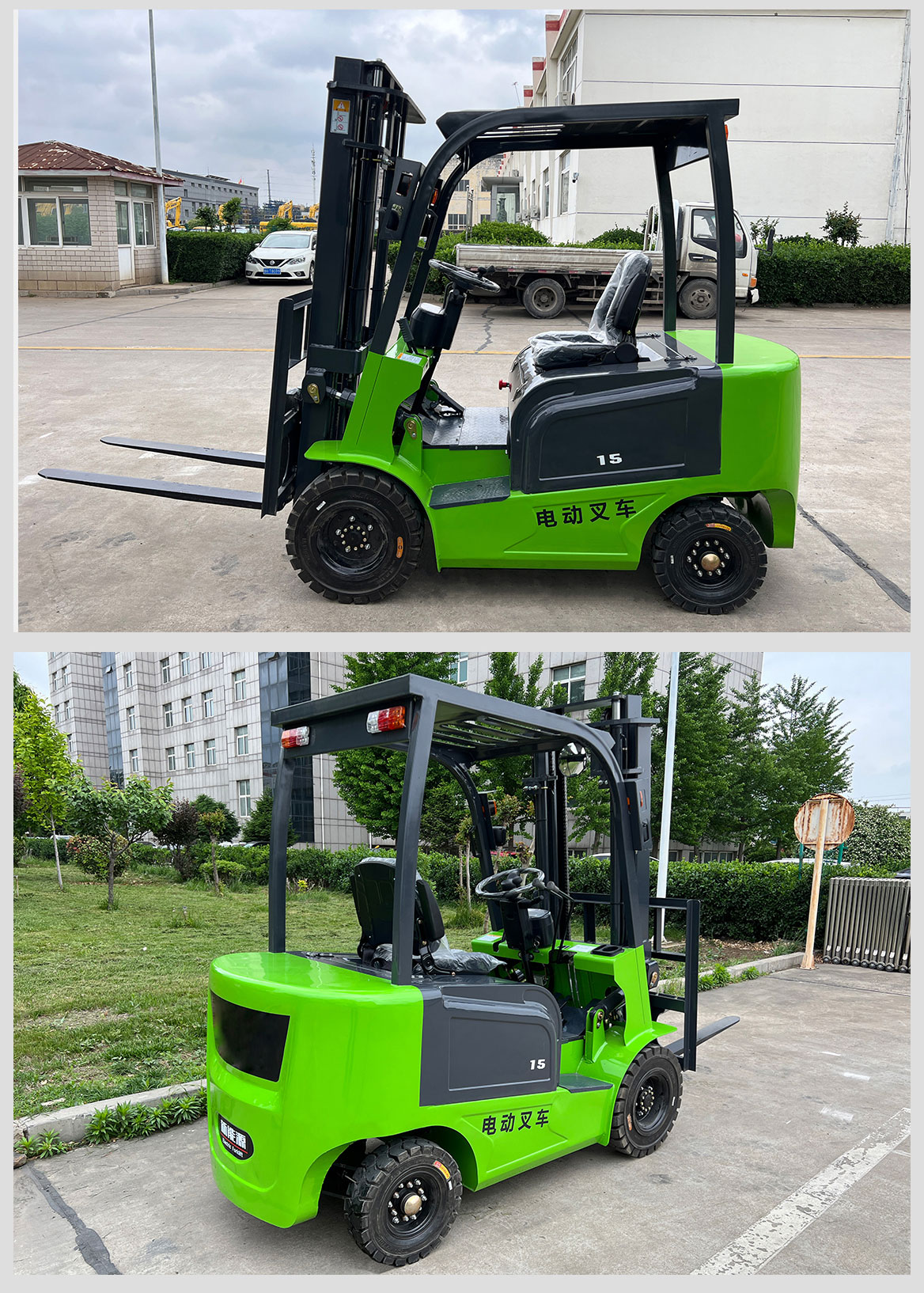

1.5 Ton Electric Forklift

1.5 Ton New Energy Electric Forklift Detail

1.5 Ton New Energy Electric Forklift Detail

1.5 ton forklift operation video
