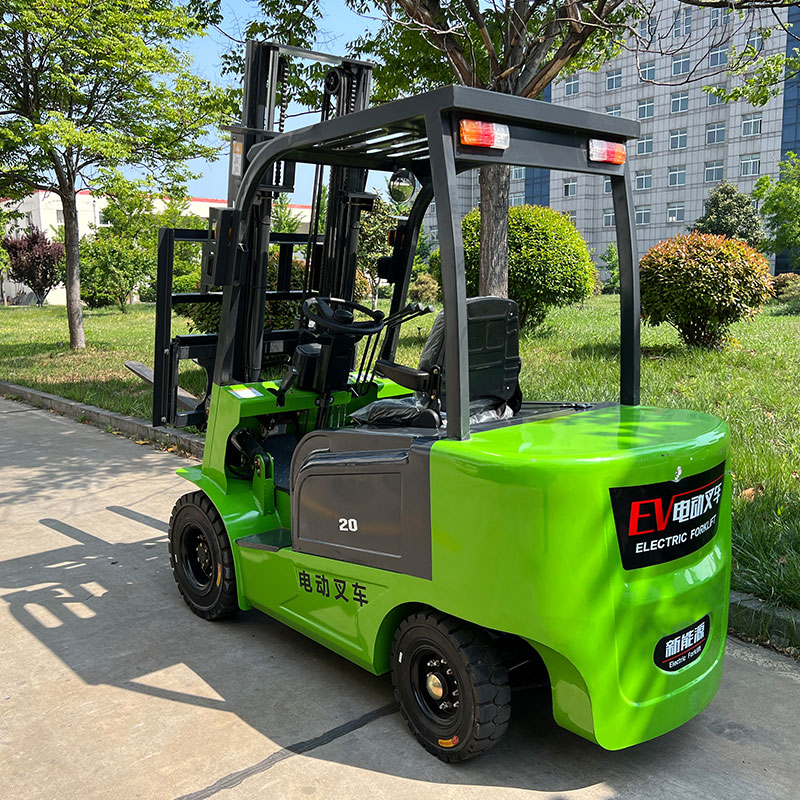

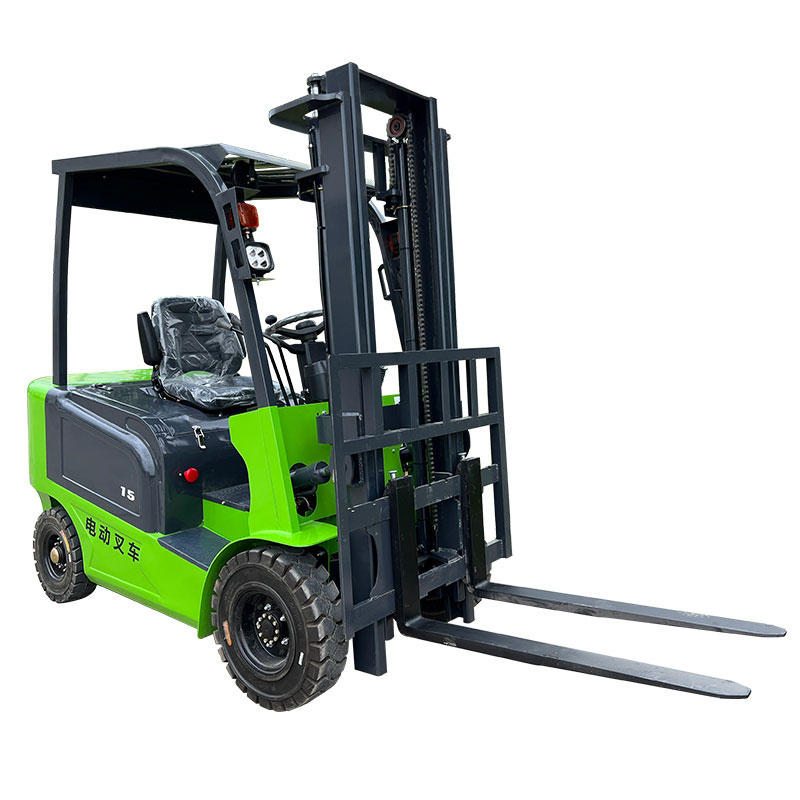

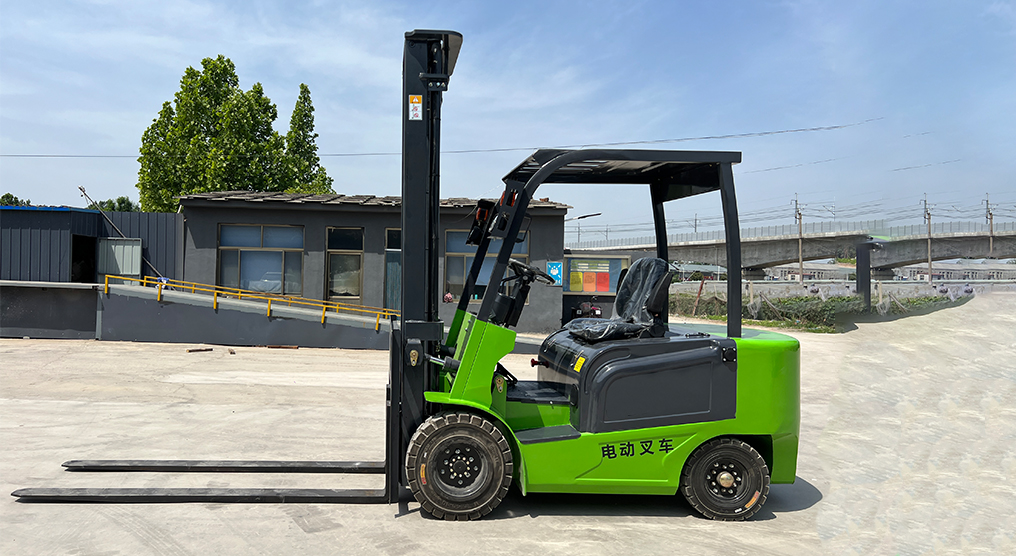

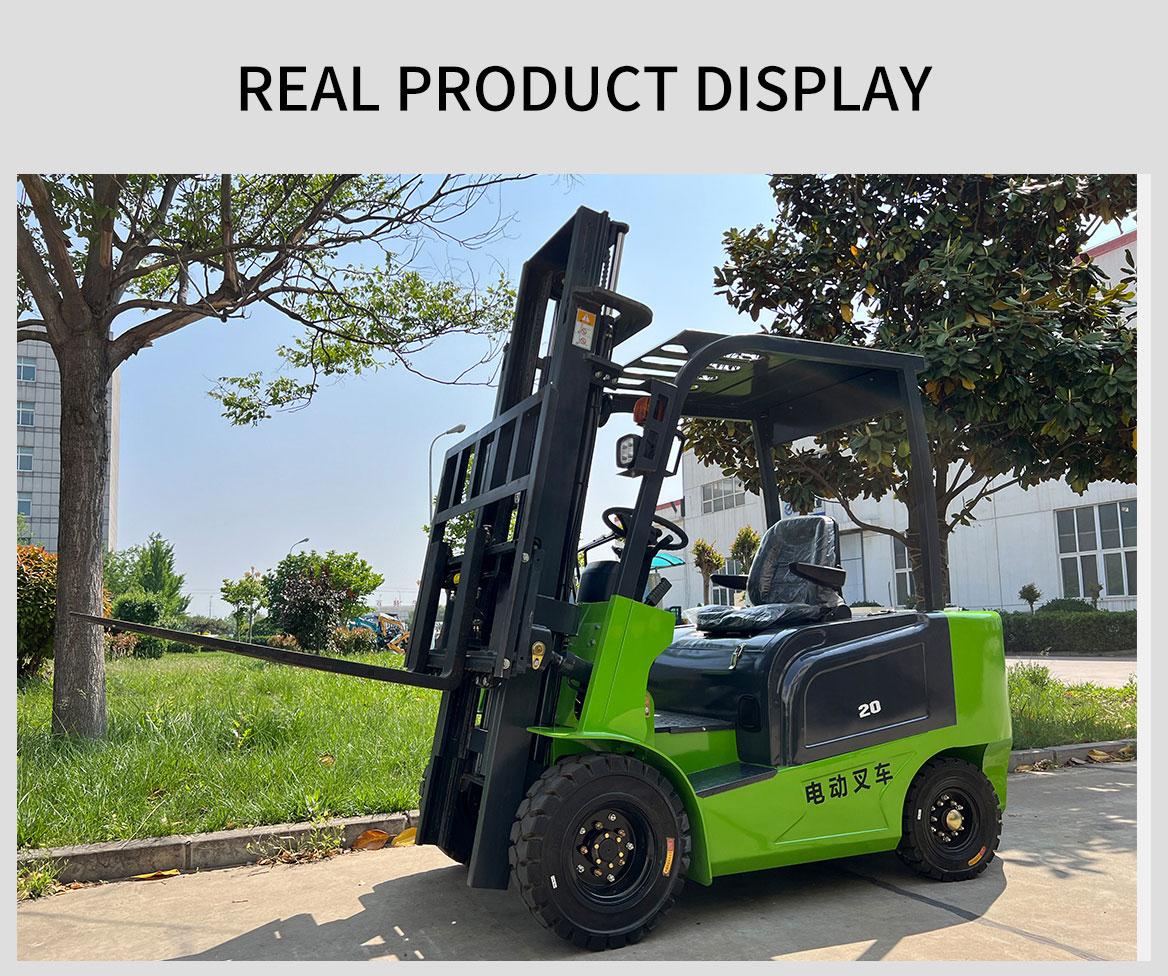

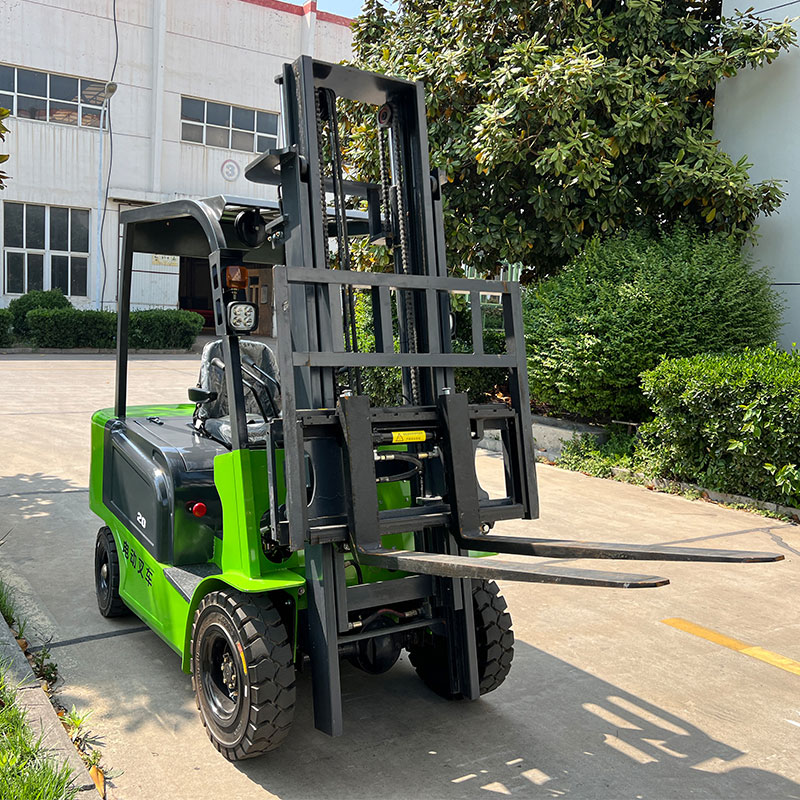

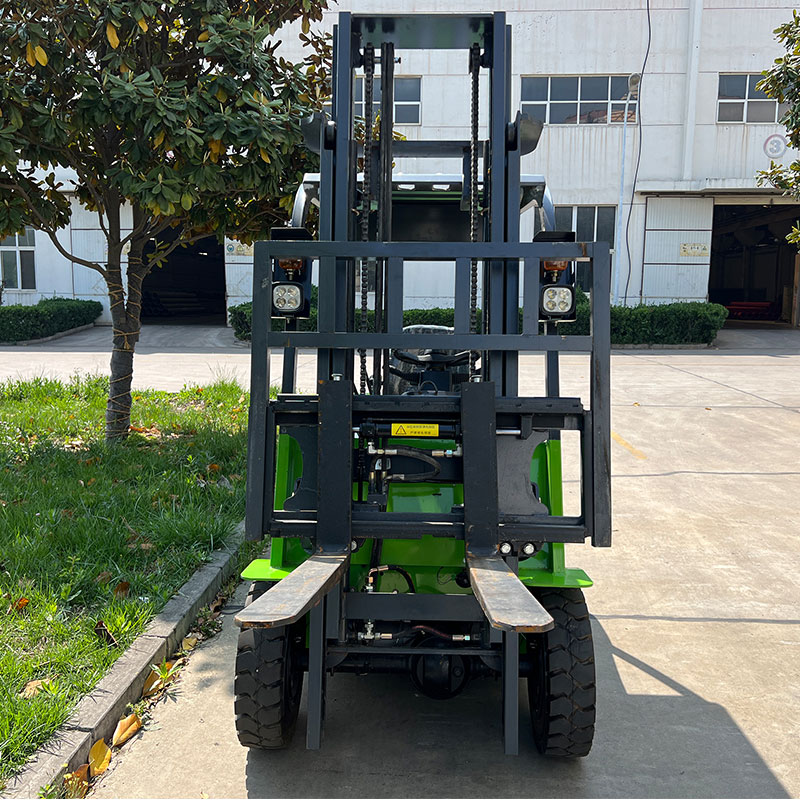

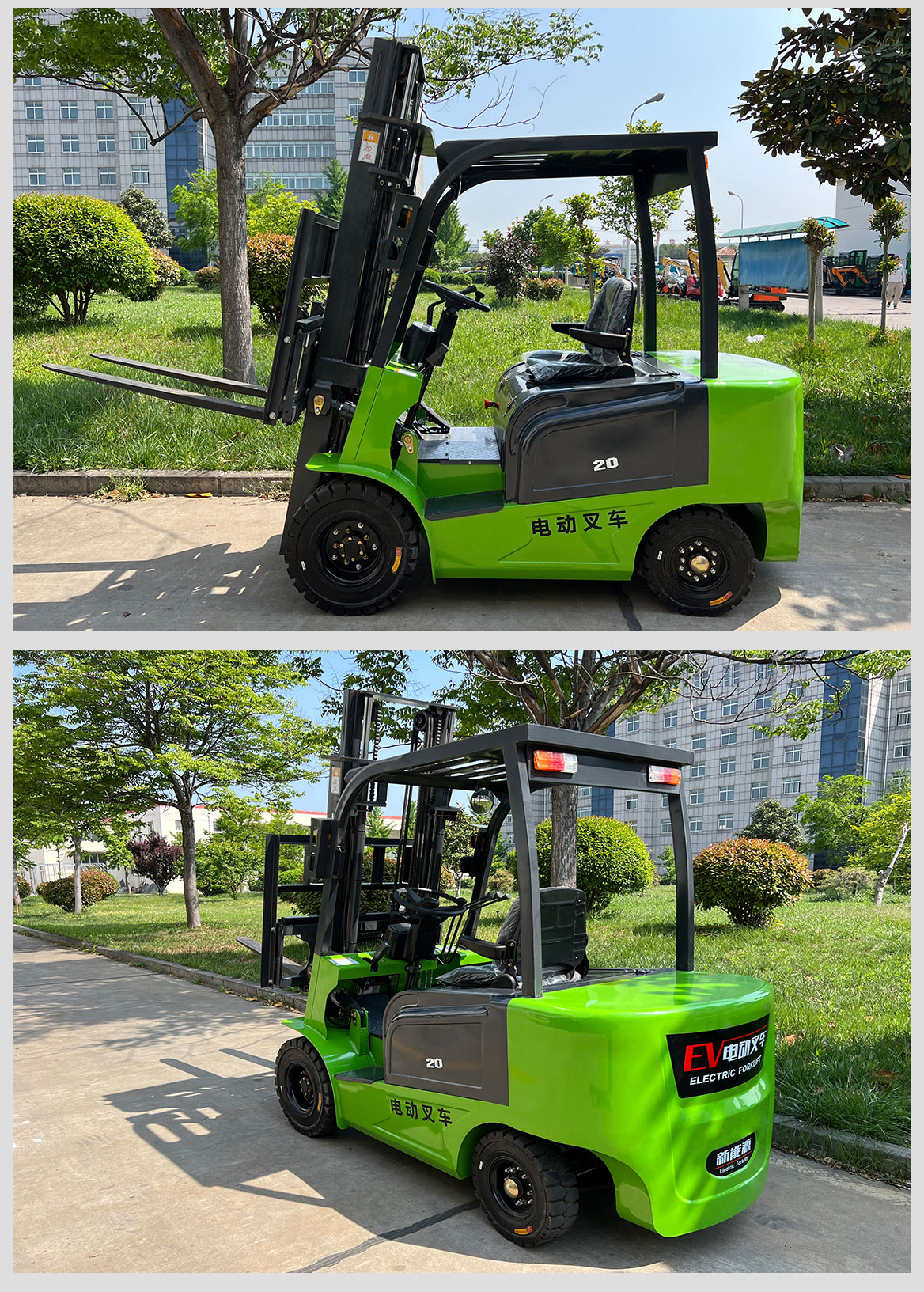

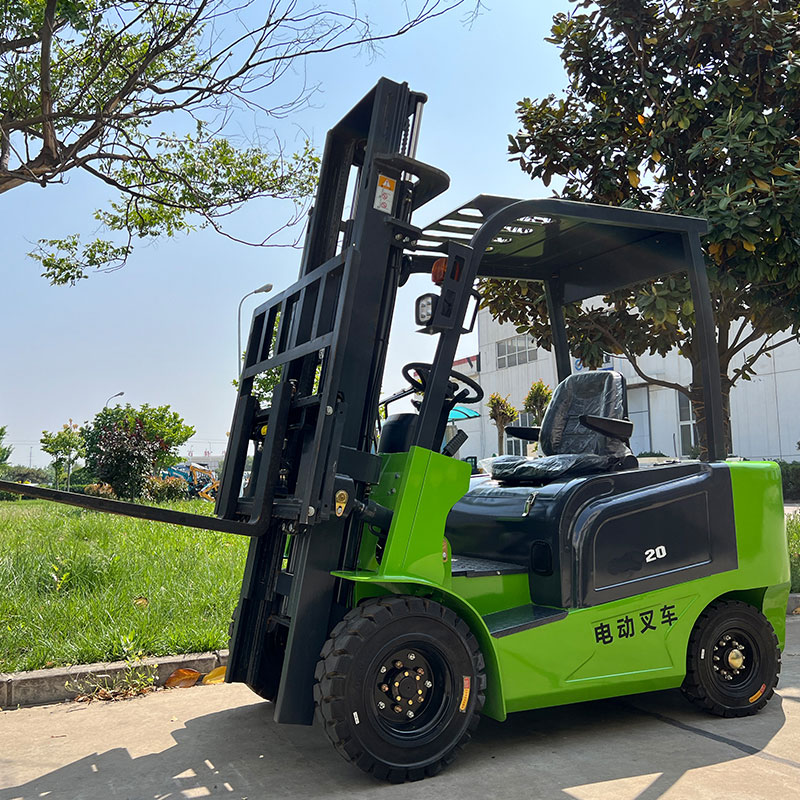

2 Ton Electric Forklift

The electric forklift is driven by electricity. Compared with the internal combustion forklift, it has the advantages of no pollution, easy operation, energy saving and high efficiency. With the development of economy and the improvement of environmental protection and energy saving requirements, electric forklifts have developed rapidly.

Rated voltage:72V Number of battery:6 piece Charging time:8-10h Four walking tyre:Solid tyre Machine color:Optional

The electric forklift is driven by electricity. Compared with the internal combustion forklift, it has the advantages of no pollution, easy operation, energy saving and high efficiency. With the development of economy and the improvement of environmental protection and energy saving requirements, electric forklifts have developed rapidly.

Rated voltage:72V Number of battery:6 piece Charging time:8-10h Four walking tyre:Solid tyre Machine color:Optional

" "

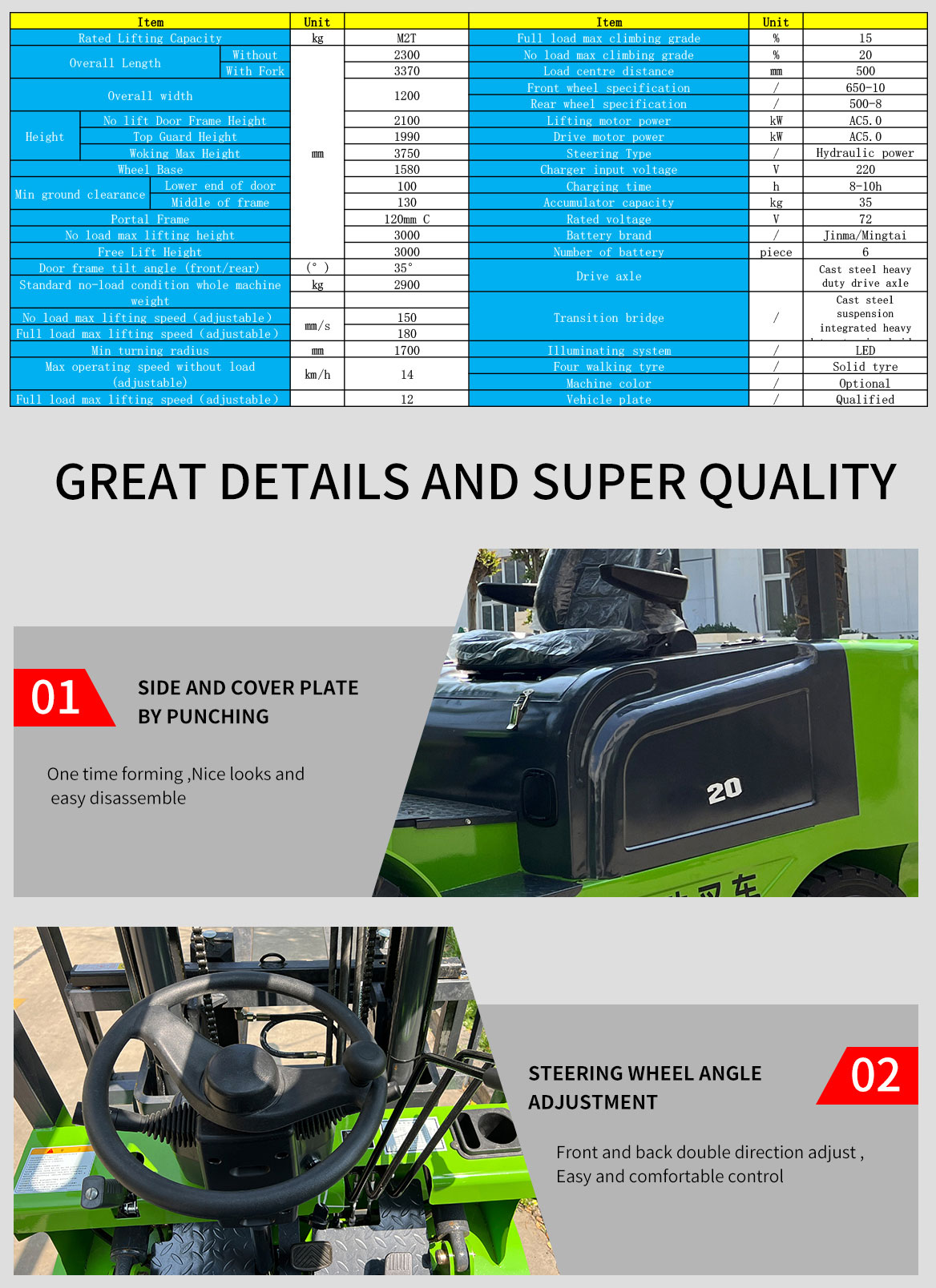

Item				Unit		Item	Unit
Rated Lifting Capacity				㎏	M2T	Full load max climbing grade	%	15
Overall Length			Without Fork	㎜	2300	No load max climbing grade	%	20
			With Fork		3370	Load centre distance	㎜	500
Overall width					1200	Front wheel specification	/	650-10
						Rear wheel specification	/	500-8
Height	No lift Door Frame Height				2100	Lifting motor power	kW	AC5.0
	Top Guard Height				1990	Drive motor power	kW	AC5.0
	Woking Max Height				3750	Steering Type	/	Hydraulic power assisted
Wheel Base					1580	Charger input voltage	V	220
Min ground clearance		Lower end of door frame（empty/full）			100	Charging time	h	8-10h
		Middle of frame（empty/full）			130	Accumulator capacity	kg	35
Portal Frame					120mm C	Rated voltage	V	72

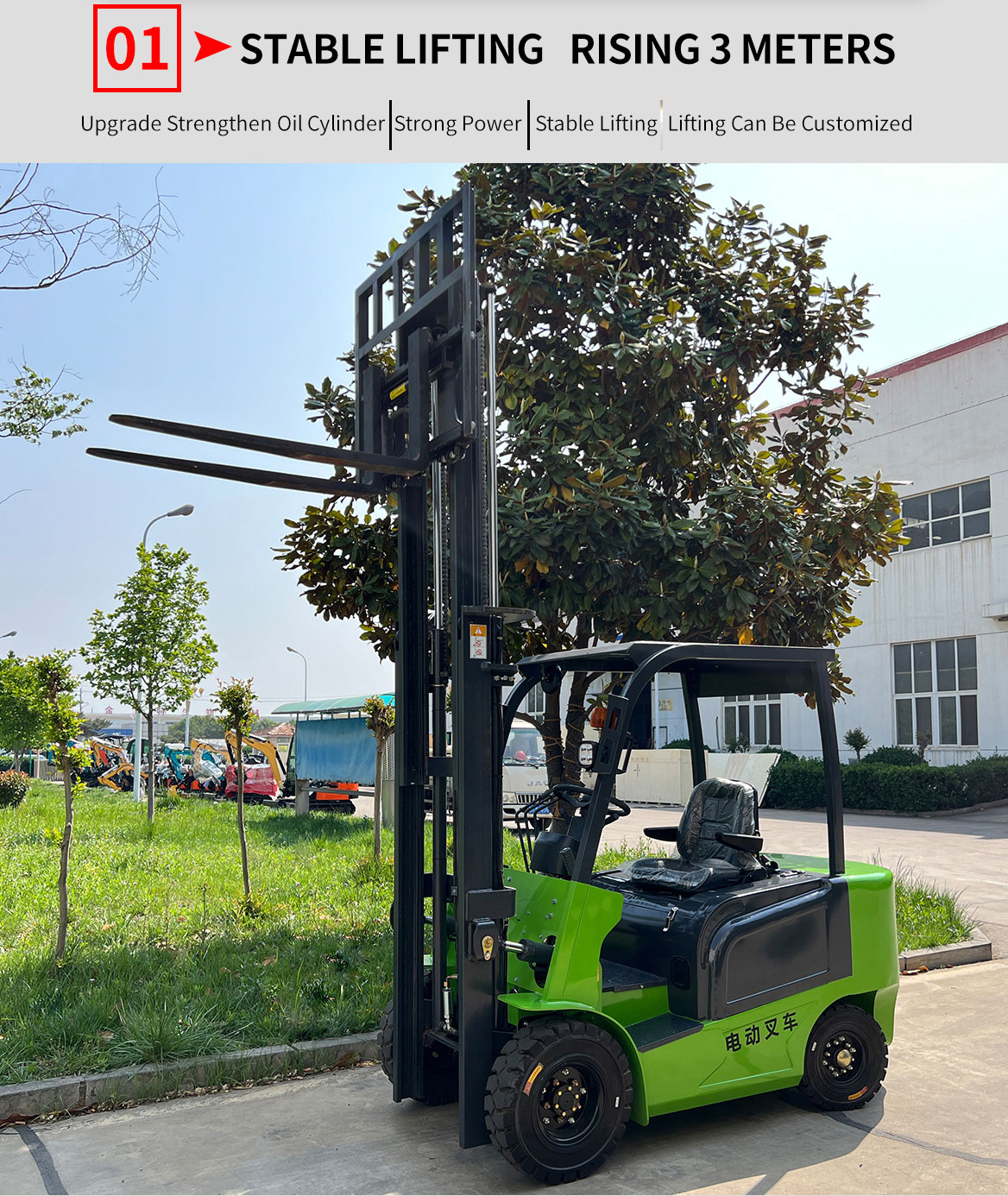

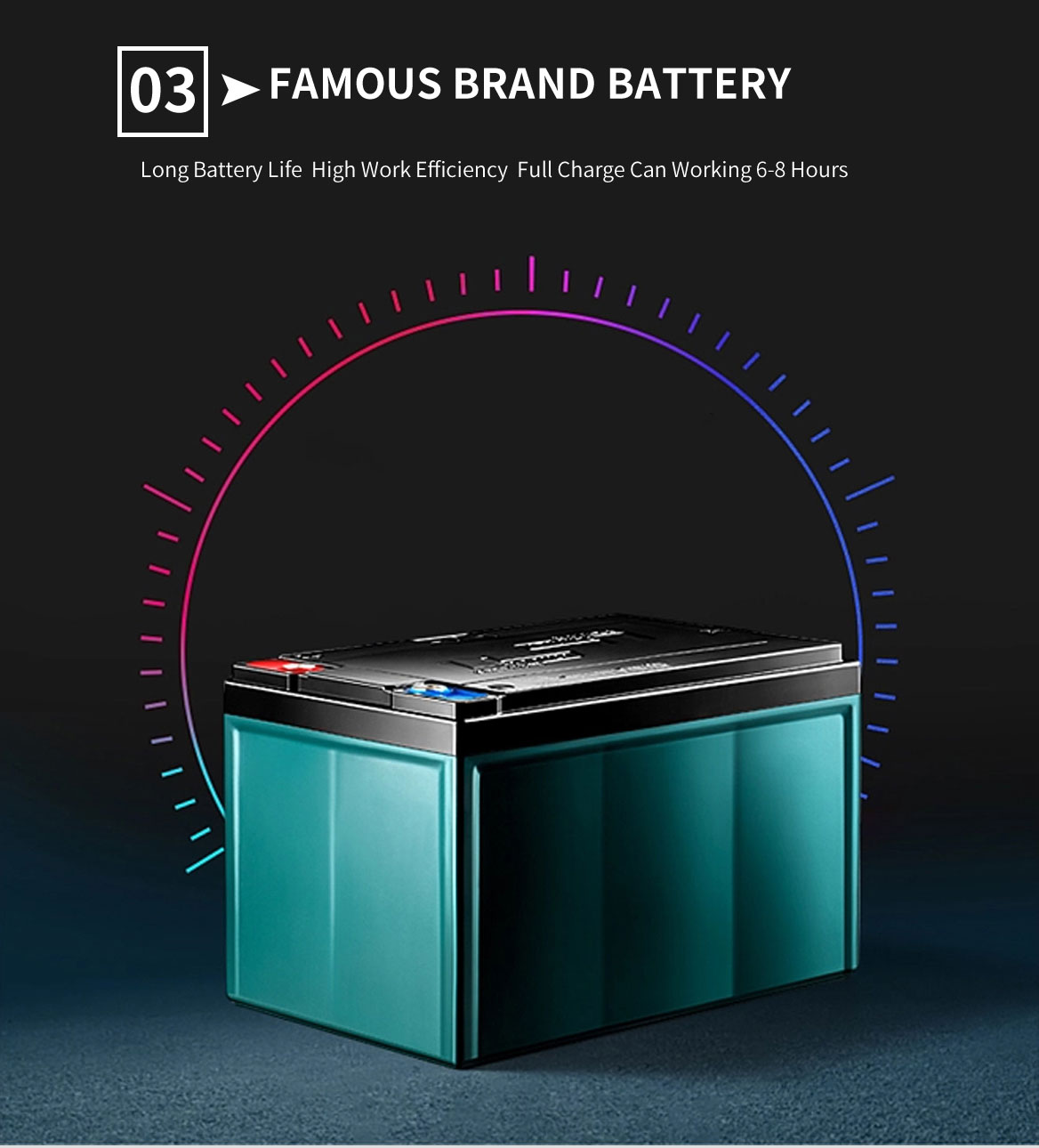

No load max lifting height					3000	Battery brand	/	Jinma/Mingtai
Free Lift Height					3000	Number of battery	piece	6
Door frame tilt angle (front/rear)				(°)	35°	Drive axle		Cast steel heavy duty drive axle
Standard no-load condition whole machine weight				㎏	2900
						Transition bridge	/	Cast steel suspension integrated heavy duty steering bridge
No load max lifting speed（adjustable）				㎜/s	150
Full load max lifting speed（adjustable）					180

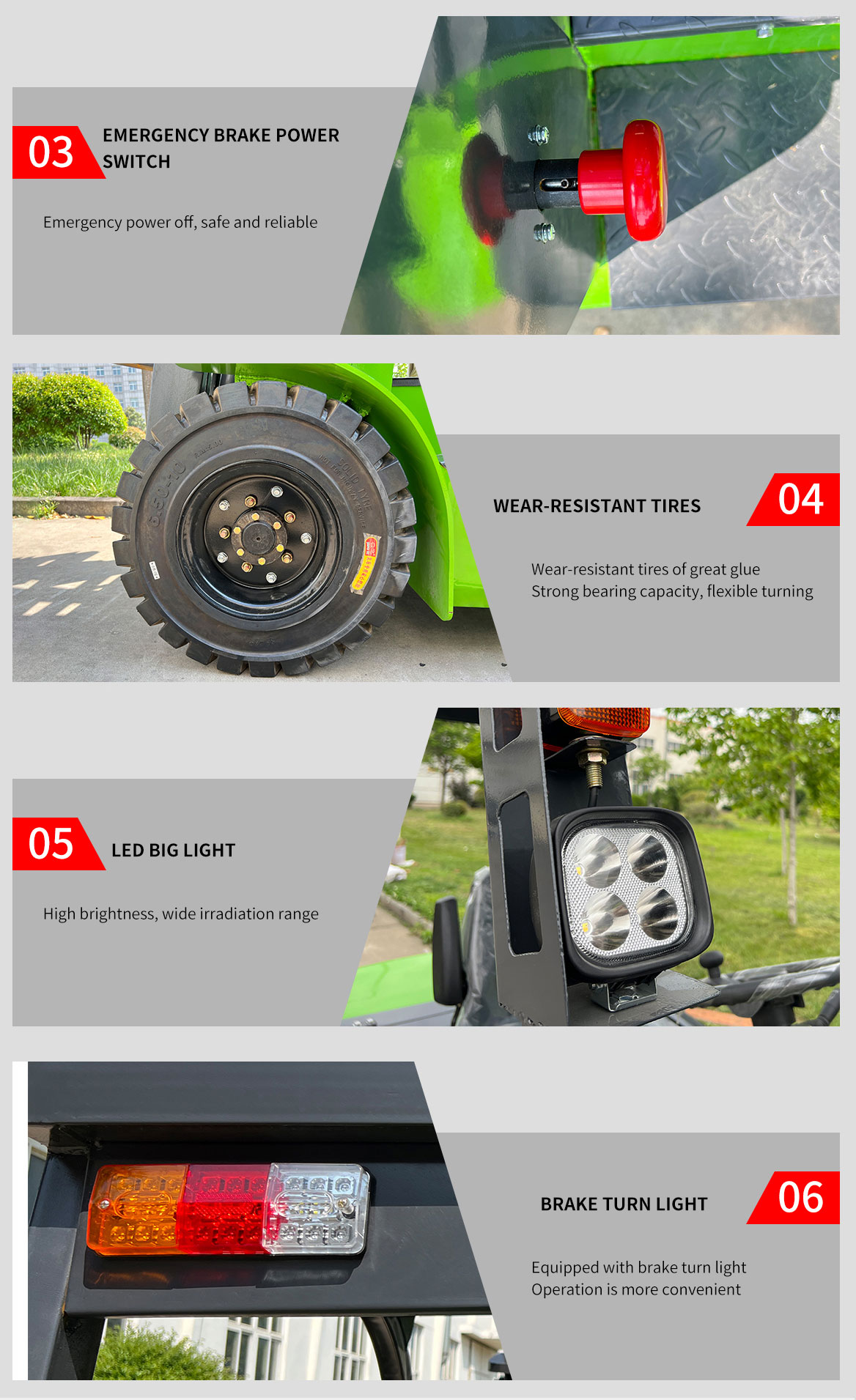

Min turning radius				㎜	1700	Illuminating system	/	LED
Max operating speed without load (adjustable)				㎞/h	14	Four walking tyre	/	Solid tyre
						Machine color	/	Optional
Full load max lifting speed（adjustable）					12	Vehicle plate	/	Qualified

Item				Unit		Item	Unit
Rated Lifting Capacity				㎏	M2T	Full load max climbing grade	%	15
Overall Length			Without Fork	㎜	2300	No load max climbing grade	%	20
			With Fork		3370	Load centre distance	㎜	500
Overall width					1200	Front wheel specification	/	650-10
						Rear wheel specification	/	500-8
Height	No lift Door Frame Height				2100	Lifting motor power	kW	AC5.0
	Top Guard Height				1990	Drive motor power	kW	AC5.0
	Woking Max Height				3750	Steering Type	/	Hydraulic power assisted
Wheel Base					1580	Charger input voltage	V	220
Min ground clearance		Lower end of door frame（empty/full）			100	Charging time	h	8-10h
		Middle of frame（empty/full）			130	Accumulator capacity	kg	35
Portal Frame					120mm C	Rated voltage	V	72
No load max lifting height					3000	Battery brand	/	Jinma/Mingtai
Free Lift Height					3000	Number of battery	piece	6
Door frame tilt angle (front/rear)				(°)	35°	Drive axle		Cast steel heavy duty drive axle
Standard no-load condition whole machine weight				㎏	2900
						Transition bridge	/	Cast steel suspension integrated heavy duty steering bridge
No load max lifting speed（adjustable）				㎜/s	150
Full load max lifting speed（adjustable）					180
Min turning radius				㎜	1700	Illuminating system	/	LED
Max operating speed without load (adjustable)				㎞/h	14	Four walking tyre	/	Solid tyre
						Machine color	/	Optional
Full load max lifting speed（adjustable）					12	Vehicle plate	/	Qualified
