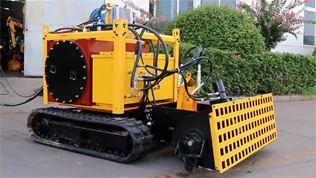

Remote Control Cleaning Vehicle
A mechanical device for removing silt from rivers, ditches or other water systems. The weight-reducing buoy has a screw stirring and suction device fixed on the support. The rotating screw reamer transports the stirred sludge to the inlet of the mud pump, and transports it to the river bank through the mud pump pipe. When the dredging truck dives into the river bottom, it can be cleaned remotely The walking, turning, mud mixing, mud sucking, mud spraying and other actions of the silt truck. It has the characteristics of flexible operation, high dredging efficiency and wide application range.

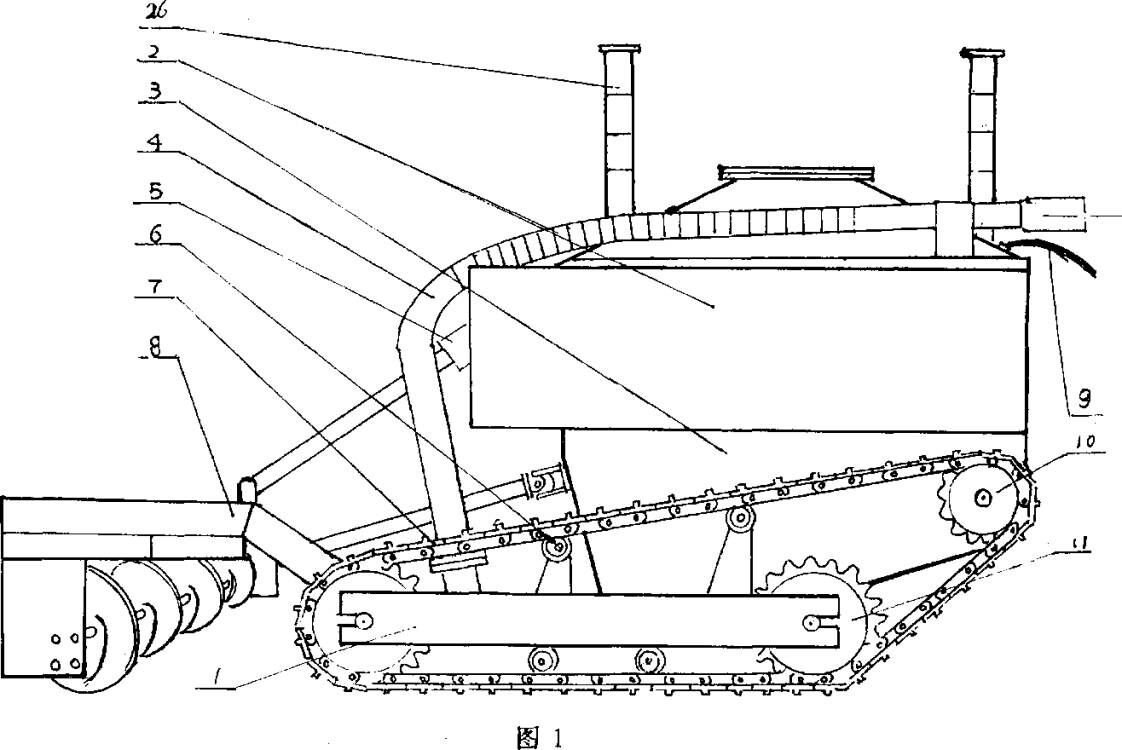

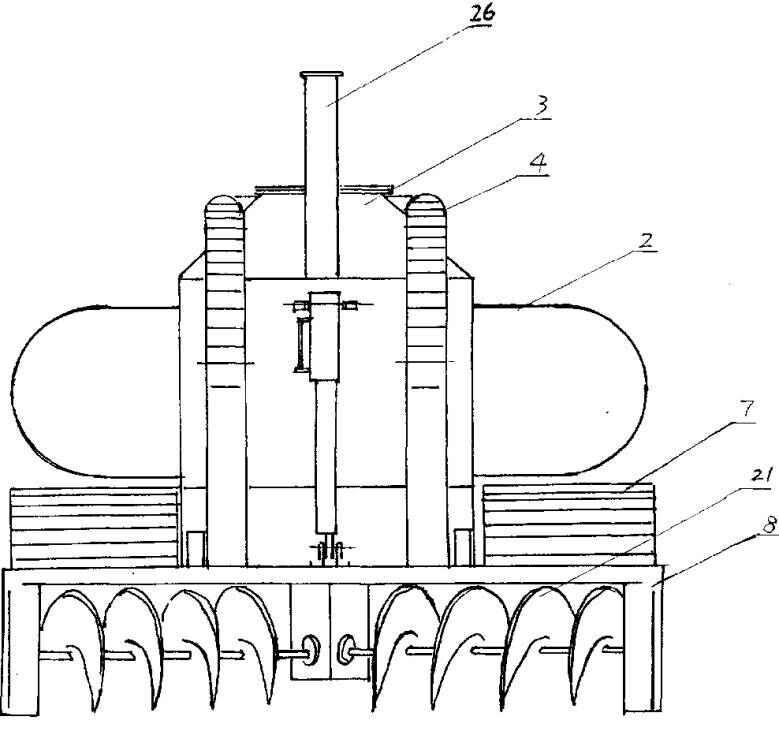

A remote-controlled underwater dredging vehicle is composed of a chassis and a power mechanism, a working mechanism, a traveling mechanism, a control system and an auxiliary mechanism installed on the chassis, wherein the working mechanism is fixed on the bracket, and the power mechanism and the control system are installed in a sealed cabin The utility model is characterized in that the Qingyu vehicle uses crawler tracks to travel, the vehicle has a weight-reducing buoy, and the support is fixed with a spiral stirring and suction device.

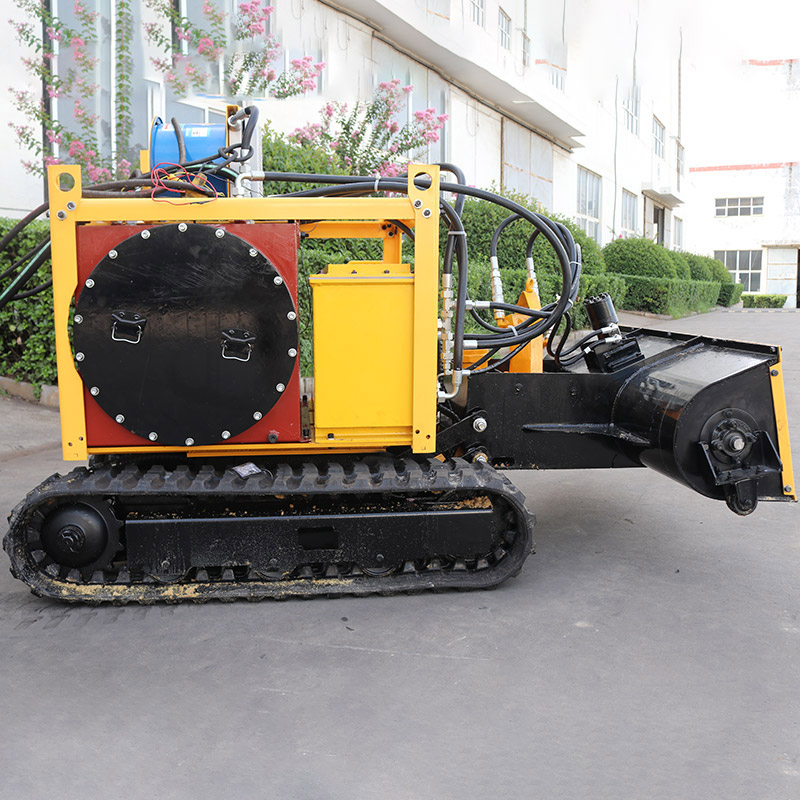

The dredging vehicle adopts the crawler walking mode, and a detachable buoy is set above the crawler to reduce the self-weight of the dredging vehicle underwater.
