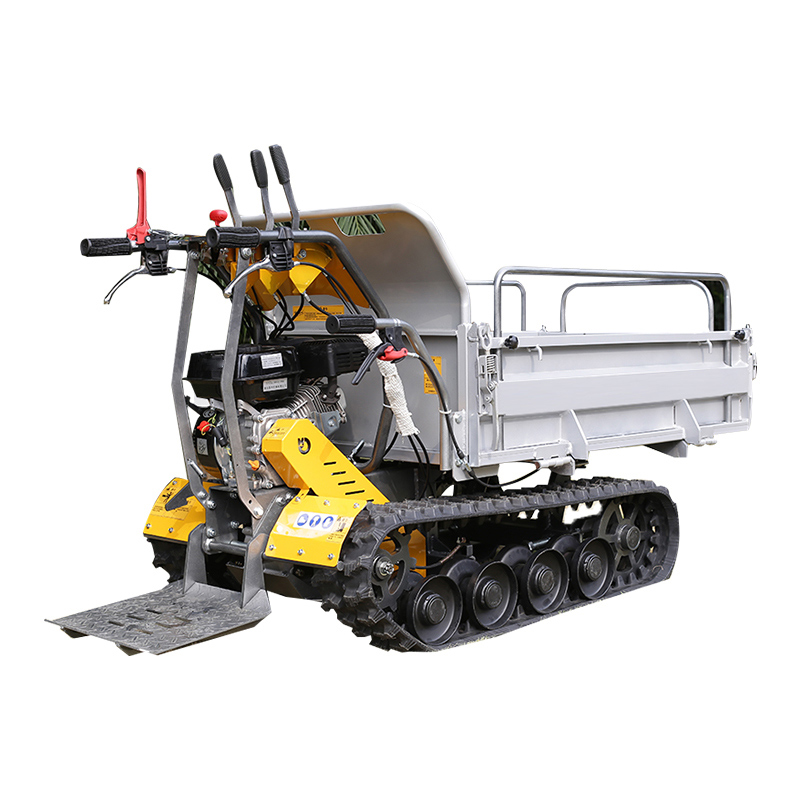

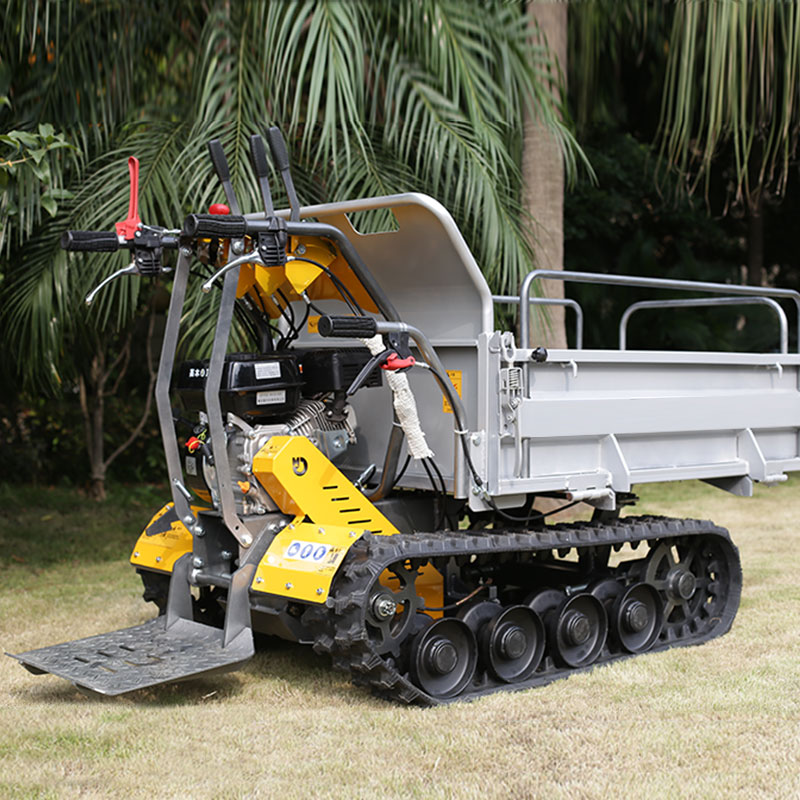

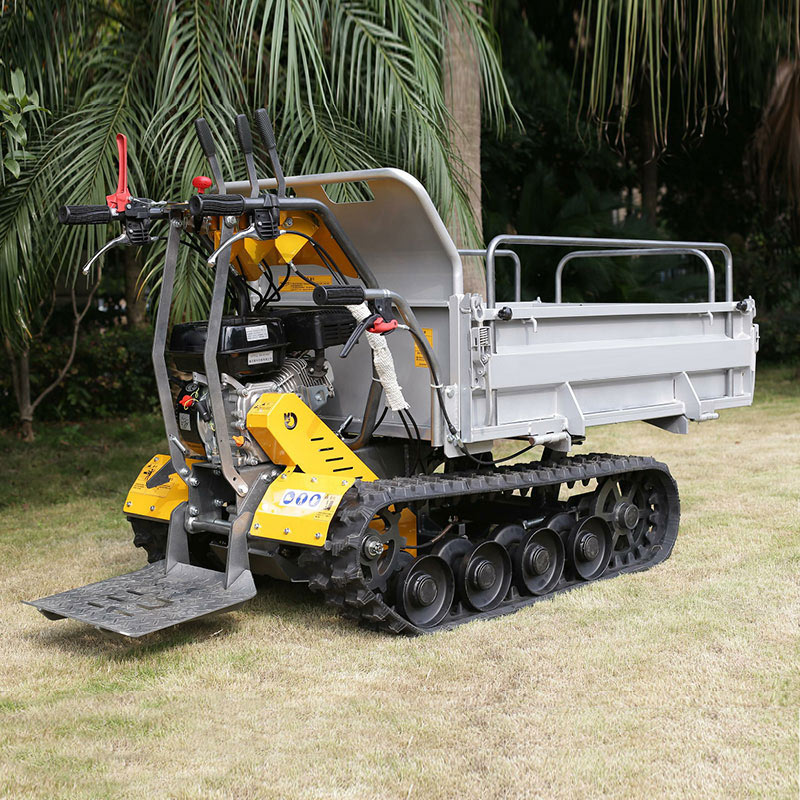

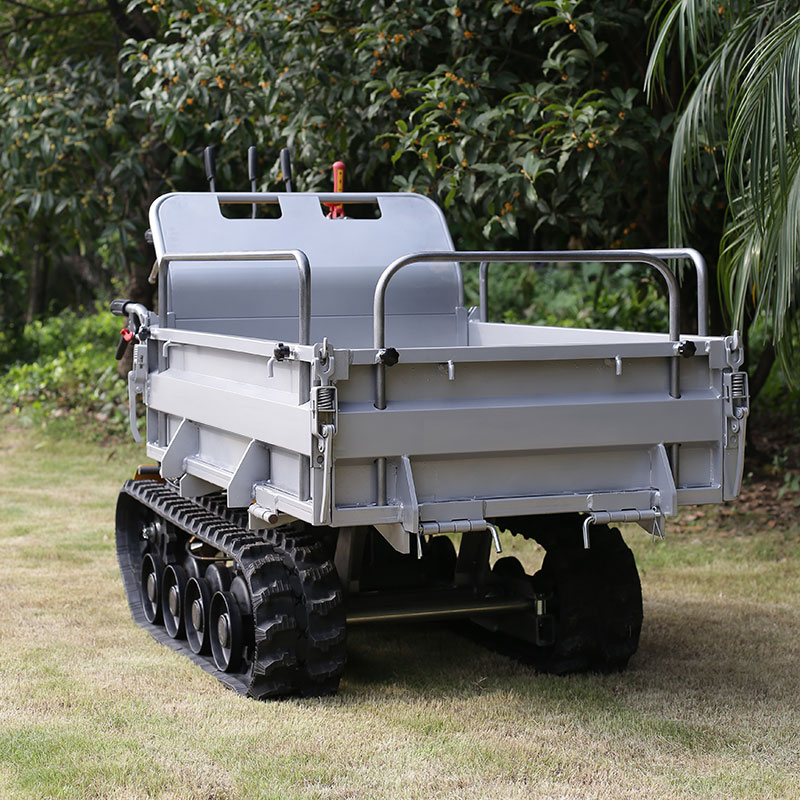

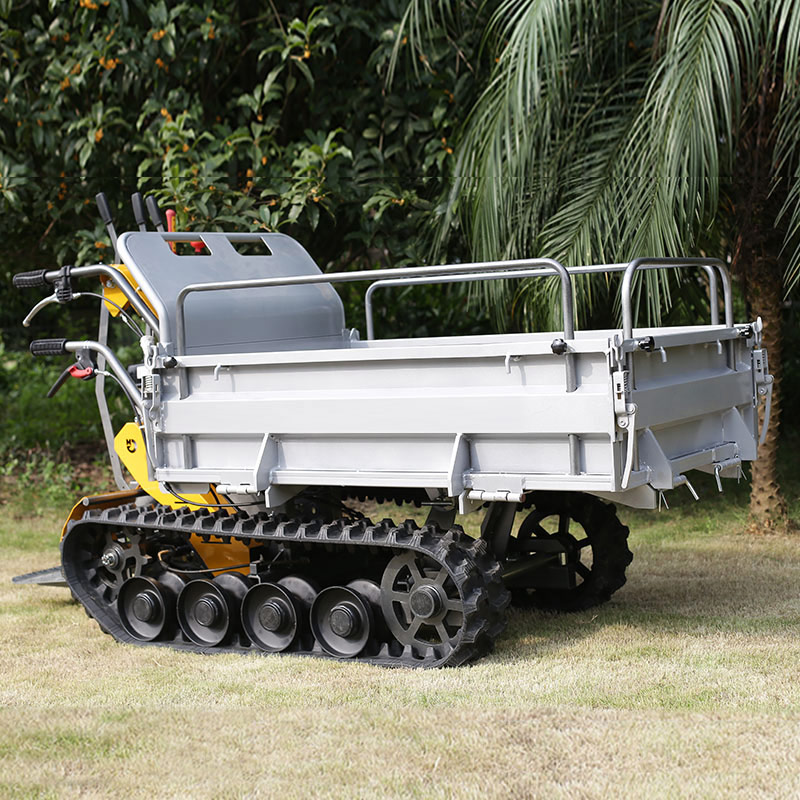

Mini Crawler Dumper-LG500A
LG500A Mini Dumper
LG500A Mini Dumper
LG500A Mini Dumper
LG500A Mini Dumper

Mini Crawler Dumper-LG500A

The Mini Crawler Dumper can adapt to complex and harsh road conditions such as rice fields, swamps, muddy field roads, rugged mountain roads, soft grass and deserts, slippery ice and snow, etc. , Infrastructure engineering, mining sites are widely used.

Total Weight：300kg Max Loading Weight：500kg Machine Size(L*W*H)：1730x900x1110mm Rated Power：4.2 kw / 3600rpm Climbing Ability：20°
  • Selling point
  • Configuration
  • Video Introduction
  • Relevant
  • Online message
  • Back to previous
We Accept:
Mini Crawler Dumper-LG500A

The Mini Crawler Dumper can adapt to complex and harsh road conditions such as rice fields, swamps, muddy field roads, rugged mountain roads, soft grass and deserts, slippery ice and snow, etc. , Infrastructure engineering, mining sites are widely used.

Total Weight：300kg Max Loading Weight：500kg Machine Size(L*W*H)：1730x900x1110mm Rated Power：4.2 kw / 3600rpm Climbing Ability：20°

  • LG500A Mini Dumper

    500 (1).jpg500 (2).jpg
    500 (3).jpg500 (4).jpg
    500 (5).jpg500 (6).jpg

    1. Wide range of use, simple structure, smooth transmission, labor-saving operation, and easy to realize automatic control.

    2. It is suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice.

    3. Large traction, good climbing performance and strong transportation capacity.

    4. Small turning radius, flexible and flexible, especially suitable for narrow sites, reducing the cost of road construction.


  • Engine ModelGM170F
    Engine TypeSingle Cylinder, OHV, 4 Strokes, Air Cooling
    Displacement (cc)208cc
    Rated Power4.2 kw / 3600 rpm
    Fuel Type92 # Gasoline
    Fuel Consumption ≤0.395
    Fuel Tank Capacity 3.6L
    Engine Oil Capacity 0.6L
    Total Weight 300kg
    Max Loading Weight 500kg
    Machine Size 1730x900x1110
    Cargo box Capacity 216.07dm³
    Tipping Systme:By hand
    Track Ground Length 830mm
    Track grage622mm
    Track Width180mm
    Tipping Angle38A°
    Walking Speed 0-7.8km/h
    Minimum Turning Radius 1.15m
    Minimum Ground Clearance 100mm
    Gearbox Oil ModelGL-4
    Gearbox Capacity2.5L
    Climbing Ability20°
