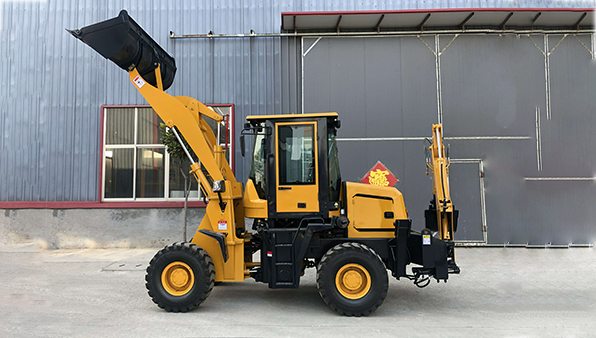

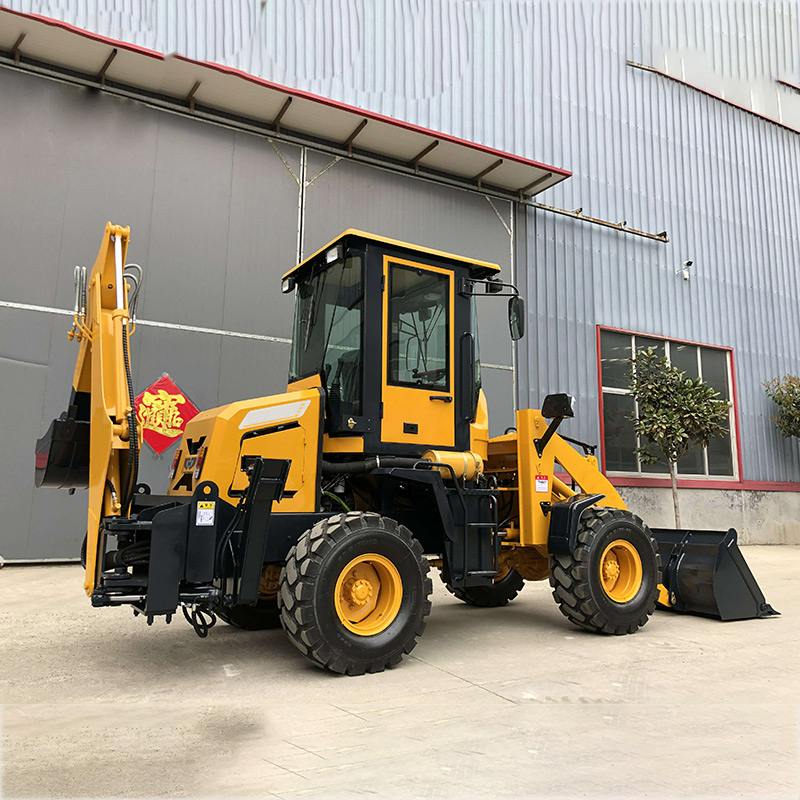

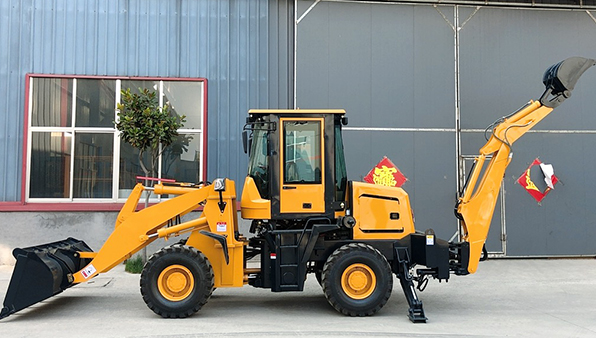

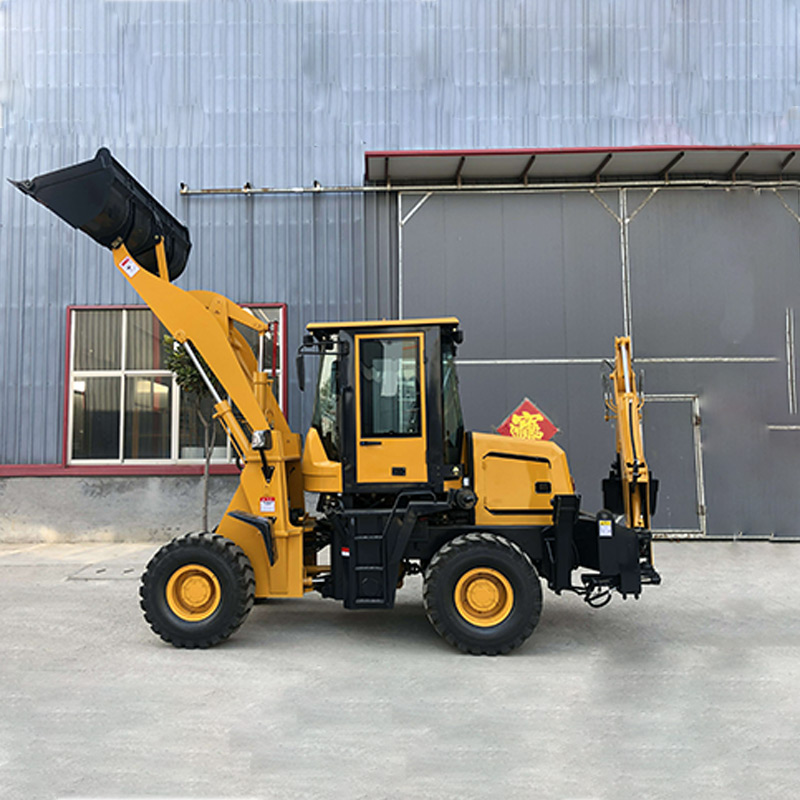

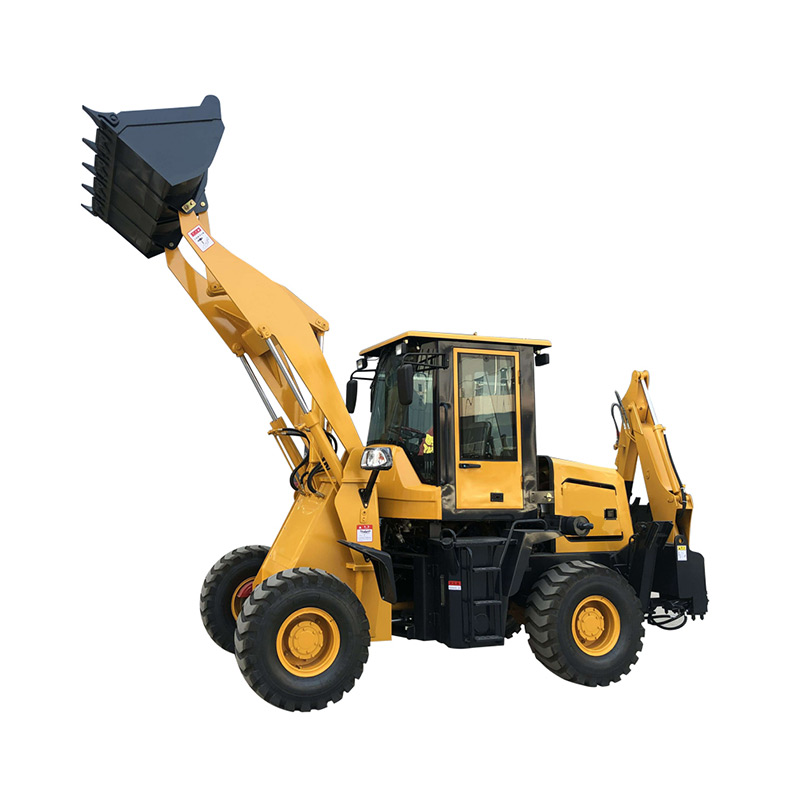

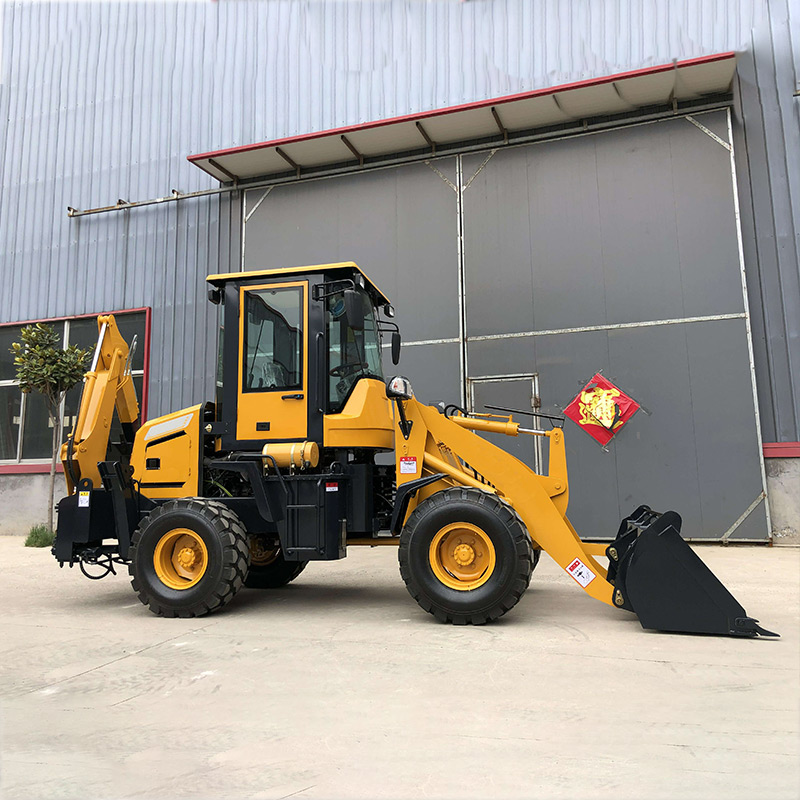

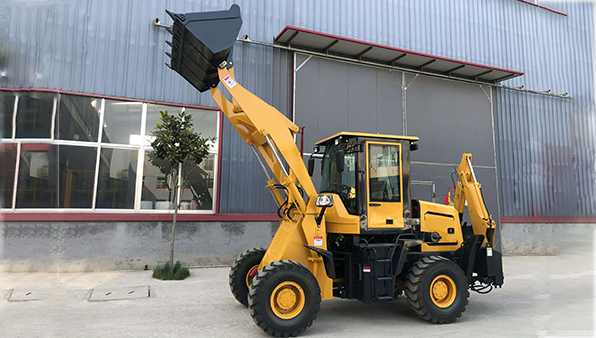

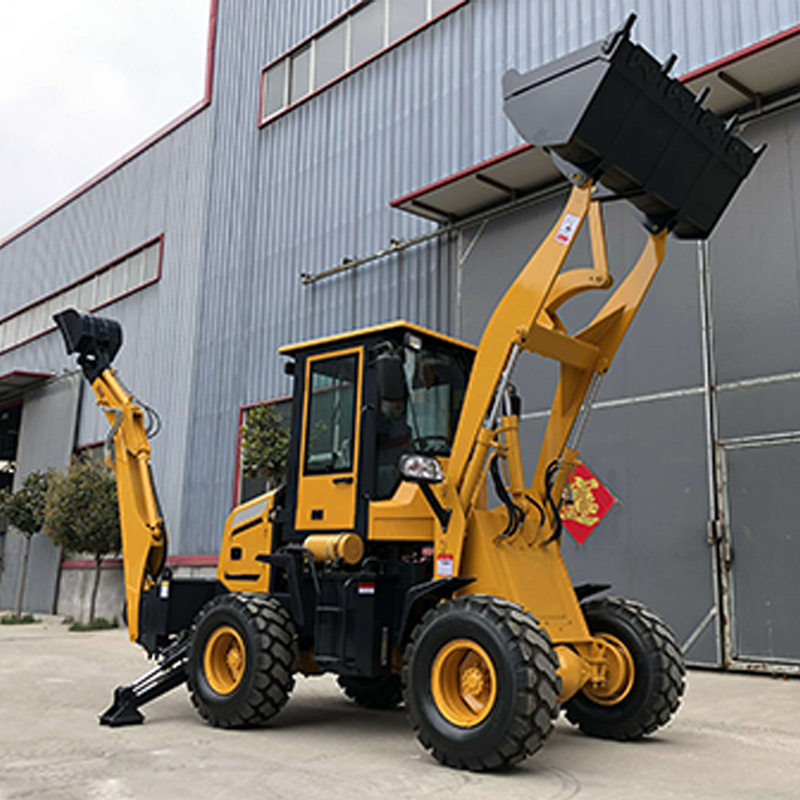

Backhoe Load - KVL70

The shovel-digging machine is commonly known as “busy at both ends”. It can perform two-end operations, one end for excavation operations, and the other end for loading and shoveling operations.

Length：5600mm Height：2750mm Weight：4200kg Engine Power：58KwW/80hp Wheelbase：2315mm

The shovel-digging machine is commonly known as “busy at both ends”. It can perform two-end operations, one end for excavation operations, and the other end for loading and shoveling operations.

Length：5600mm Height：2750mm Weight：4200kg Engine Power：58KwW/80hp Wheelbase：2315mm

" "

MODEL	KV70
WEIGHT
Total weight	4200kg
SIZE
Bucket capacity	0.7m³
total length	5600mm
total transport height	2650mm
Vehicle width	1850mm
Total Weight	4000kg
tire width	23.5-16
Excavator rotation angle	180°
wheel tread	1500mm
wheelbase	2315mm
Bucket maximum capacity	0.5m³
Minimum ground clearance	260mm
Minimum radius of gyration	1900mm
Maximum grade	30°
DRIVE
Engine speed	2200r/min
engine power	58KwW/80hp
hydraulic system pressure	16Mpa
WALKING CHARACTERISTICS
Working device mode	Back Hole
fastest walking speed	35km/h

Total length	5600mm	total height	2750mm	Vehicle width	1850mm
working weight	4200kg	hydraulic system pressure	19MPa	Maximum excavation height	4500mm
Bucket capacity	0.10m³	tire width	23.5-16	Excavator rotation angle	180°
wheel tread	1500mm	wheelbase	2315mm	Bucket maximum capacity	0.7m³
Minimum ground clearance	260mm	fastest walking speed	35km/h	Maximum grade	30°
engine power	58KwW/80hp	System pressure	16Mpa

Backhoe Load - KVL70

Cab

Operation Handle

Load the Bucket

Cab

Operation Handle

Load the Bucket



Cab Enlarged cab, safety glass, spacious and bright, movable seat, allowing you to facilitate the conversion operation of digging and loading, simple and flexible.
	Operation Handle The coherent compound action one-to-two operation handle is simple and easy to operate, fully meeting your needs!
Load the Bucket It is used for filling and excavation of roadbed engineering, aggregate and charging of asphalt mixture and cement concrete yard. In addition, it can also carry out operations such as pushing soil, scraping the ground and pulling other machinery. Because the loader has the advantages of fast operation speed, high efficiency, good maneuverability, and easy operation, it has become one of the main types of earthwork construction in engineering construction.
