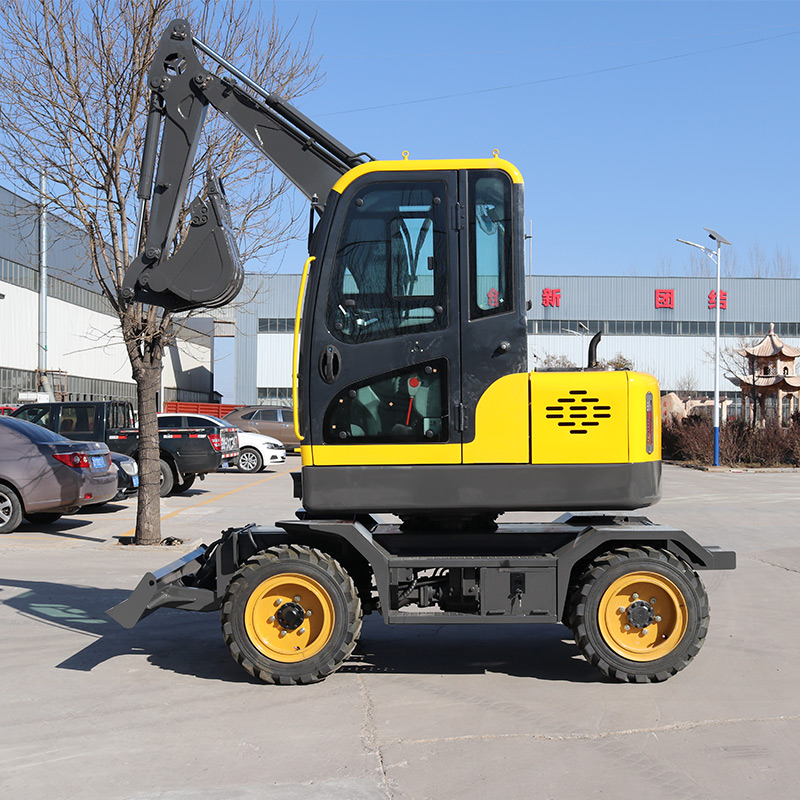

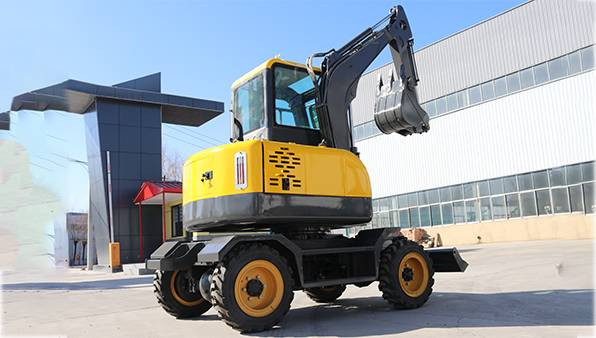

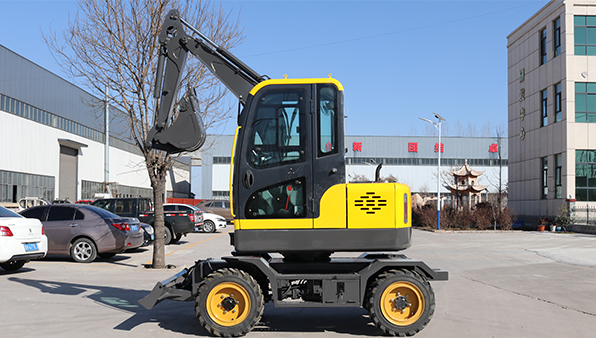

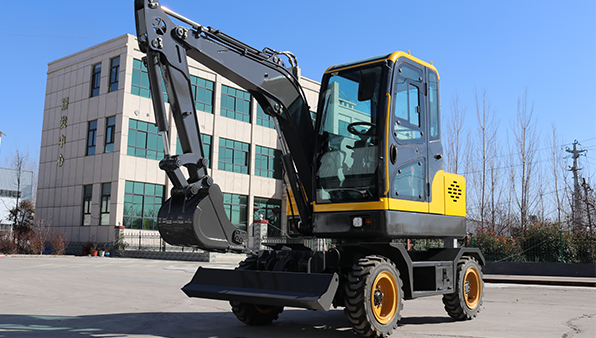

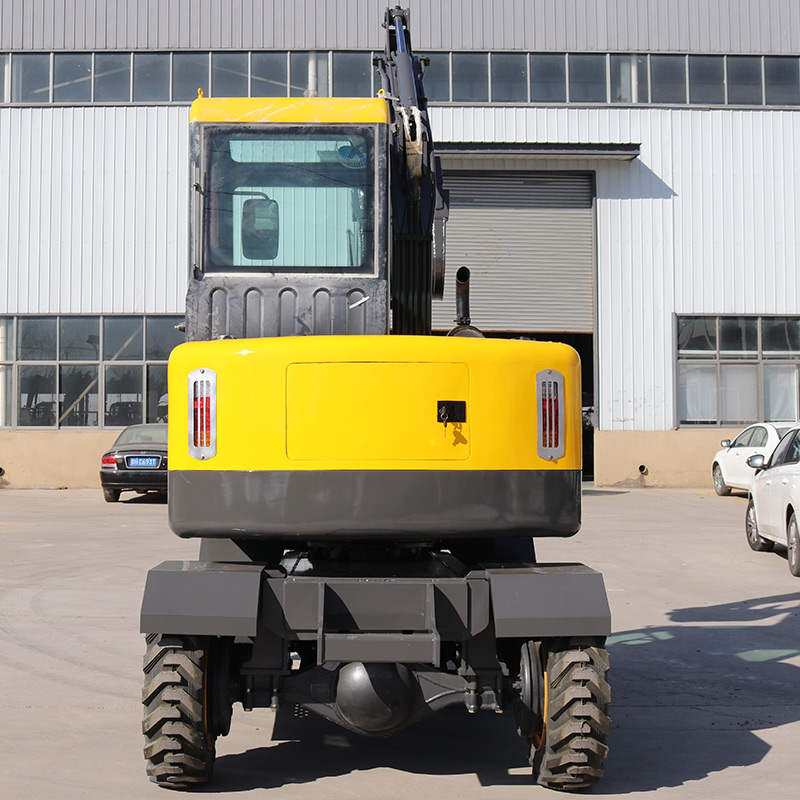

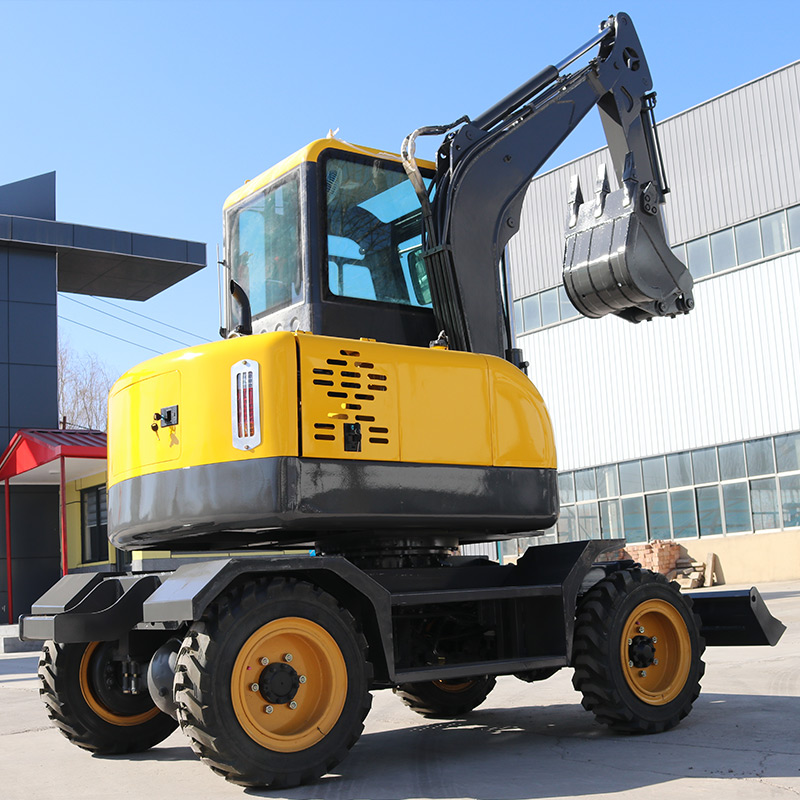

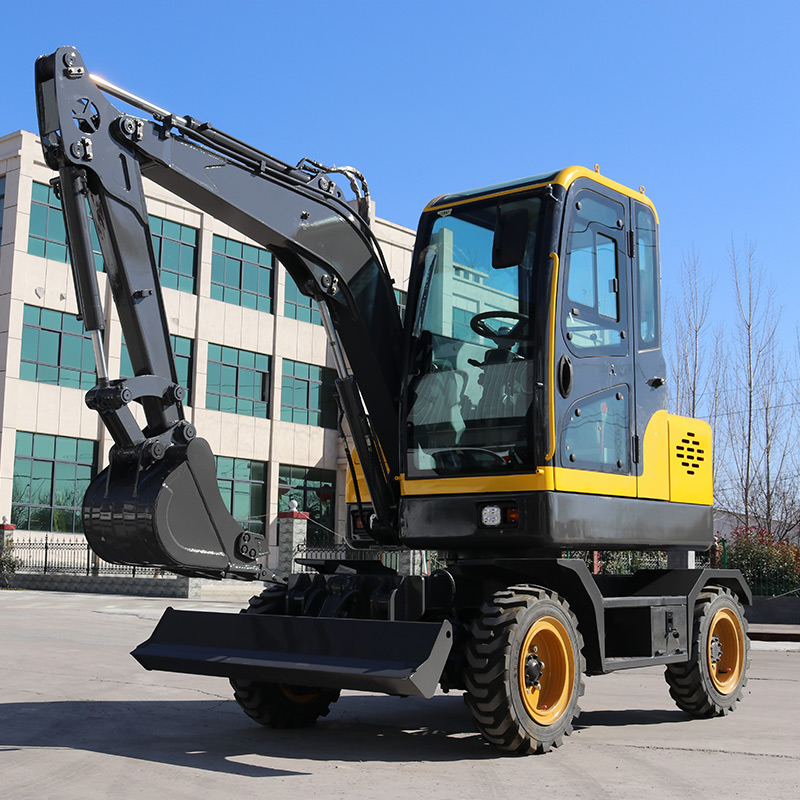

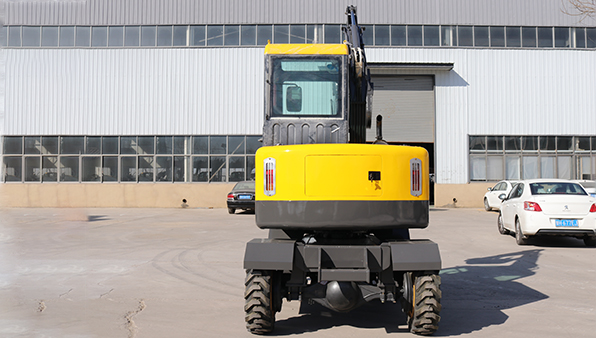

Mini Wheel Excavator - KV35

Wheeled excavators are used in airports, ports, oil fields, mines, urban and rural construction, farmland and water conservancy and other operation occasions with their distinctive characteristics of fast walking speed, flexible and rapid transfer and rapid replacement of a variety of operation devices. They are known as “good helpers” in the construction field.

Length：4400mm Height：1600mm Weight：3600kg Bucket Capacity：0.26m³ Engine Power：34kw

Wheeled excavators are used in airports, ports, oil fields, mines, urban and rural construction, farmland and water conservancy and other operation occasions with their distinctive characteristics of fast walking speed, flexible and rapid transfer and rapid replacement of a variety of operation devices. They are known as “good helpers” in the construction field.

Length：4400mm Height：1600mm Weight：3600kg Bucket Capacity：0.26m³ Engine Power：34kw

" "

MODEL	KV35
WEIGHT
Total weight	3600kg
SIZE
Bucket capacity	0.26m³
total length	4400mm
total transport height	1600mm
Vehicle width	3600kg
Total Weight	2700mm
ground clearance	227mm
Maximum excavation height	4650mm
Maximum unloading height	3050mm
Max. digging depth	2545mm
Maximum digging radius	4630mm
wheelbase	123mm
Maximum horizontal digging distance	1820mm
wheel tread	1500mm
DRIVE
engine power	37kw/50
Engine Type	Yunnei 490
hydraulic system pressure	16MPa
WALKING CHARACTERISTICS
Working device mode	Back Hole
Walking speed	20km/h

Total length	4400mm	total height	2450mm	Vehicle width	1600mm
Total Weight	3600kg	hydraulic system pressure	22MPa	Maximum excavation height	4650mm
Bucket capacity	0.26m³	Maximum unloading height	3050mm	engine model	Yunnei 490
Maximum excavation depth	2545mm	engine power	34kw	Maximum digging radius	4630mm
wheelbase	1230mm	Maximum horizontal digging distance	1820mm	Maximum side excavation distance	1820mm
Walking speed	20km/h	ground clearance	227mm	wheel tread	1500mm

Mini Wheel Excavator - KV35

Cab

Off-road Tires

Hydraulic System

Cab

Off-road Tires

Hydraulic System

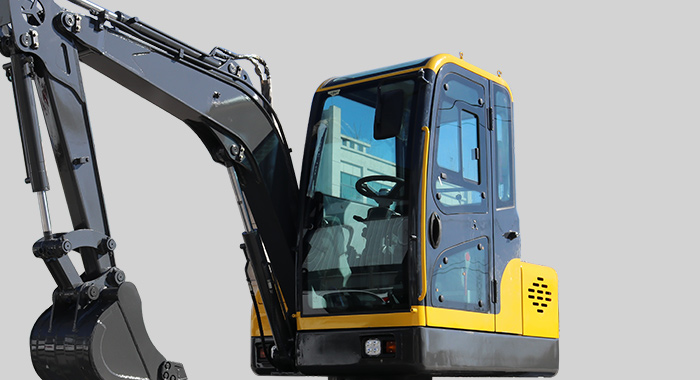

Cab Designed according to the principles of engineering, the concept of comfort, wide vision, spacious and bright, user-friendly front gear mechanism, equipped with adjustable suspension seats, silicone oil shock absorption, comfortable driving environment.

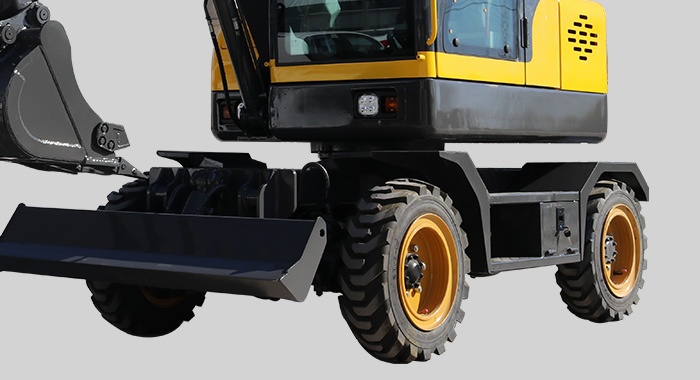

	Off-road Tires Off-road anti-skid tires, with deeper texture, strong grip, not afraid of terrain.

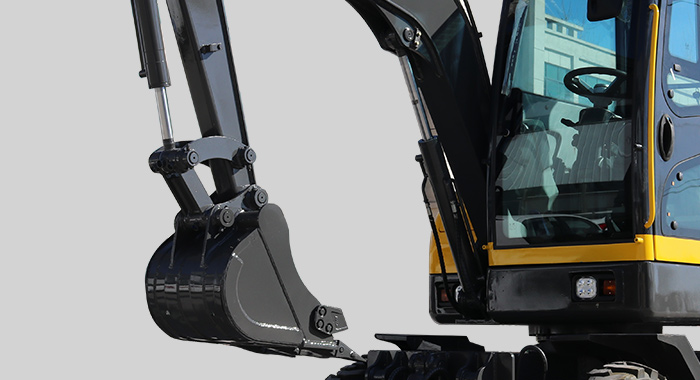

Hydraulic System Well-known brand multi-way valve and advanced rotary reducer, fast action, sufficient strength, good coordination of compound action, high reliability and long service life.

Mini Wheel Excavator - KV35

Cab

Off-road Tires

Hydraulic System

Cab

Off-road Tires

Hydraulic System

KV35 Mini Wheel Excavator
