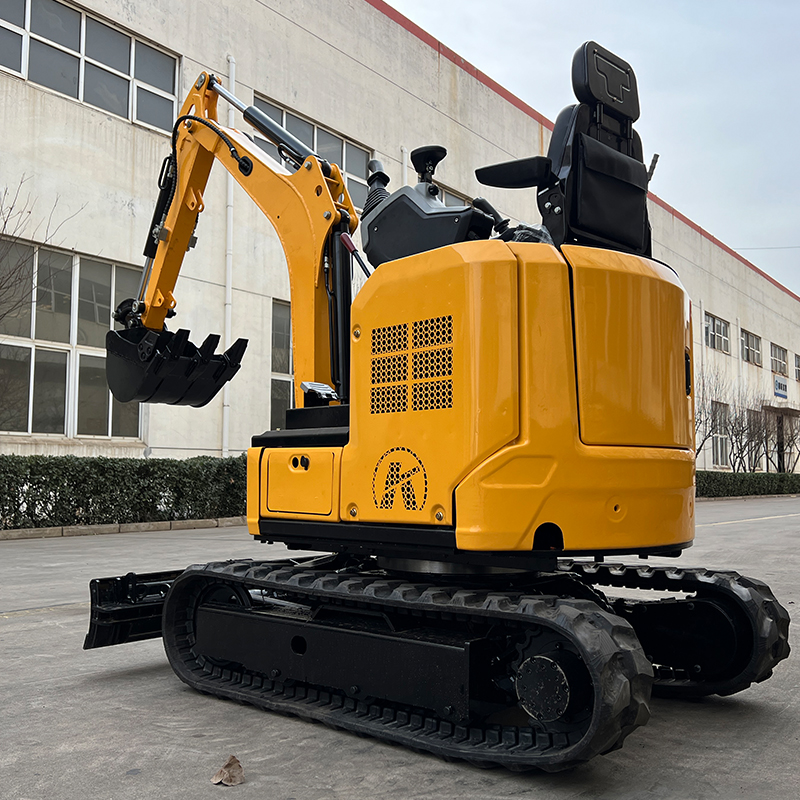

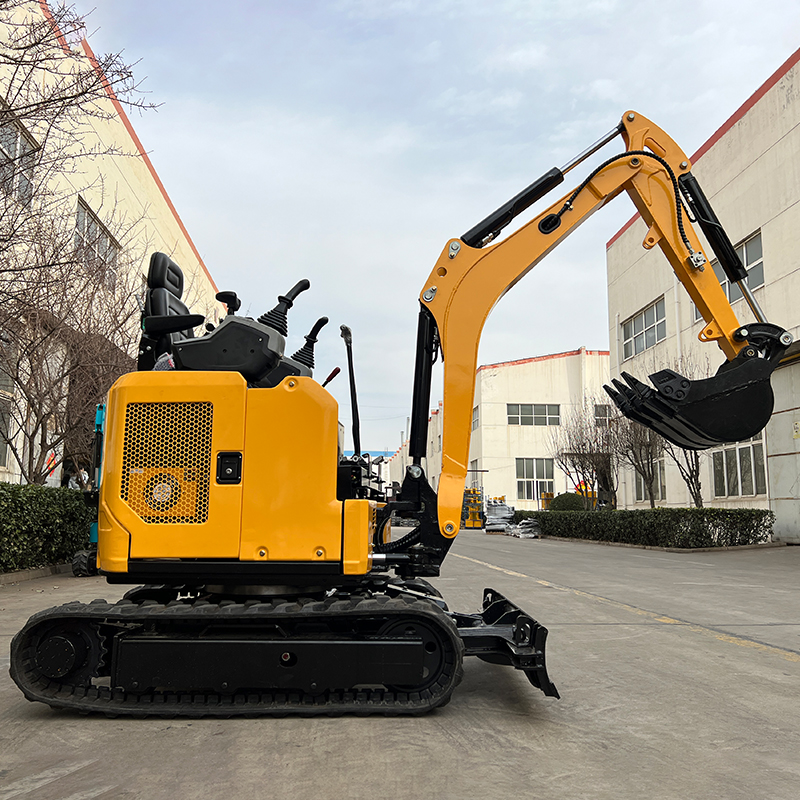

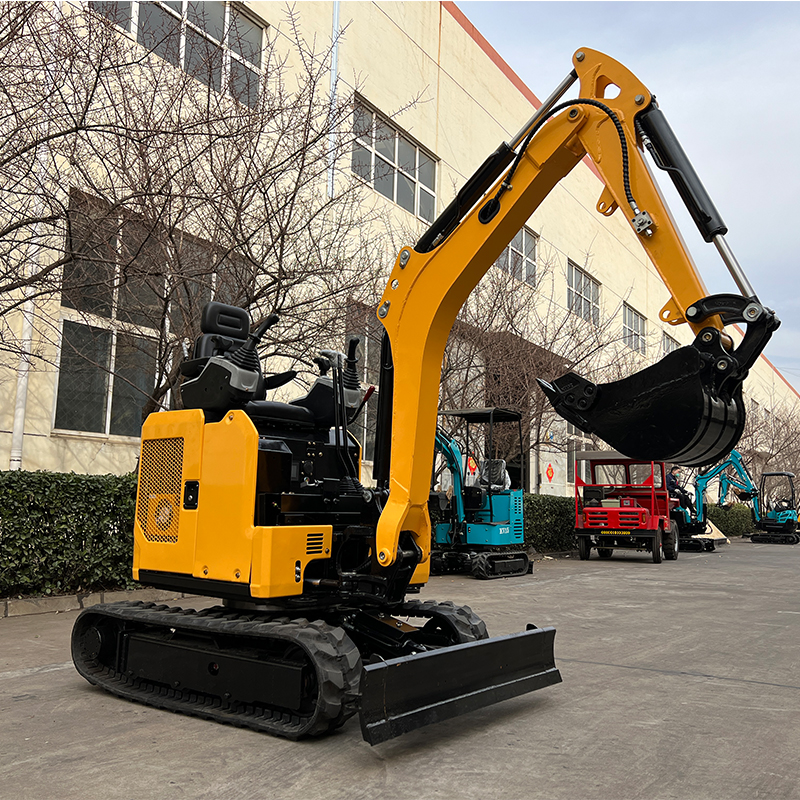

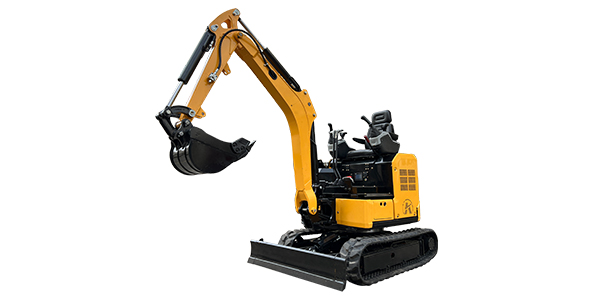

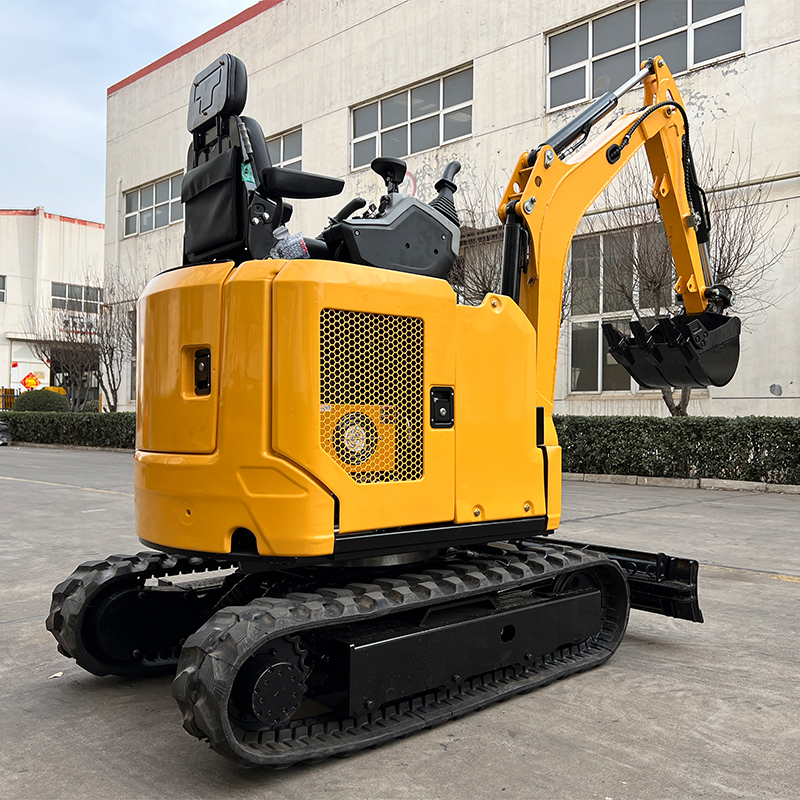

Electric Excavator-KE20

The complete set of hydraulic systems are international well-known brands, no rust, no valve jamming, etc. regardless of wind, sun, rain, etc. At the same time, the products can be customized to meet the needs of different countries and customers. It can be applied to a variety of complex environment operations, whether it is mountains, hills, terraced fields, hard ground, paddy fields, it can be easily done.

Engine：Lithium battery Weight：1800kg chassis：1100/1400mm Digging depth：2350mm Total Size(L*W*H)：3550x1400x2203mm

Engine：Lithium battery Weight：1800kg chassis：1100/1400mm Digging depth：2350mm Total Size(L*W*H)：3550x1400x2203mm

1. Standard configuration
① big arm side swing (left and right swing arms 60 degrees),
② Chassis telescopic, telescopic range 110cm-140cm,
③ Walking high and low speed 1.8-3.7km/h, load-sensitive hydraulic system
The upper arm cylinder, protect the cylinder is not easy to bump, digging more powerful, digging deeper
⑦ One key start
⑧ super large liquid crystal display
⑨ Pedal type side swing and crushing control system for easy operation
2, optional configuration
(1) Cab, air conditioning and warm air can be added
③ Optional Euro 5, EPA engine (Kubota D1105)
④ Standard fuel version, can be motor version or lithium plate

MODEL	KV20
WEIGHT
Total weight	1800kg
SIZE
Bucket capacity	0.04m³
Tyre gauge	420mm
Track length	1500mm
Mini ground clearance	400mm
Width of chassis	1100/1400mm
Over length	3350mm
Machine height	1250mm
Max. digging radius	3800mm
Max. digging depth	2350mm
Max. digging height	3200mm
Max. dumping height	2990mm
Max. vertical depth	1400mm
Min. gyration radius	1190mm
DRIVE
Engine	Diesel or EPA gasoline engine
Engine Type	Kubota D1105 EPA4
WALKING CHARACTERISTICS
Working device mode	Back Hole
Power	18.2kw/25hp

Weight	1800kg	Track width	920mm	Standard Bucket Capacity	0.04m³
Track ground length	1500mm	Working device form	backhoe	Platform ground clearance	400mm
power	18.2kw/25hp	Chassis width	1100mm/1400mm	Maximum digging radius	3800mm
Track width	240mm	Maximum excavation depth	2350mm	Transport length	3550mm
Maximum excavation height	3200mm	full vehicle height	2203mm	Maximum unloading height	2290mm
Radius of gyration	1645mm	Hydraulic pump	Imported from Japan	Multi-way valve	Imported from Italy
