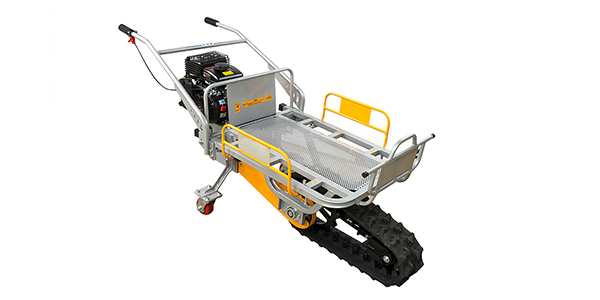

Mini Crawler Dumper-LG500H
LG500H MIni Dumper
LG500H MIni Dumper
LG500H MIni Dumper
LG500H MIni Dumper

Mini Crawler Dumper-LG500H

The Mini Crawler Dumper can adapt to complex and harsh road conditions such as rice fields, swamps, muddy field roads, rugged mountain roads, soft grass and deserts, slippery ice and snow, etc. , Infrastructure engineering, mining sites are widely used.

Body Weight ：75kg Maximum Load ：150kg Body Length(L*W*H)：1900*680*790mm Fuel tank volume： 1.6L Reverse gear ：1.65km/h
  • Selling point
  • Configuration
  • Video Introduction
  • Relevant
  • Online message
  • Back to previous
We Accept:
Mini Crawler Dumper-LG500H

The Mini Crawler Dumper can adapt to complex and harsh road conditions such as rice fields, swamps, muddy field roads, rugged mountain roads, soft grass and deserts, slippery ice and snow, etc. , Infrastructure engineering, mining sites are widely used.

Body Weight ：75kg Maximum Load ：150kg Body Length(L*W*H)：1900*680*790mm Fuel tank volume： 1.6L Reverse gear ：1.65km/h

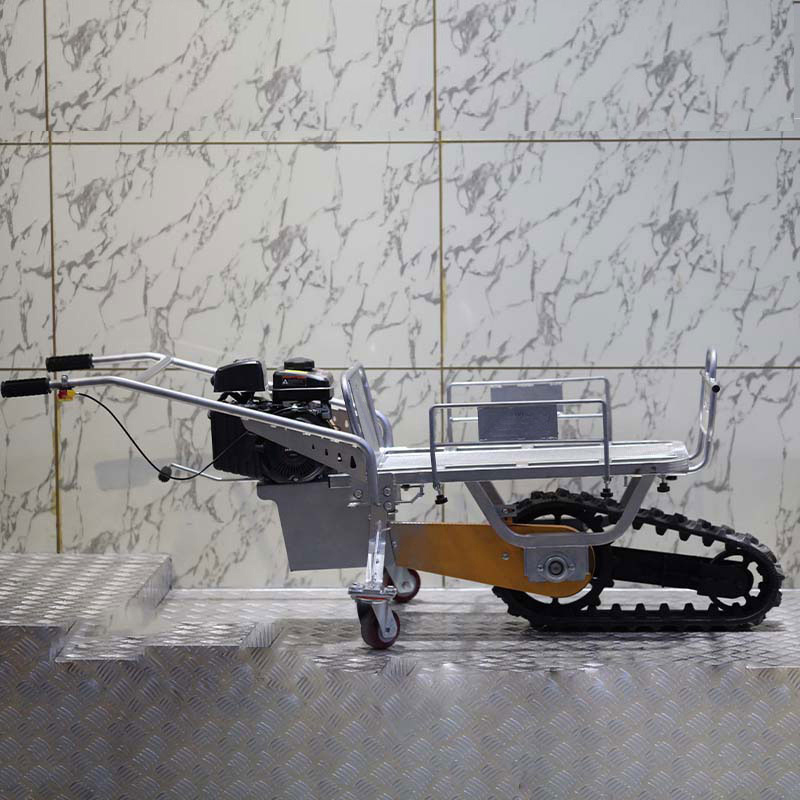

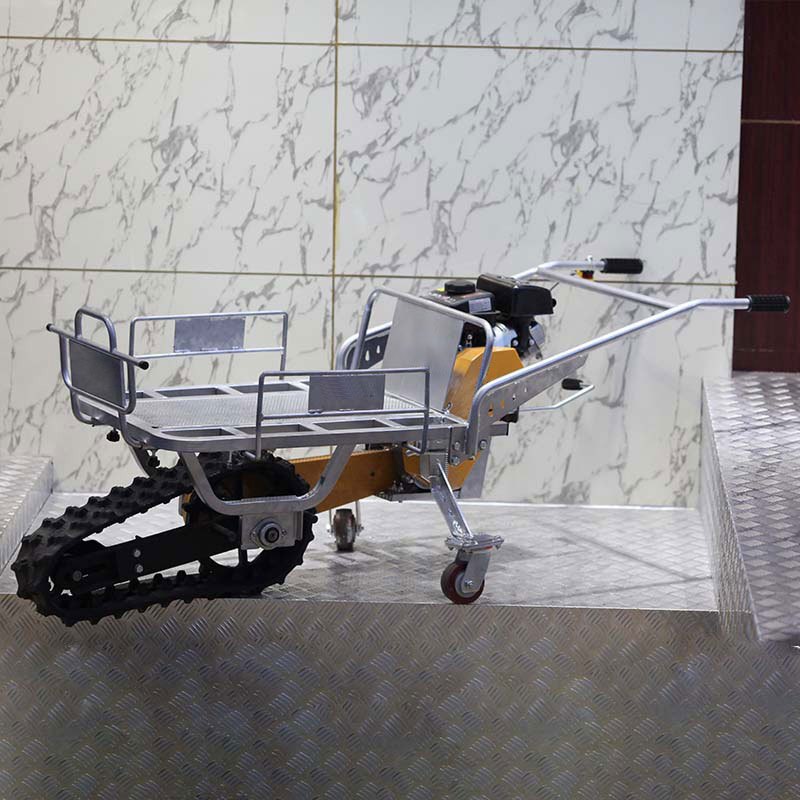

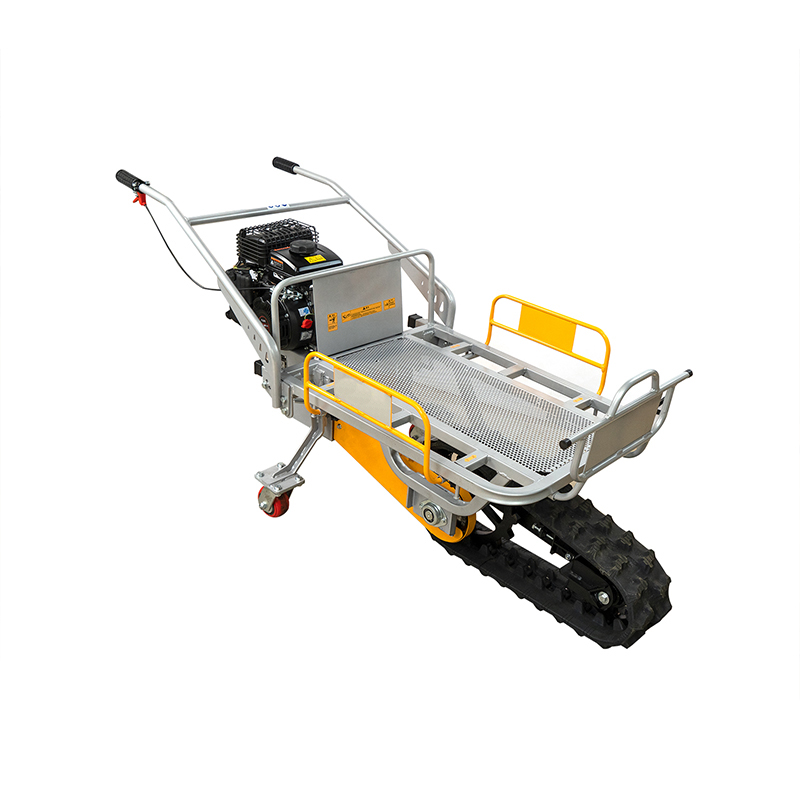

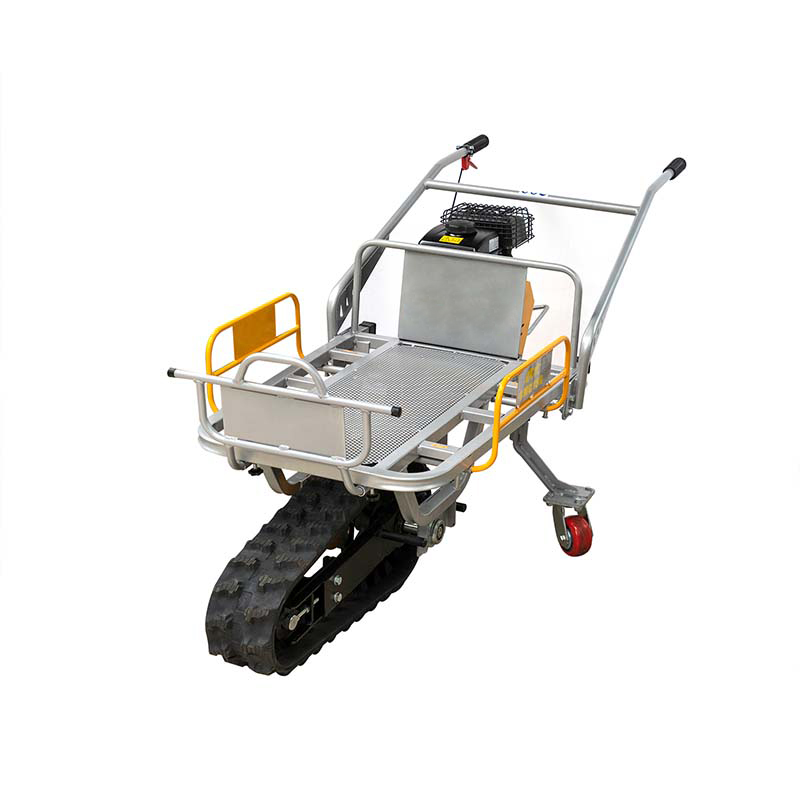

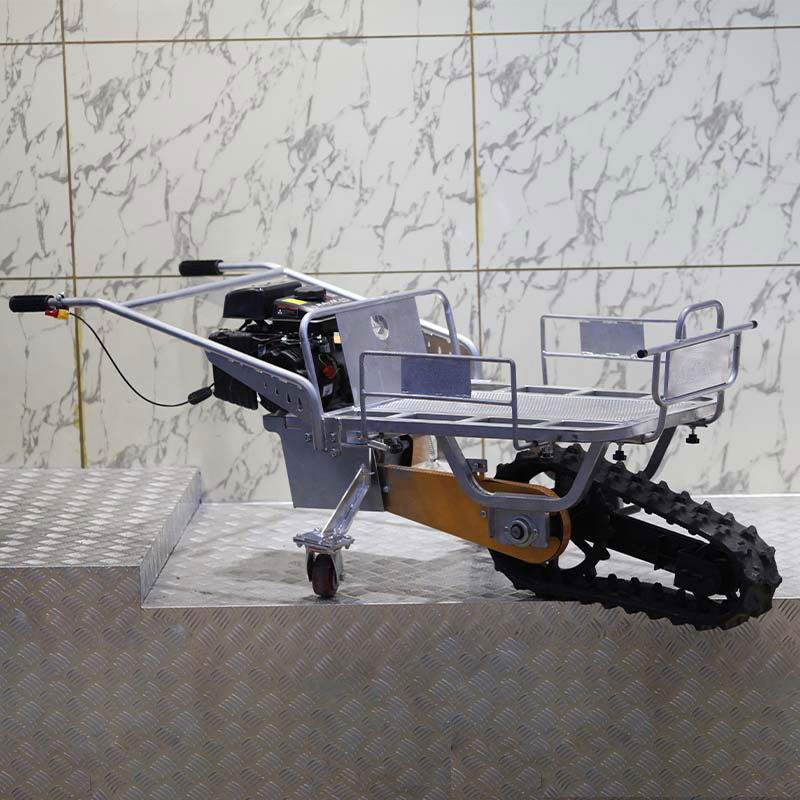

  • LG500H Mini Dumper

    500 (1).jpg500 (2).jpg
    500 (3).jpg500 (4).jpg
    500 (5).jpg500 (6).jpg

    1. Wide range of use, simple structure, smooth transmission, labor-saving operation, and easy to realize automatic control.

    2. It is suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice.

    3. Large traction, good climbing performance and strong transportation capacity.

    4. Small turning radius, flexible and flexible, especially suitable for narrow sites, reducing the cost of road construction.

  • Name Model

    GMC150



    Body weight

    75kg



    Gross weight

    151kg



    Maximum load

    150kg



    Body LxWxH

    1900x680x790mm



    Track ground surface length

    450mm



    Track width

    150mm



    Cargo box table size

    900x800



    Engine Name

    GM156



    Total displacement

    98.5ml



    Rated power

    1.5/3600kw/rpm



    Use fuel

    93 unleaded gasoline



    Fuel consumption

    ≤0.374g/kw.h



    Fuel tank volume

    1.6L



    Oil capacity

    0.36L

    Forward fast gear

    2.7km/h

    Forward fast gear

    2.7km/h



    Reverse gear

    1.65km/h



    Gradeability

    20°



    Transmission oil quantity

    0.3L



    Package size(LXWXH)

    1530x750x750mm







  • LG500H Mini Dumper

    500 (1).jpg500 (2).jpg
    500 (3).jpg500 (4).jpg
    500 (5).jpg500 (6).jpg

    1. Wide range of use, simple structure, smooth transmission, labor-saving operation, and easy to realize automatic control.

    2. It is suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice.

    3. Large traction, good climbing performance and strong transportation capacity.

    4. Small turning radius, flexible and flexible, especially suitable for narrow sites, reducing the cost of road construction.

  • Configuration

    Name Model

    GMC150

    Body weight

    75kg

    Gross weight

    151kg

    Maximum load

    150kg

    Body LxWxH

    1900x680x790mm

    Track ground surface length

    450mm

    Track width

    150mm

    Cargo box table size

    900x800

    Engine Name

    GM156

    Total displacement

    98.5ml

    Rated power

    1.5/3600kw/rpm

    Use fuel

    93 unleaded gasoline

    Fuel consumption

    ≤0.374g/kw.h

    Fuel tank volume

    1.6L

    Oil capacity

    0.36L

    Forward fast gear

    2.7km/h

    Forward fast gear

    2.7km/h

    Reverse gear

    1.65km/h

    Gradeability

    20°

    Transmission oil quantity

    0.3L

    Package size(LXWXH)

    1530x750x750mm
